← All Products- ← Ergonomic Solutions- ← Manual Pallet Trucks -← Standard Pallet Truck- PM5-2748-Y

PM5-2748-Y

Printer Friendly
Available
PM5-2748-Y
PM5-2748-Y PM5-2748-Y PM5-2748-Y PM5-2748-Y PM5-2748-Y PM5-2748-Y PM5-2748-Y

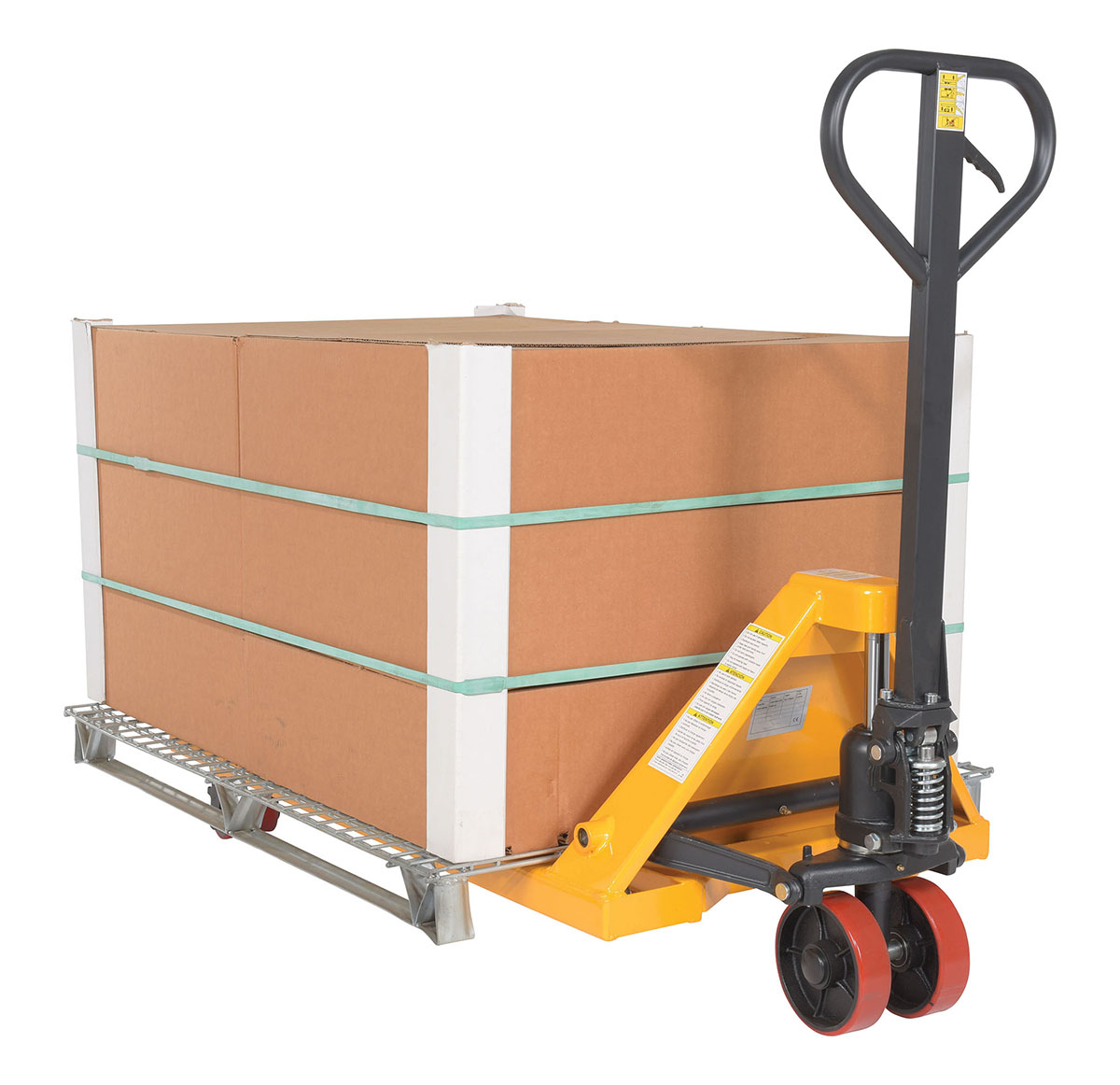

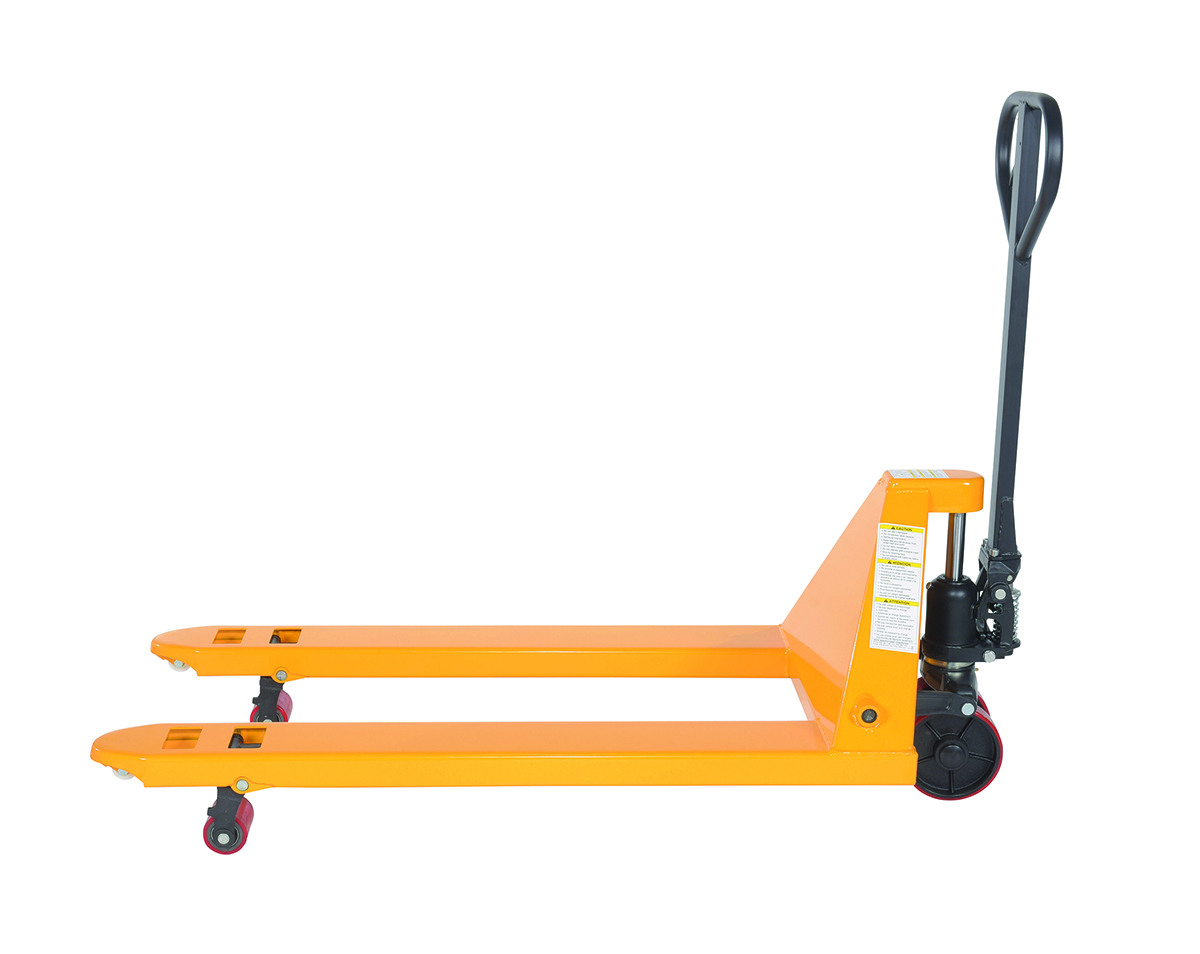

Steel Pallet Truck 61-11/16 In. x 28-3/4 In. x 48-5/8 In. 5500 Lb. Capacity Yellow

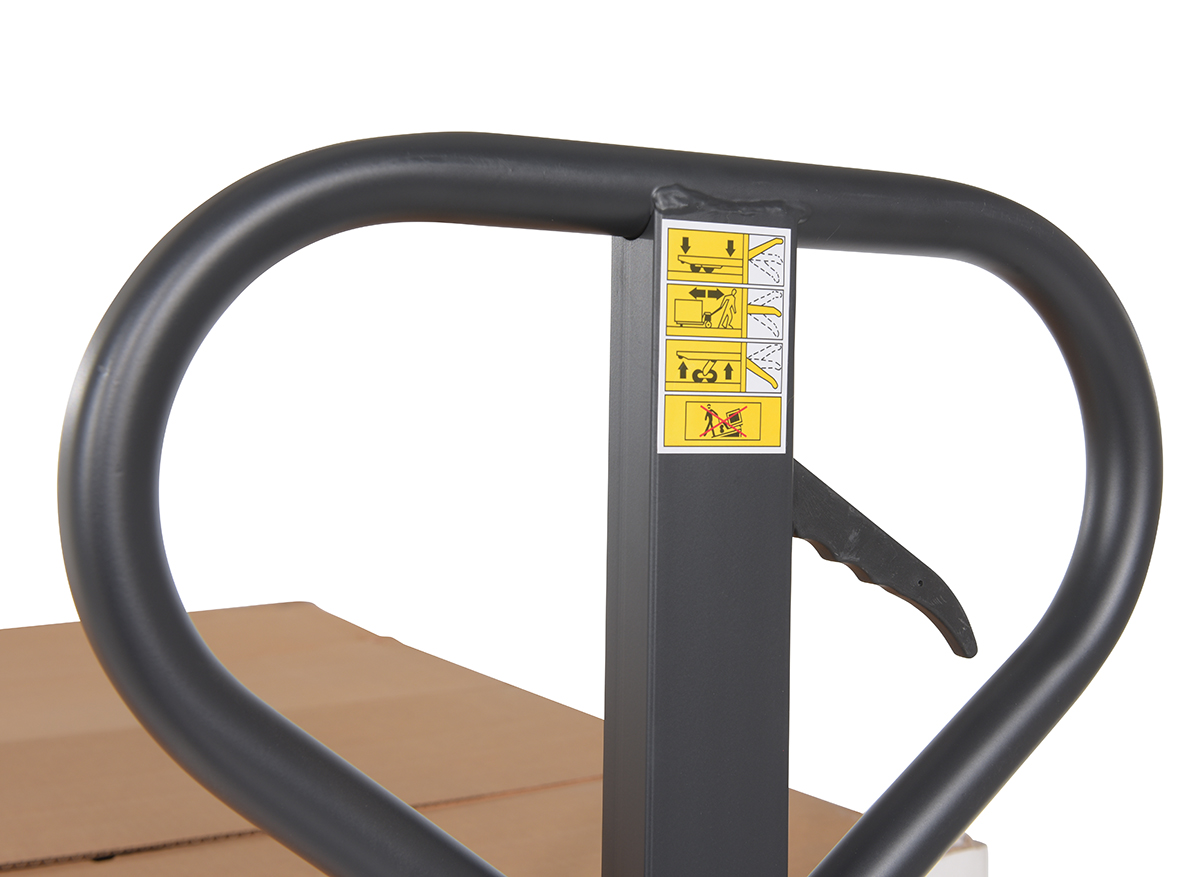

The standard pallet truck has a proven ergonomic design that has been time-tested for providing years of reliable service. It's an economical way for one person to move pallet loads without the use of a fork truck. The ergonomic design requires only seventy-five (75) pounds of pulling force when fully loaded. The spring loaded hoop handle automatically returns to vertical position when not in use. Chrome-plated hydraulic pump piston for long seal life. This pallet truck is quality built, user friendly, requires low maintenance, and has a powder coat finish.

  • Ergonomic design requires only seventy-five (75) pounds of pulling force when fully loaded
  • Steering wheels include bearing dust covers for added life
  • Nose wheels are located on the front edge of each fork to assist in clean pallet entrance and exit
  • Chrome-plated hydraulic pump piston for long seal life
Assembled Wt.(lbs.): 203 Assembled Size: 28.75"W x 61.6875"L x 48.625"H

Total Ship Wt.(lbs.): 198 (only 1 package) Package 1 Size: 42"W x 66"D x 22"H Color: Yellow

Uniform Capacity (lb.): 5,500 Fork Spacing (in.): 27 Fork Width/Length (in.): 7 x 48
Service Range (in.): 2-7/8 to 7-3/4 Steer Caster Qty./Diameter/Width (in.): (2) 6-3/4 x 2 Steer Caster Material: Poly-on-Steel
Load Roller Qty./Diameter/Width (in.): (2) 2-7/8 x 2-1/2 Load Roller Material: Polyurethane

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

1 Year Limited Warranty

Details For Model: PM5-2748-Y
Available
PM5-2748-Y

Steel Pallet Truck 61-11/16 In. x 28-3/4 In. x 48-5/8 In. 5500 Lb. Capacity Yellow

The standard pallet truck has a proven ergonomic design that has been time-tested for providing years of reliable service. It's an economical way for one person to move pallet loads without the use of a fork truck. The ergonomic design requires only seventy-five (75) pounds of pulling force when fully loaded. The spring loaded hoop handle automatically returns to vertical position when not in use. Chrome-plated hydraulic pump piston for long seal life. This pallet truck is quality built, user friendly, requires low maintenance, and has a powder coat finish.

  • Ergonomic design requires only seventy-five (75) pounds of pulling force when fully loaded
  • Steering wheels include bearing dust covers for added life
  • Nose wheels are located on the front edge of each fork to assist in clean pallet entrance and exit
  • Chrome-plated hydraulic pump piston for long seal life
Dimensions: 28.75"W x 61.6875"L x 48.625"H Sell UOM: -- Color: Yellow
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 198 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity (lb.): 5,500 Fork Spacing (in.): 27 Fork Width/Length (in.): 7 x 48
Service Range (in.): 2-7/8 to 7-3/4 Steer Caster Qty./Diameter/Width (in.): (2) 6-3/4 x 2 Steer Caster Material: Poly-on-Steel
Load Roller Qty./Diameter/Width (in.): (2) 2-7/8 x 2-1/2 Load Roller Material: Polyurethane
