CART-24-10-M
CART-24-10-M CART-24-10-M CART-24-10-M CART-24-10-M CART-24-10-M CART-24-10-M

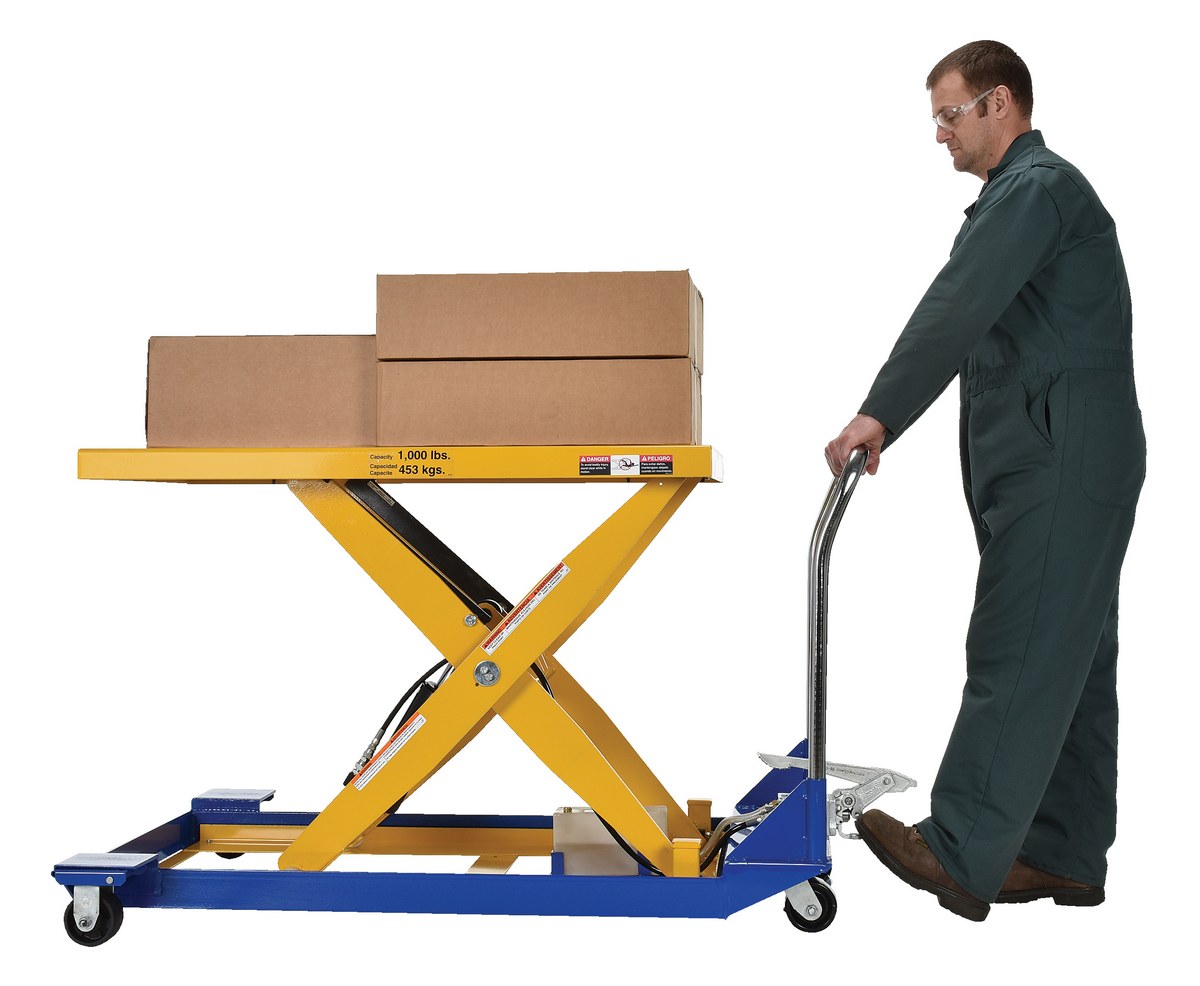

Steel Foot Pump Scissor Cart 46-13/16 In. x 23-7/16 In. 1000 Lb. Capacity Blue / Yellow

The manually powered Scissor Cart table provides an unparalleled support in lifting, palletizing, loading, and unloading applications. The cart is raised or lowered with a manual two-speed foot pump. The unit rolls smoothly on two rigid and two swivel phenolic casters with brakes. Open design with access from thee sides.

  • Solid steel constructions offers long lasting rugged use
  • Push handle is removable for user convenience
  • Phenolic casters with brakes make transportation easy
  • Features an internal safety velocity fuse in each cylinder
Assembled Wt.(lbs.): 384 Assembled Size: 36.1875"W x 69.3125"L x 38.125"H

Total Ship Wt.(lbs.): 448 (only 1 package) Package 1 Size: 40"W x 64"D x 25"H Color: Blue / Yellow

Uniform Capacity (lb.): 1,000 Platform Width (in.): 23-7/16 Platform Length (in.): 46-13/16
Lowered Height (in.): 9-1/8 Raised Height (in.): 38-1/8 Pumps at Low/High Speed (qty.): 63/31
Caster Quantity/Diameter/Width (in.): (4) 4 x 2 Caster Material: Phenolic Caster Type: (2) Rigid (2) Swivel with Brakes
Operation: Foot Pump Foot Pump Type: 2-Speed Auto Shift Overall Width (in.): 36-3/16
Overall Length (in.): 69-5/16 Handle Height (in.): 36-3/4 Removable Handle: Yes
Maximum Travel distance (in.): 29

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

1 Year Limited Warranty

Details For Model: CART-24-10-M
Out of Stock - Please Contact Sales
CART-24-10-M

Steel Foot Pump Scissor Cart 46-13/16 In. x 23-7/16 In. 1000 Lb. Capacity Blue / Yellow

The manually powered Scissor Cart table provides an unparalleled support in lifting, palletizing, loading, and unloading applications. The cart is raised or lowered with a manual two-speed foot pump. The unit rolls smoothly on two rigid and two swivel phenolic casters with brakes. Open design with access from thee sides.

  • Solid steel constructions offers long lasting rugged use
  • Push handle is removable for user convenience
  • Phenolic casters with brakes make transportation easy
  • Features an internal safety velocity fuse in each cylinder
Dimensions: 36.1875"W x 69.3125"L x 38.125"H Sell UOM: -- Color: Blue / Yellow
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 448 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity (lb.): 1,000 Platform Width (in.): 23-7/16 Platform Length (in.): 46-13/16
Lowered Height (in.): 9-1/8 Raised Height (in.): 38-1/8 Pumps at Low/High Speed (qty.): 63/31
Caster Quantity/Diameter/Width (in.): (4) 4 x 2 Caster Material: Phenolic Caster Type: (2) Rigid (2) Swivel with Brakes
Operation: Foot Pump Foot Pump Type: 2-Speed Auto Shift Overall Width (in.): 36-3/16
Overall Length (in.): 69-5/16 Handle Height (in.): 36-3/4 Removable Handle: Yes
Maximum Travel distance (in.): 29
