Model Details

← All Products- ← Ergonomic Solutions- ← Elevating Lift Carts -← DC Powered and Manual Scissor Carts- CART-23-10-M

CART-23-10-M

Printer Friendly
Out of Stock - Please Contact Sales
CART-23-10-M
CART-23-10-M CART-23-10-M CART-23-10-M CART-23-10-M CART-23-10-M CART-23-10-M CART-23-10-M CART-23-10-M CART-23-10-M CART-23-10-M CART-23-10-M

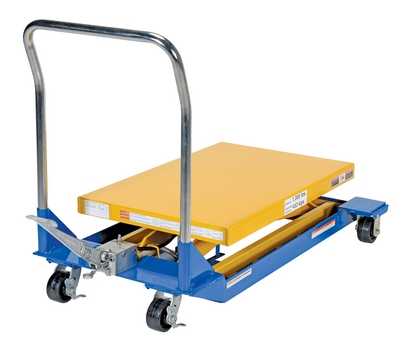

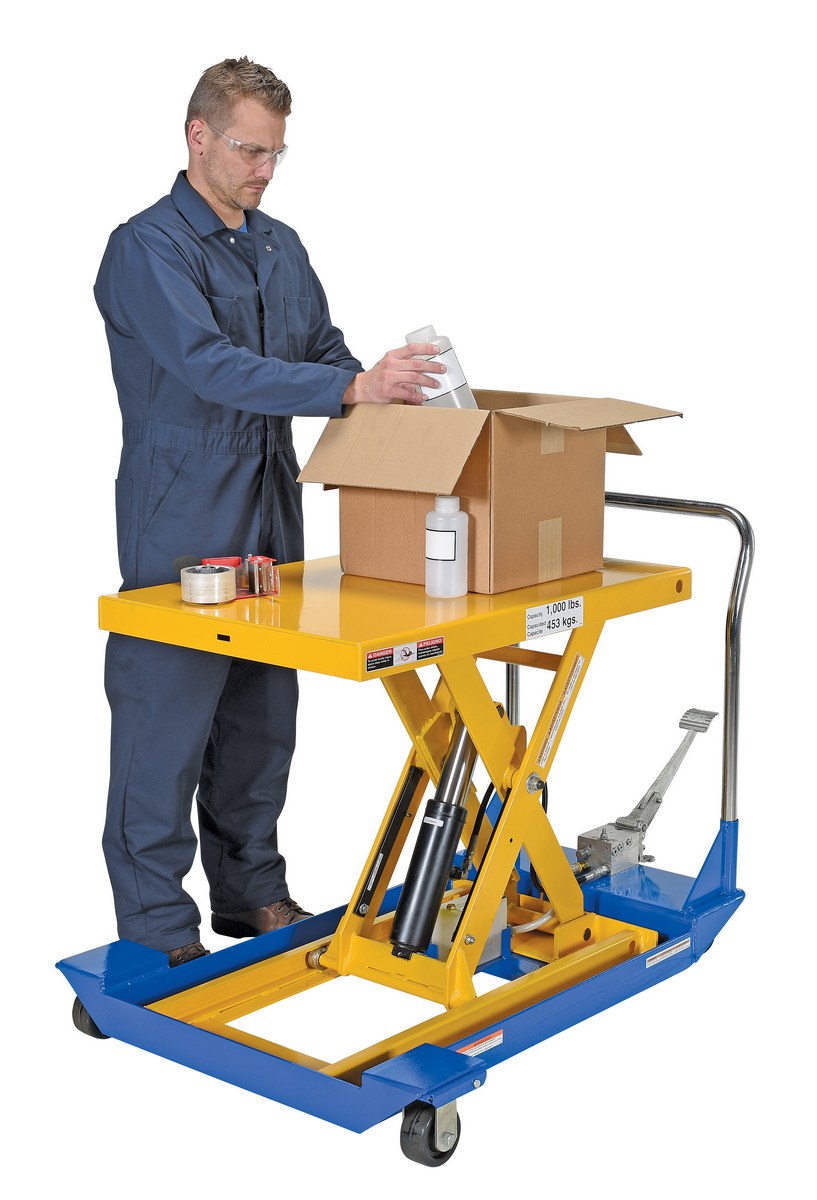

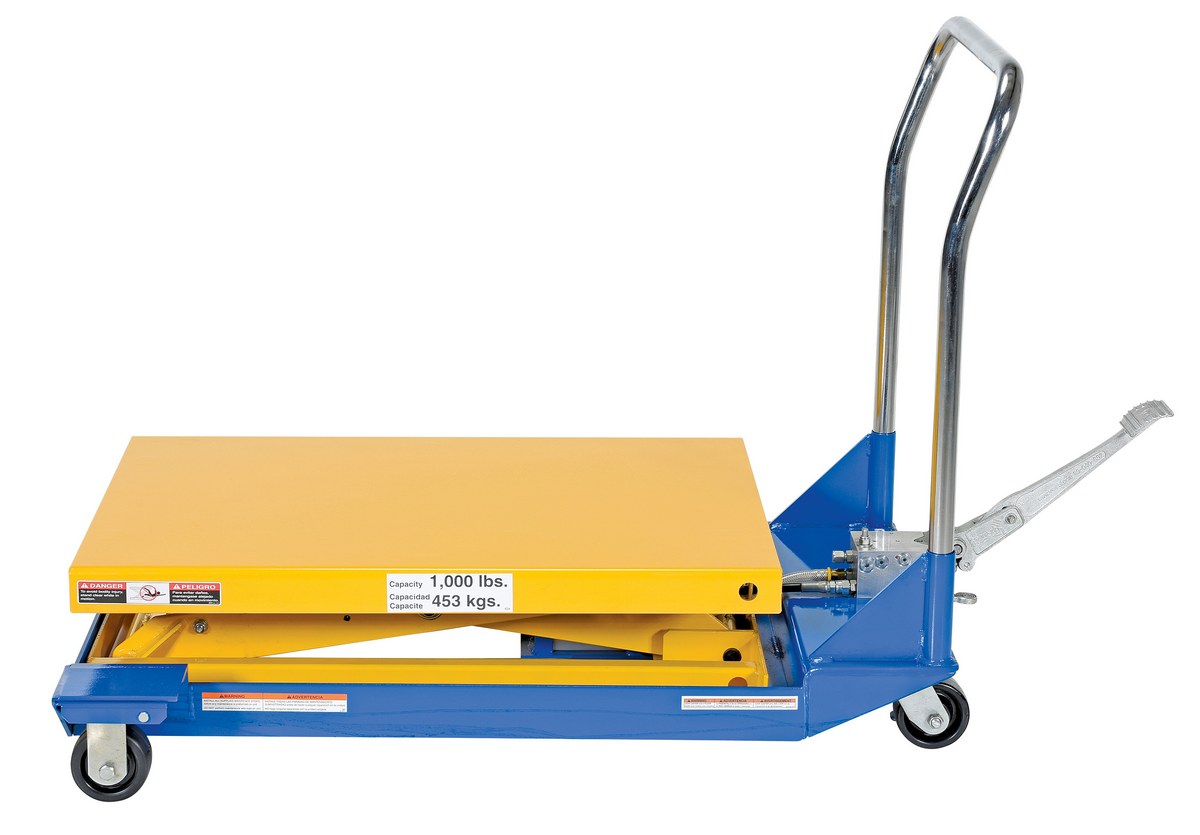

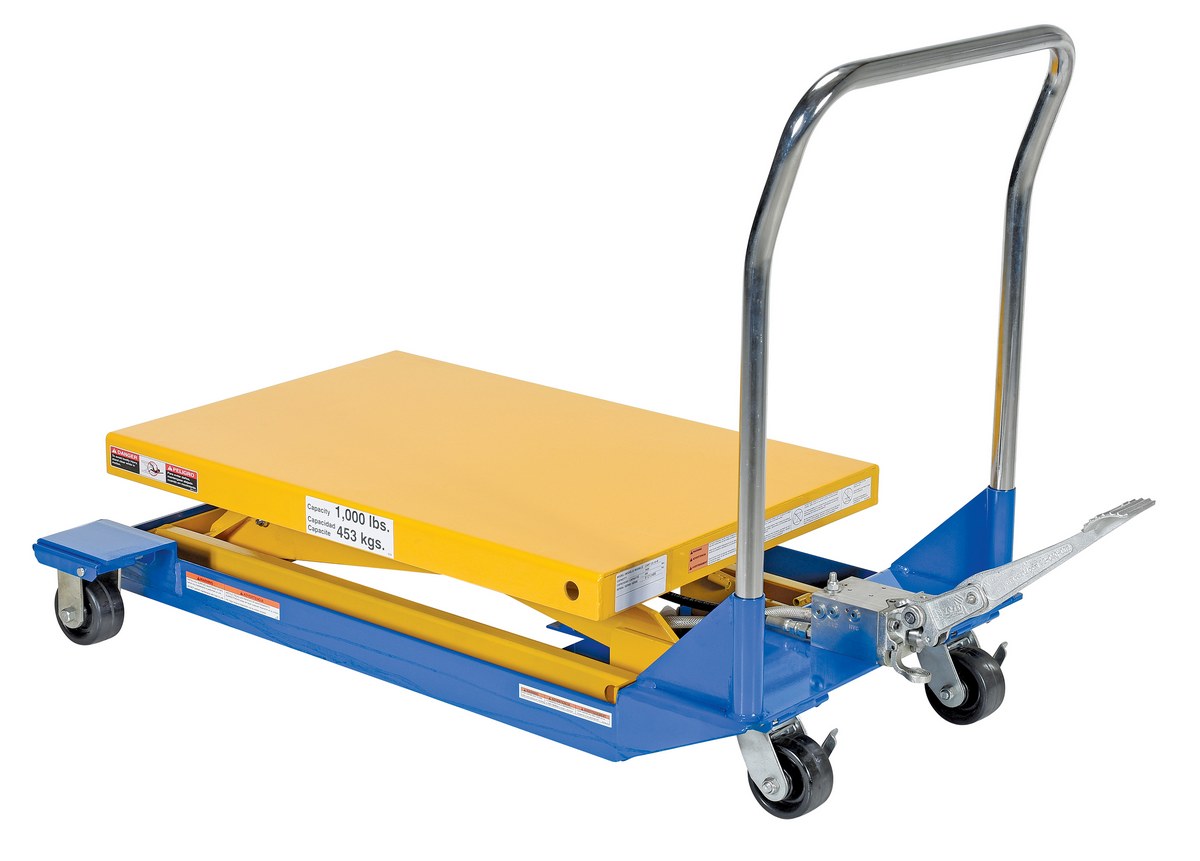

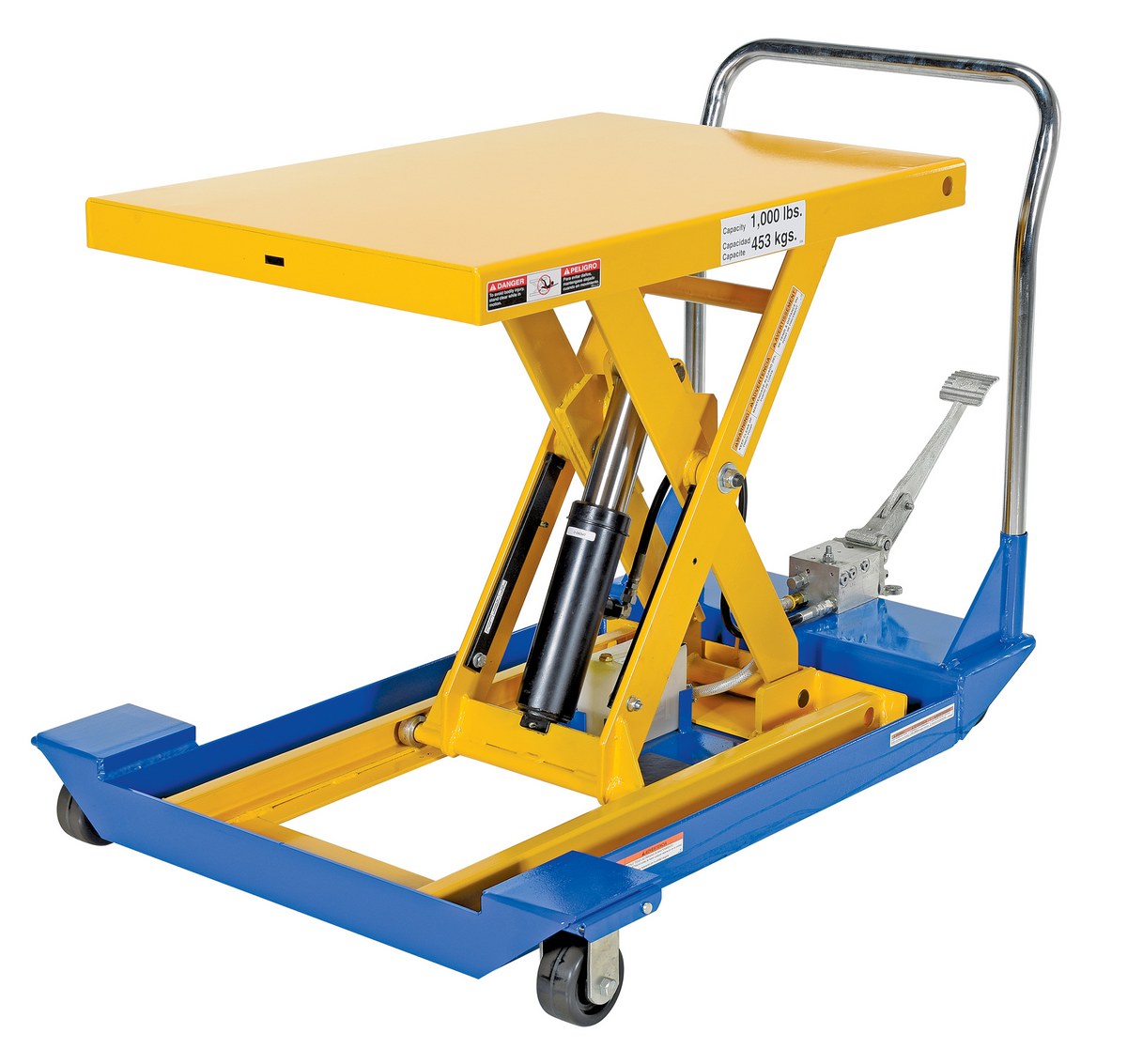

Steel Foot Pump Scissor Cart 36 In. x 24 In. 1000 Lb. Capacity Blue / Yellow

The manually powered Scissor Cart table provides an unparalleled support in lifting, palletizing, loading, and unloading applications. The cart is raised or lowered with a manual two-speed foot pump. The unit rolls smoothly on two rigid and two swivel phenolic casters with brakes. Open design with access from thee sides.

  • Solid steel constructions offers long lasting rugged use
  • Push handle is removable for user convenience
  • Phenolic casters with brakes make transportation easy
  • Features an internal safety velocity fuse in each cylinder
Assembled Wt.(lbs.): 358 Assembled Size: 36"W x 58.875"L x 36"H

Total Ship Wt.(lbs.): 395 (only 1 package) Package 1 Size: 40"W x 64"D x 23"H Color: Blue / Yellow

Uniform Capacity (lb.): 1,000 Platform Width (in.): 24 Platform Length (in.): 36
Lowered Height (in.): 11 Raised Height (in.): 33-1/2 Pumps at Low/High Speed (qty.): 54/27
Caster Quantity/Diameter/Width (in.): (4) 4 x 2 Caster Material: Phenolic Caster Type: (2) Rigid (2) Swivel with Brakes
Operation: Foot Pump Foot Pump Type: 2-Speed Auto Shift

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

1 Year Limited Warranty

Details For Model: CART-23-10-M
Out of Stock - Please Contact Sales
CART-23-10-M

Steel Foot Pump Scissor Cart 36 In. x 24 In. 1000 Lb. Capacity Blue / Yellow

The manually powered Scissor Cart table provides an unparalleled support in lifting, palletizing, loading, and unloading applications. The cart is raised or lowered with a manual two-speed foot pump. The unit rolls smoothly on two rigid and two swivel phenolic casters with brakes. Open design with access from thee sides.

  • Solid steel constructions offers long lasting rugged use
  • Push handle is removable for user convenience
  • Phenolic casters with brakes make transportation easy
  • Features an internal safety velocity fuse in each cylinder
Dimensions: 36"W x 58.875"L x 36"H Sell UOM: -- Color: Blue / Yellow
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 395 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity (lb.): 1,000 Platform Width (in.): 24 Platform Length (in.): 36
Lowered Height (in.): 11 Raised Height (in.): 33-1/2 Pumps at Low/High Speed (qty.): 54/27
Caster Quantity/Diameter/Width (in.): (4) 4 x 2 Caster Material: Phenolic Caster Type: (2) Rigid (2) Swivel with Brakes
Operation: Foot Pump Foot Pump Type: 2-Speed Auto Shift
