CART-1100-SS

Printer Friendly
Available
CART-1100-SS
CART-1100-SS CART-1100-SS CART-1100-SS

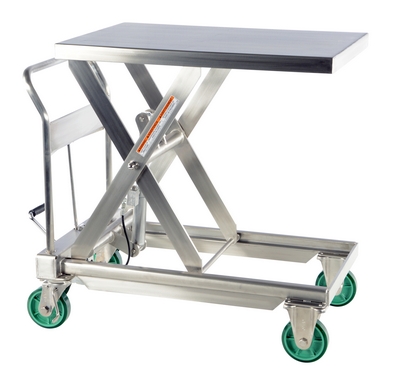

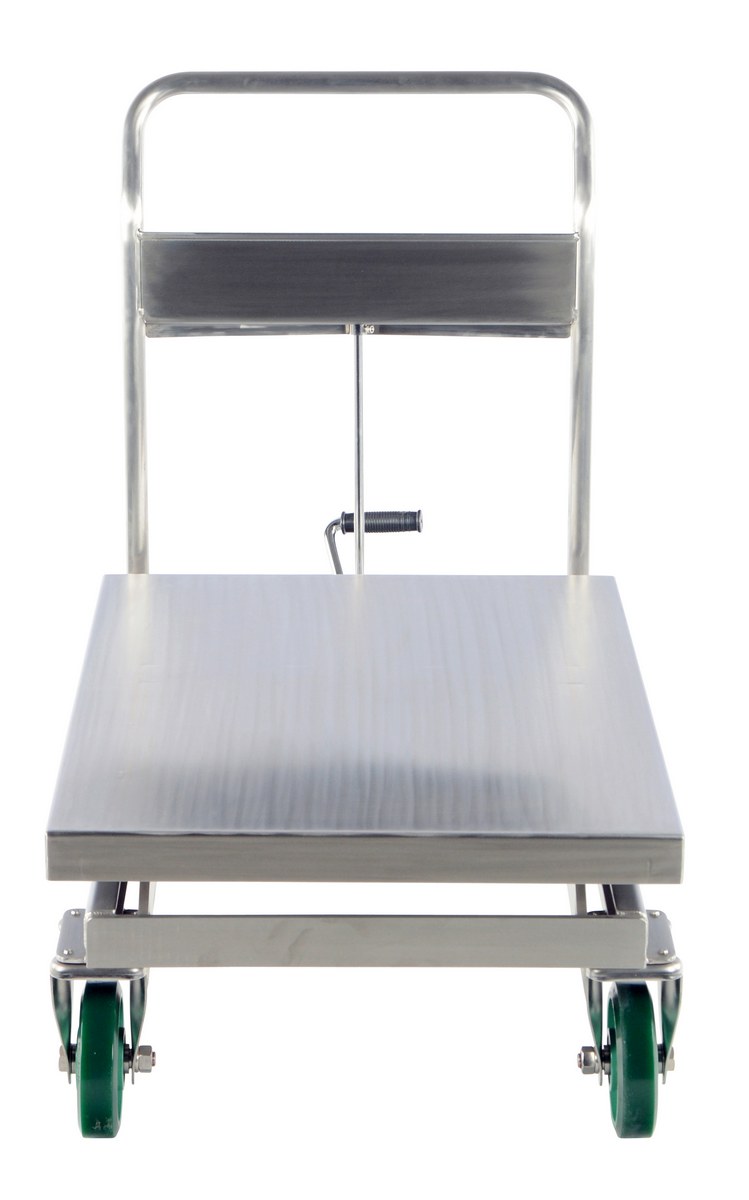

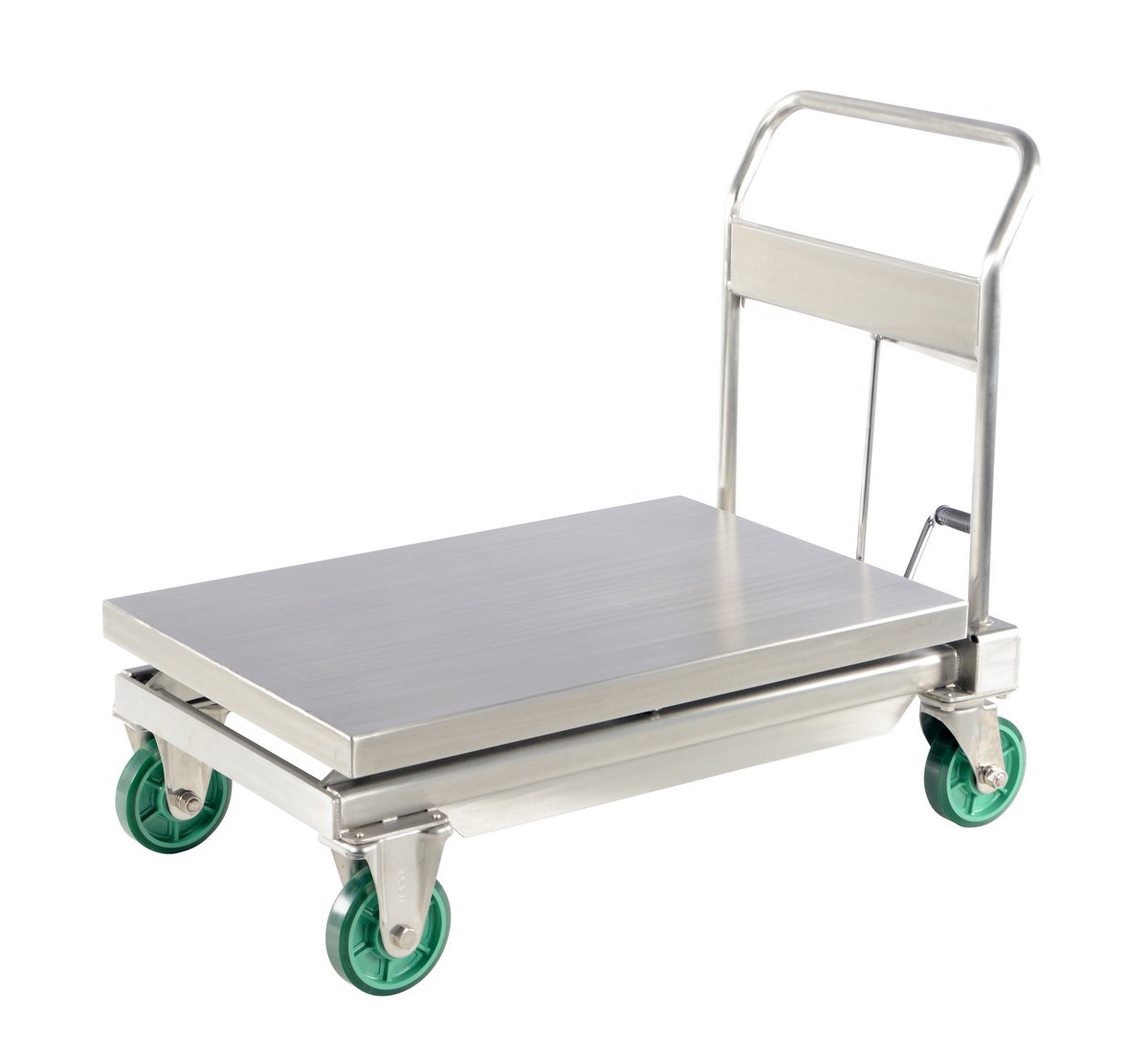

Stainless Steel Hydraulic Scissor Cart 35-1/2 In. x 23-1/2 In. 1100 Lb. Capacity Silver

The Hydraulic elevating cart minimizes worker bending and lifting through its ergonomic design and portability. Material can be easily loaded onto a cart from a table, lowered to a safe transporting height, and raised to unload at destination. The foot pump includes a soft-lowering down valve. The unit moves easily on four polyurethane casters; two swivel with brakes and two rigid. Features a two-speed foot pump. Foot pump pedal, pump assembly and hydraulic cylinder are chrome plated. Rest of the unit is fully stainless construction. Features an internal safety velocity fuse in each cylinder.

  • Unique lift design quickly raises & lowers material
  • Ergonomic cart design improves user safety
  • Caster construction provides easy portability when loaded
  • Stainless Steel construction offers long lasting rugged use
Assembled Wt.(lbs.): 204 Assembled Size: 23.5"W x 45"L x 38.5"H

Total Ship Wt.(lbs.): 266 (only 1 package) Package 1 Size: 42"W x 48"D x 20"H Color: Silver Non-Returnable

Uniform Capacity (lb.): 1,100 Service Range (in.): 13 to 38-1/2 Platform Width (in.): 23-1/2
Platform Length (in.): 35-1/2 Foot Pump Speed: Two Front Caster Qty./Type: (1) Swivel (1) Swivel w/ Brake
Front Caster Diameter/Width (in.): 5 x 1-1/2 Rear Caster Qty./Type: (2) Rigid Rear Caster Diameter/Width (in.): 4 x 1-1/4
Caster Material: Polyurethane # of Pumps to Raise Platform at Low Speed and Unloaded: 51 # of Pumps to Raise Platform at Low Speed and Loaded: 54
# of Pumps to Raise Platform at High Speed and Unloaded: 30 # of Pumps to Raise Platform at High Speed and Loaded: Can Not Pump at High Speed while Loaded

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

1 Year Limited Warranty

Details For Model: CART-1100-SS
Available
CART-1100-SS

Stainless Steel Hydraulic Scissor Cart 35-1/2 In. x 23-1/2 In. 1100 Lb. Capacity Silver

The Hydraulic elevating cart minimizes worker bending and lifting through its ergonomic design and portability. Material can be easily loaded onto a cart from a table, lowered to a safe transporting height, and raised to unload at destination. The foot pump includes a soft-lowering down valve. The unit moves easily on four polyurethane casters; two swivel with brakes and two rigid. Features a two-speed foot pump. Foot pump pedal, pump assembly and hydraulic cylinder are chrome plated. Rest of the unit is fully stainless construction. Features an internal safety velocity fuse in each cylinder.

  • Unique lift design quickly raises & lowers material
  • Ergonomic cart design improves user safety
  • Caster construction provides easy portability when loaded
  • Stainless Steel construction offers long lasting rugged use
Dimensions: 23.5"W x 45"L x 38.5"H Sell UOM: -- Color: Silver
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 266 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity (lb.): 1,100 Service Range (in.): 13 to 38-1/2 Platform Width (in.): 23-1/2
Platform Length (in.): 35-1/2 Foot Pump Speed: Two Front Caster Qty./Type: (1) Swivel (1) Swivel w/ Brake
Front Caster Diameter/Width (in.): 5 x 1-1/2 Rear Caster Qty./Type: (2) Rigid Rear Caster Diameter/Width (in.): 4 x 1-1/4
Caster Material: Polyurethane # of Pumps to Raise Platform at Low Speed and Unloaded: 51 # of Pumps to Raise Platform at Low Speed and Loaded: 54
# of Pumps to Raise Platform at High Speed and Unloaded: 30 # of Pumps to Raise Platform at High Speed and Loaded: Can Not Pump at High Speed while Loaded
