ALLPW-500-4SFL

Printer Friendly
Available
ALLPW-500-4SFL
ALLPW-500-4SFL

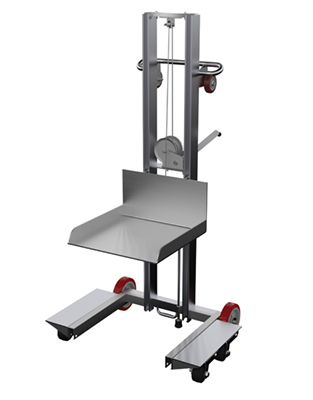

Aluminum Low Profile Lite Load Lift With Winch Swivel Casters and Manual Floor Lock 20 In. x 20 In. Platform 400 Lb. Capacity Silver

The Lite load lift is ideal for lifting and transporting loads from delivery trucks to docks, or use to inventory storage systems. This low profile unit is easy to operate with a hand winch operation and aluminum construction. The unit rolls smoothly on poly-on-poly rear wheels, four swivel front casters and a hand operated floor lock. Located on the handle are two rollers to ease loading into delivery trucks.

  • Aluminum construction provides long lasting rugged use
  • Easy to operate lift system makes lifting products to ergonomic heights simple
  • Two rear and four swivel front wheel design conveniently rolls when loaded
  • Two rollers on handle provide easy unit loading into delivery trucks
Assembled Wt.(lbs.): 134 Assembled Size: 37.6875"W x 33.1875"L x 69.4375"H

Total Ship Wt.(lbs.): 143 (only 1 package) Package 1 Size: 40"W x 48"D x 72"H Color: Silver

Uniform Capacity (lb.): 400 Platform Width (in.): 19-1/2 Platform Length (in.): 20
Lowered Height (in.): 1/4 Raised Height (in.): 58 Lift per Winch Rotation (in.): 1
Horizontal Load Center (in.): 10 Side Lip Height (in.): 2 Profile: Low
Operation: Hand Winch Rear Wheel Qty./Diameter/Width (in.): (2) 8 x 2 Rear Wheel Material: Poly on Poly
Rear Wheel Type: Rigid Front Caster Qty./Diameter/Width (in.): (4) 4 x 2 Front Caster Material: Mold on Rubber
Front Caster Type: Swivel Handle Caster Qty./Diameter/Width (in.): (2) 4 x 1-1/4 Handle Caster Material: Poly on Poly
Handle Caster Type: Rigid

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

1 Year Limited Warranty

Details For Model: ALLPW-500-4SFL
Available
ALLPW-500-4SFL

Aluminum Low Profile Lite Load Lift With Winch Swivel Casters and Manual Floor Lock 20 In. x 20 In. Platform 400 Lb. Capacity Silver

The Lite load lift is ideal for lifting and transporting loads from delivery trucks to docks, or use to inventory storage systems. This low profile unit is easy to operate with a hand winch operation and aluminum construction. The unit rolls smoothly on poly-on-poly rear wheels, four swivel front casters and a hand operated floor lock. Located on the handle are two rollers to ease loading into delivery trucks.

  • Aluminum construction provides long lasting rugged use
  • Easy to operate lift system makes lifting products to ergonomic heights simple
  • Two rear and four swivel front wheel design conveniently rolls when loaded
  • Two rollers on handle provide easy unit loading into delivery trucks
Dimensions: 37.6875"W x 33.1875"L x 69.4375"H Sell UOM: -- Color: Silver
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 143 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity (lb.): 400 Platform Width (in.): 19-1/2 Platform Length (in.): 20
Lowered Height (in.): 1/4 Raised Height (in.): 58 Lift per Winch Rotation (in.): 1
Horizontal Load Center (in.): 10 Side Lip Height (in.): 2 Profile: Low
Operation: Hand Winch Rear Wheel Qty./Diameter/Width (in.): (2) 8 x 2 Rear Wheel Material: Poly on Poly
Rear Wheel Type: Rigid Front Caster Qty./Diameter/Width (in.): (4) 4 x 2 Front Caster Material: Mold on Rubber
Front Caster Type: Swivel Handle Caster Qty./Diameter/Width (in.): (2) 4 x 1-1/4 Handle Caster Material: Poly on Poly
Handle Caster Type: Rigid
