A-LIFT-S-EHP

Printer Friendly
Available
A-LIFT-S-EHP
A-LIFT-S-EHP A-LIFT-S-EHP A-LIFT-S-EHP A-LIFT-S-EHP A-LIFT-S-EHP A-LIFT-S-EHP A-LIFT-S-EHP A-LIFT-S-EHP A-LIFT-S-EHP A-LIFT-S-EHP A-LIFT-S-EHP A-LIFT-S-EHP

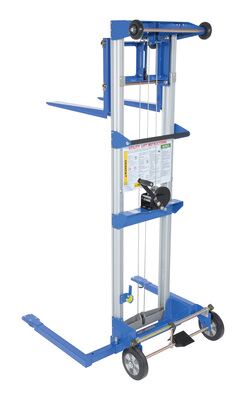

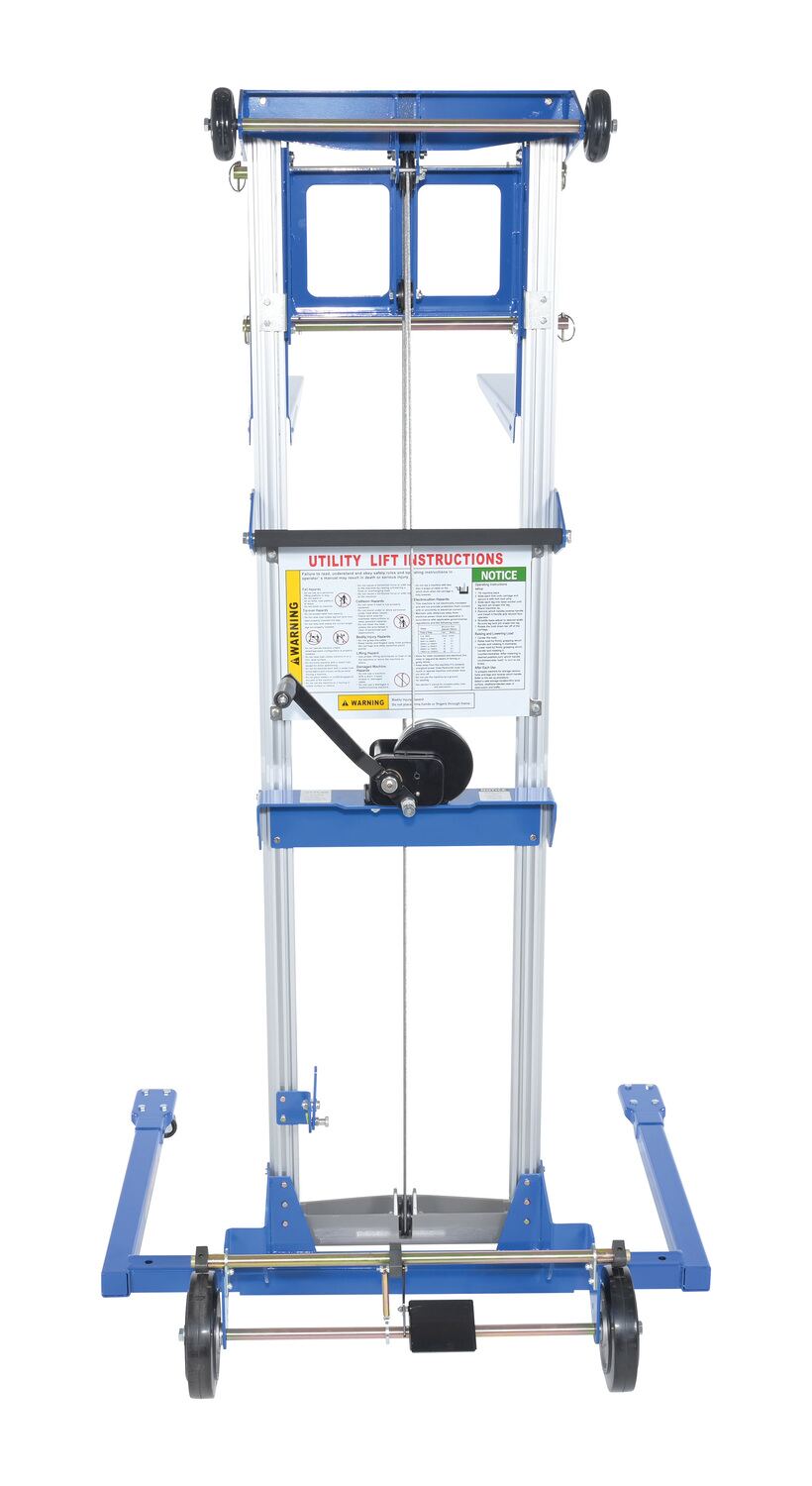

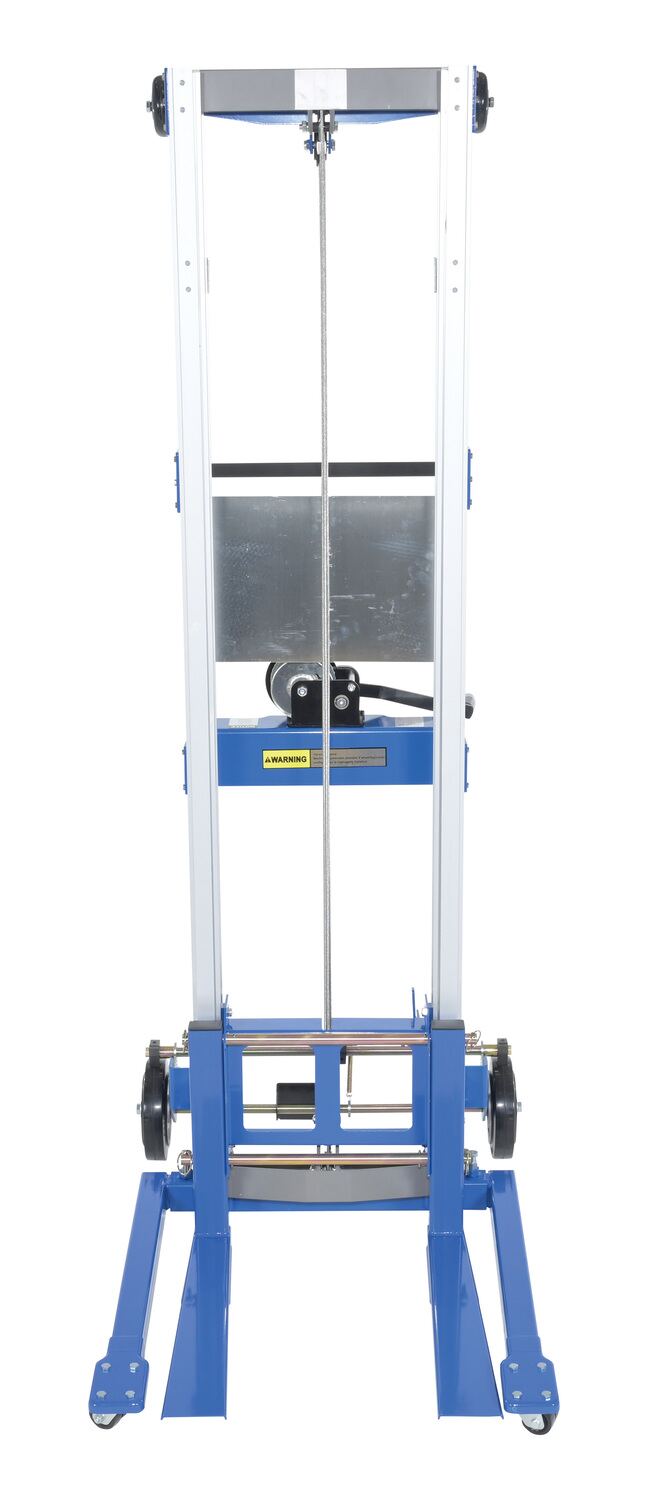

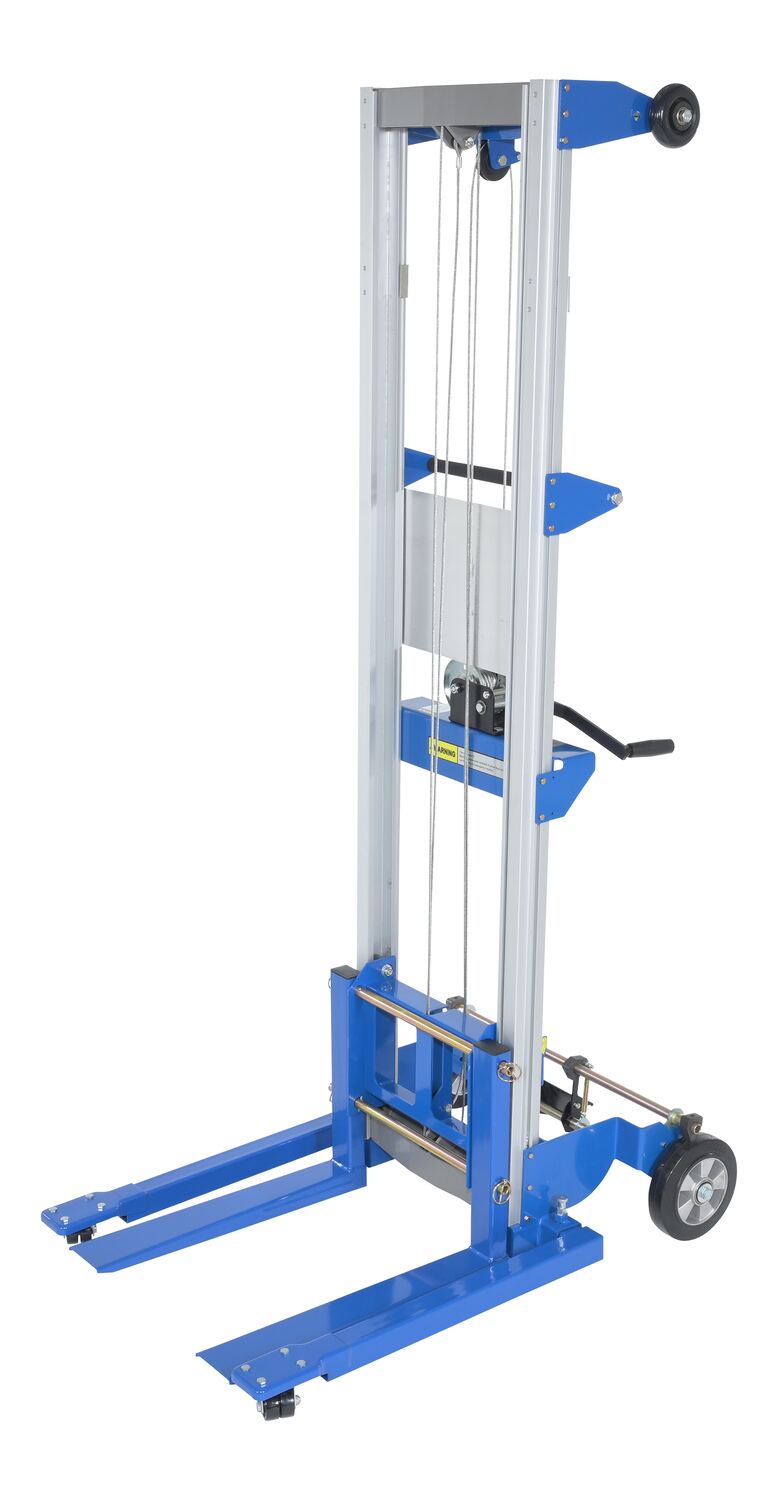

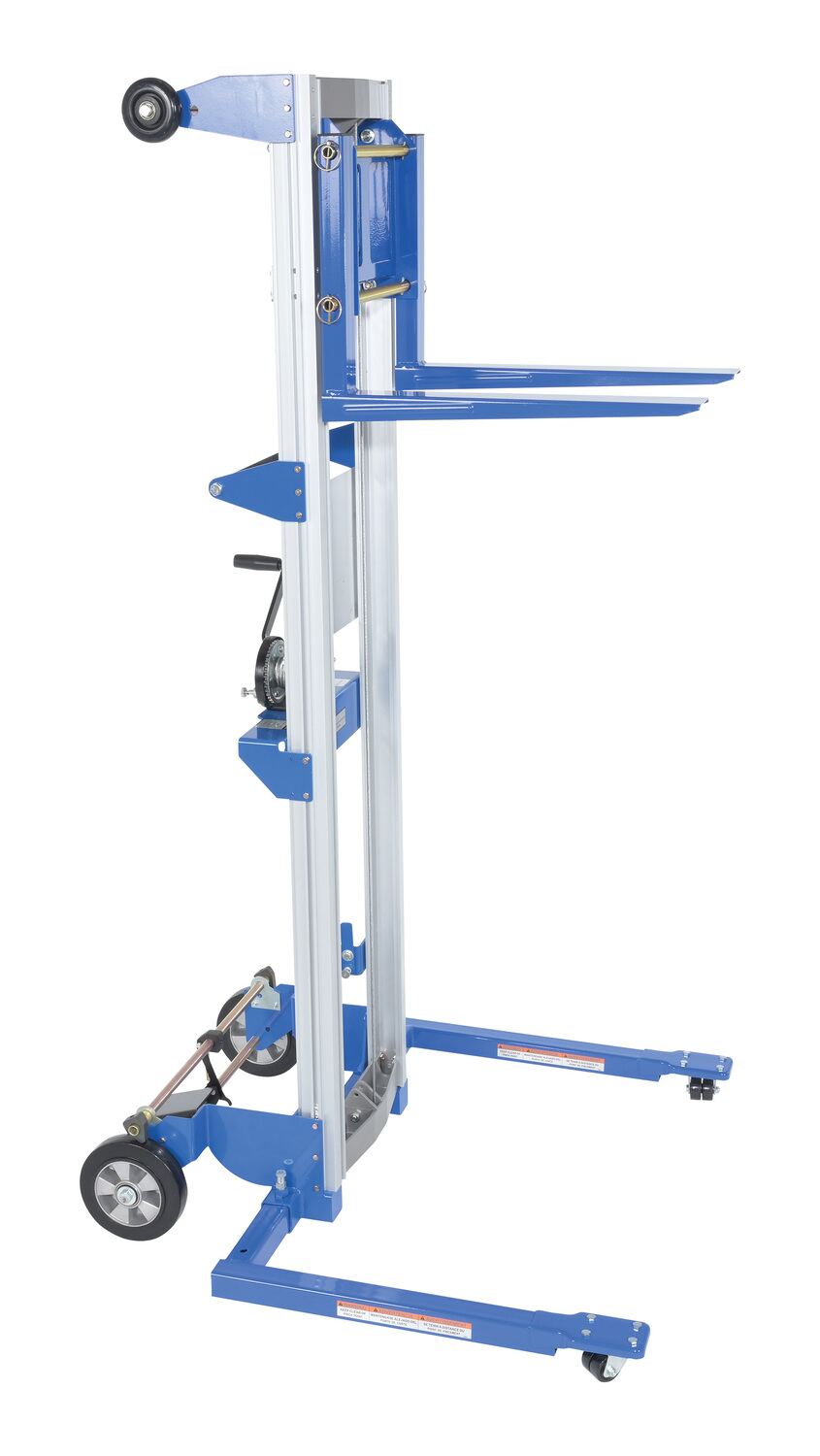

Aluminum/Steel Adjustable Straddle Manual Hand Winch Lift Trucks 350 Lb. Capacity Silver/Blue

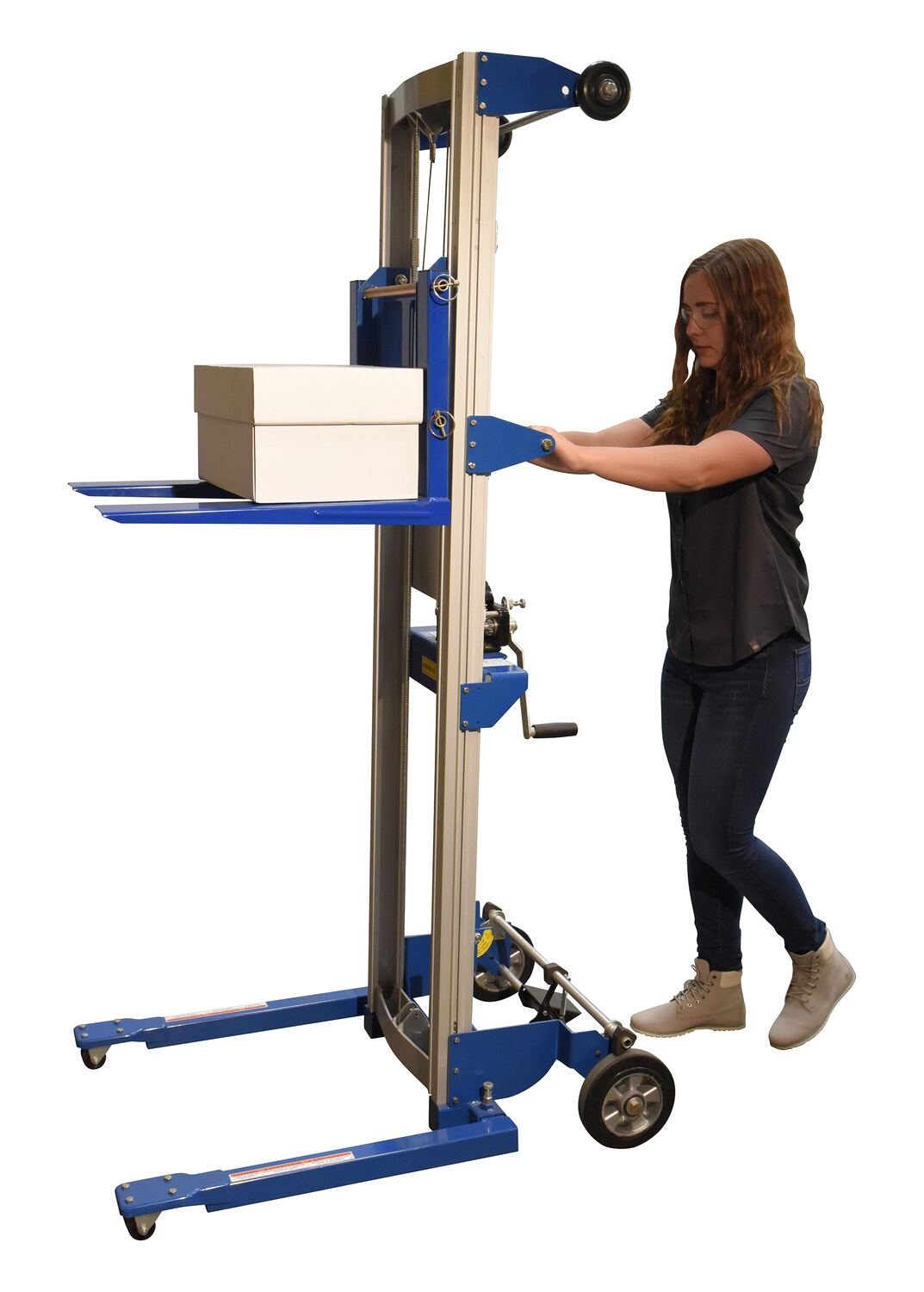

The hand winch lift truck is compact and designed to lift material to and from shelves, move office equipment, and install ceiling/wall appliances. It's constructed of durable steel-and-aluminum. Operated by a hand-crank winch that features a reversible handle and hold-down device for securing the carriage during transport.

  • Lightweight portable lifts are great for hundreds of applications

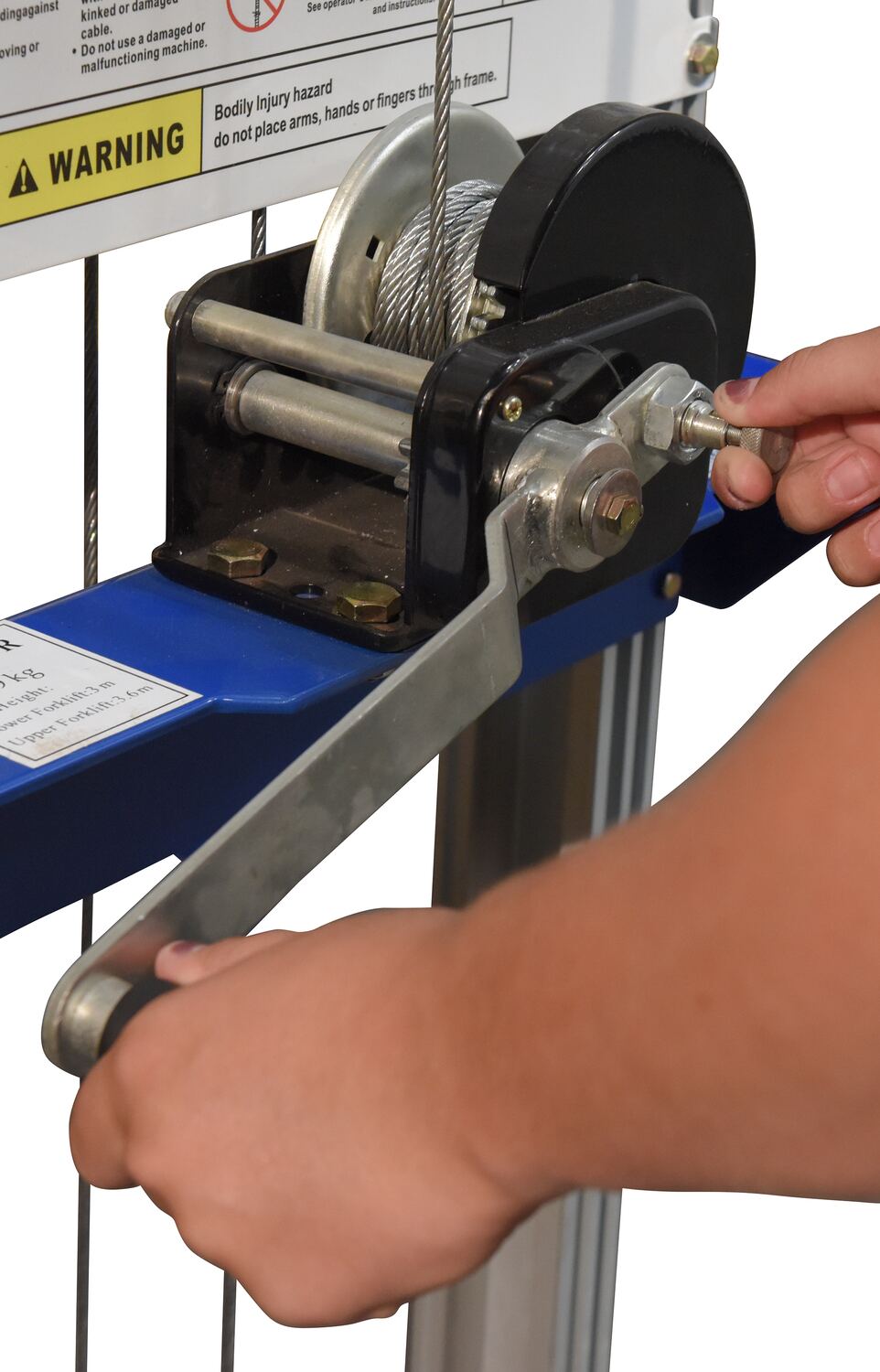

  • Manual cable winch easily raises and lowers forks

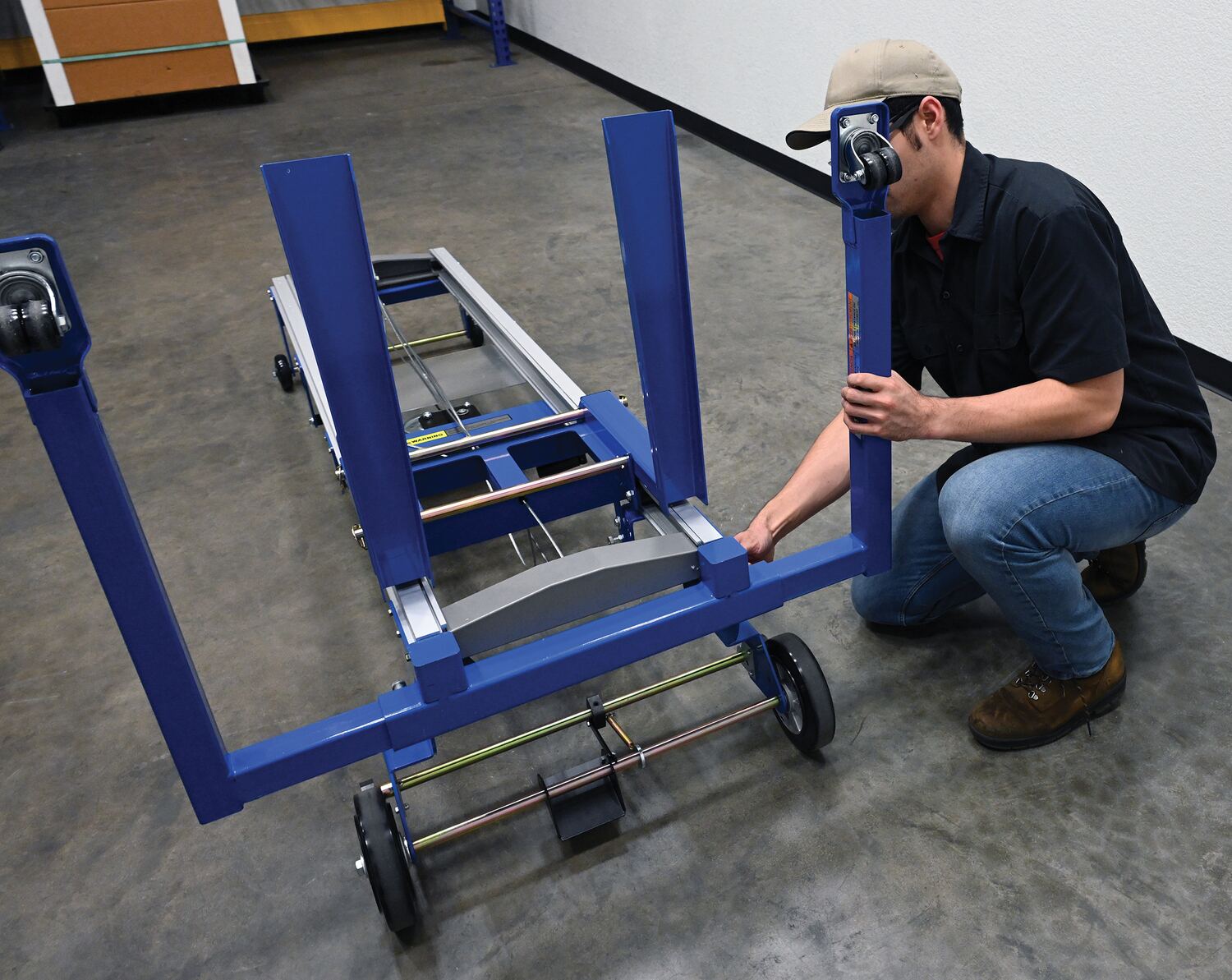

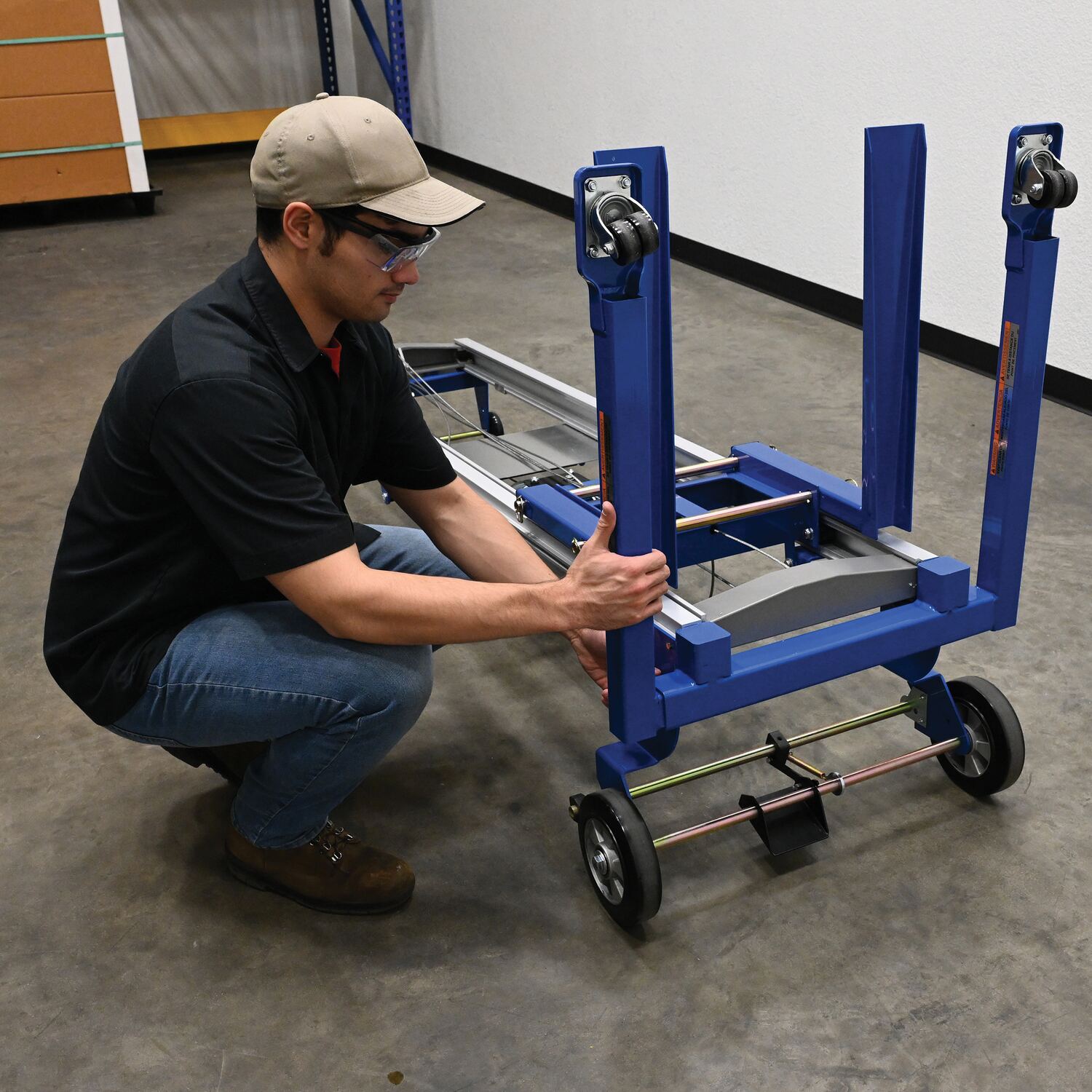

  • Adjustable straddle width for varying load sizes

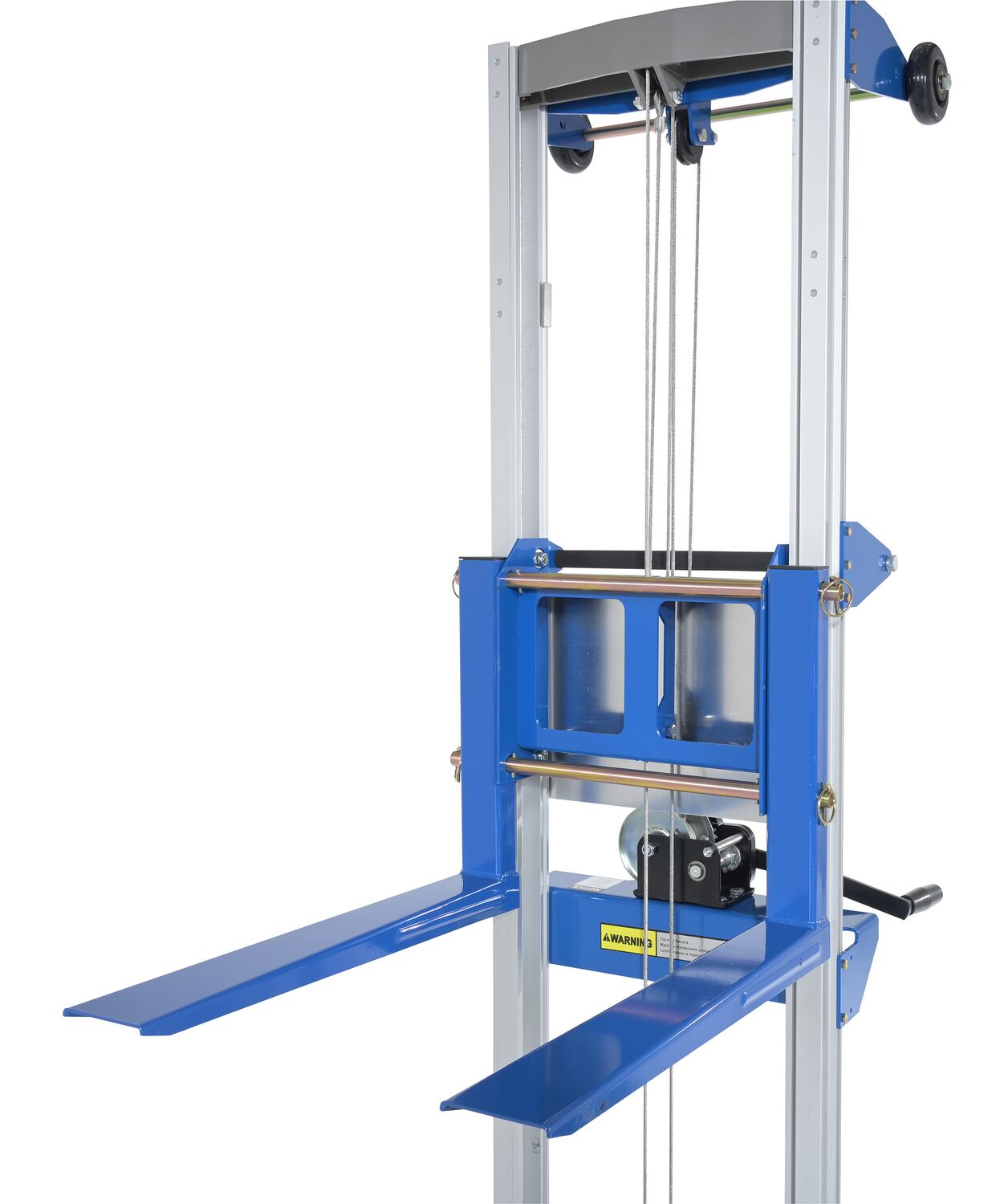

  • Hold-down device secures carriage during transport

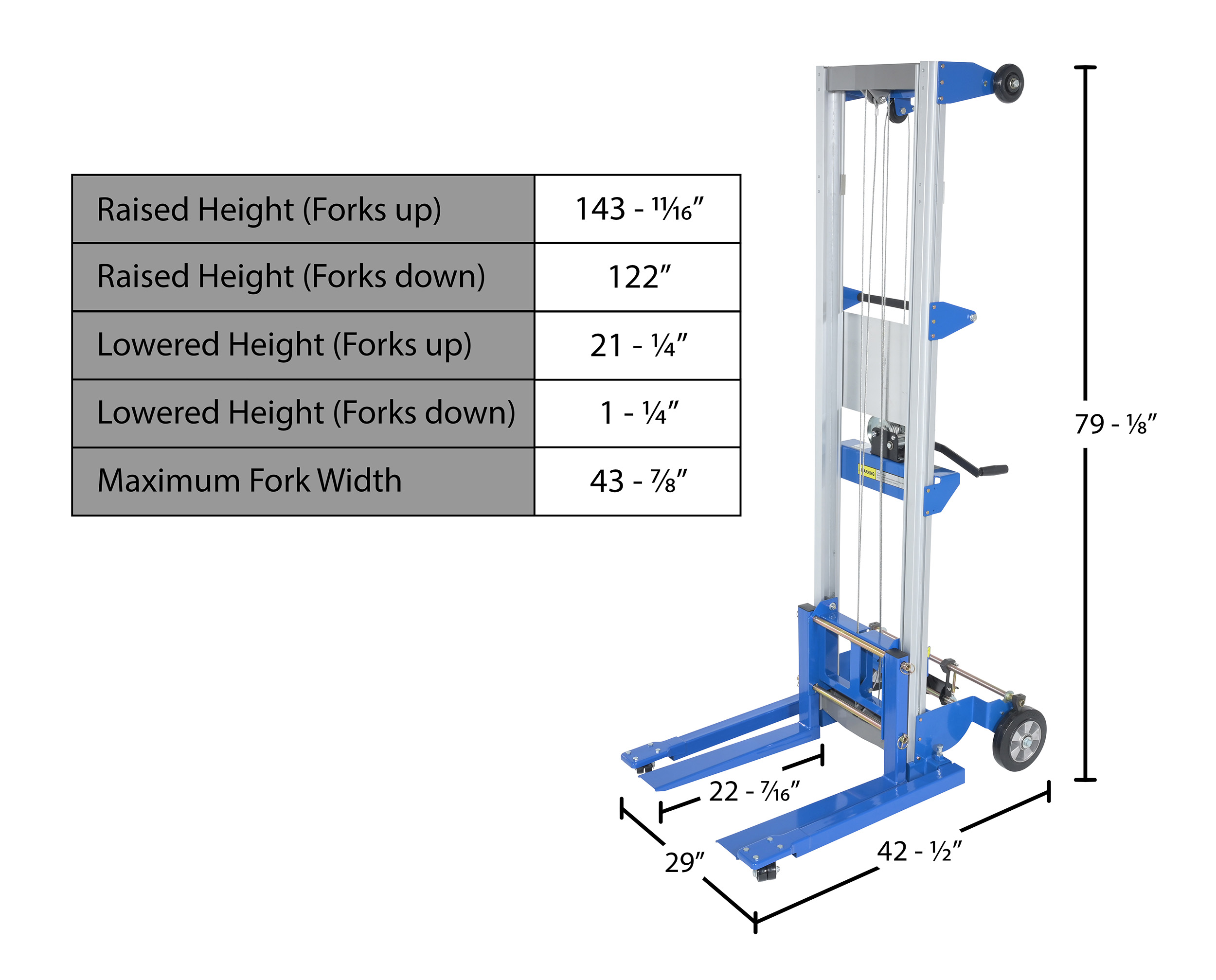

Assembled Wt.(lbs.): 154 Assembled Size: 43.875"W x 42.5"L x 79.125"H

Total Ship Wt.(lbs.): 226 (only 1 package) Package 1 Size: 29"W x 92"D x 25"H Color: Silver

Uniform Capacity (lb.): 350 Service Range w/ Forks Down: 1-1/4 to 122 Service Range w/ Forks Up: 21-1/4 to 143-11/16
Fork Width/Length (in.): 4 x 22-7/16 Fork Spacing (in.): 20-7/8 Adjustable Leg Spacing (in.): 29 to 43-7/8
Fork Raise per Hand Crank Rotation (in.): 1 Rear Non-Marking Wheel Diameter (in.): 8 Front Swivel Wheel Diameter (in.): 2

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

1 Year Limited Warranty

Details For Model: A-LIFT-S-EHP
Available
A-LIFT-S-EHP

Aluminum/Steel Adjustable Straddle Manual Hand Winch Lift Trucks 350 Lb. Capacity Silver/Blue

The hand winch lift truck is compact and designed to lift material to and from shelves, move office equipment, and install ceiling/wall appliances. It's constructed of durable steel-and-aluminum. Operated by a hand-crank winch that features a reversible handle and hold-down device for securing the carriage during transport.

  • Lightweight portable lifts are great for hundreds of applications
  • Manual cable winch easily raises and lowers forks
  • Adjustable straddle width for varying load sizes
  • Hold-down device secures carriage during transport
Dimensions: 43.875"W x 42.5"L x 79.125"H Sell UOM: -- Color: Silver
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 226 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity (lb.): 350 Service Range w/ Forks Down: 1-1/4 to 122 Service Range w/ Forks Up: 21-1/4 to 143-11/16
Fork Width/Length (in.): 4 x 22-7/16 Fork Spacing (in.): 20-7/8 Adjustable Leg Spacing (in.): 29 to 43-7/8
Fork Raise per Hand Crank Rotation (in.): 1 Rear Non-Marking Wheel Diameter (in.): 8 Front Swivel Wheel Diameter (in.): 2
