A-LIFT-S

Printer Friendly
Available
A-LIFT-S
A-LIFT-S A-LIFT-S A-LIFT-S A-LIFT-S A-LIFT-S A-LIFT-S A-LIFT-S A-LIFT-S

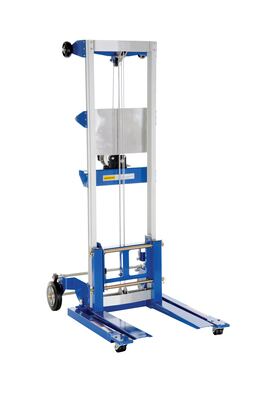

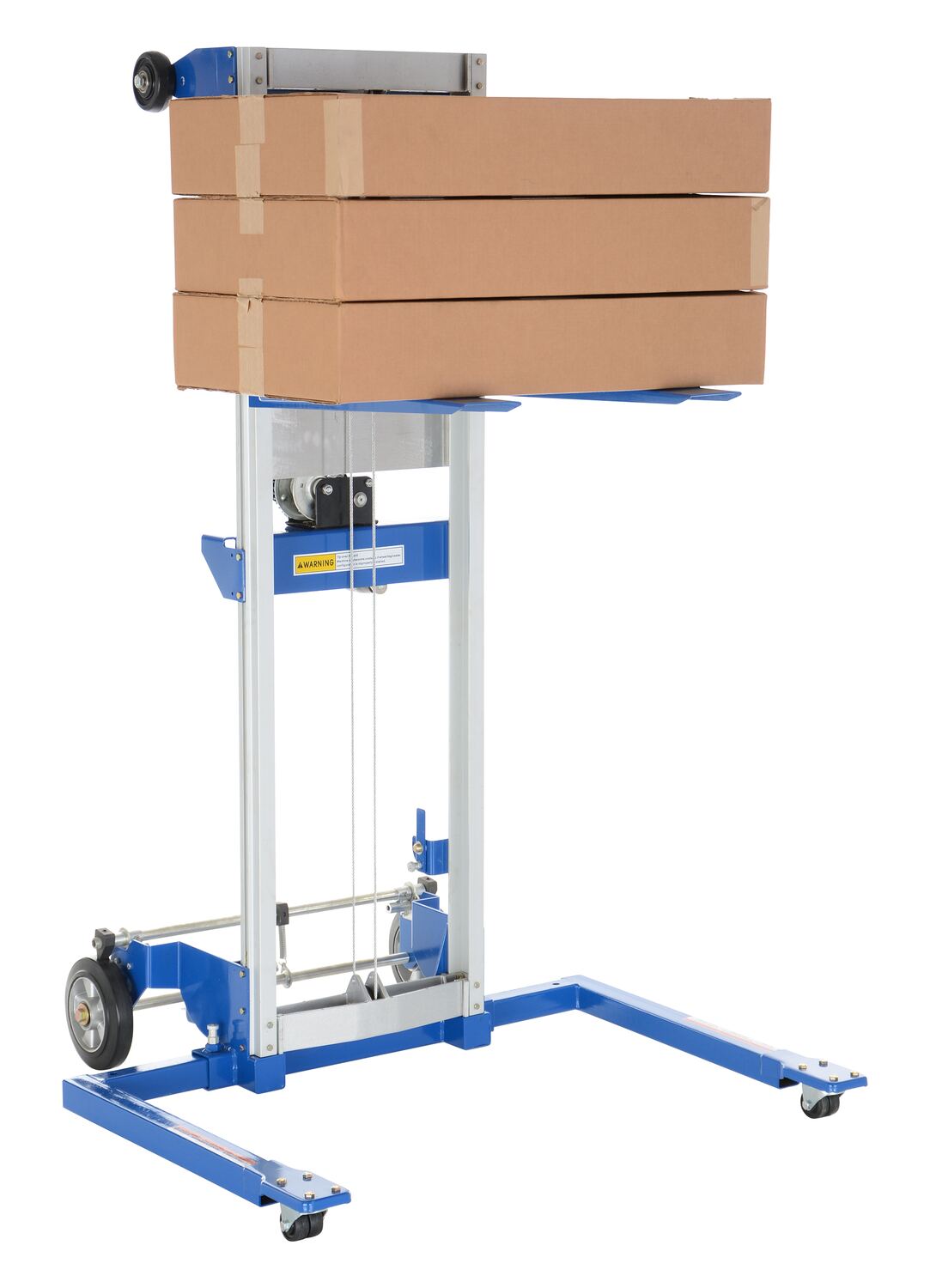

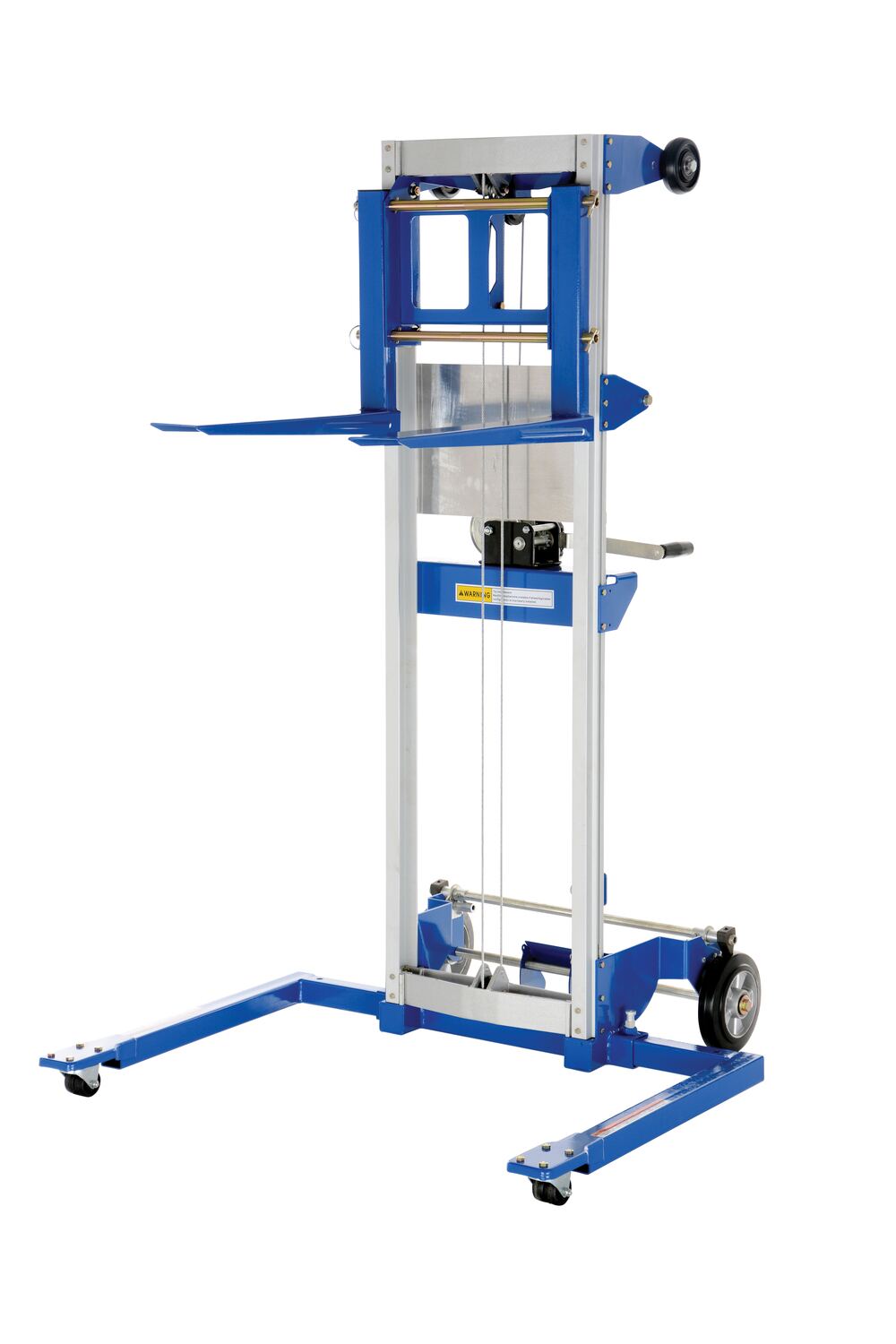

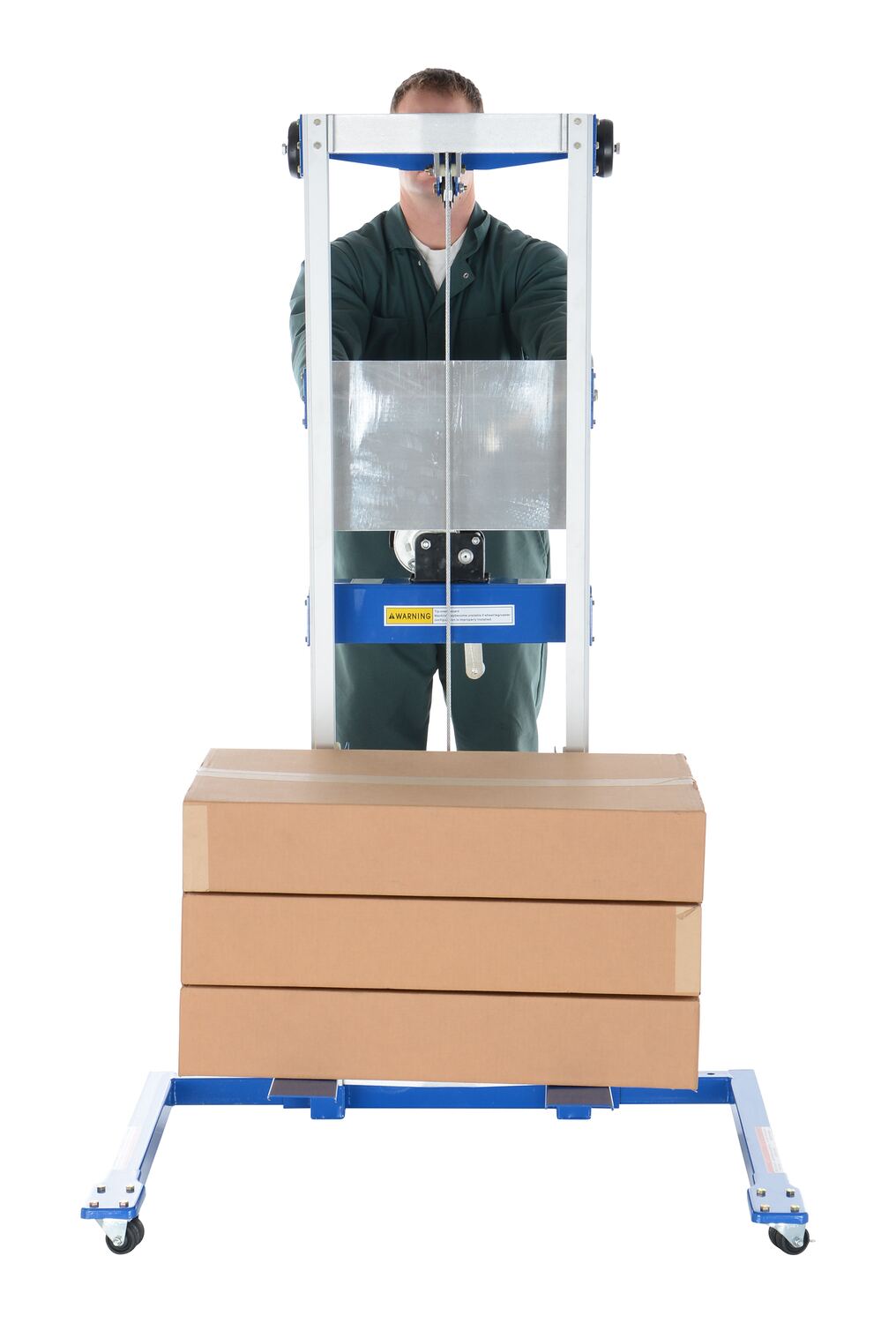

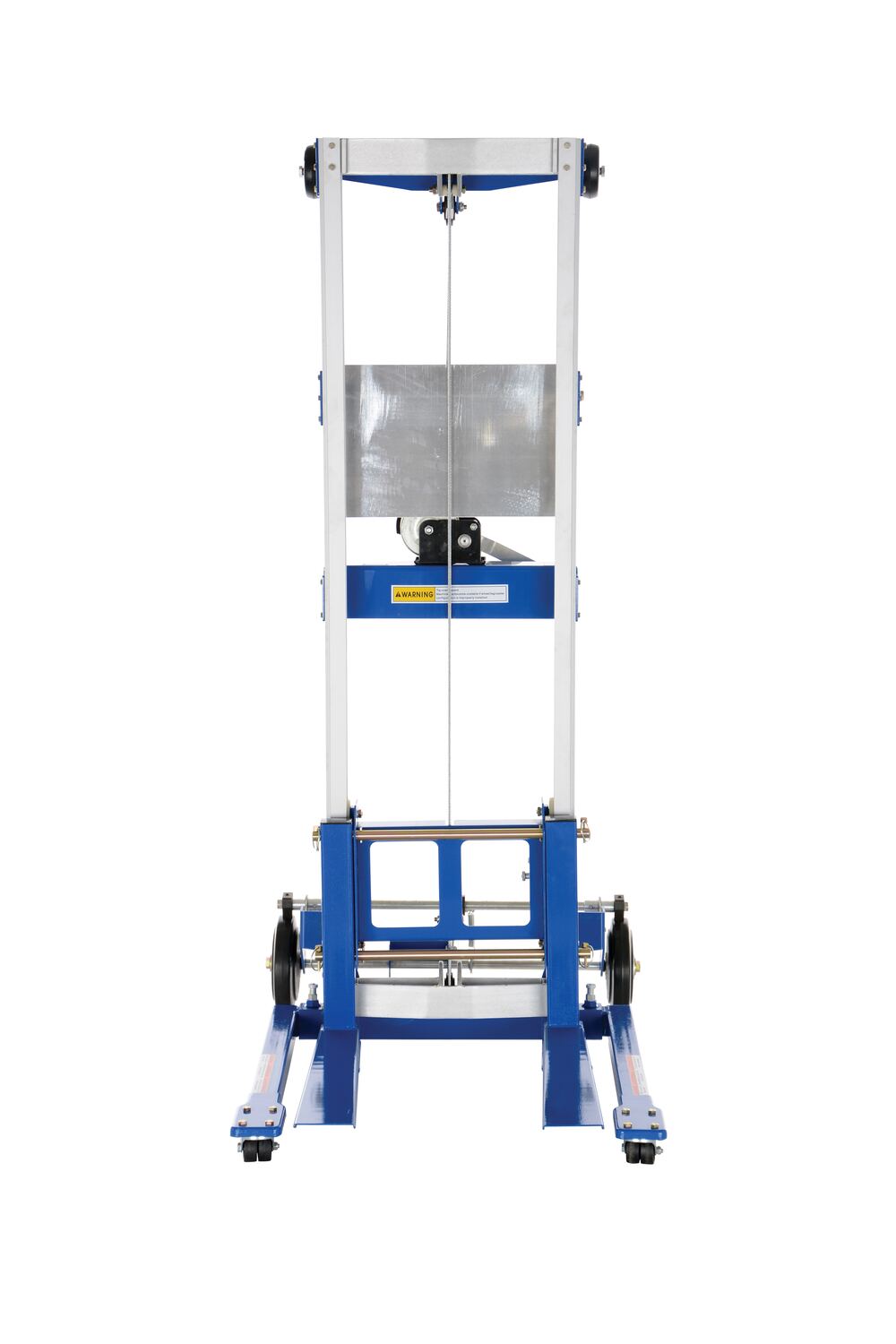

Aluminum/Steel Adjustable Straddle Manual Hand Winch Lift Trucks 500 Lb. Capacity Silver/Blue

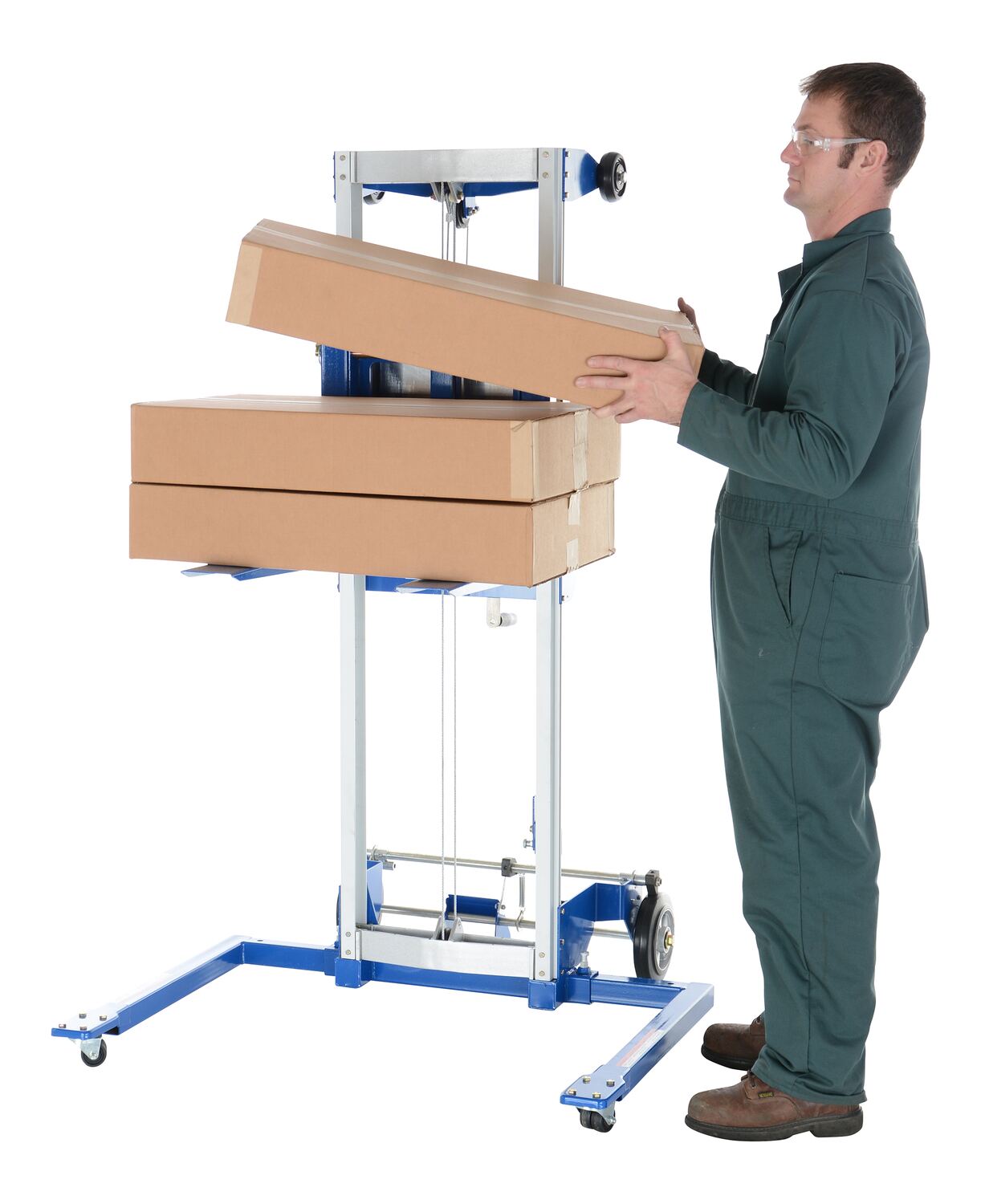

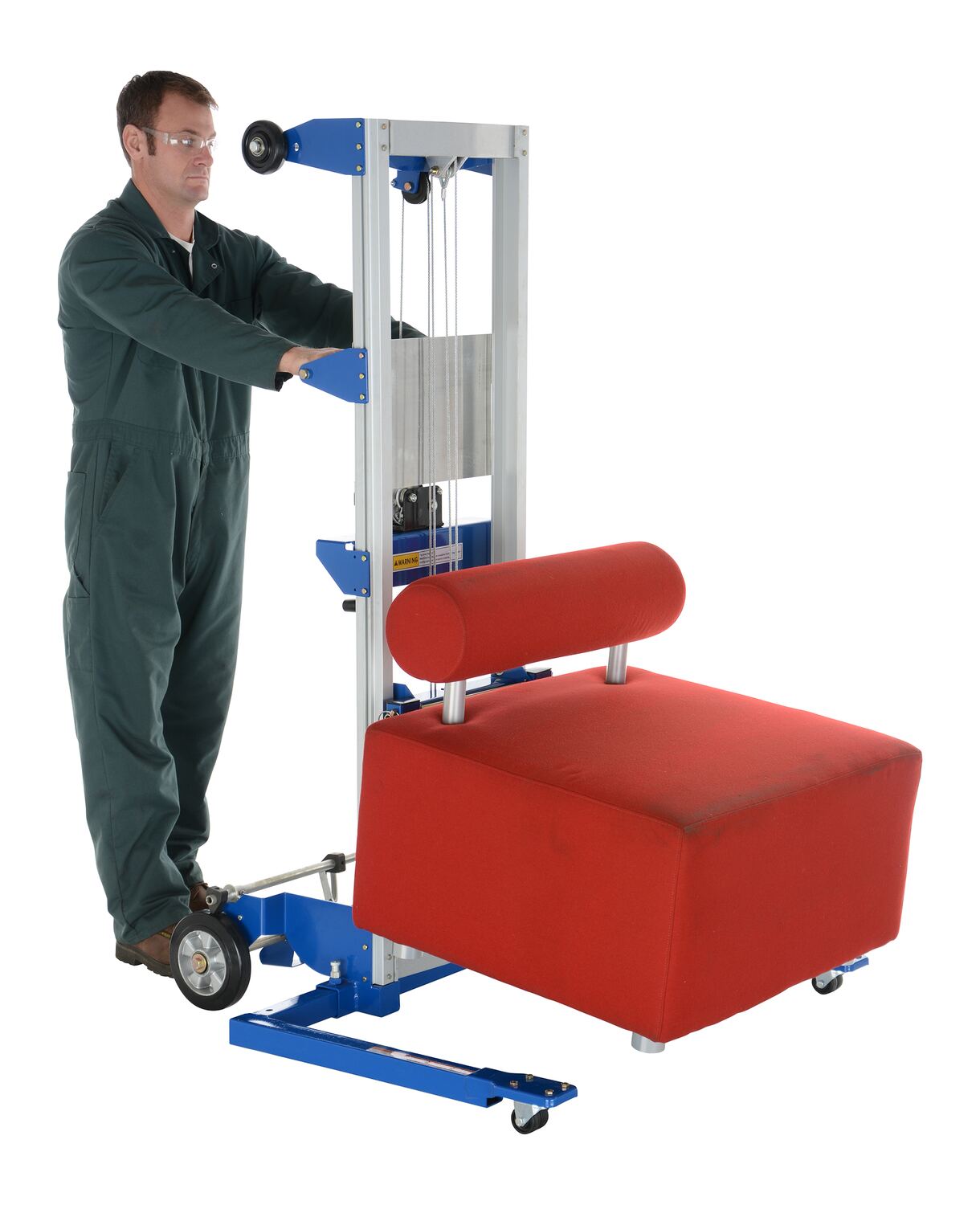

The hand winch lift truck is compact and designed to lift material to and from shelves, move office equipment, and install ceiling/wall appliances. It's constructed of durable steel-and-aluminum. Operated by a hand-crank winch that features a reversible handle and hold-down device for securing the carriage during transport.

  • Lightweight portable lifts are great for hundreds of applications
  • Manual cable winch easily raises and lowers forks
  • Adjustable straddle width for varying load sizes
  • Hold-down device secures carriage during transport
Assembled Wt.(lbs.): 140 Assembled Size: 43.875"W x 42.5"L x 67.3125"H

Total Ship Wt.(lbs.): 200 (only 1 package) Package 1 Size: 29"W x 92"D x 25"H Color: Silver

Uniform Capacity (lb.): 500 Service Range w/ Forks Down (in.): 1-1/4 to 47-1/4 Service Range w/ Forks Up (in.): 21-1/4 to 68-7/8
Fork Width/Length (in.): 4 x 22-7/16 Fork Spacing (in.): 20-7/8 Adjustable Leg Spacing (in.): 29 to 43-7/8
Fork Raise per Hand Crank Rotation (in.): 1 Rear Non-Marking Wheel Diameter (in.): 8 Front Swivel Wheel Diameter (in.): 2

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

1 Year Limited Warranty

Details For Model: A-LIFT-S
Available
A-LIFT-S

Aluminum/Steel Adjustable Straddle Manual Hand Winch Lift Trucks 500 Lb. Capacity Silver/Blue

The hand winch lift truck is compact and designed to lift material to and from shelves, move office equipment, and install ceiling/wall appliances. It's constructed of durable steel-and-aluminum. Operated by a hand-crank winch that features a reversible handle and hold-down device for securing the carriage during transport.

  • Lightweight portable lifts are great for hundreds of applications
  • Manual cable winch easily raises and lowers forks
  • Adjustable straddle width for varying load sizes
  • Hold-down device secures carriage during transport
Dimensions: 43.875"W x 42.5"L x 67.3125"H Sell UOM: -- Color: Silver
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 200 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity (lb.): 500 Service Range w/ Forks Down (in.): 1-1/4 to 47-1/4 Service Range w/ Forks Up (in.): 21-1/4 to 68-7/8
Fork Width/Length (in.): 4 x 22-7/16 Fork Spacing (in.): 20-7/8 Adjustable Leg Spacing (in.): 29 to 43-7/8
Fork Raise per Hand Crank Rotation (in.): 1 Rear Non-Marking Wheel Diameter (in.): 8 Front Swivel Wheel Diameter (in.): 2
