A-LIFT-R

Printer Friendly
Available
A-LIFT-R
A-LIFT-R A-LIFT-R A-LIFT-R A-LIFT-R A-LIFT-R A-LIFT-R A-LIFT-R

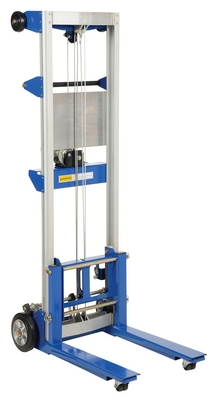

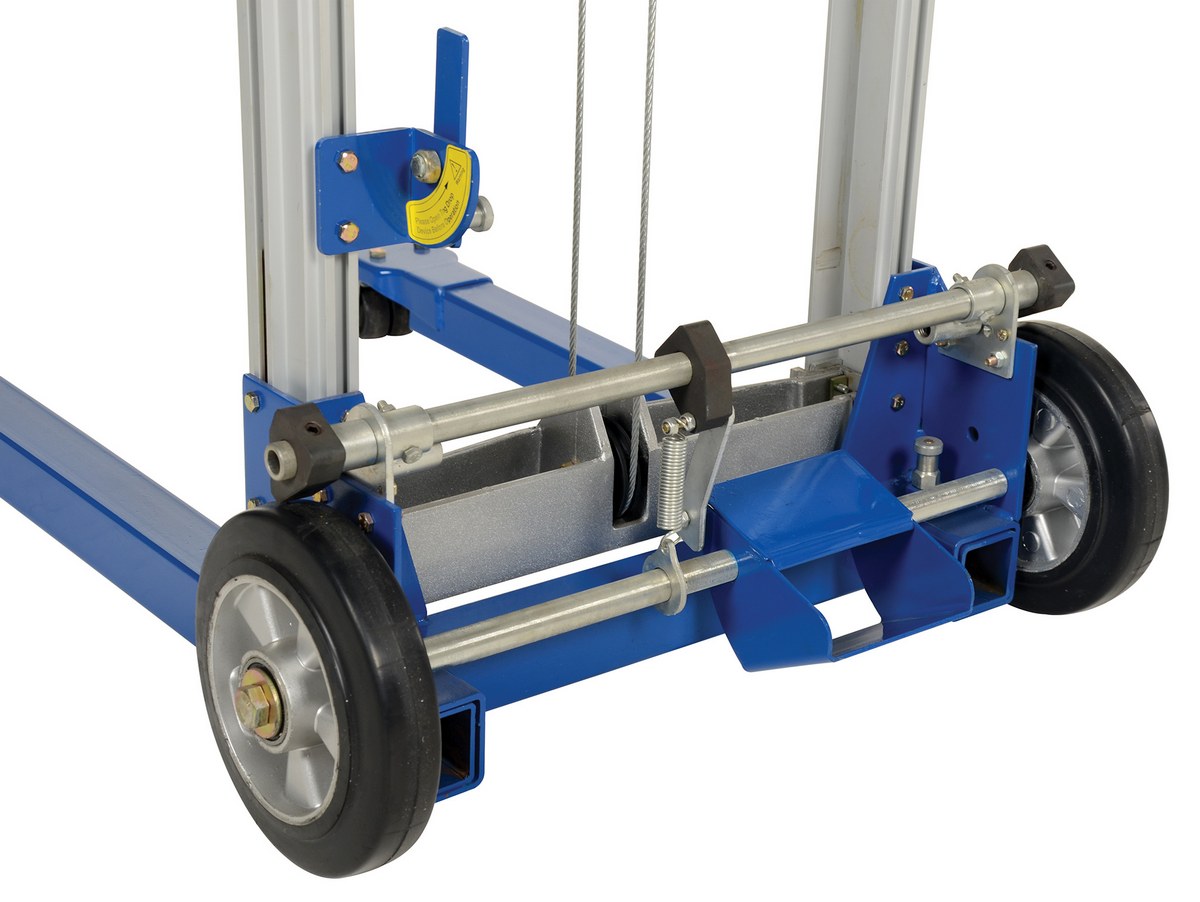

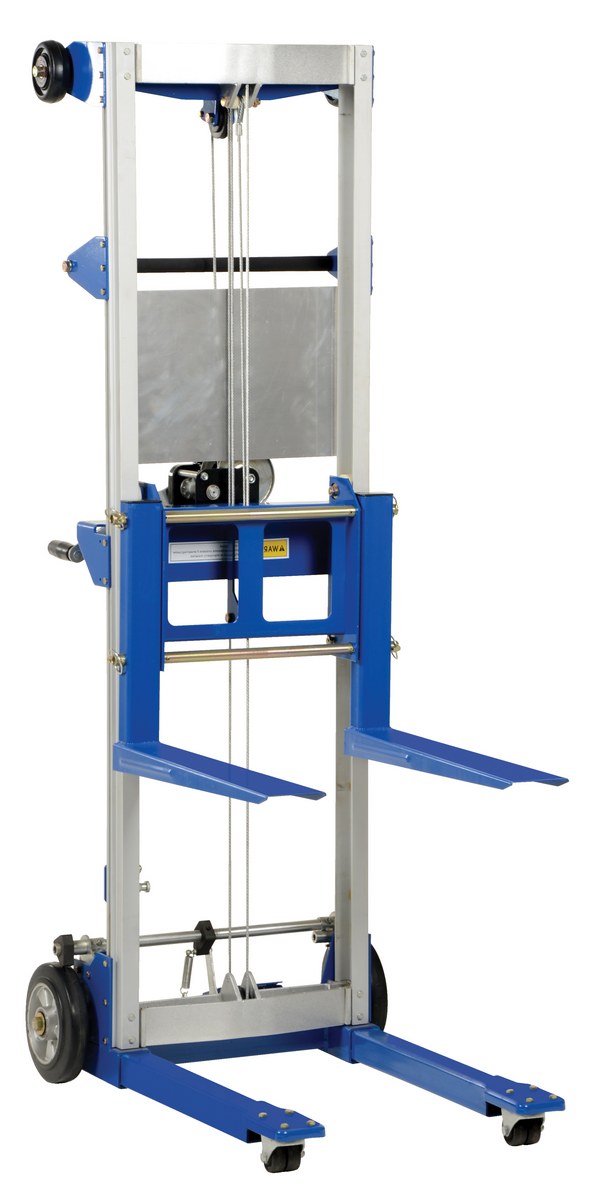

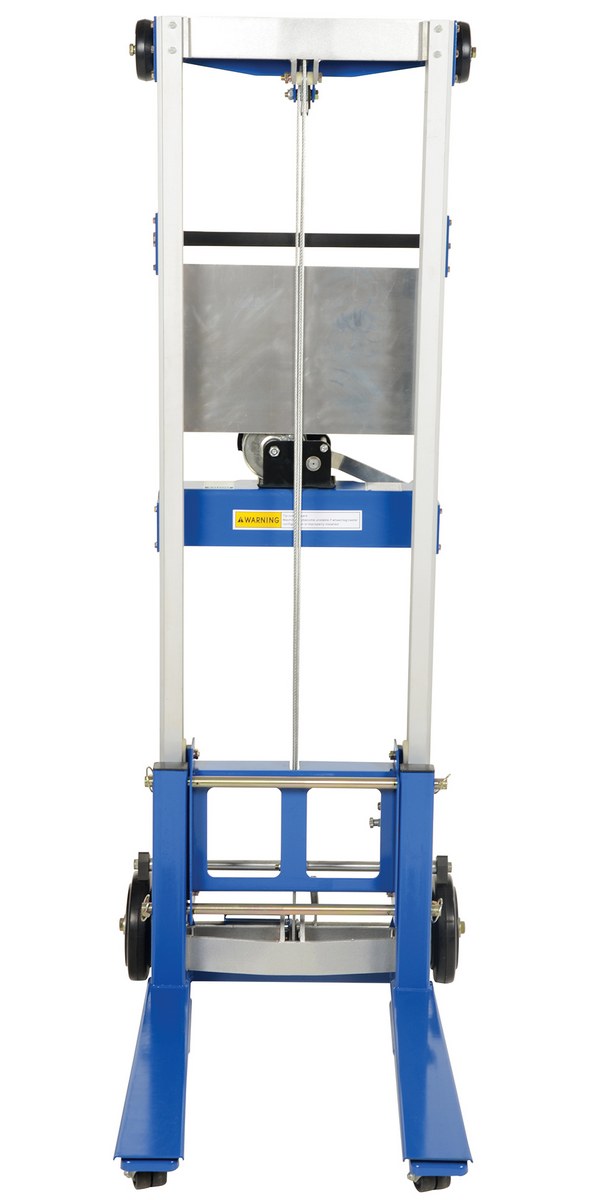

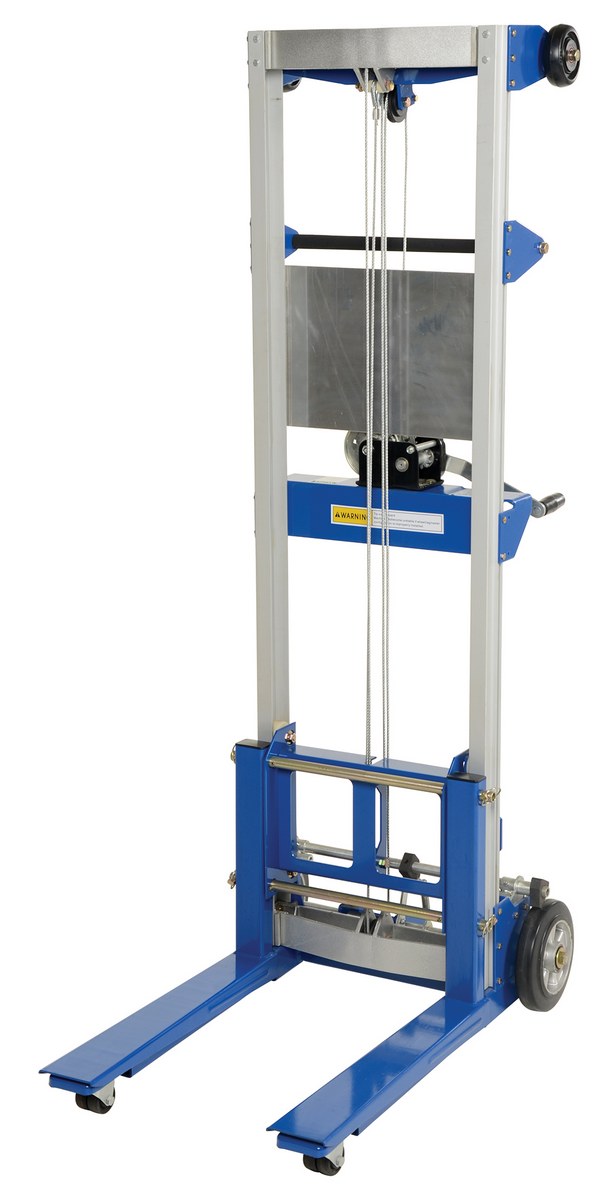

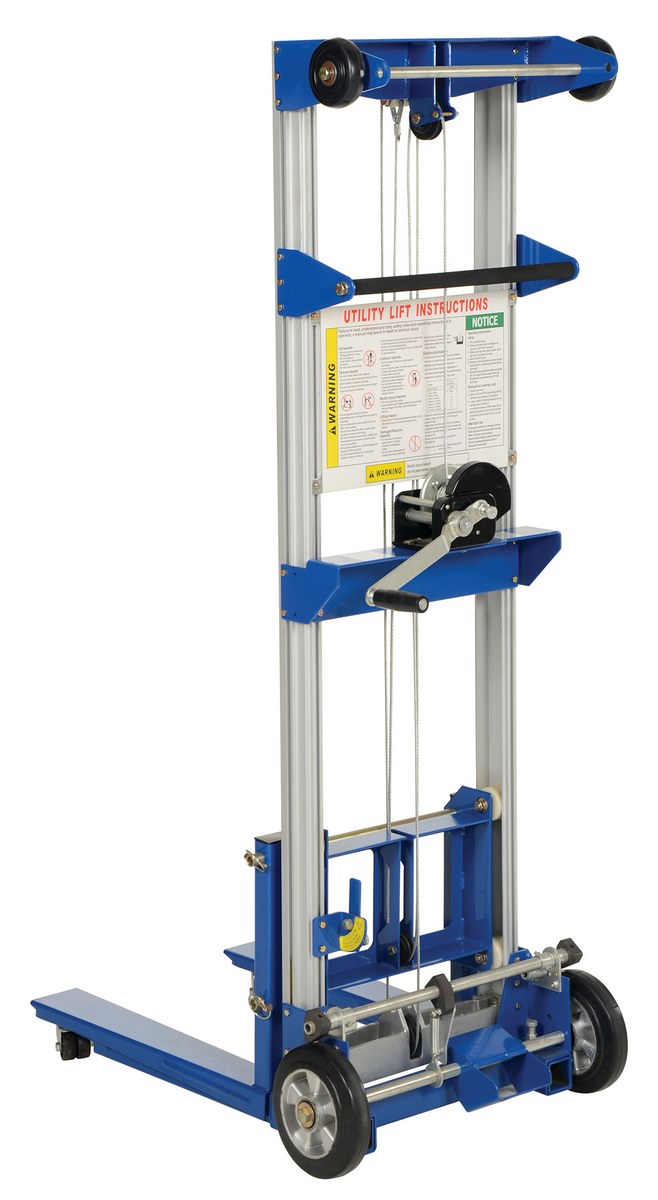

Aluminum/Steel Fixed Straddle Manual Hand Winch Lift Trucks 500 Lb. Capacity Silver/Blue

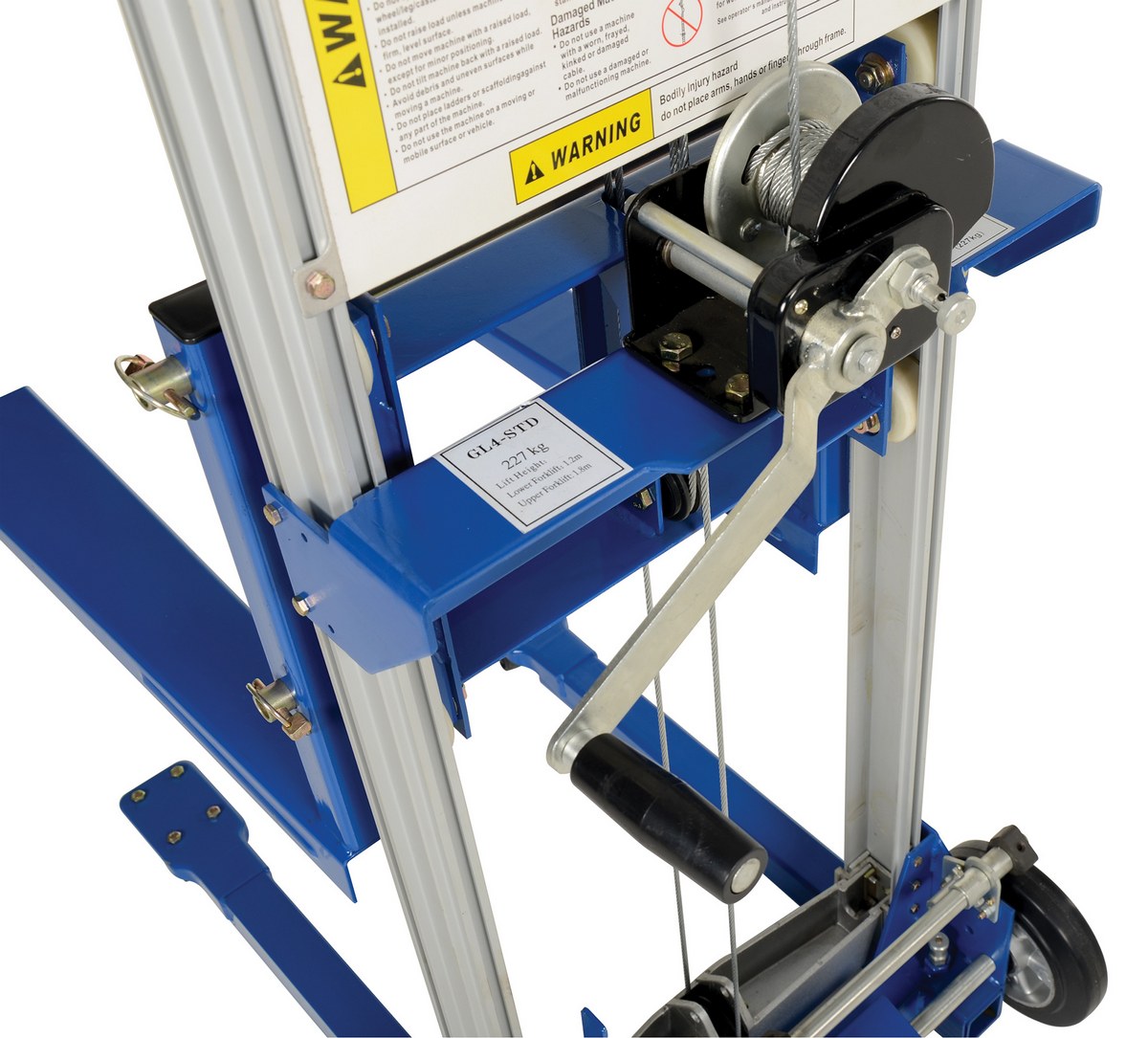

The hand winch lift truck is compact and designed to lift material to and from shelves, move office equipment, and install ceiling/wall appliances. It's constructed of durable steel-and-aluminum. Operated by a hand-crank winch that features a reversible handle and hold-down device for securing the carriage during transport.

  • Lightweight portable lifts are great for hundreds of applications
  • Manual cable winch easily raises and lowers forks
  • Invertible forks provide additional height capabilities
  • Hold-down device secures carriage during transport
Assembled Wt.(lbs.): 136 Assembled Size: 29.375"W x 67.3125"L x 68.75"H

Total Ship Wt.(lbs.): 191 (only 1 package) Package 1 Size: 29"W x 92"D x 18"H Color: Silver

Uniform Capacity (lb.): 500 Service Range w/ Forks Down (in.): 3-1/2 to 47 Service Range w/ Forks Up (in.): 23-1/2 to 67
Fork Width/Length (in.): 4 x 22-7/16 Fork Spacing (in.): 16-1/2 Fork Raise per Hand Crank Rotation (in.): 1
Rear Non-Marking Wheel Diameter (in.): 8 Front Swivel Wheel Diameter (in.): 2

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

1 Year Limited Warranty

Details For Model: A-LIFT-R
Available
A-LIFT-R

Aluminum/Steel Fixed Straddle Manual Hand Winch Lift Trucks 500 Lb. Capacity Silver/Blue

The hand winch lift truck is compact and designed to lift material to and from shelves, move office equipment, and install ceiling/wall appliances. It's constructed of durable steel-and-aluminum. Operated by a hand-crank winch that features a reversible handle and hold-down device for securing the carriage during transport.

  • Lightweight portable lifts are great for hundreds of applications
  • Manual cable winch easily raises and lowers forks
  • Invertible forks provide additional height capabilities
  • Hold-down device secures carriage during transport
Dimensions: 29.375"W x 67.3125"L x 68.75"H Sell UOM: -- Color: Silver
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 191 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity (lb.): 500 Service Range w/ Forks Down (in.): 3-1/2 to 47 Service Range w/ Forks Up (in.): 23-1/2 to 67
Fork Width/Length (in.): 4 x 22-7/16 Fork Spacing (in.): 16-1/2 Fork Raise per Hand Crank Rotation (in.): 1
Rear Non-Marking Wheel Diameter (in.): 8 Front Swivel Wheel Diameter (in.): 2
