A-LIFT-CB-HP

Printer Friendly
Available
A-LIFT-CB-HP
A-LIFT-CB-HP A-LIFT-CB-HP A-LIFT-CB-HP A-LIFT-CB-HP A-LIFT-CB-HP A-LIFT-CB-HP A-LIFT-CB-HP A-LIFT-CB-HP

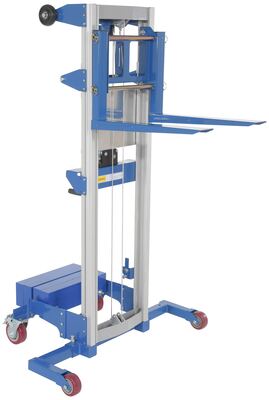

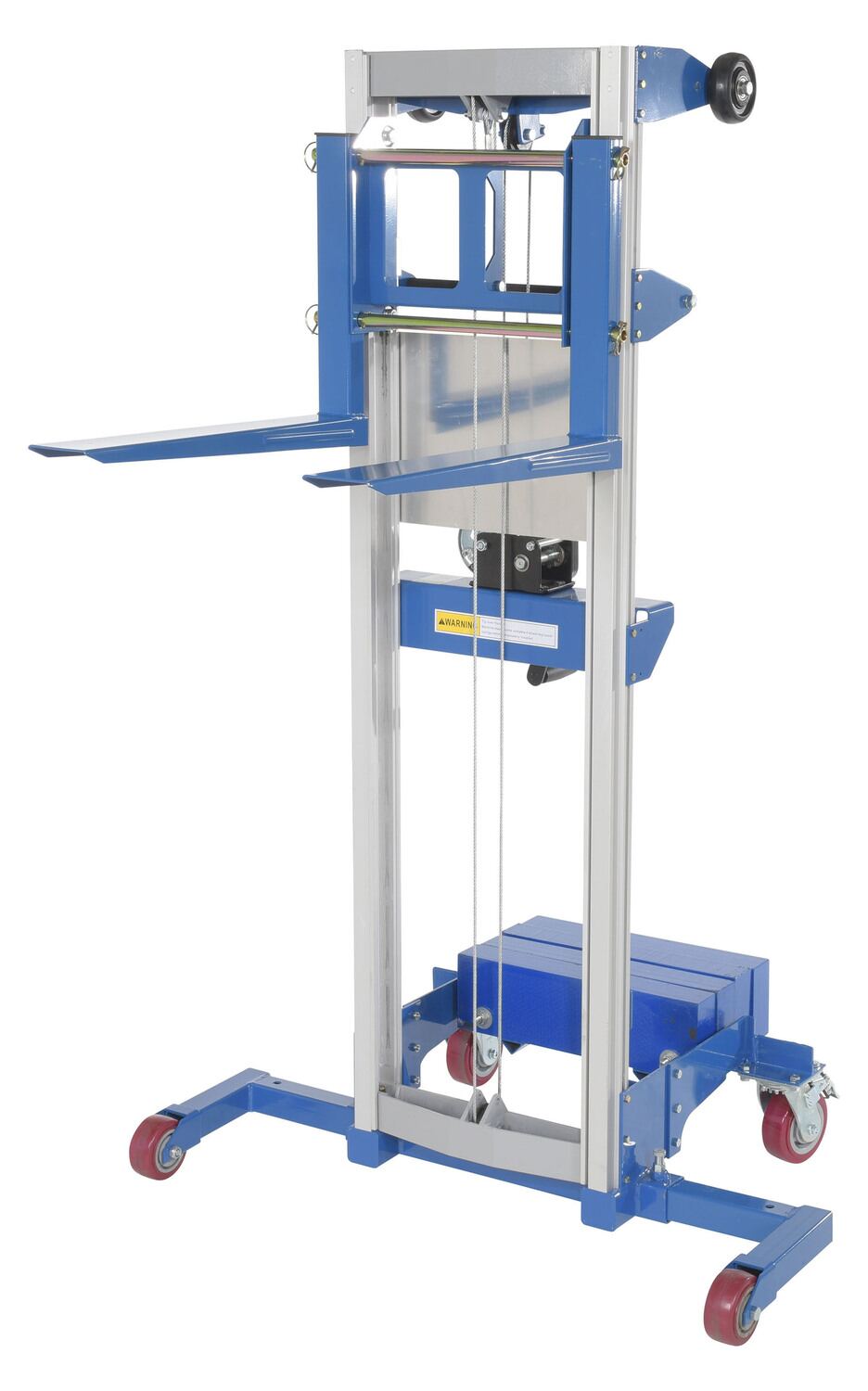

Aluminum/Steel Manual Hand Winch Lift Truck With Counter Balance 400 Lb. Capacity Silver/Blue

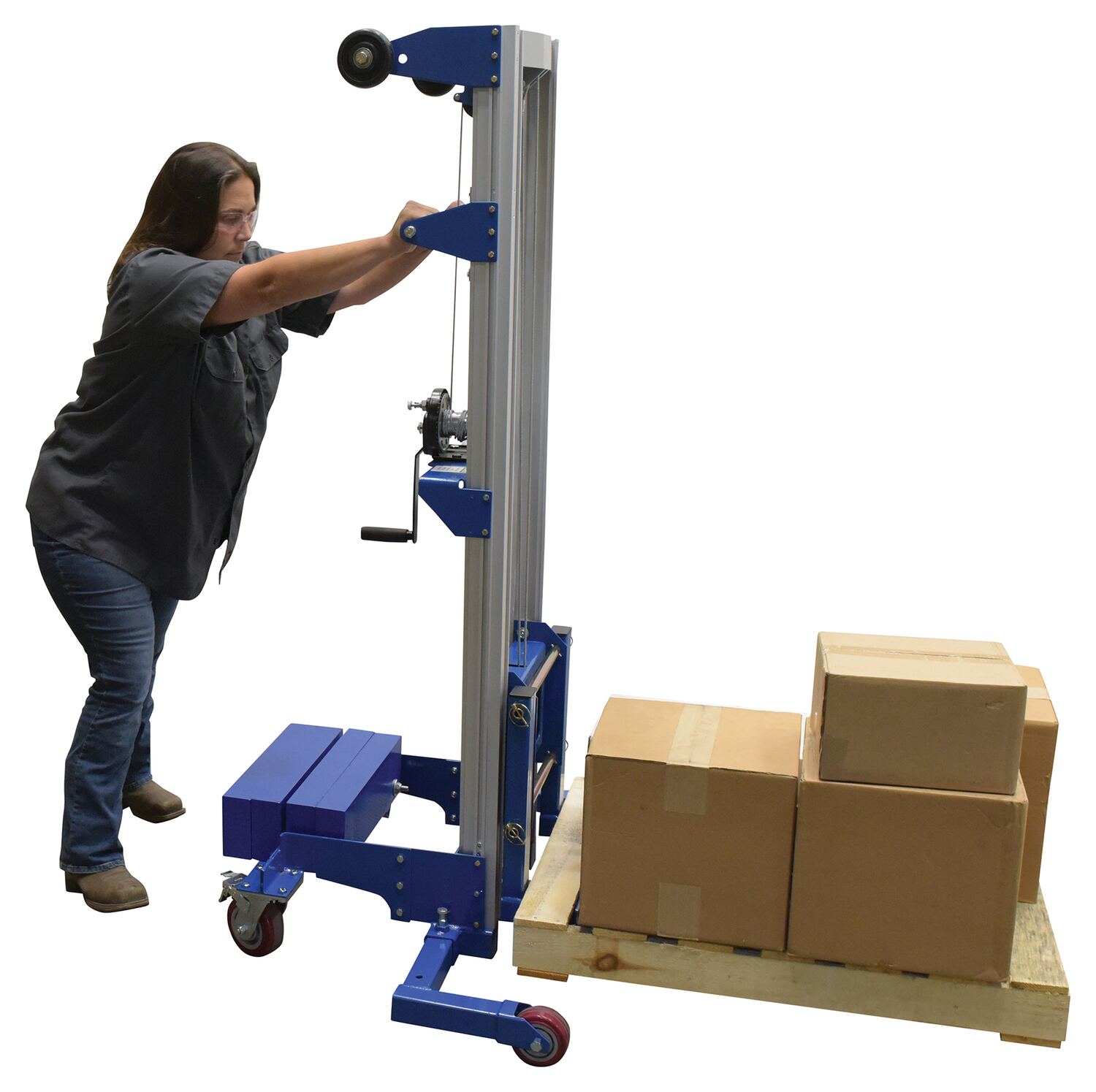

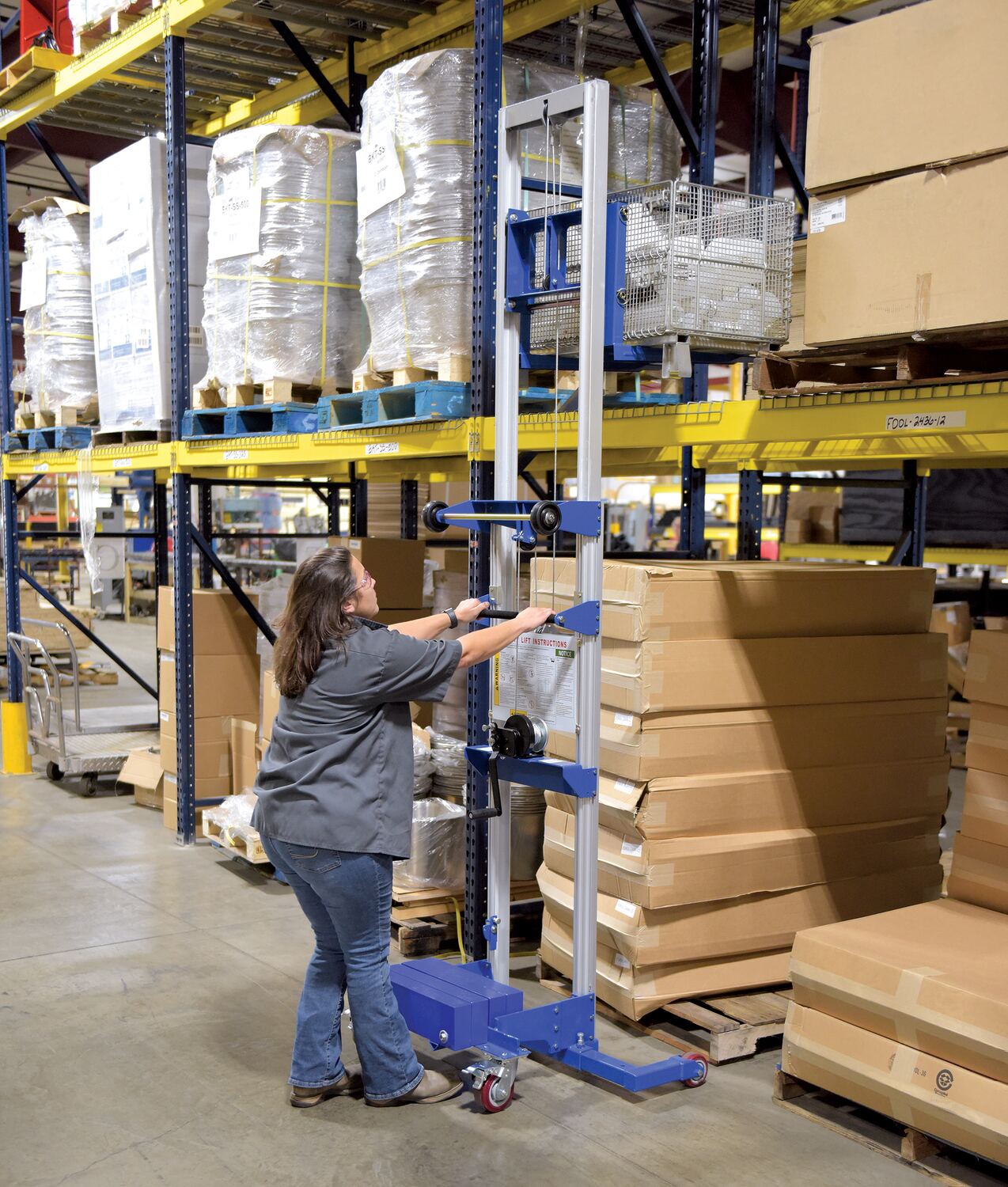

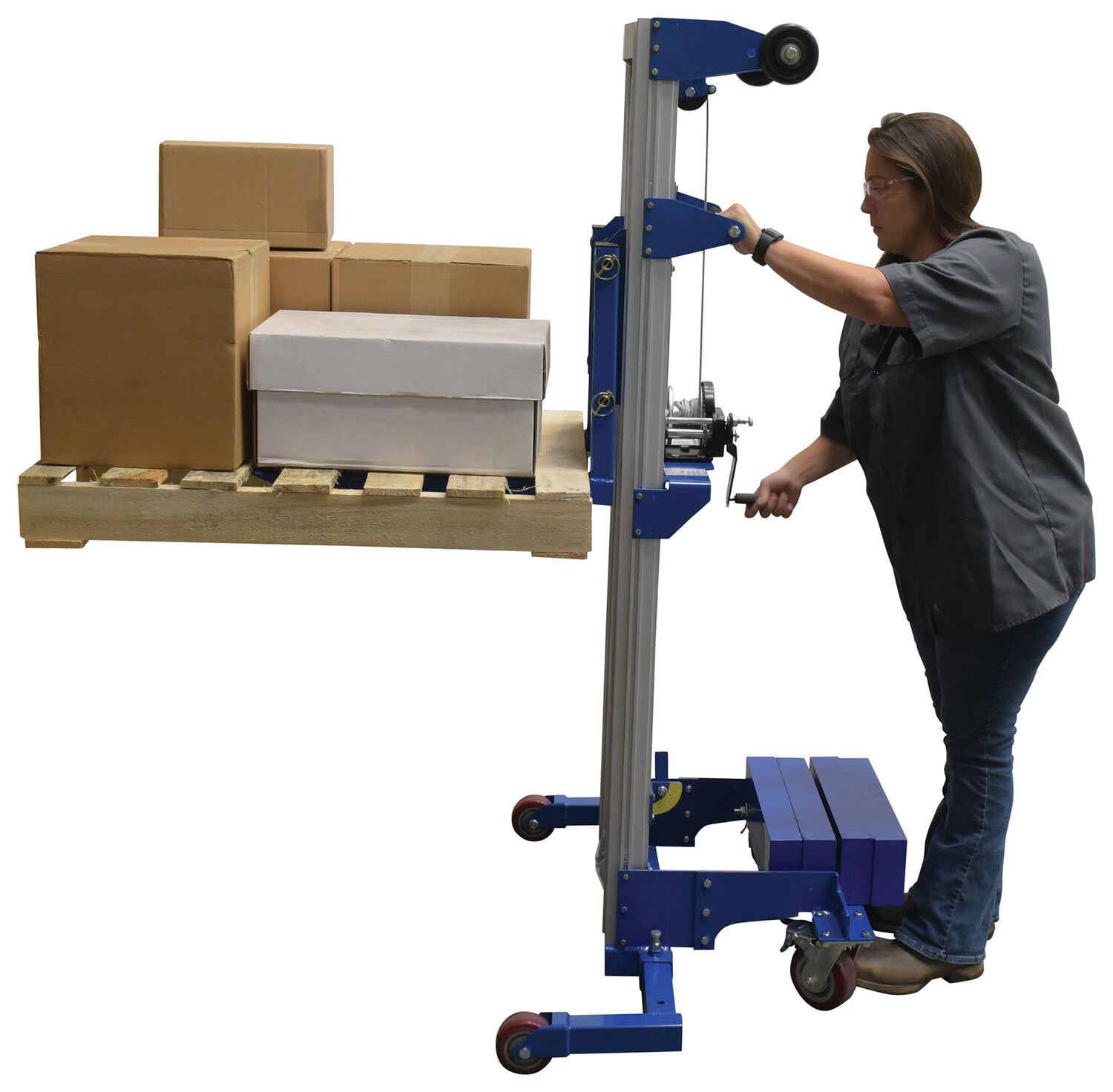

The hand winch lift truck is compact and designed to lift material to and from shelves, move office equipment, and install ceiling/wall appliances. It's constructed of durable steel-and-aluminum and a counterbalance design (counterweight included). Operated by a hand-crank winch that features a reversible handle and hold-down device for securing the carriage during transport. The non-adjustable forks can be inverted to provide different height ranges.

  • Lightweight portable lifts are great for hundreds of applications

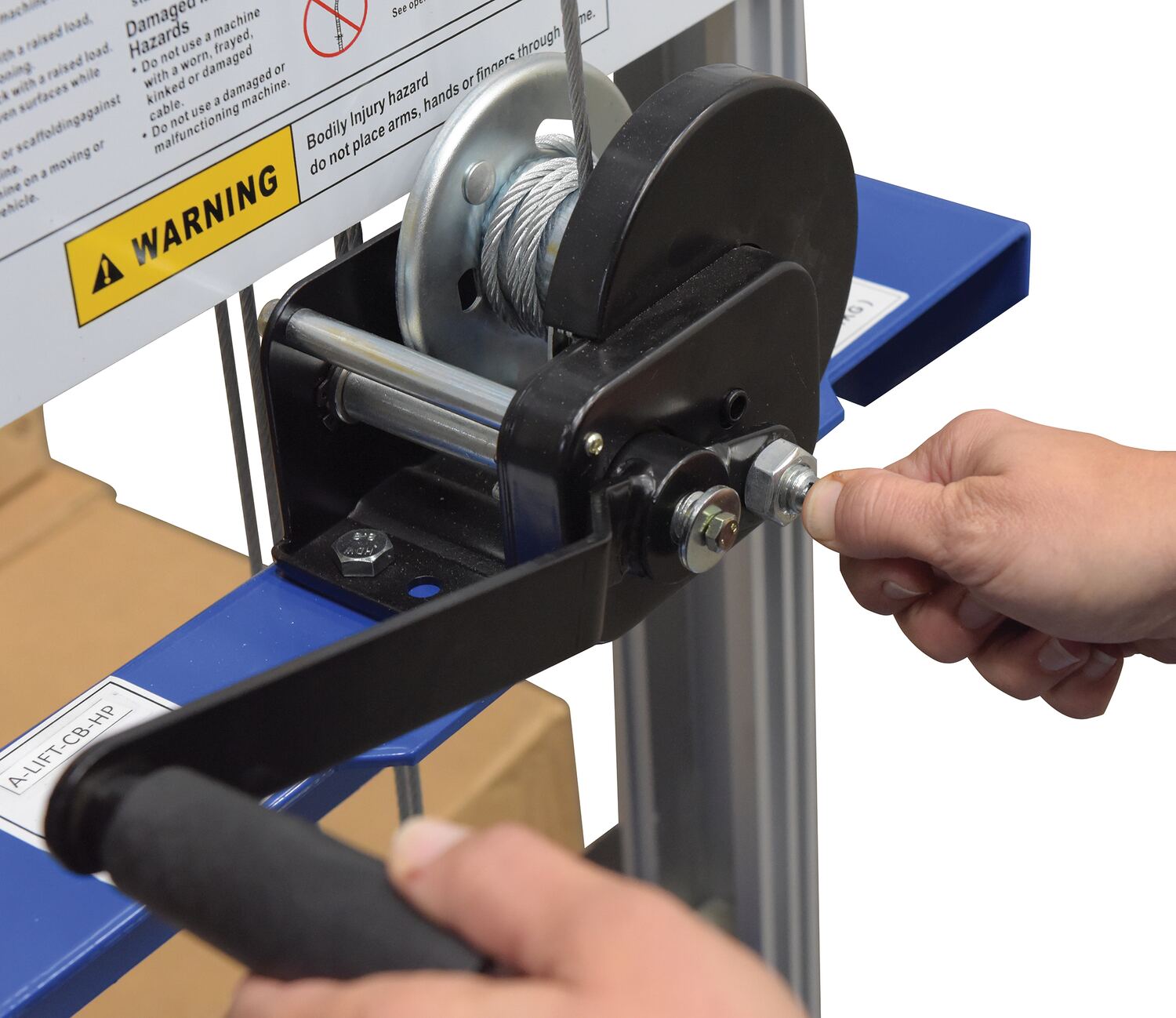

  • Manual cable winch easily raises and lowers forks
  • Counterbalance weight design keeps unit from tipping with heavy loads
  • Hold-down device secures carriage during transport
Assembled Wt.(lbs.): 418 Assembled Size: 43.25"W x 45.875"L x 67.3125"H

Total Ship Wt.(lbs.): 445 (only 1 package) Package 1 Size: 29"W x 92"D x 18"H Color: Silver

Uniform Capacity (lb.): 400 Service Range w/ Forks Down (in.): 2 to 98-7/16 Service Range w/ Forks Up (in.): 21-1/4 to 120
Fork Width/Length (in.): 4 x 22-7/16 Fork Spacing (in.): 20-7/8 Fork Raise per Hand Crank Rotation (in.): 1
Rear Wheel Diameter/Width (in.): 5 x 2 Front Wheel Diameter/Width (in.): 4 x 2 Wheel Material: Poly-On-Poly
Handle Material: Steel w/ Foam Grip

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

1 Year Limited Warranty

Details For Model: A-LIFT-CB-HP
Available
A-LIFT-CB-HP

Aluminum/Steel Manual Hand Winch Lift Truck With Counter Balance 400 Lb. Capacity Silver/Blue

The hand winch lift truck is compact and designed to lift material to and from shelves, move office equipment, and install ceiling/wall appliances. It's constructed of durable steel-and-aluminum and a counterbalance design (counterweight included). Operated by a hand-crank winch that features a reversible handle and hold-down device for securing the carriage during transport. The non-adjustable forks can be inverted to provide different height ranges.

  • Lightweight portable lifts are great for hundreds of applications
  • Manual cable winch easily raises and lowers forks
  • Counterbalance weight design keeps unit from tipping with heavy loads
  • Hold-down device secures carriage during transport
Dimensions: 43.25"W x 45.875"L x 67.3125"H Sell UOM: -- Color: Silver
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 445 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity (lb.): 400 Service Range w/ Forks Down (in.): 2 to 98-7/16 Service Range w/ Forks Up (in.): 21-1/4 to 120
Fork Width/Length (in.): 4 x 22-7/16 Fork Spacing (in.): 20-7/8 Fork Raise per Hand Crank Rotation (in.): 1
Rear Wheel Diameter/Width (in.): 5 x 2 Front Wheel Diameter/Width (in.): 4 x 2 Wheel Material: Poly-On-Poly
Handle Material: Steel w/ Foam Grip
