DC Powered Hydraulic Elevating Carts

model: CART-1000-DC

DC Powered Hydraulic Elevating Carts

SERIES: CART-DC 13Products

Best Seller

Powder Coat

Quick Ship

Battery Powered Lift Table Carts for Ergonomic Material Handling and Mobile Elevation

DC powered hydraulic elevating carts provide a reliable, push-button solution for lifting, positioning, and transporting materials in demanding industrial environments. Designed to reduce manual strain and increase workflow efficiency, these battery-powered lift table carts eliminate the need for repetitive pumping while delivering smooth, controlled elevation. Ideal for warehouses, production lines, and maintenance operations, these units combine mobility with ergonomic performance to streamline daily material handling tasks.

Key Features & Benefits

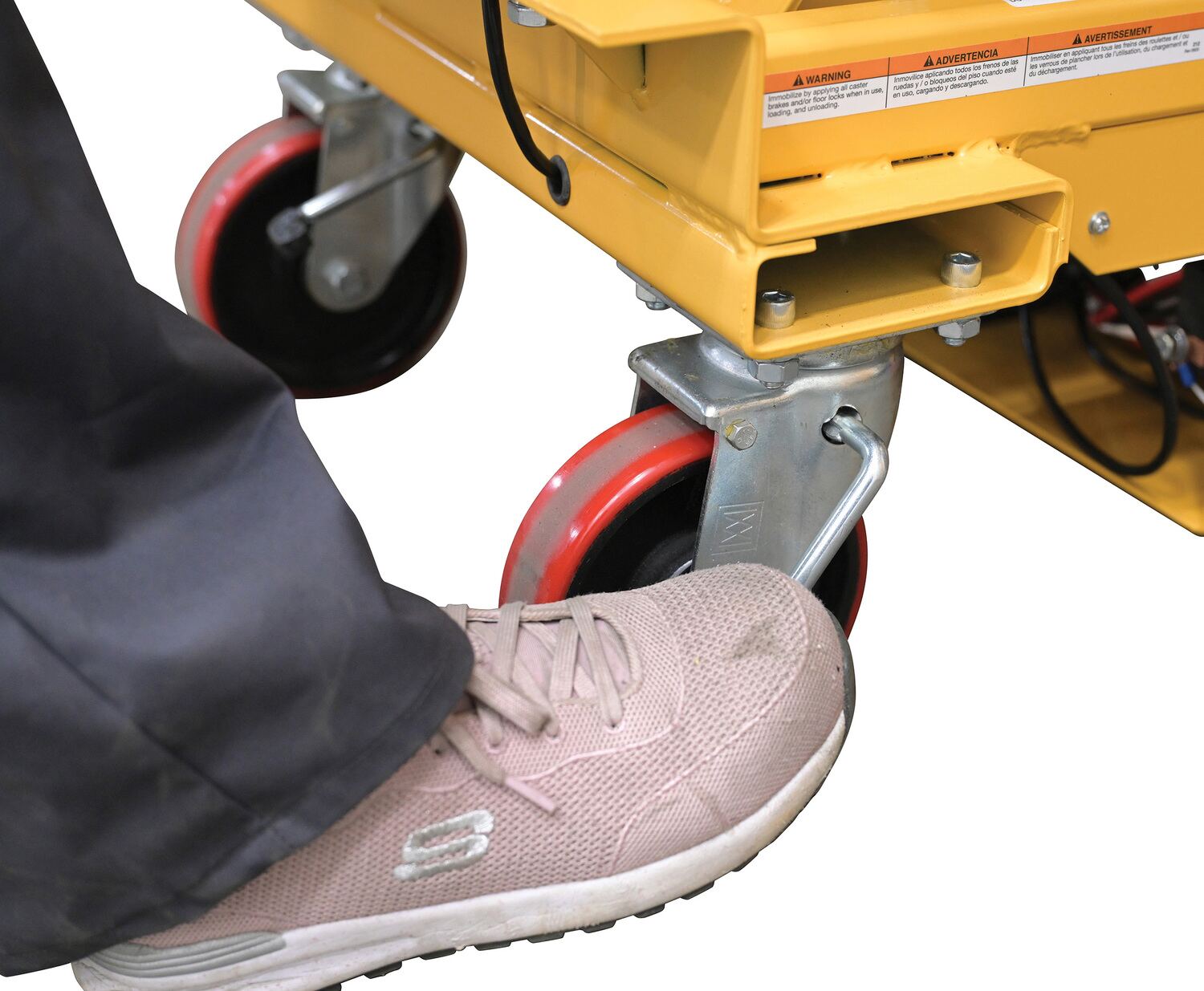

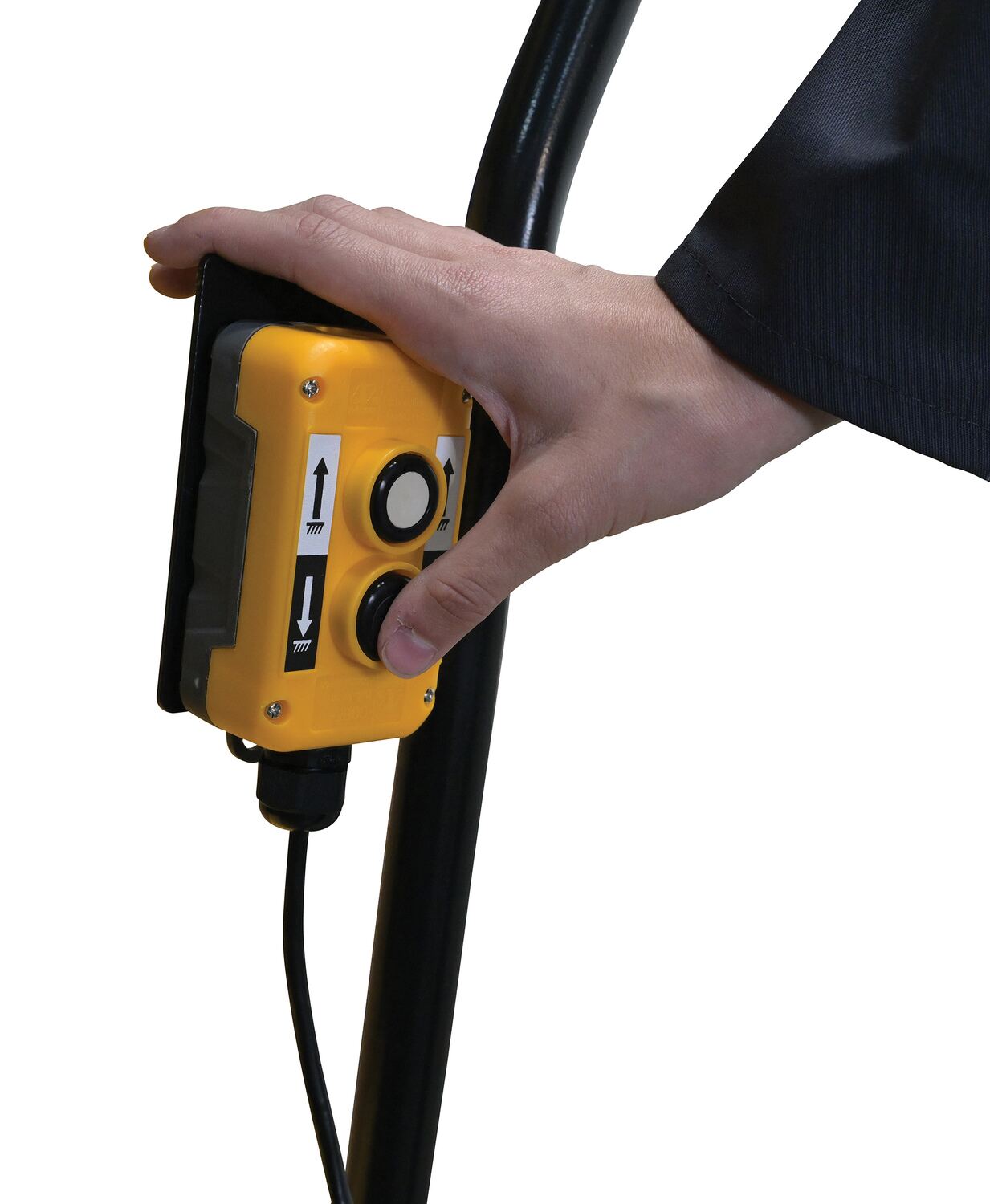

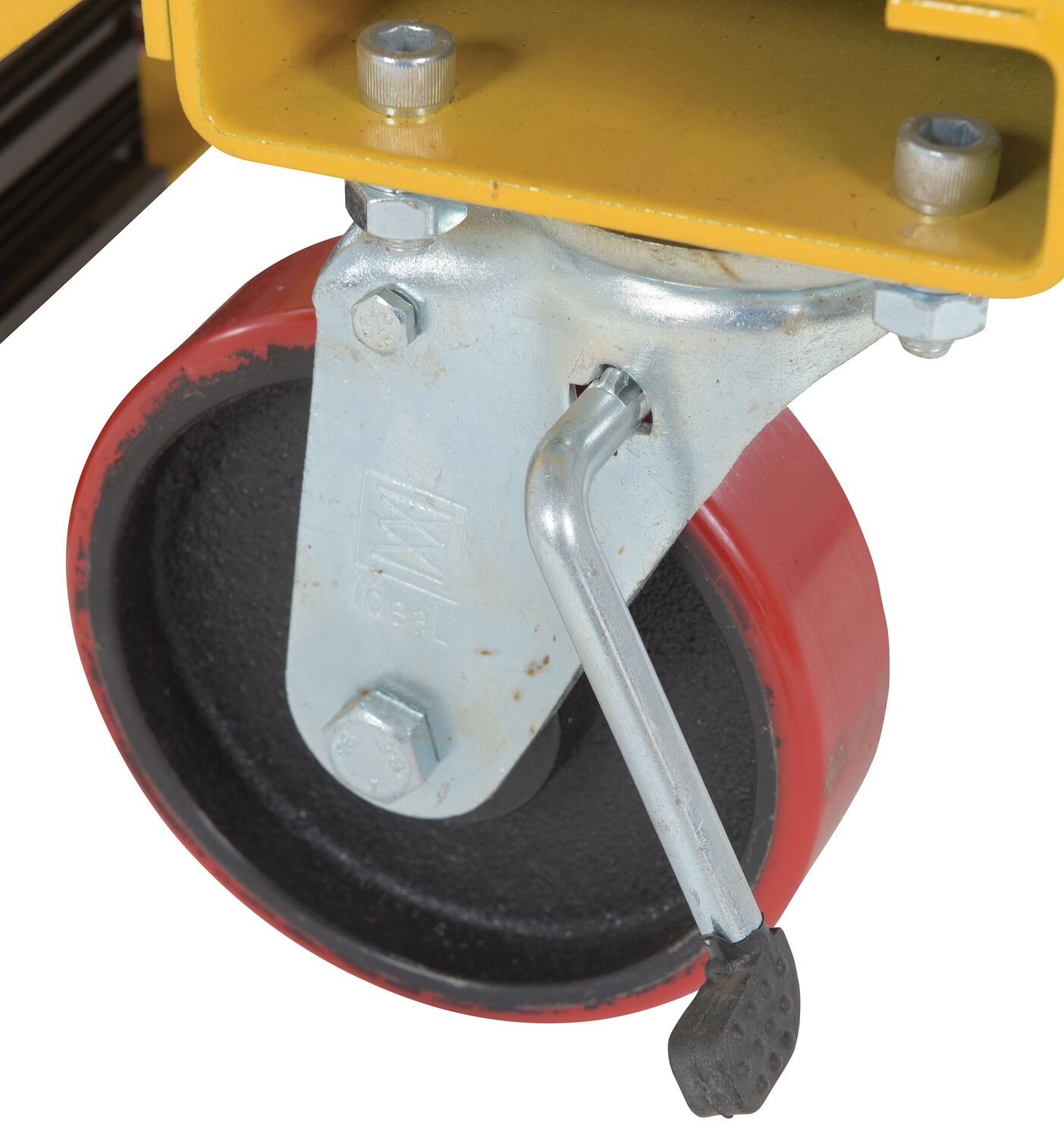

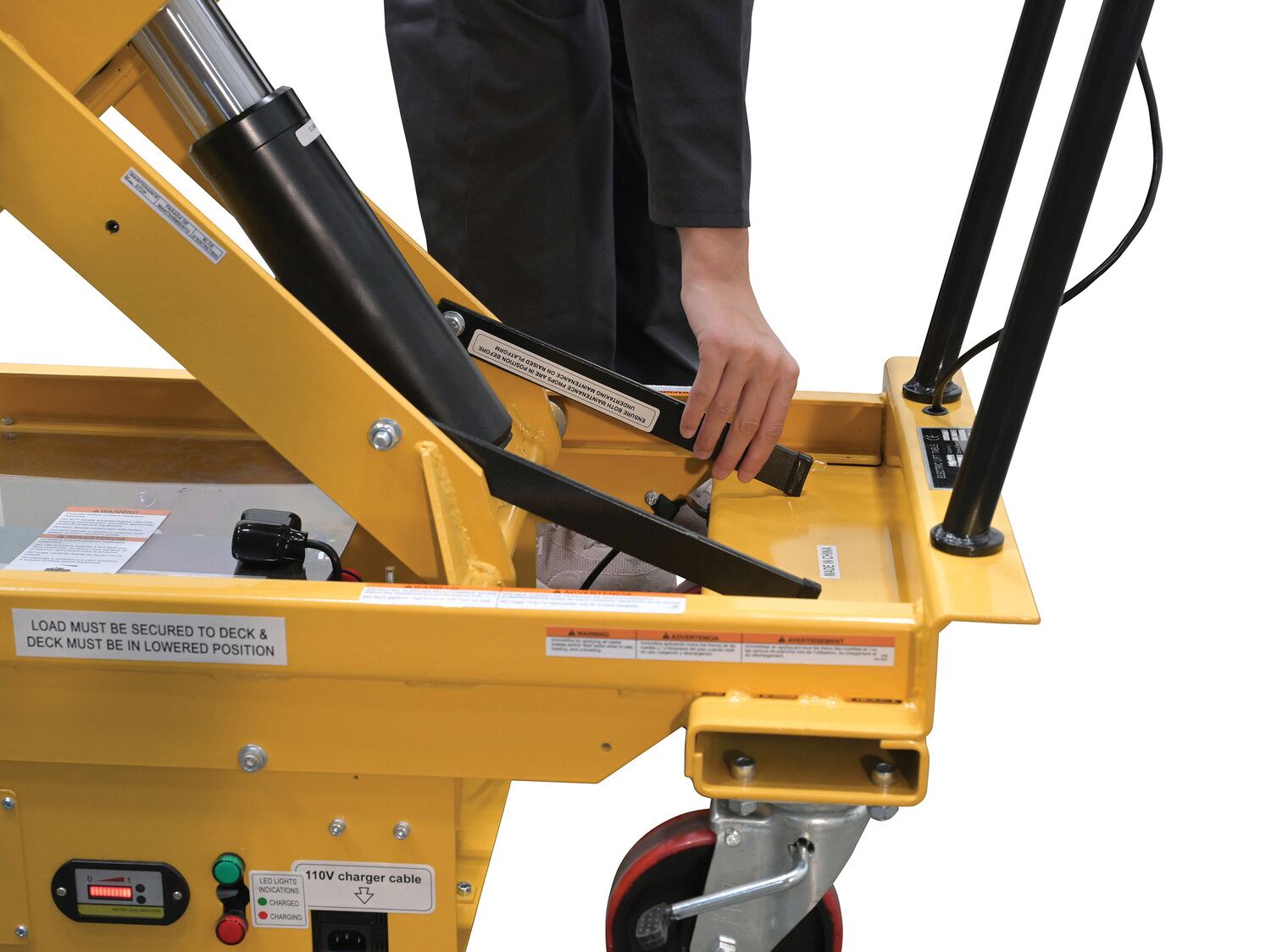

Equipped with a 12V battery and onboard charger, these electric lift carts allow operators to raise and lower loads effortlessly at the touch of a button. Capacities range from light-duty to heavy-duty applications up to 2,500 lbs., with both single and double scissor designs available for standard and extended lift heights. Durable steel construction ensures long-term performance, while a variety of platform sizes accommodate everything from compact loads to oversized materials. Smooth-rolling polyurethane or poly-on-steel casters, combined with rigid and swivel configurations, provide excellent maneuverability and control.

Applications

These powered lift carts are ideal for order picking, assembly operations, machine feeding, packing stations, and maintenance tasks. By allowing users to position materials at an optimal working height, they help reduce fatigue, improve safety, and increase productivity across a wide range of industries.

Configurations

This product family offers multiple platform dimensions, lift ranges, and capacity options to match specific operational needs. Choose from compact or wide deck configurations, standard or extended lift heights, and varying weight capacities. With versatile design options and electric-powered convenience, these carts provide an efficient alternative to manual lift tables and traditional material handling methods.

DC Powered Hydraulic Elevating Carts

model: CART-1000-DC

	Model #				Description	Attributes	Net Wt. (lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= New Images Coming Soon! = Dimension Image = Works w/ Skid Only = Flatbed Truck Required

CART-1000-2040-DC

CART-1000-LD-DC

CART-1000-WD-DC

CART-2000-2040-DC

CART-2000-3240-DC

CART-2000-4242-DC

CART-2500-2040-DC

CART-500-2033-DC

CARTD-1000-2033-DC

CARTD-750-2040-DC

PDFs will open in a new window when clicked.

Manuals

CART-1000-DC

CART-1000D-DC

CART-SCTAB

Survey Sheets

CART-2000

Engineering Drawings

CART-1000-2040-DC

CART-1000-DC

CART-1000-LD-DC

CART-1000-WD-DC

CART-1000D-DC

CART-2000-2040-DC

CART-2000-3240-DC

CART-2000-4242-DC

CART-2500-2040-DC

CART-500-2033-DC

CARTD-1000-2033-DC

CARTD-750-2040-DC

Testing Certificates

CART-1000-2040-DC

CART-1000-DC

CART-1000-LD-DC

CART-1000-WD-DC

CART-1000D-DC

CART-2000-2040-DC

CART-2000-3240-DC

CART-2000-4242-DC

CART-2000-DC-C

CART-2500-2040-DC

CART-500-2033-DC

CARTD-1000-2033-DC

CARTD-750-2040-DC

SDS Sheets

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid
CART-1000-2040-DC SDS

Hydraulic Oil
CART-1000-2040-DC SDS

Lead Acid Battery
CART-1000-DC SDS

Hydraulic Oil
CART-1000-DC SDS

Lead Acid Battery
CART-1000D-DC SDS

Hydraulic Oil
CART-1000D-DC SDS

Lead Acid Battery
CART-1000-LD-DC SDS

Hydraulic Oil
CART-1000-LD-DC SDS

Lead Acid Battery
CART-1000-WD-DC SDS

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid
CART-2000-2040-DC SDS

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid
CART-2000-3240-DC SDS

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid
CART-2000-4242-DC SDS

Valve-Regulated Lead Acid Batteries
CART-2000-DC-C SDS

Hydraulic Oil
CART-2000-DC-C SDS

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid
CART-2500-2040-DC SDS

Hydraulic Oil
CART-2500-2040-DC SDS

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid
CART-500-2033-DC SDS

Hydraulic Oil
CART-500-2033-DC SDS

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid
CARTD-1000-2033-DC SDS

Hydraulic Oil
CARTD-1000-2033-DC SDS

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid
CARTD-750-2040-DC SDS

Hydraulic Oil
CARTD-750-2040-DC SDS

Other PDFs

No "Other PDFs" For This Product

Applications

Construction Projects

Trucking Companies

Do It Yourself

Packaging Areas

Recycling Areas

Print Friendly

Related or Similar Products:

More From Elevating Lift Carts

Pneumatic Tire Elevating Carts

Pneumatic Tire Elevating Carts

Foot Pump & Powered Scissor Lift Tables

Foot Pump & Powered Scissor Lift Tables

Low Profile Scissor Cart w/ Auto-Shift

Portable Electric Hydraulic Lift Table w/ Attached Hoist

Portable Electric Hydraulic Lift Table w/ Attached Hoist

Air Hydraulic Carts

Air Hydraulic Carts

Linear Actuated Elevating Carts

Linear Actuated Elevating Carts

DC Powered Hydraulic Elevating...

Battery Powered Lift Table Carts for Ergonomic Material Handling and Mobile Elevation

DC powered hydraulic elevating carts provide a reliable, push-button solution for lifting, positioning, and transporting materials in demanding industrial environments. Designed to reduce manual strain and increase workflow efficiency, these battery-powered lift table carts eliminate the need for repetitive pumping while delivering smooth, controlled elevation. Ideal for warehouses, production lines, and maintenance operations, these units combine mobility with ergonomic performance to streamline daily material handling tasks.

Key Features & Benefits

Equipped with a 12V battery and onboard charger, these electric lift carts allow operators to raise and lower loads effortlessly at the touch of a button. Capacities range from light-duty to heavy-duty applications up to 2,500 lbs., with both single and double scissor designs available for standard and extended lift heights. Durable steel construction ensures long-term performance, while a variety of platform sizes accommodate everything from compact loads to oversized materials. Smooth-rolling polyurethane or poly-on-steel casters, combined with rigid and swivel configurations, provide excellent maneuverability and control.

Applications

These powered lift carts are ideal for order picking, assembly operations, machine feeding, packing stations, and maintenance tasks. By allowing users to position materials at an optimal working height, they help reduce fatigue, improve safety, and increase productivity across a wide range of industries.

Configurations

This product family offers multiple platform dimensions, lift ranges, and capacity options to match specific operational needs. Choose from compact or wide deck configurations, standard or extended lift heights, and varying weight capacities. With versatile design options and electric-powered convenience, these carts provide an efficient alternative to manual lift tables and traditional material handling methods.

Model #		Description	Attributes	Net Wt. (lbs)

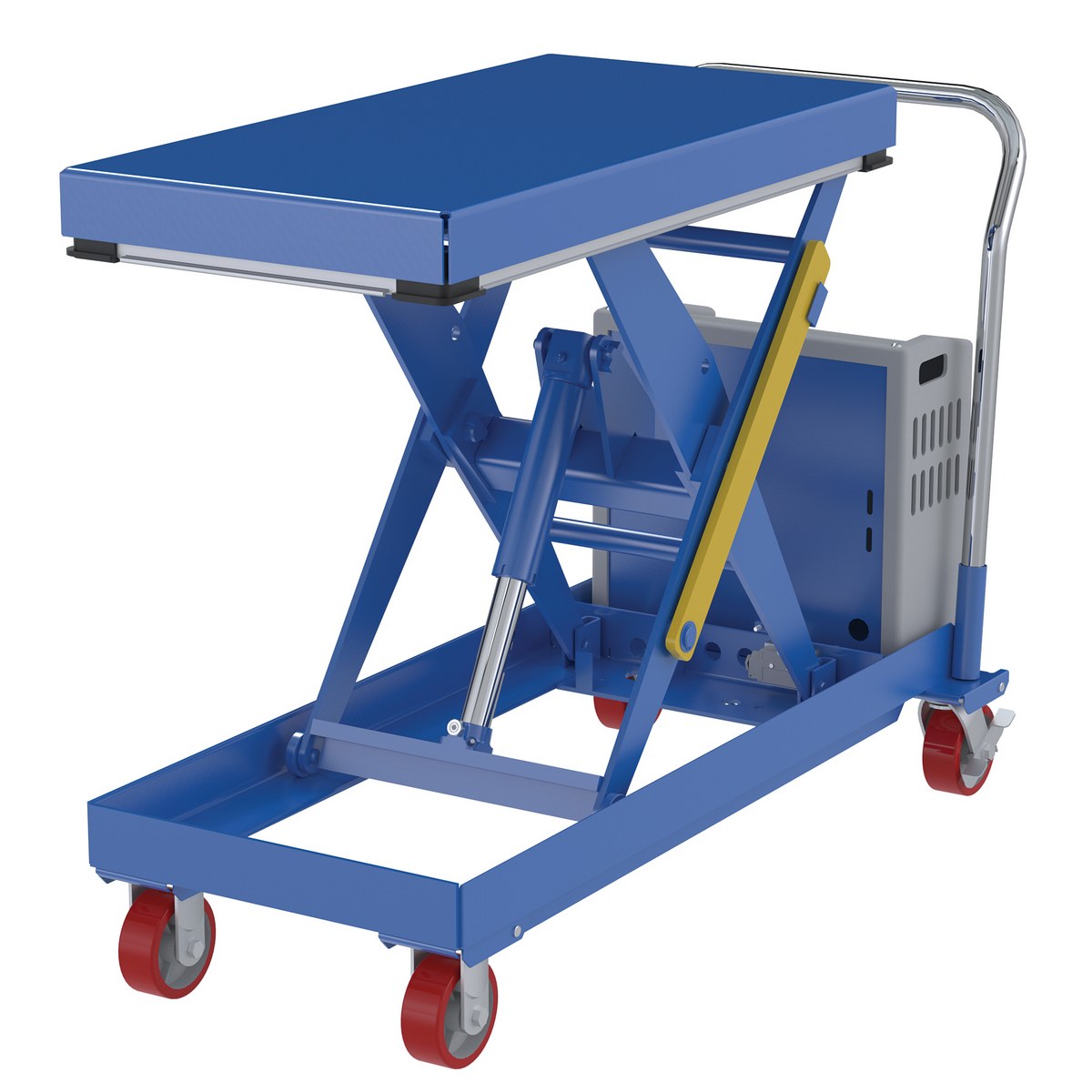

CART-1000-2040-DC		Steel 12V DC Powered Hydraulic Elevating Cart 20 In. x 40 In. 1000 Lb. Capacity Blue	Uniform Capacity (lb.): 1,000 Platform Width (in.): 20-3/8	413

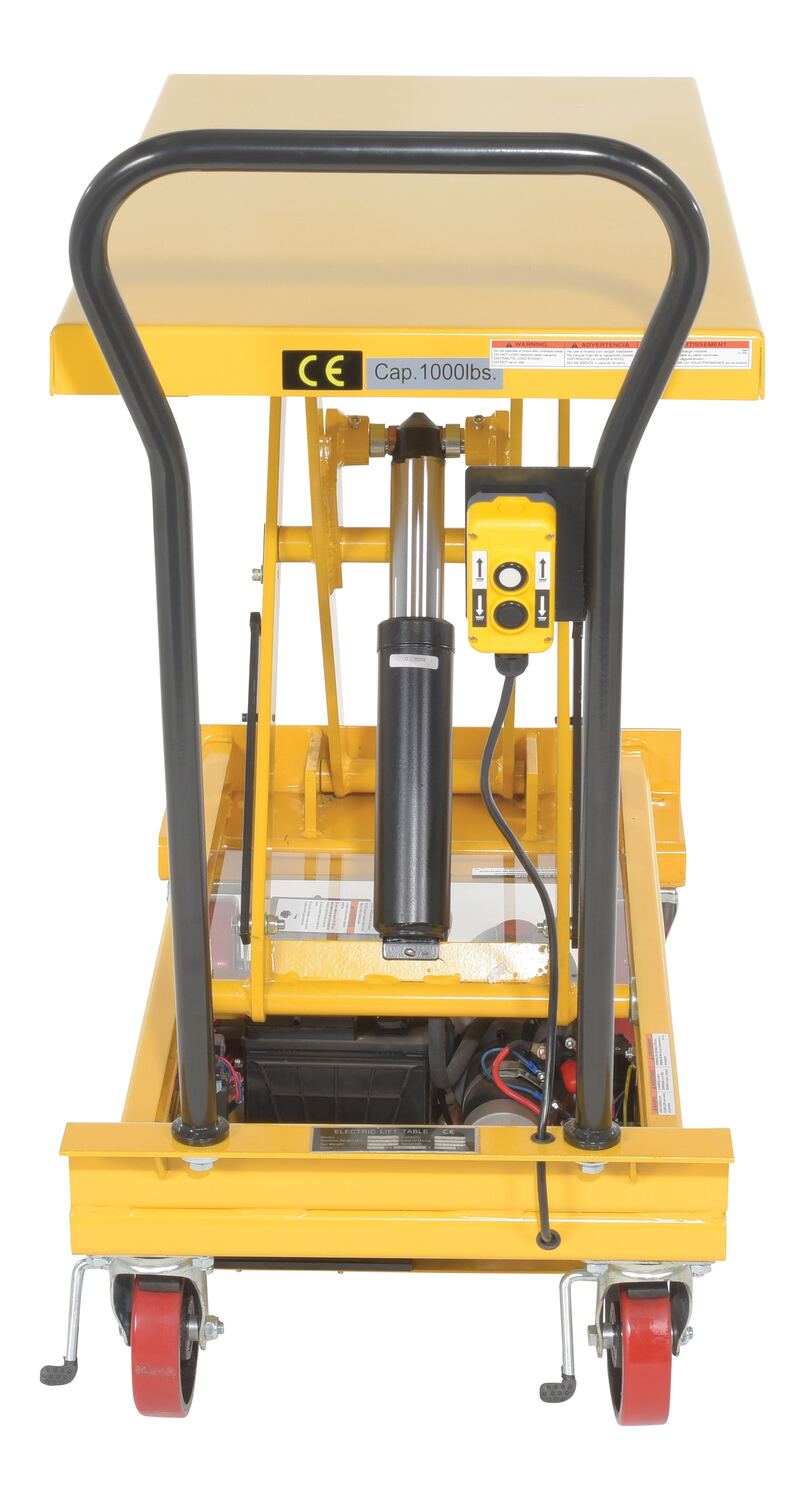

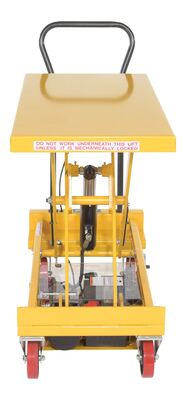

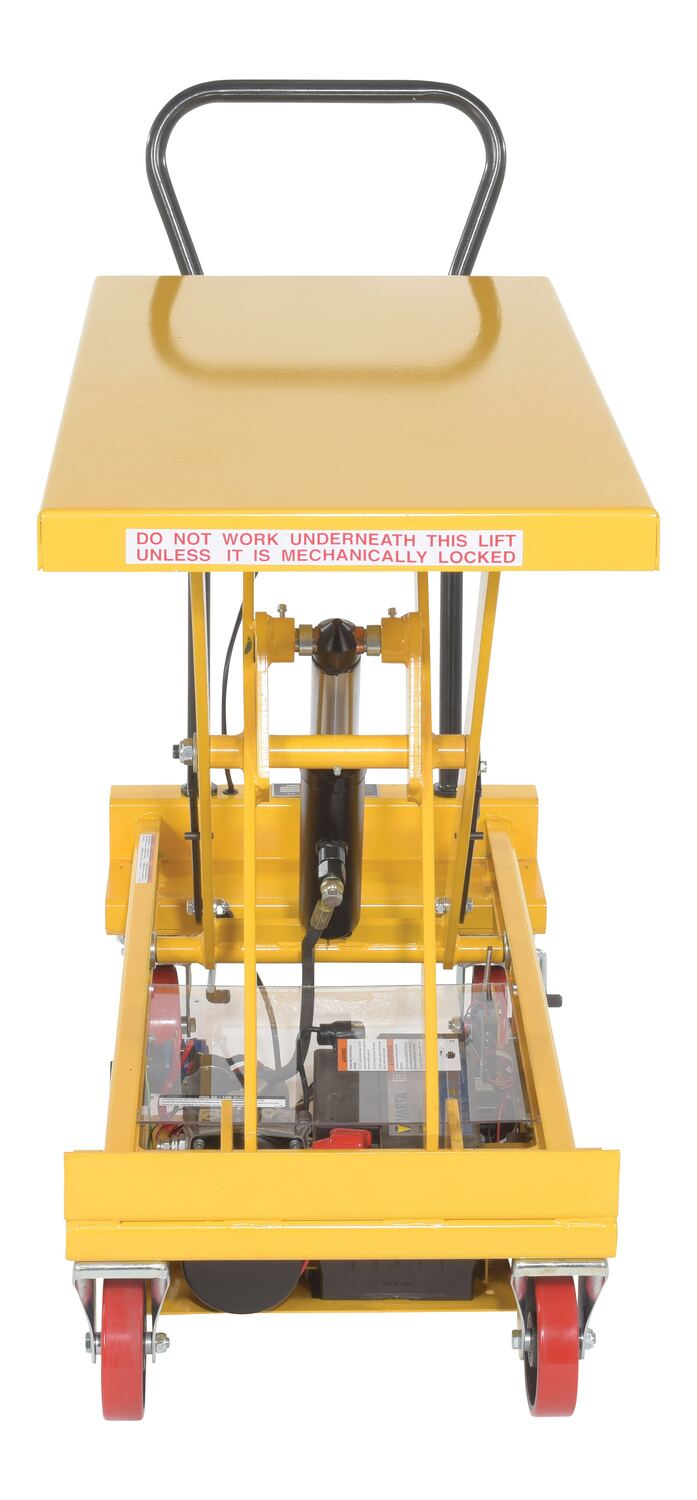

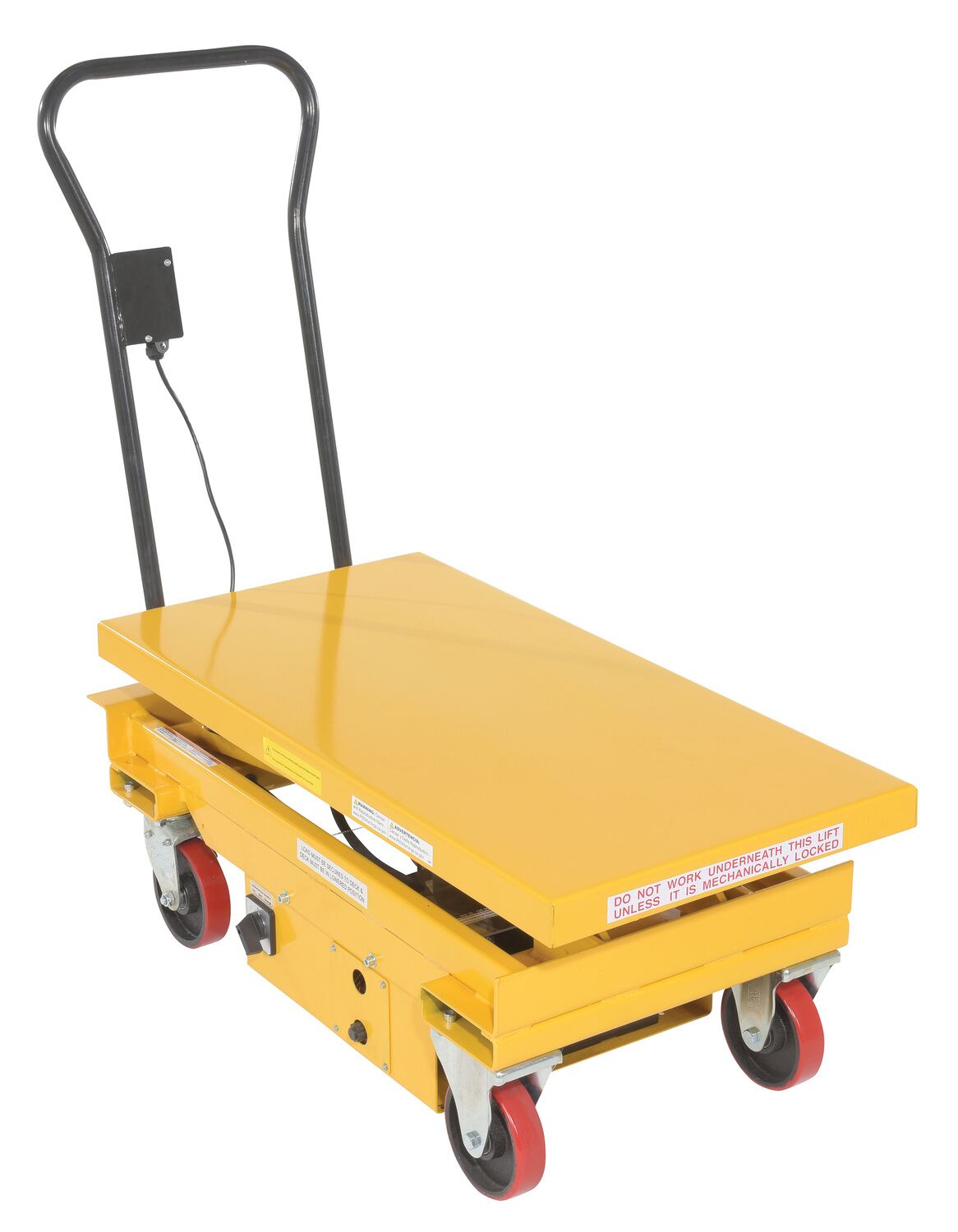

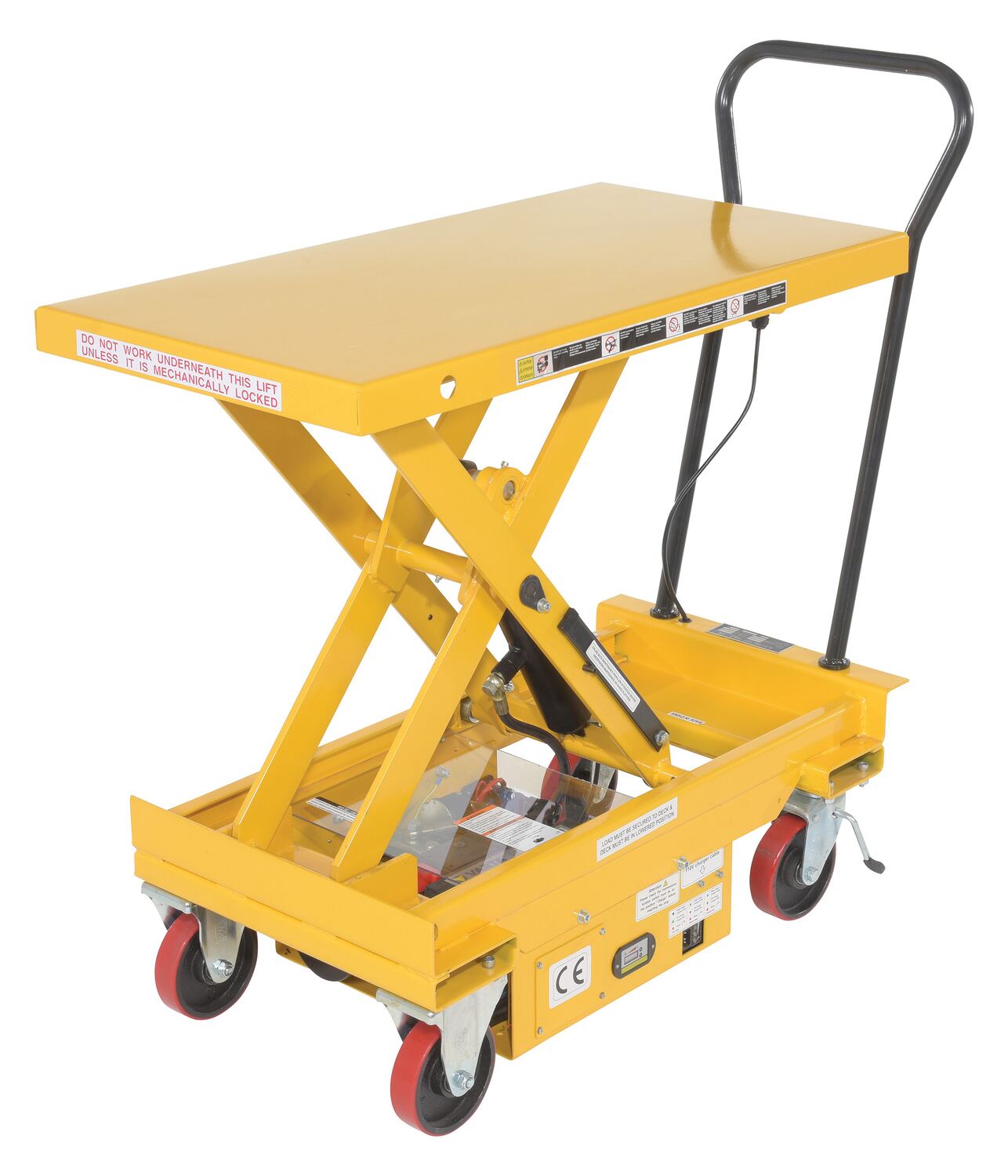

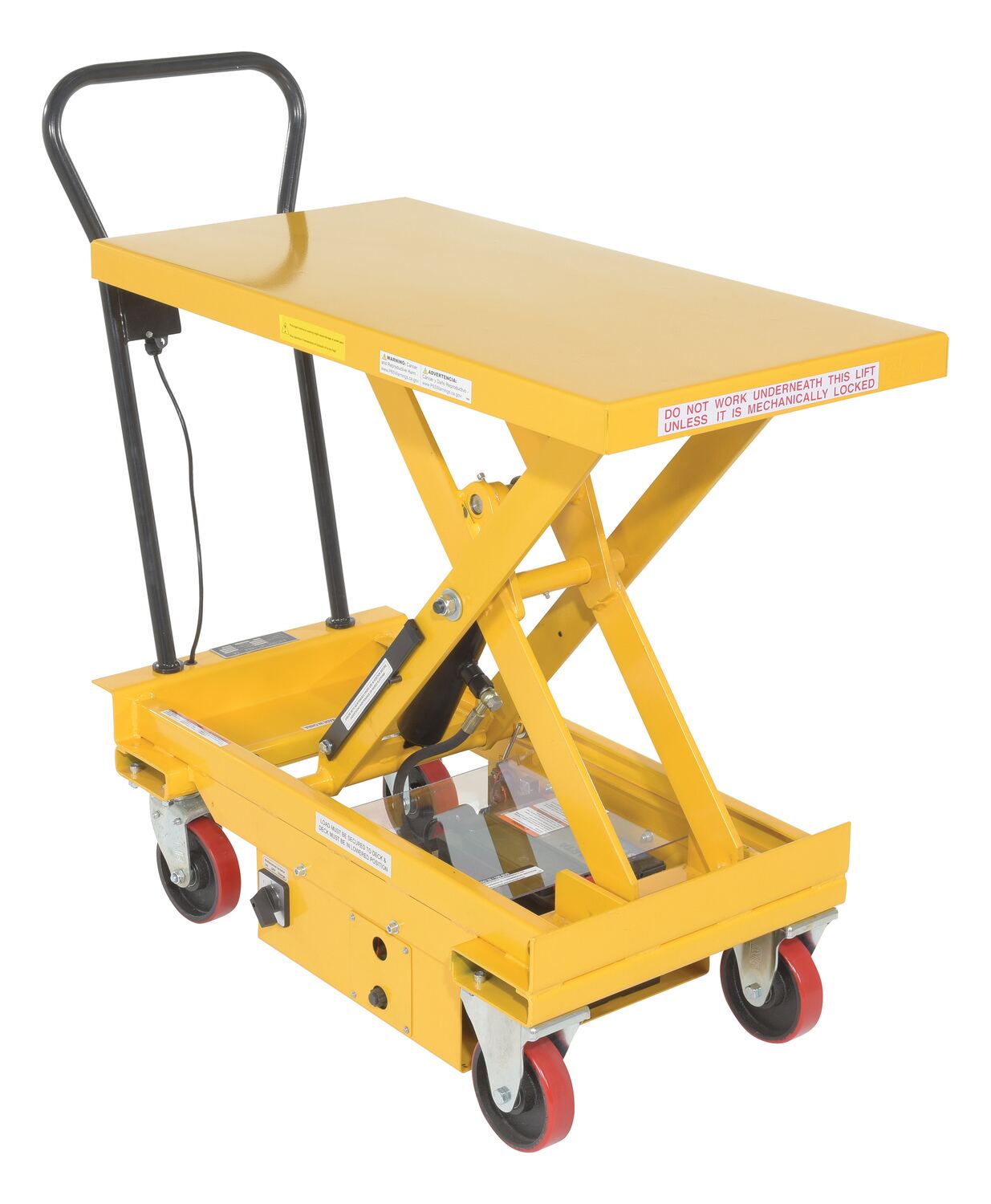

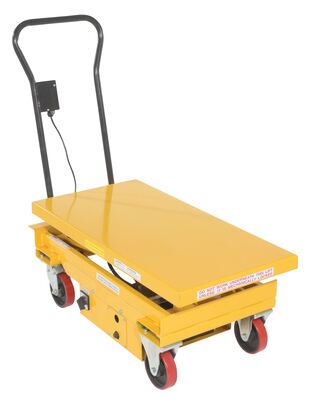

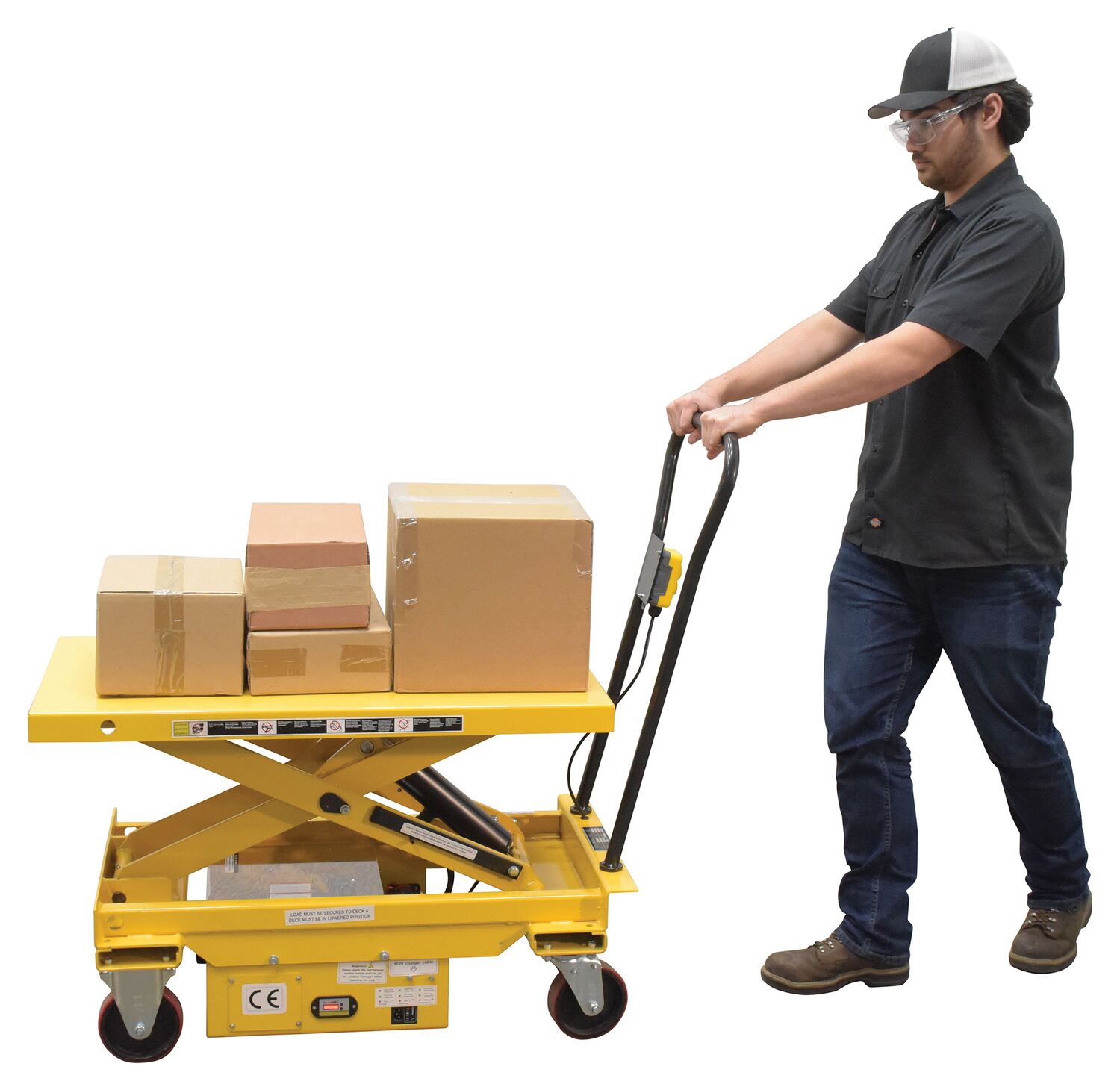

CART-1000-DC		Steel DC Powered Hydraulic Single Scissor Cart 20-1/2 In. x 39-3/4 In. 1000 Lb. Capacity Yellow	Uniform Capacity (lb.): 1,000 Platform Width (in.): 20-1/2	394

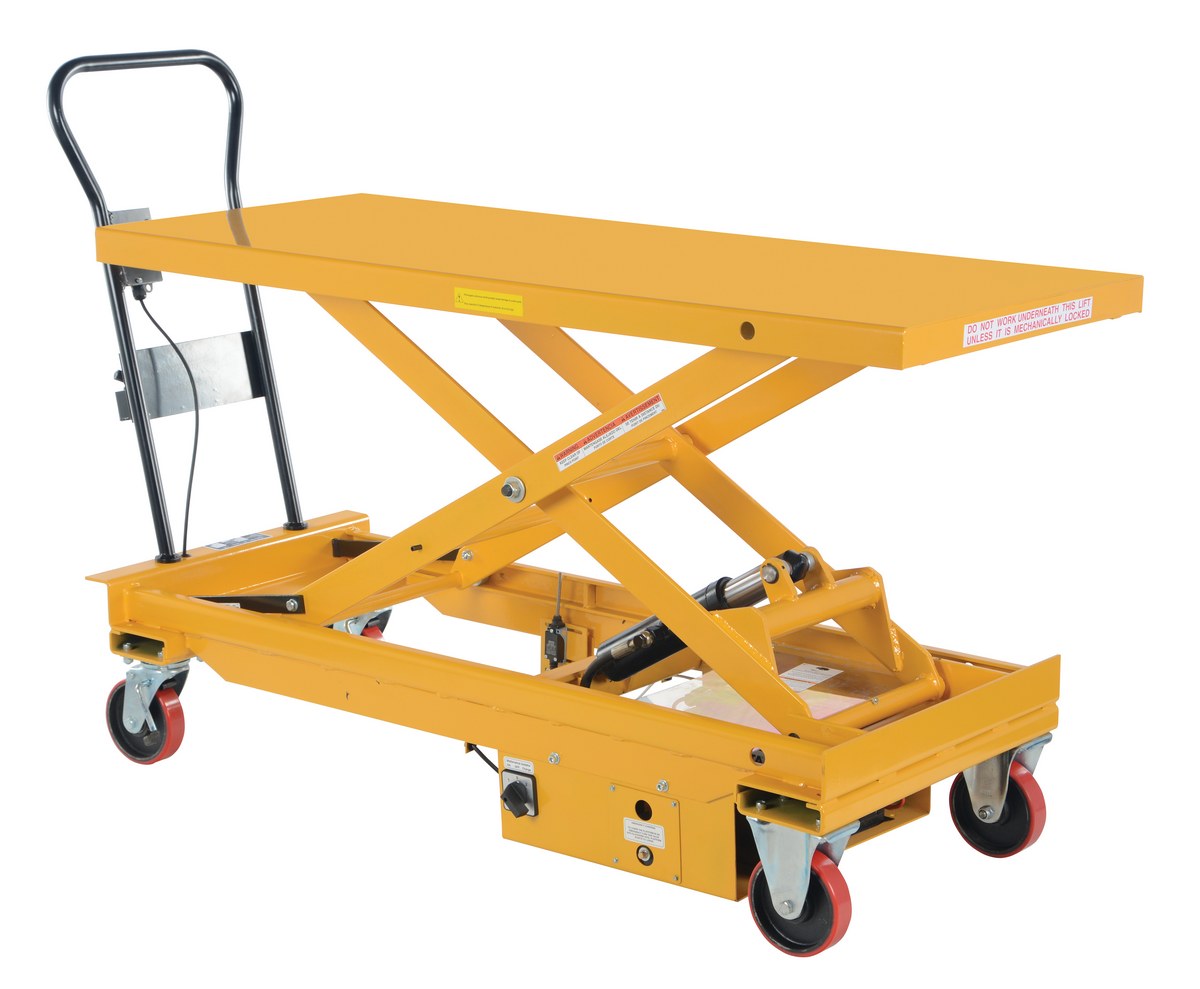

CART-1000-LD-DC		Steel DC Powered Hydraulic Single Scissor Cart 24-1/2 In. x 60 In. 1000 Lb. Capacity Yellow	Uniform Capacity (lb.): 1,000 Platform Width (in.): 24-1/2	509

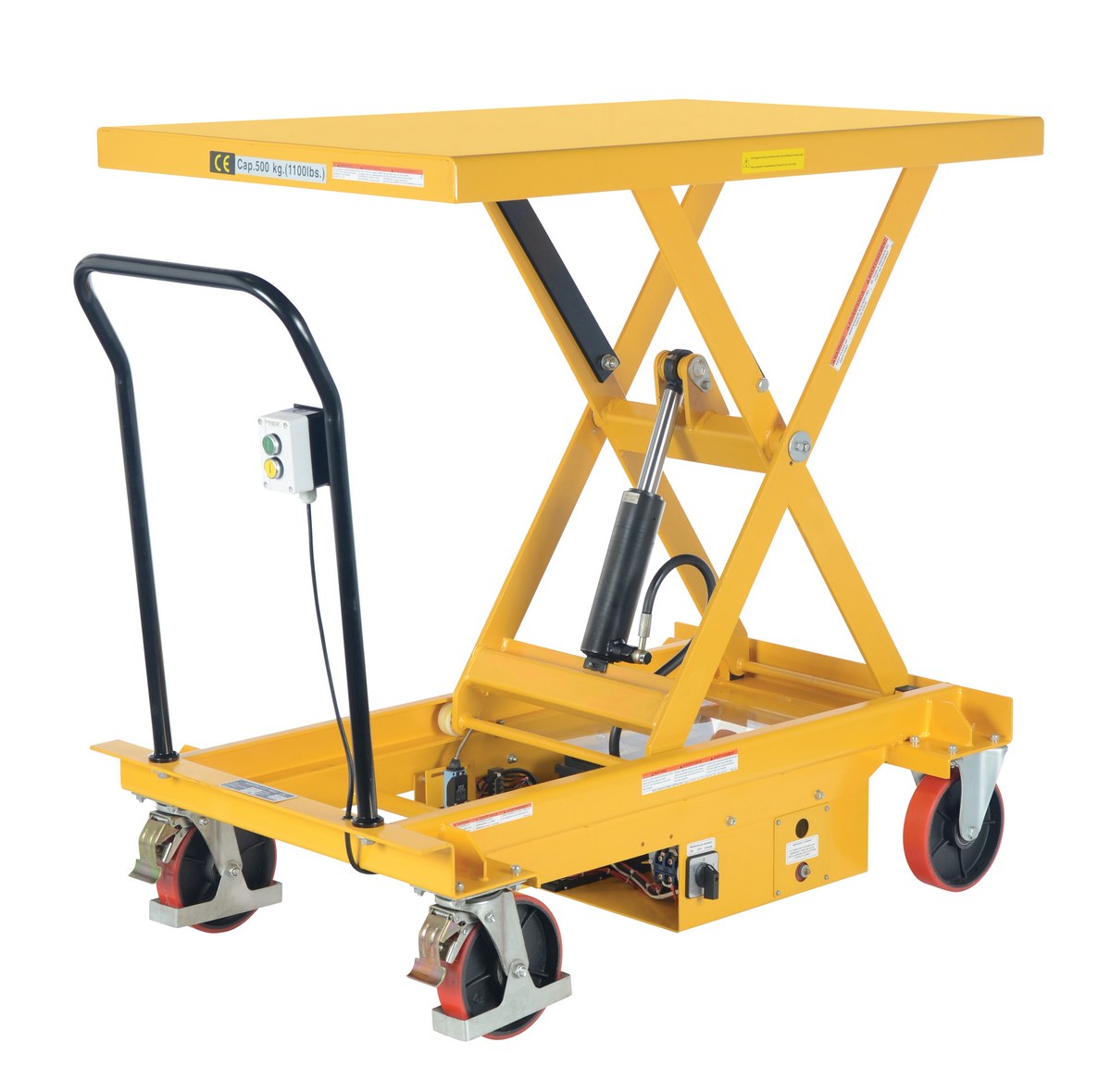

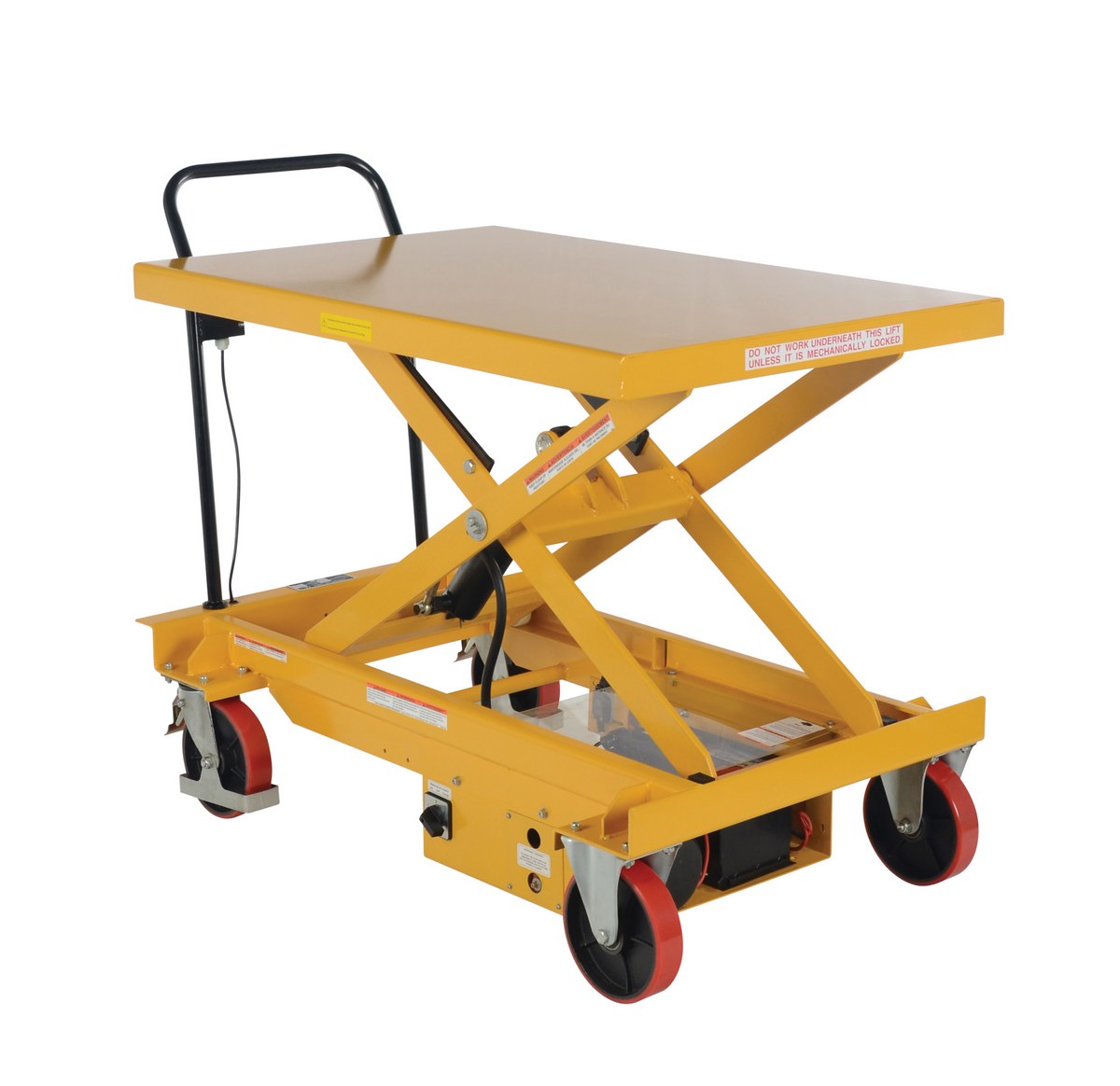

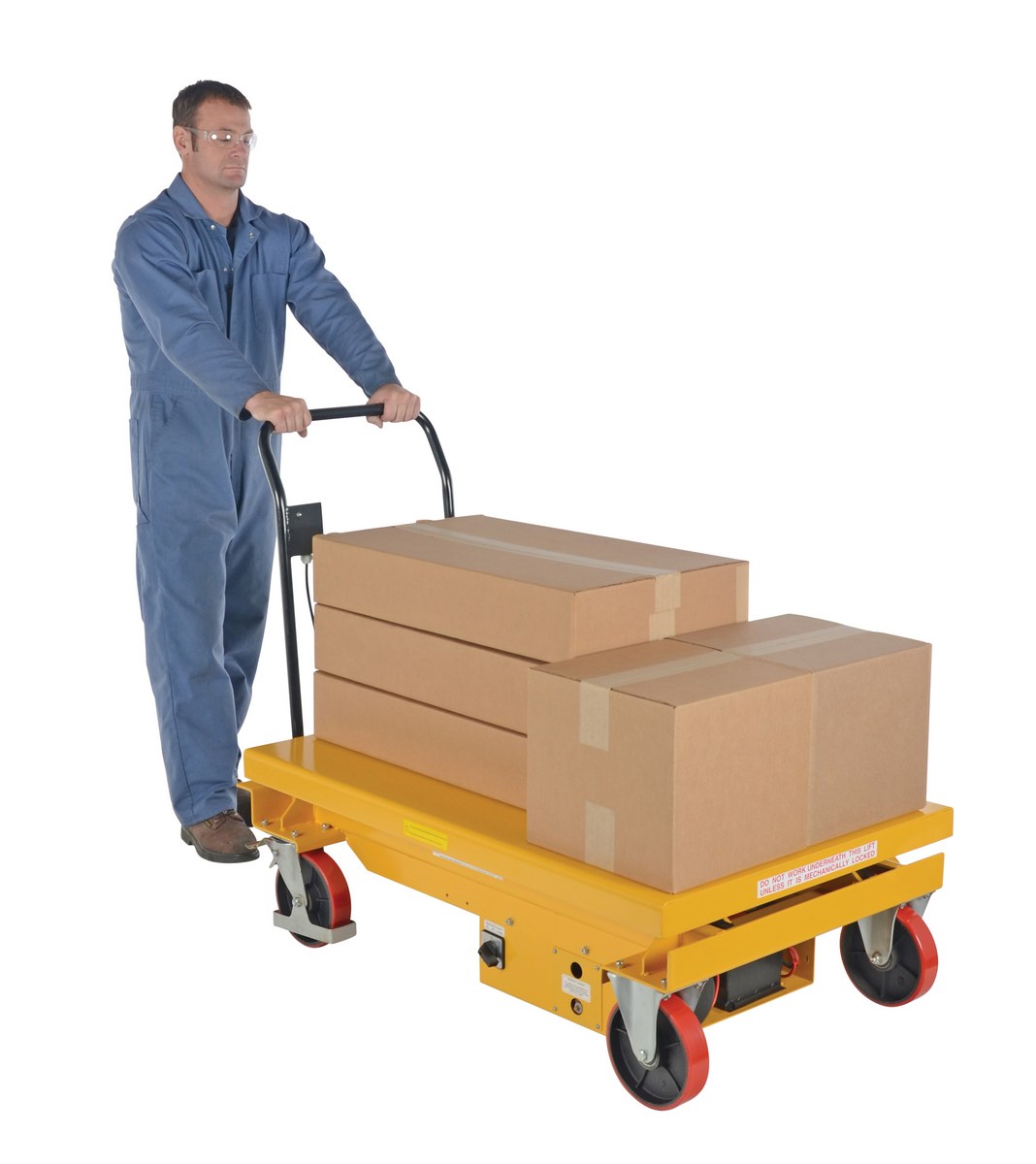

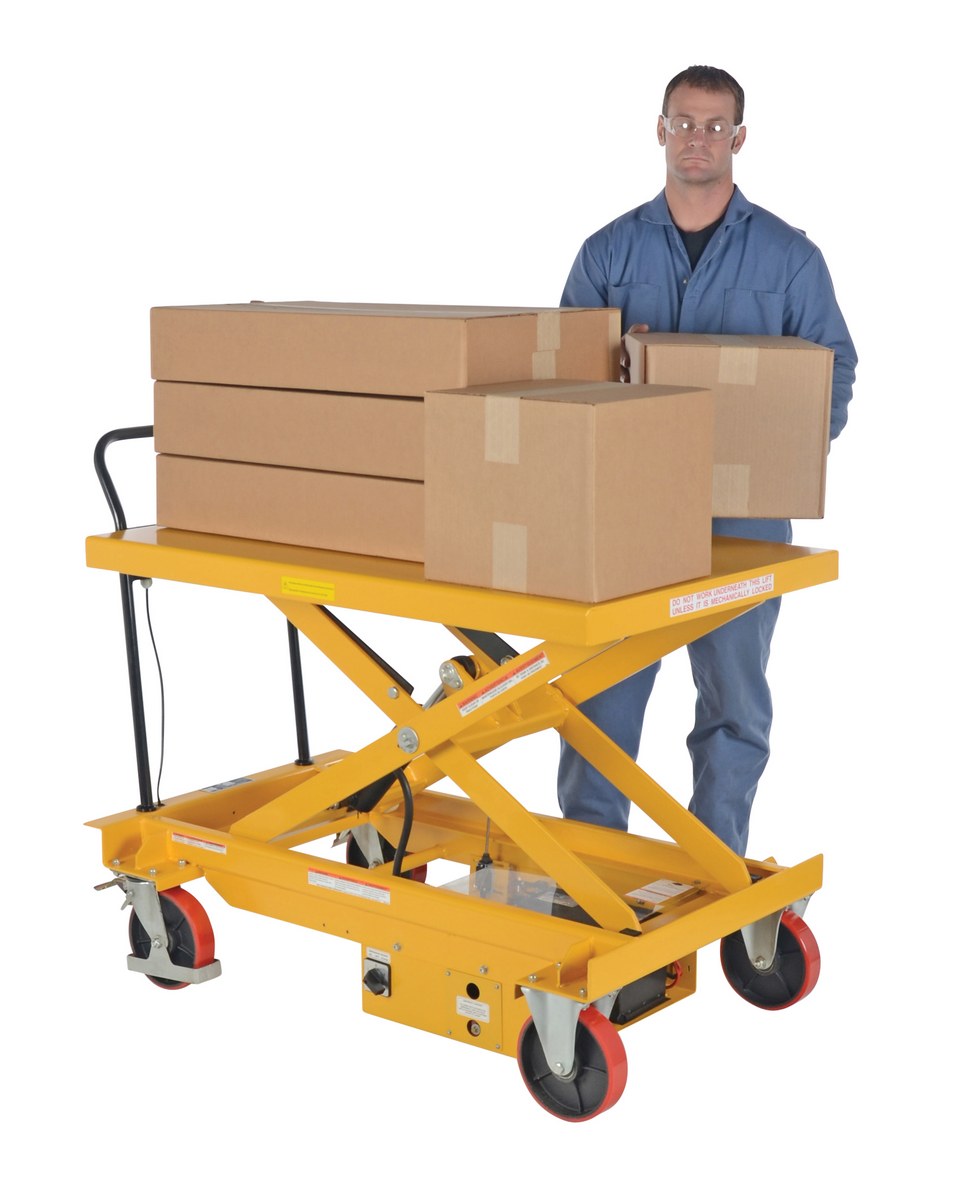

CART-1000-WD-DC		Steel DC Power Hydraulic Single Scissor Cart 47-1/4 In. x 31-1/2 In. 1000 Lb. Capacity Yellow	Uniform Capacity (lb.): 1,000 Platform Width (in.): 31-1/2	578

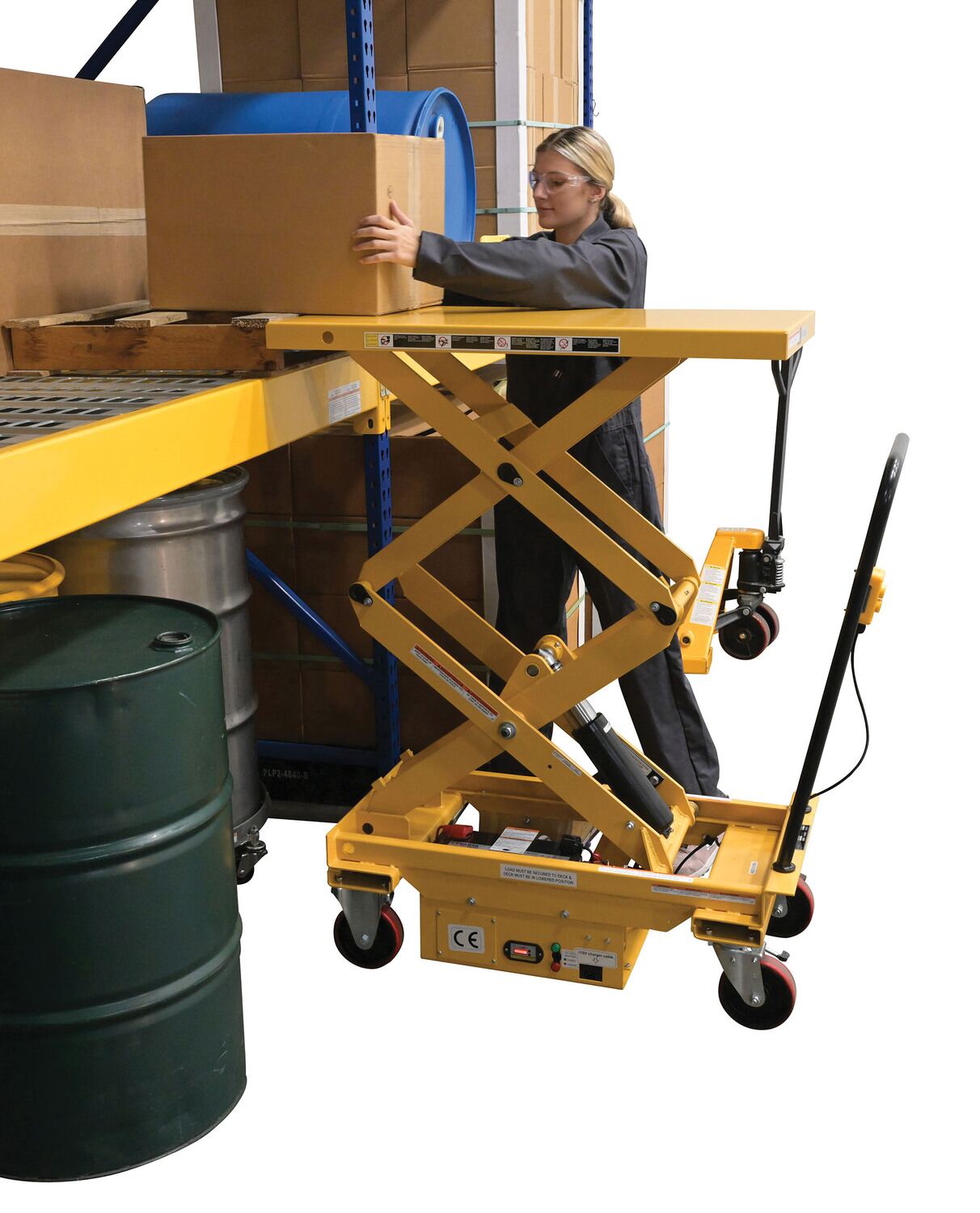

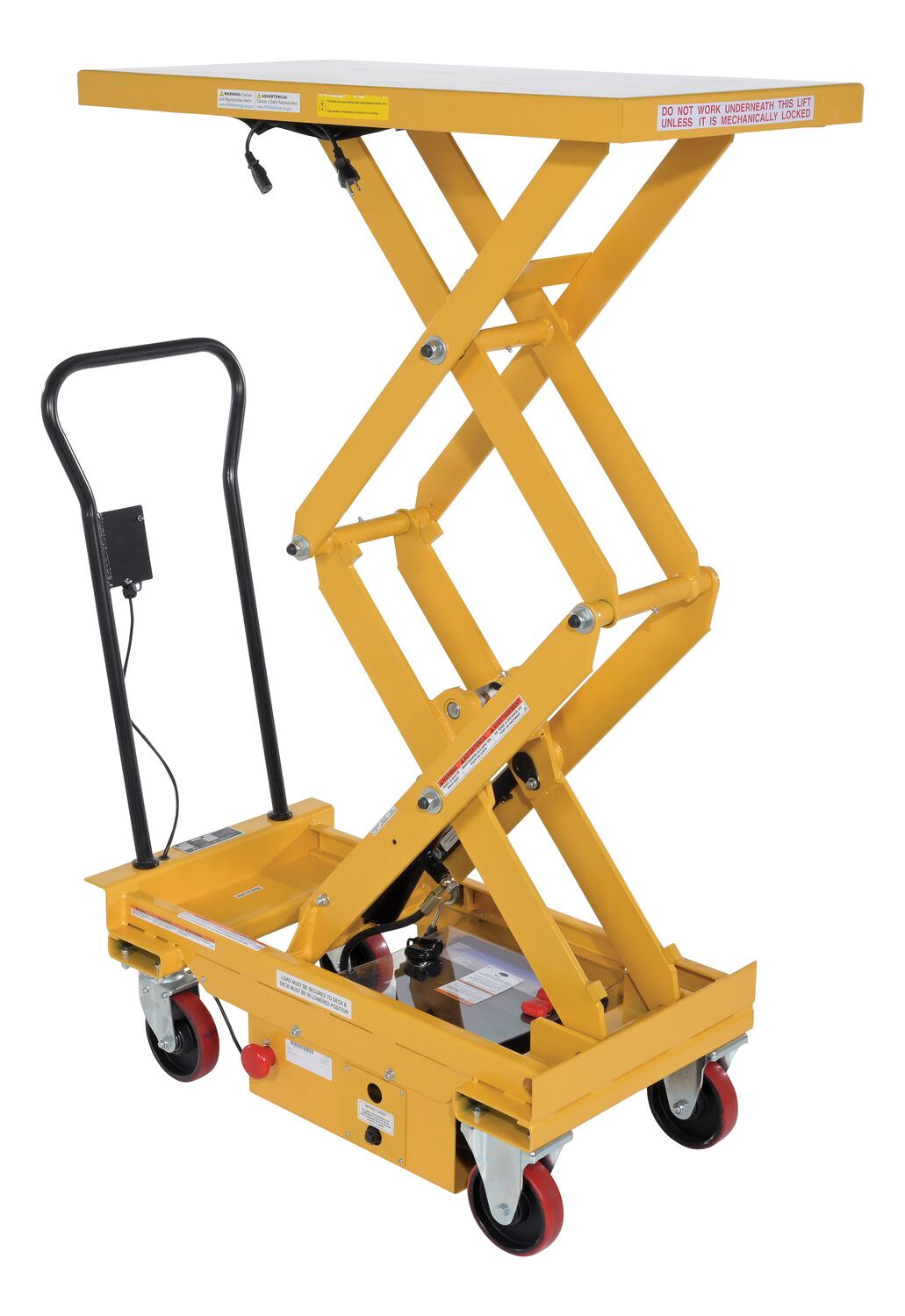

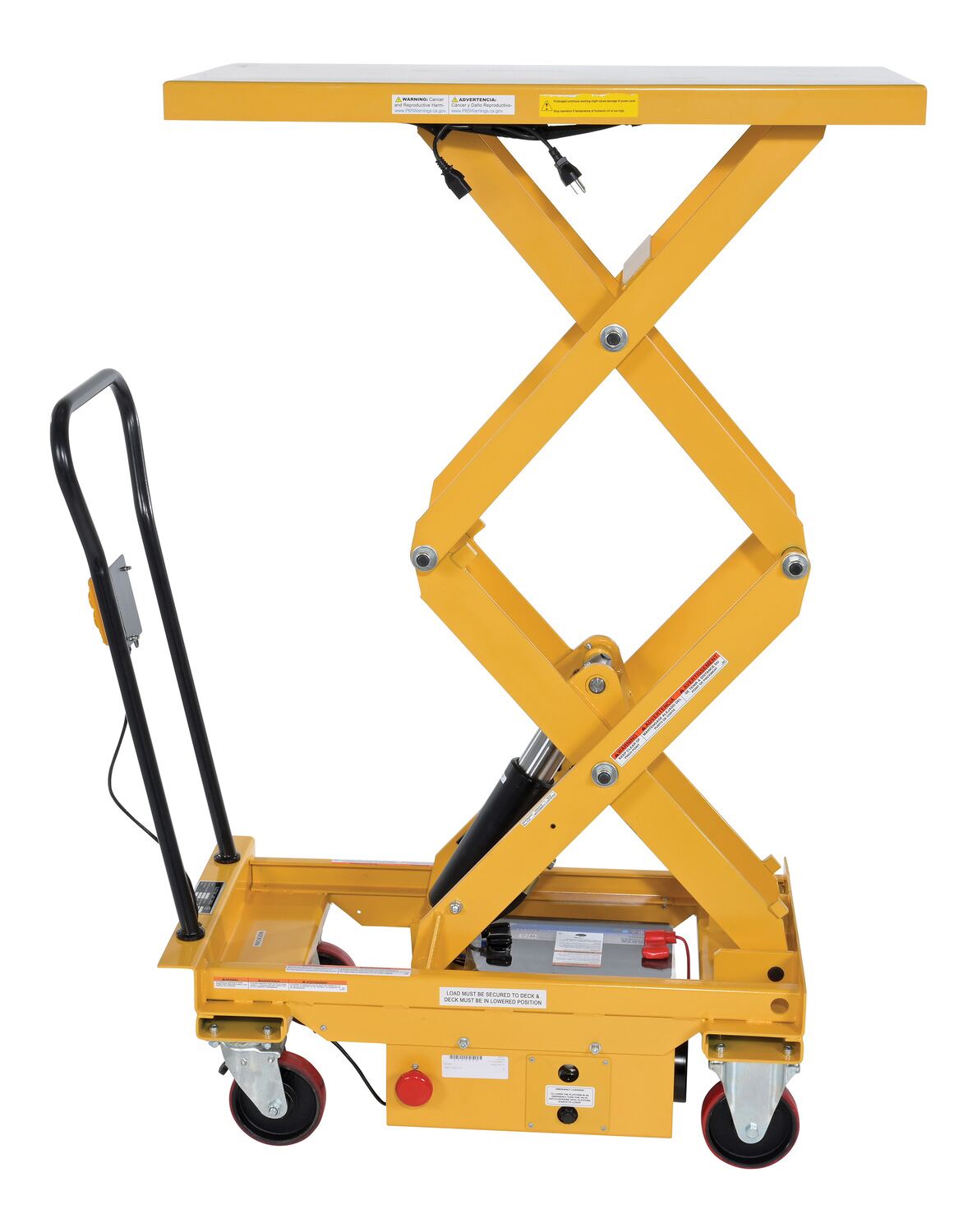

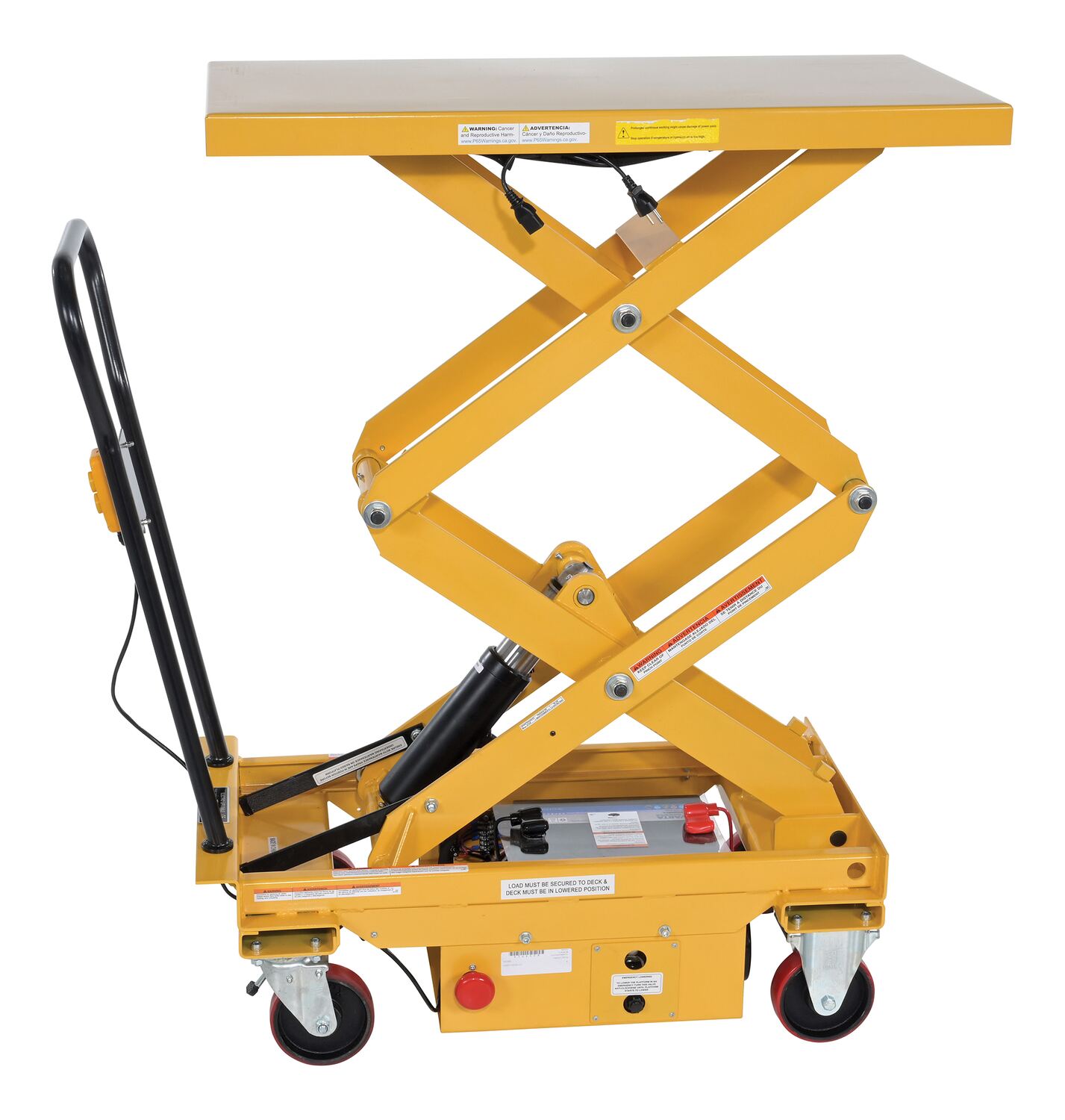

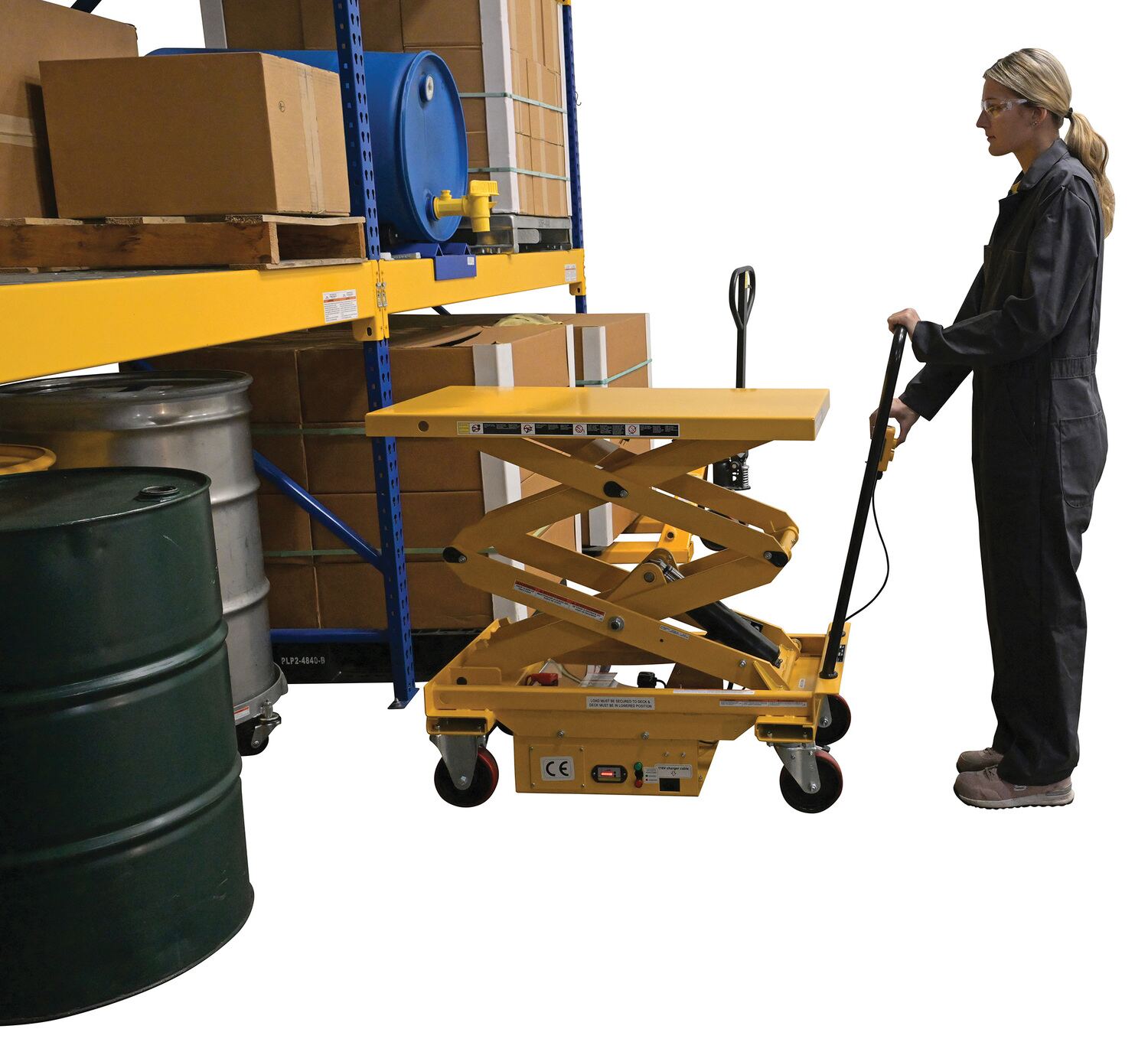

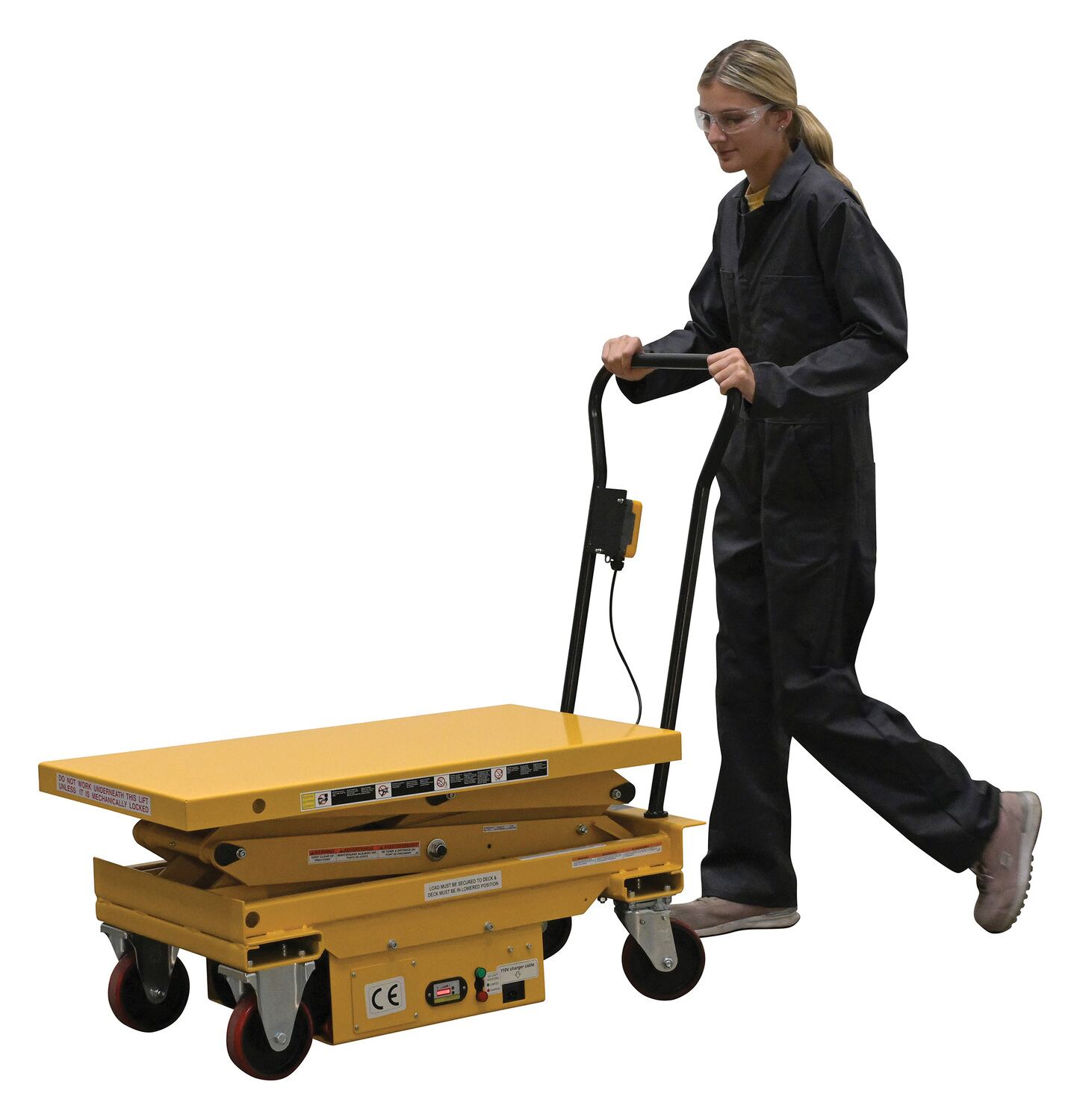

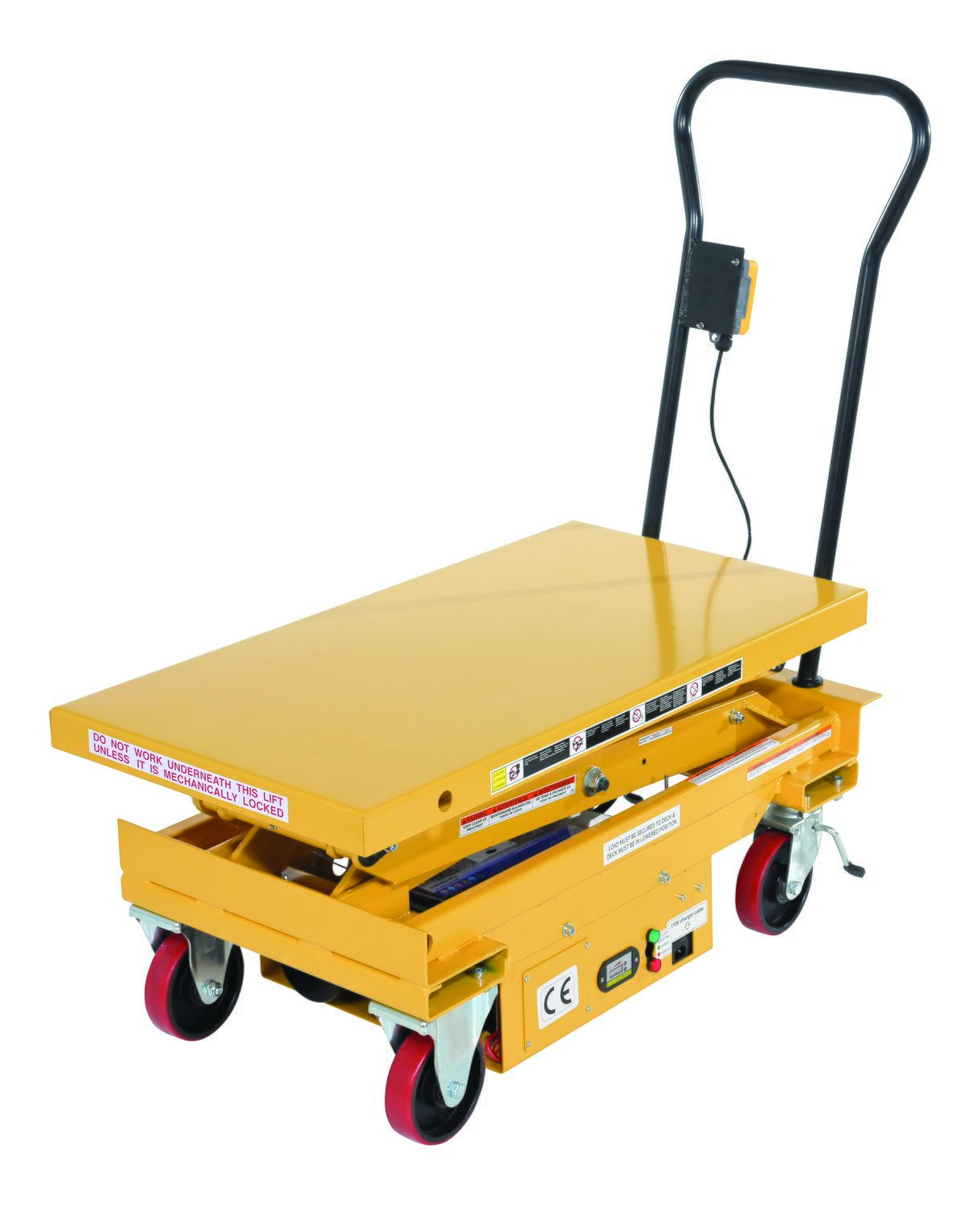

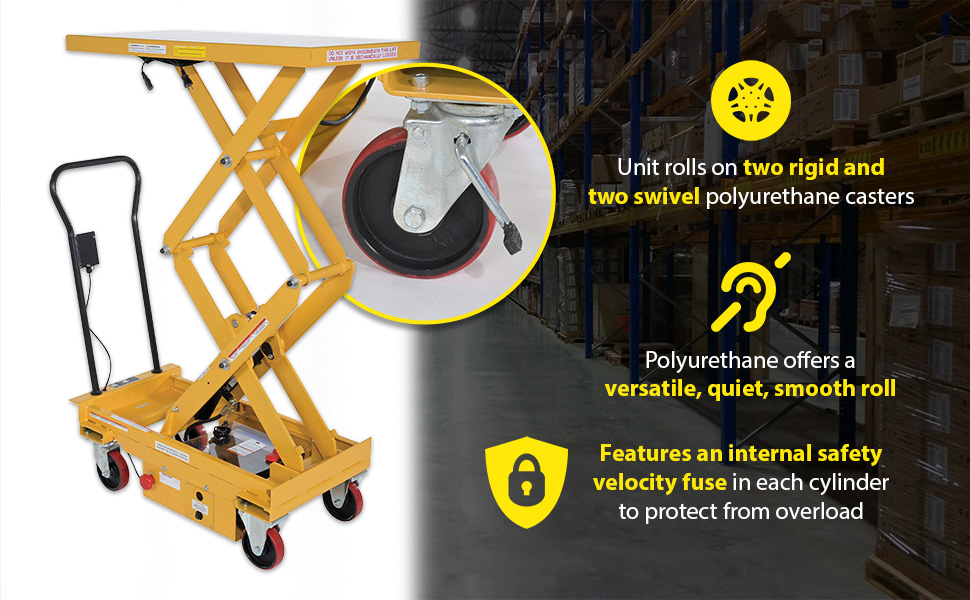

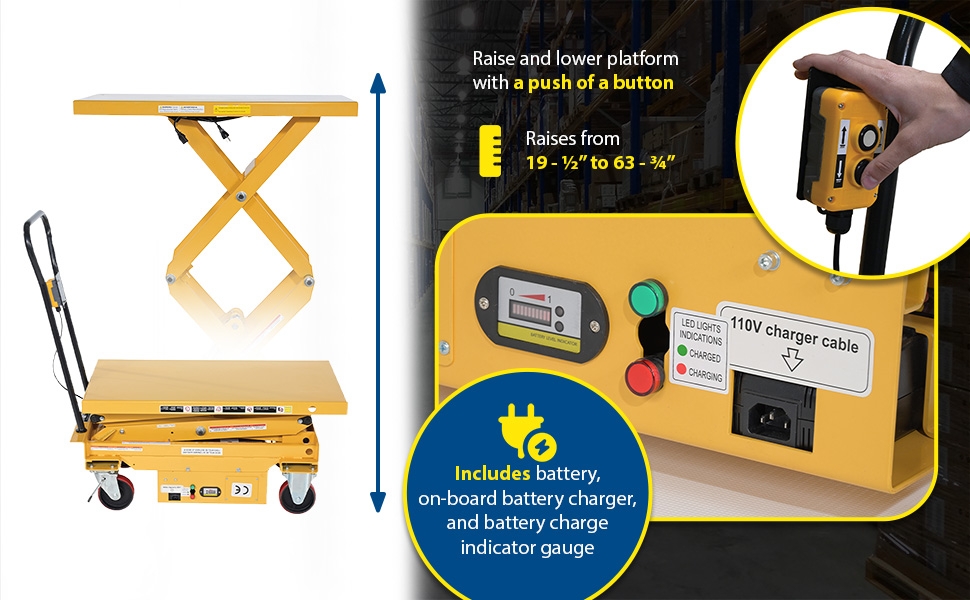

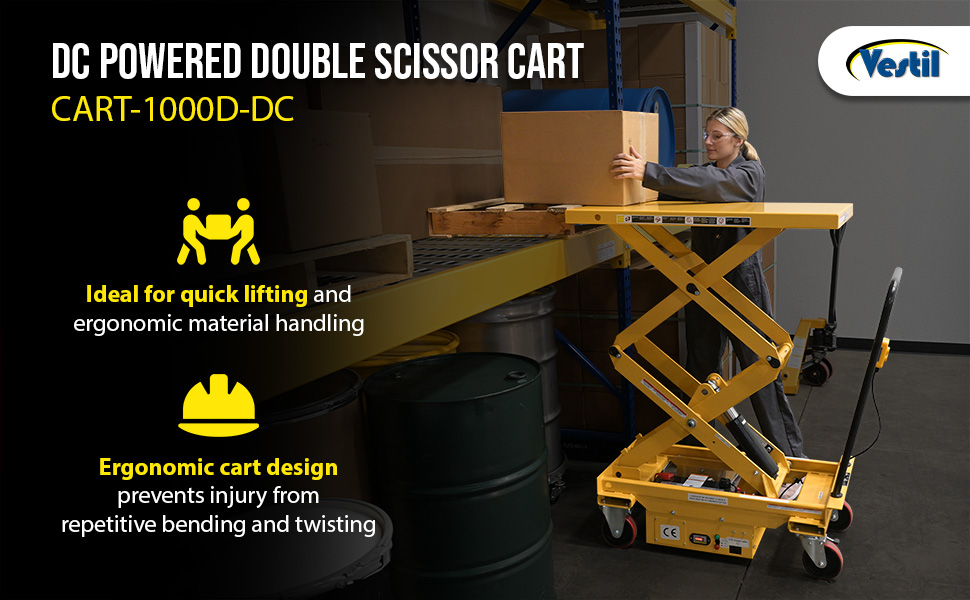

CART-1000D-DC		Steel DC Powered Hydraulic Double Scissor Cart 20-1/2 In. x 39-3/4 In. 1000 Lb. Capacity Yellow	Uniform Capacity (lb.): 1,000 Platform Width (in.): 20-1/2	466

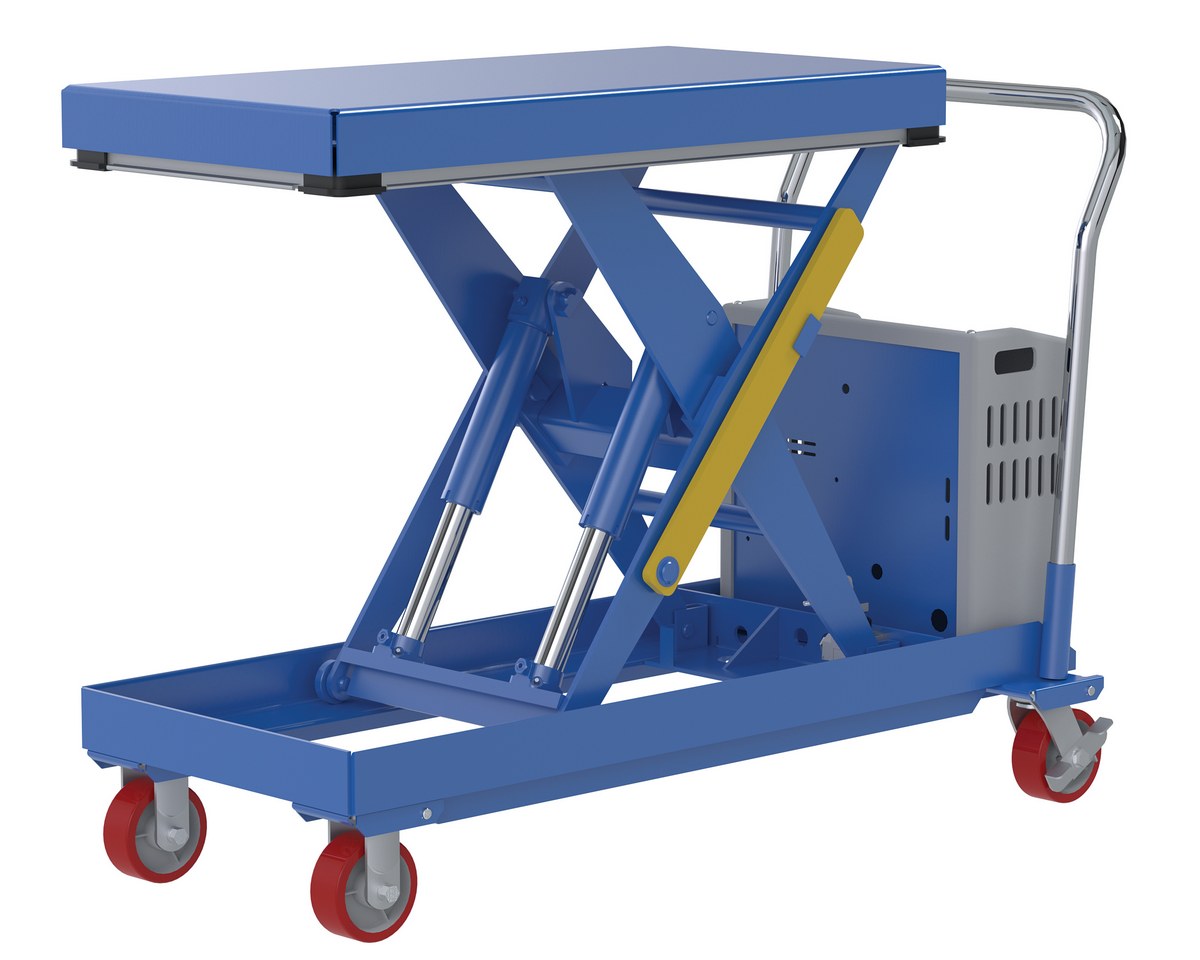

CART-2000-2040-DC		Steel 12V DC Powered Hydraulic Elevating Cart 20 In. x 40 In. 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2,000 Platform Width (in.): 20-3/8	393

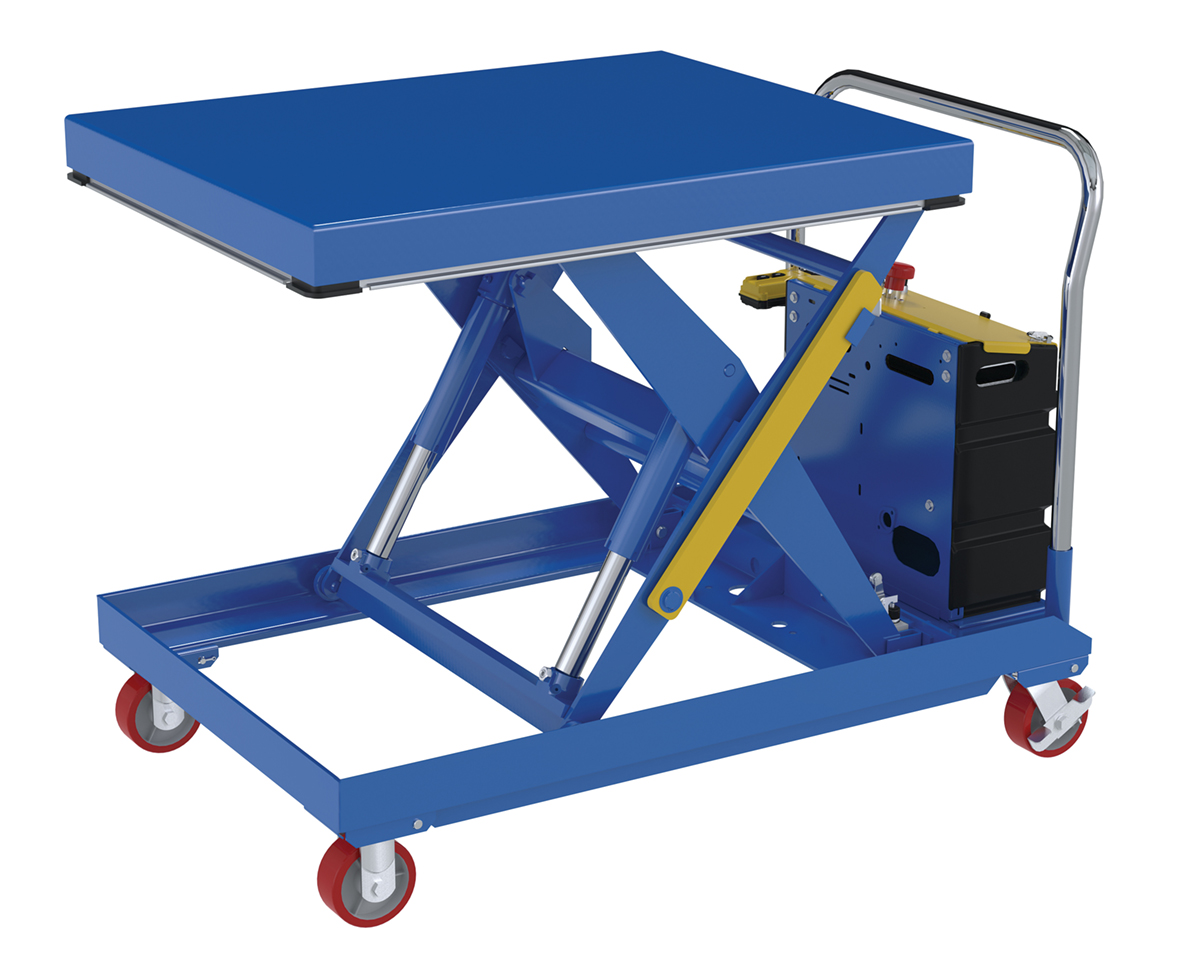

CART-2000-3240-DC		Steel 12V DC Powered Hydraulic Elevating Cart 32 In. x 40 In. 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2,000 Platform Width (in.): 32-3/8	478

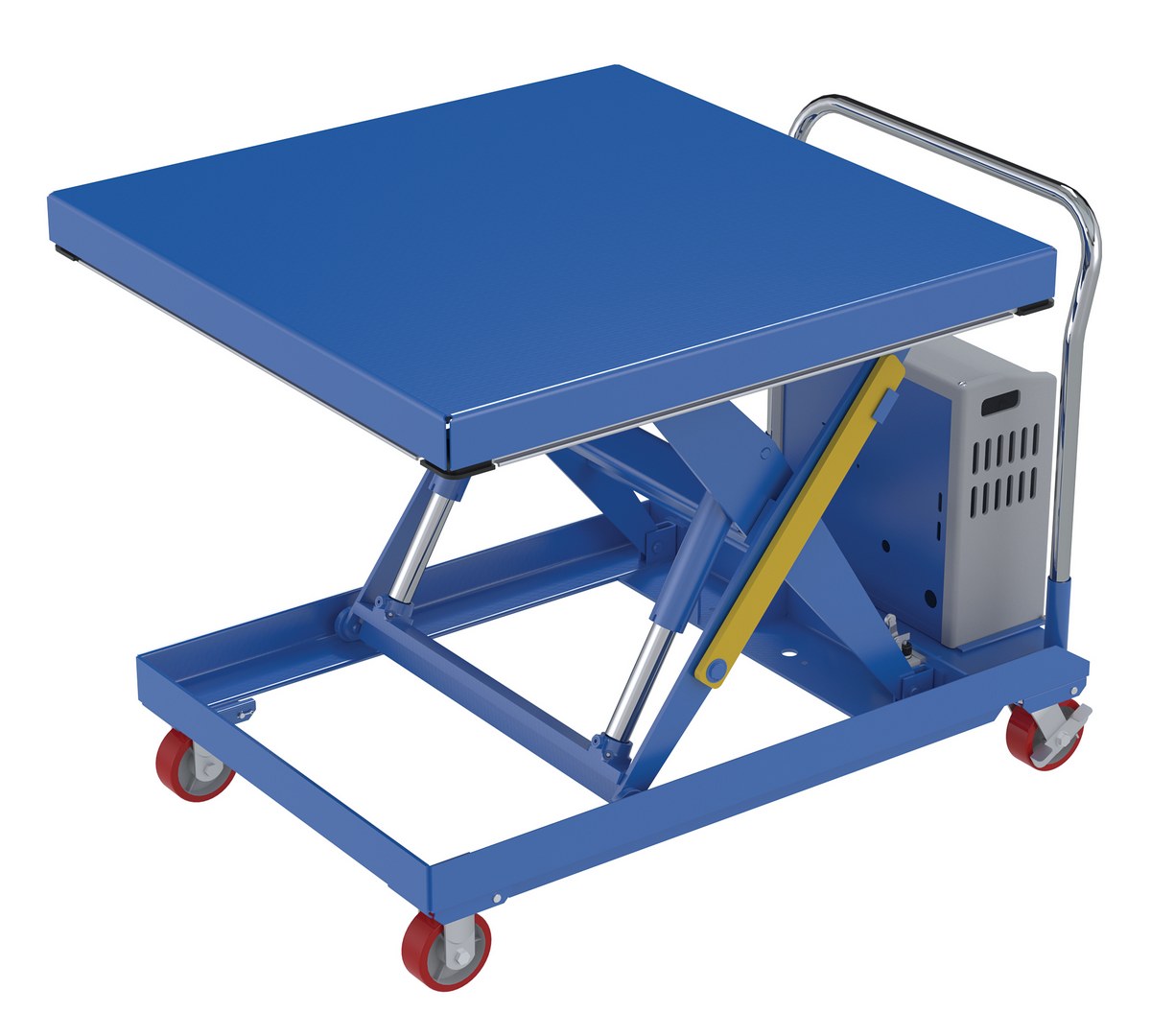

CART-2000-4242-DC		Steel 12V DC Powered Hydraulic Elevating Cart 42 In. x 42 In. 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2,000 Platform Width (in.): 42-3/8	528

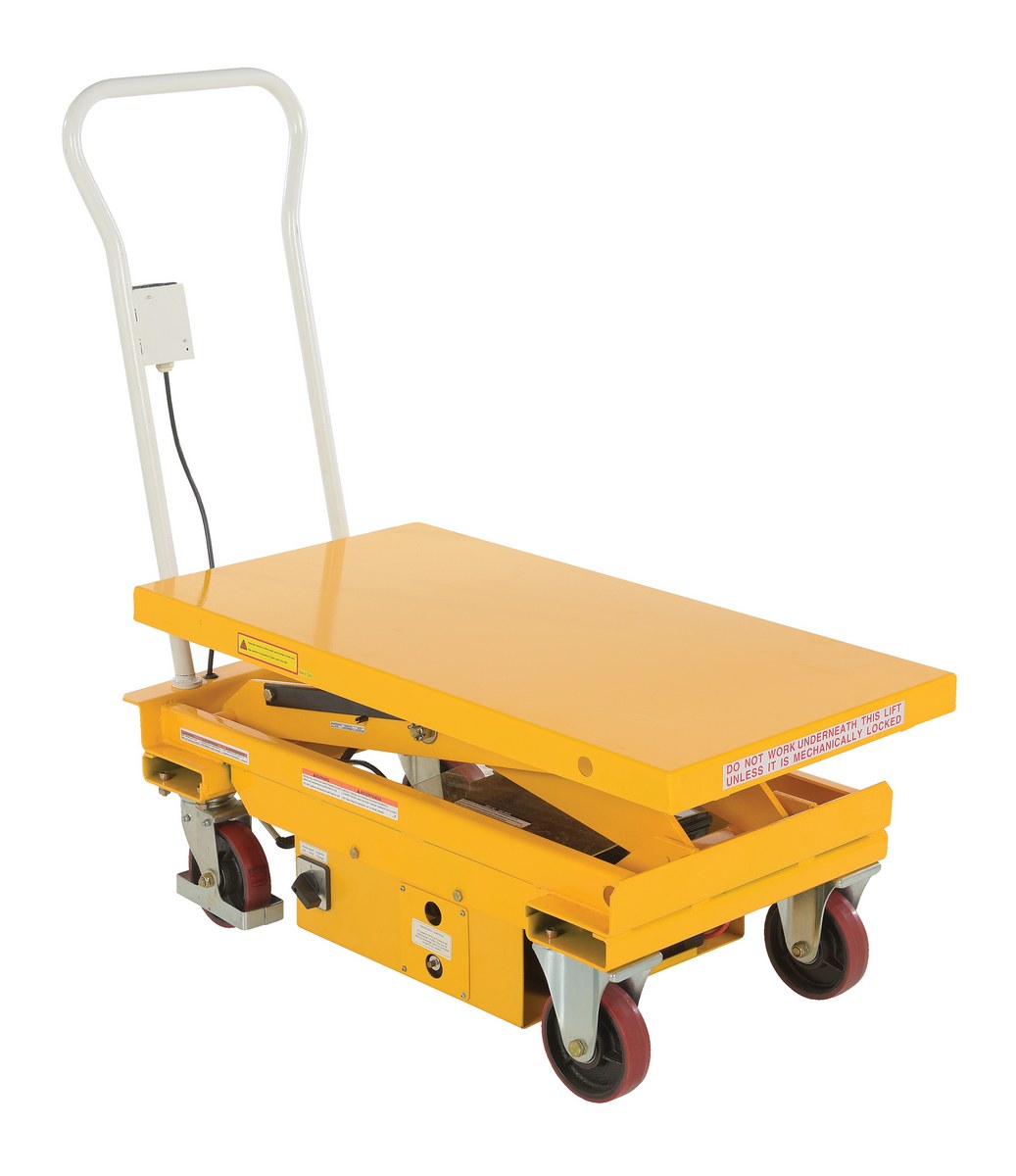

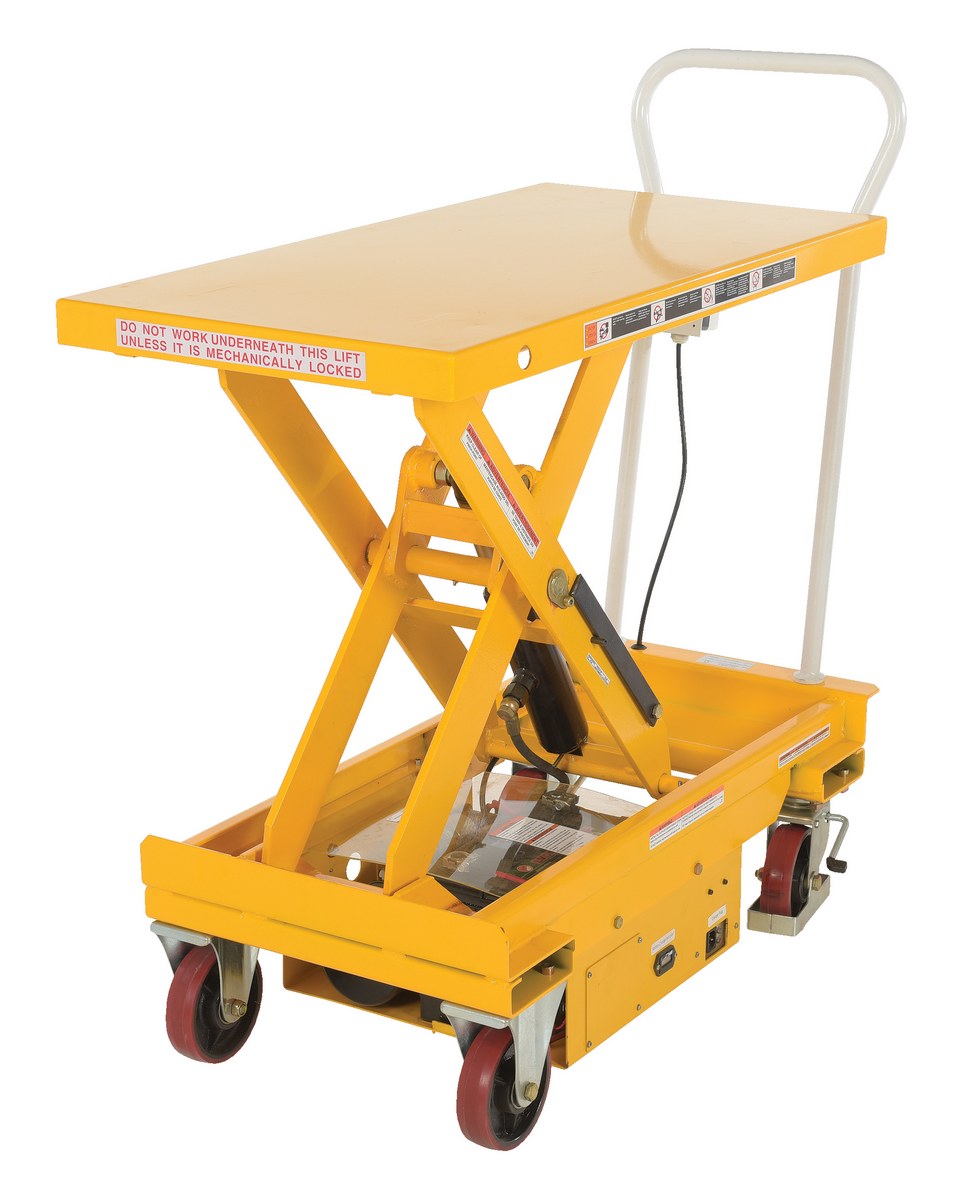

CART-2000-DC-C		Steel Hydraulic Elevating Cart 20 In. x 40 In. 2,000 Lb. Capacity Yellow	Uniform Capacity (lb.): 2,000 Platform Width (in.): 20	442

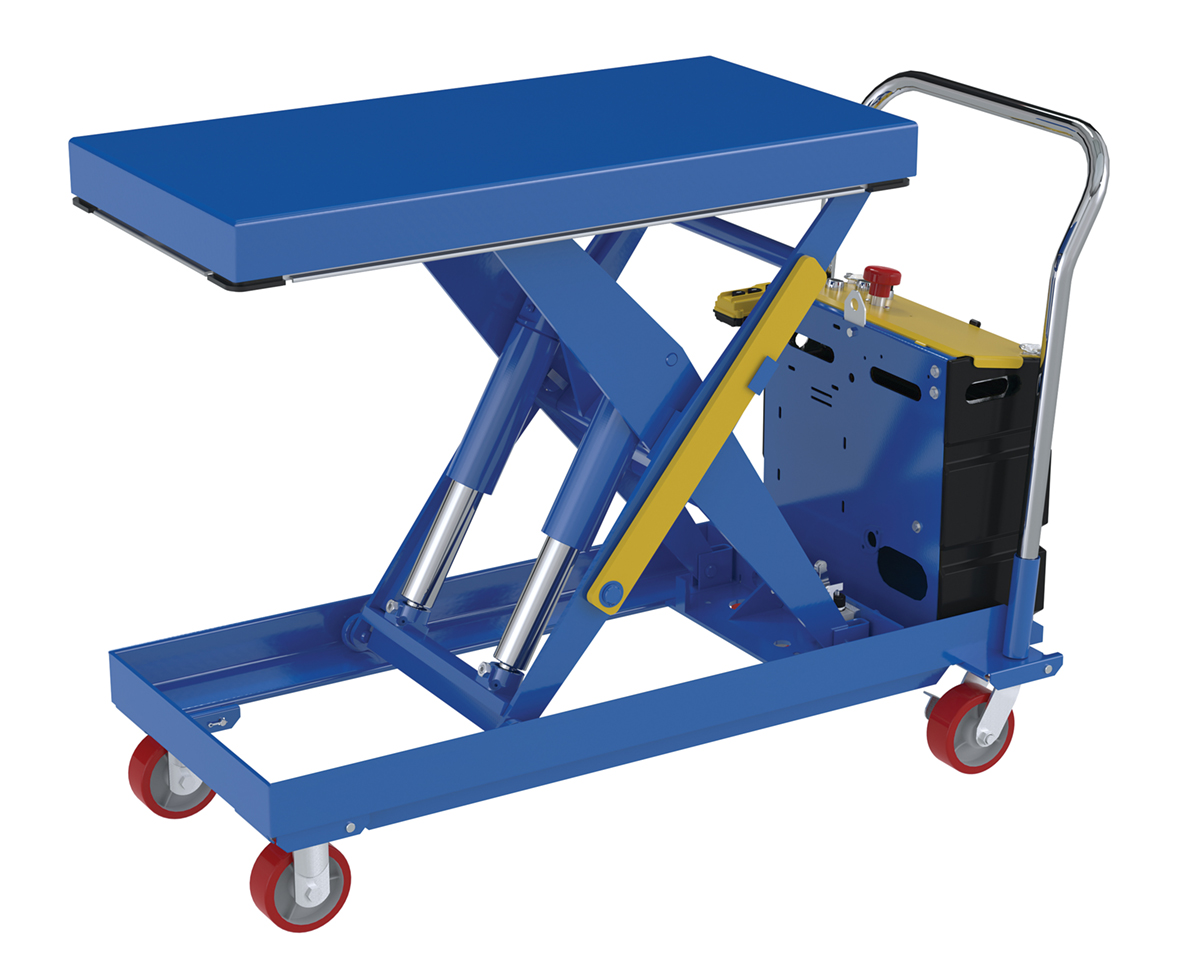

CART-2500-2040-DC		Steel 12V DC Hydraulic Elevating Cart 20 In. x 40 In. 2500 Lb. Capacity Blue	Uniform Capacity (lb.): 2,500 Platform Width (in.): 20-3/8	436

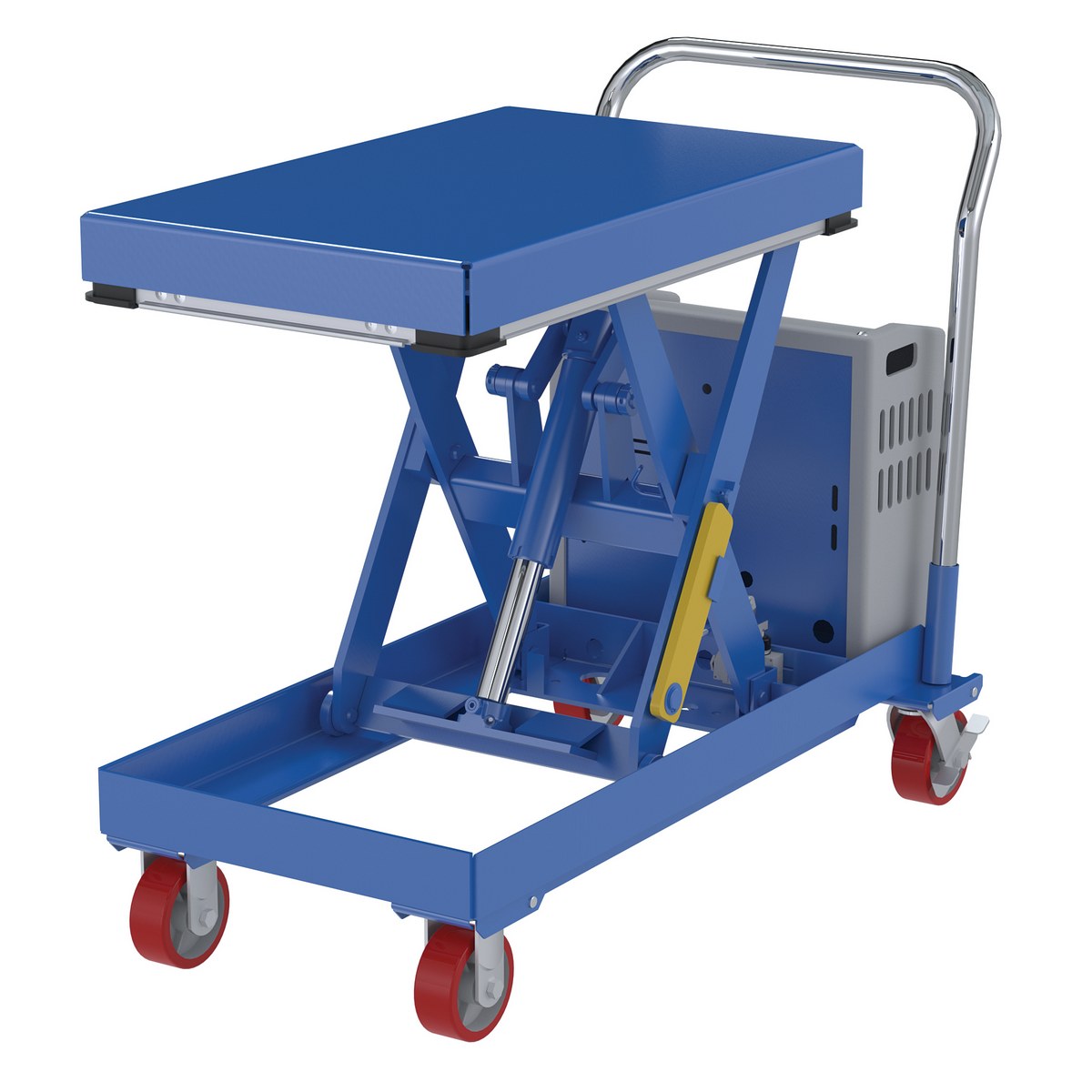

CART-500-2033-DC		Steel 12V DC Hydraulic Elevating Cart 20 In. x 33 In. 500 Lb. Capacity Blue	Uniform Capacity (lb.): 500 Platform Width (in.): 20-3/8	355

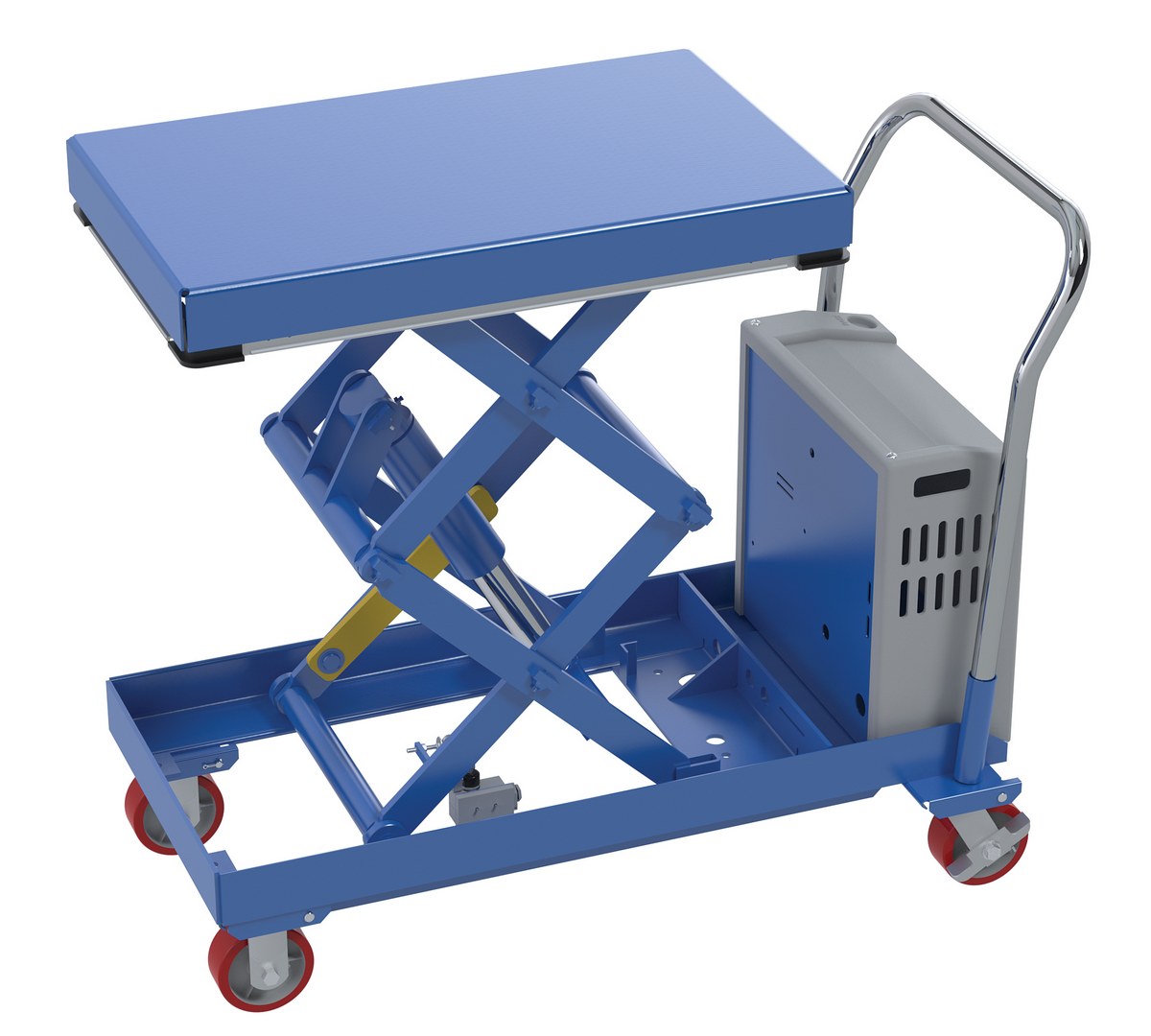

CARTD-1000-2033-DC		Steel 12V DC Hydraulic Elevating Cart 20 In. x 33 In. 1000 Lb. Capacity Blue	Uniform Capacity (lb.): 1,000 Platform Width (in.): 20-3/8	364

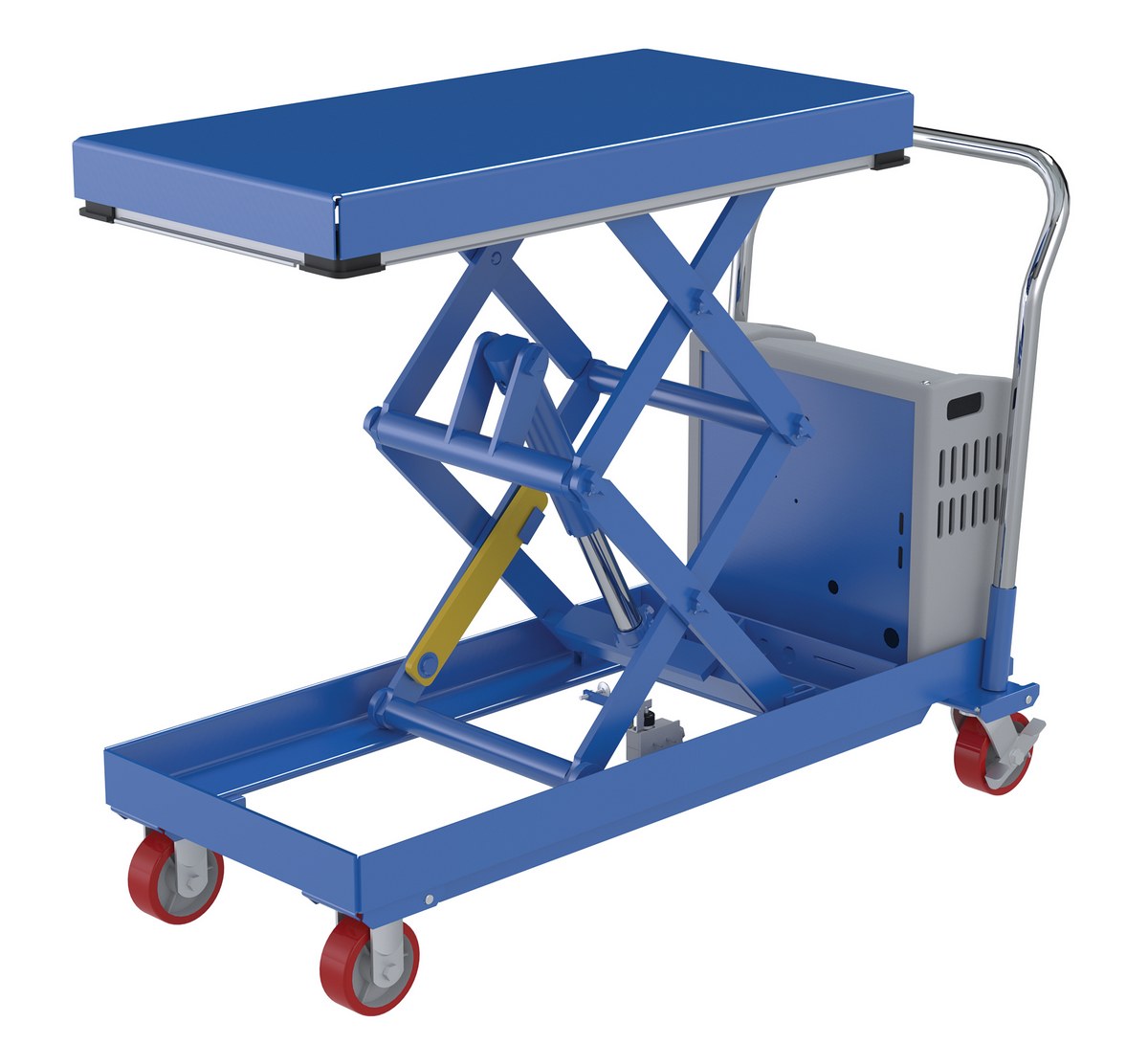

CARTD-750-2040-DC		Steel 12V DC Hydraulic Elevating Cart 20 In. x 40 In. 750 Lb. Capacity Blue	Uniform Capacity (lb.): 750 Platform Width (in.): 20-3/8	358
