Loading Dock Seal and Shelter Systems for Energy Efficiency and Weather Protection
Dock Seal and Shelter Combination Systems deliver the benefits of both a dock seal and a dock shelter in a single integrated solution. Designed for loading docks that require superior environmental control, these systems help reduce energy loss, block weather intrusion, and improve protection for personnel, products, and equipment during loading and unloading operations. By combining foam-compression side seals with a sheltered header design, they create an effective barrier around trailer openings while accommodating a range of vehicle sizes.
Key Features & Benefits
The unique hybrid design maximizes contact with trailers to minimize air infiltration, helping facilities reduce heating and cooling costs throughout the year. High-density foam side pads compress against trailer bodies to form a dependable seal, while the sloped header promotes water runoff and protects dock openings from rain, snow, and debris. Durable vinyl-coated fabric, treated lumber construction, and aluminum trim provide long-lasting performance in demanding warehouse and distribution environments. Built-in air relief channels help maintain seal integrity while reducing wear during trailer engagement.
Applications
Ideal for warehouses, distribution centers, manufacturing facilities, food processing operations, and logistics terminals, these dock seal and shelter combinations improve dock efficiency while protecting valuable inventory from outdoor conditions. They are especially beneficial where energy conservation and environmental control are operational priorities.
Configurations & Options

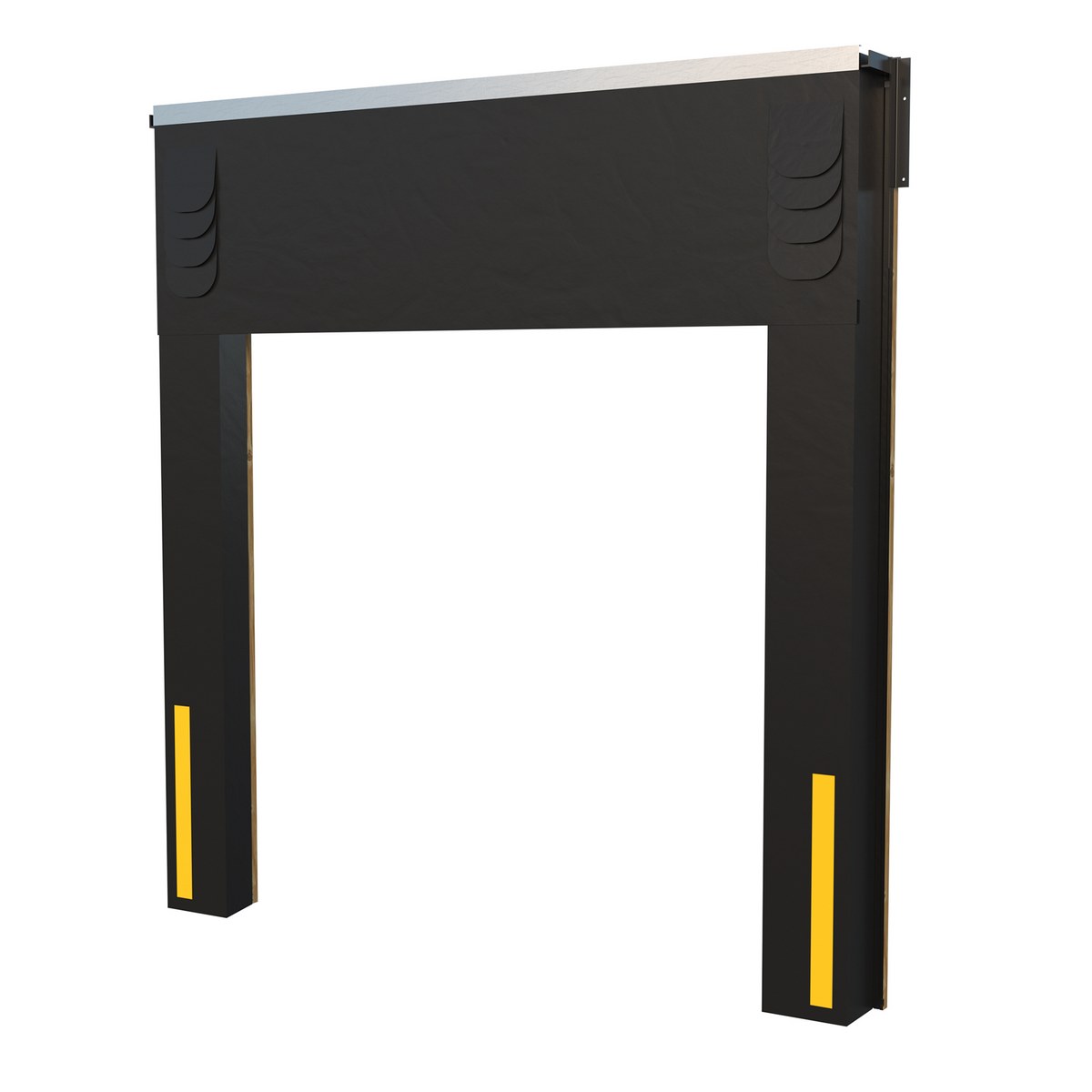

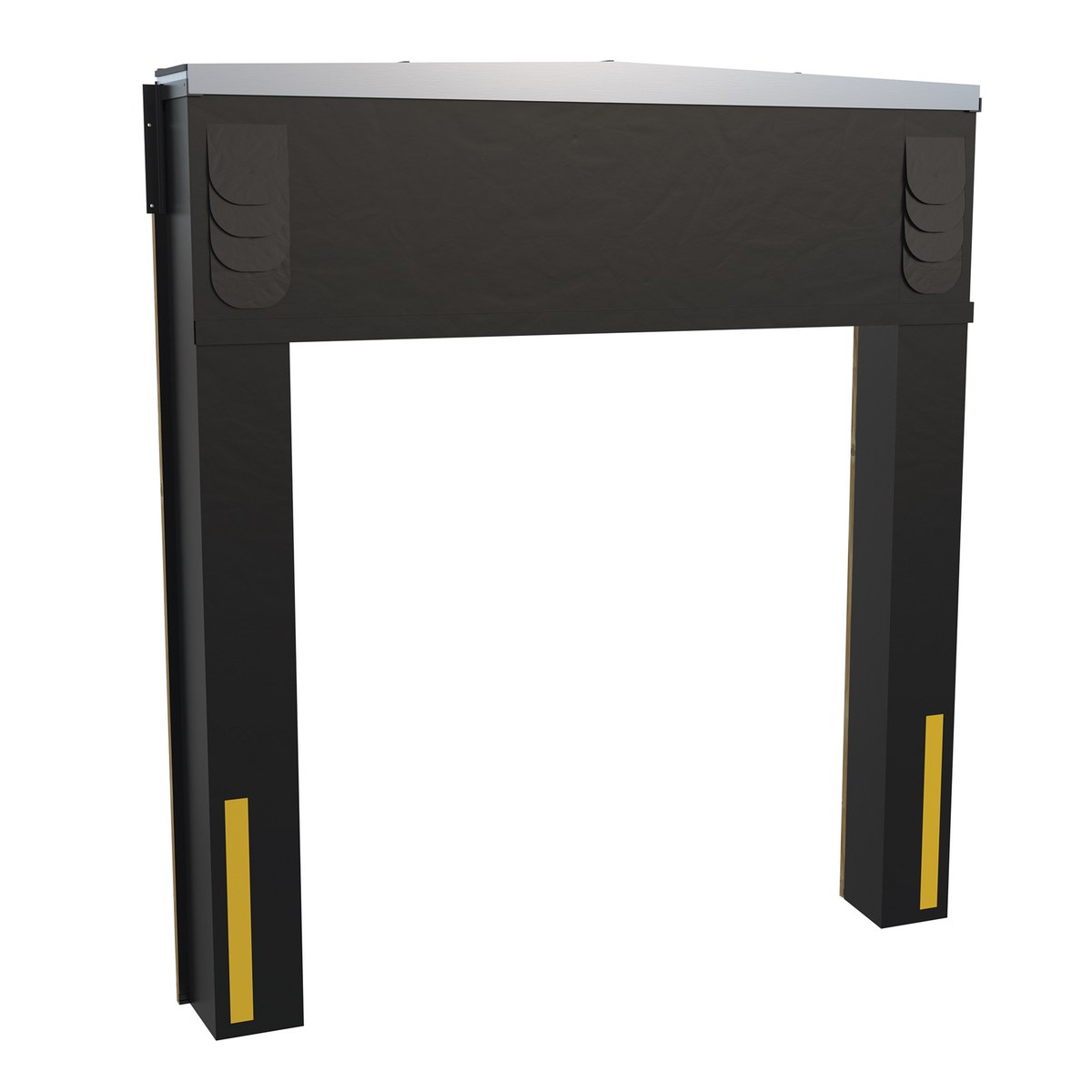

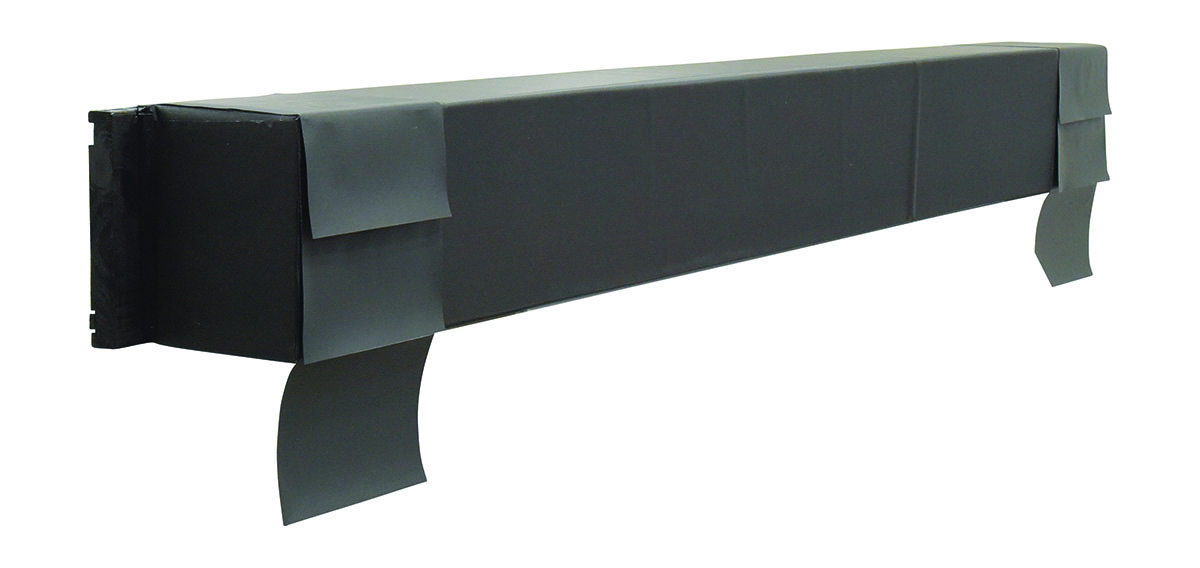

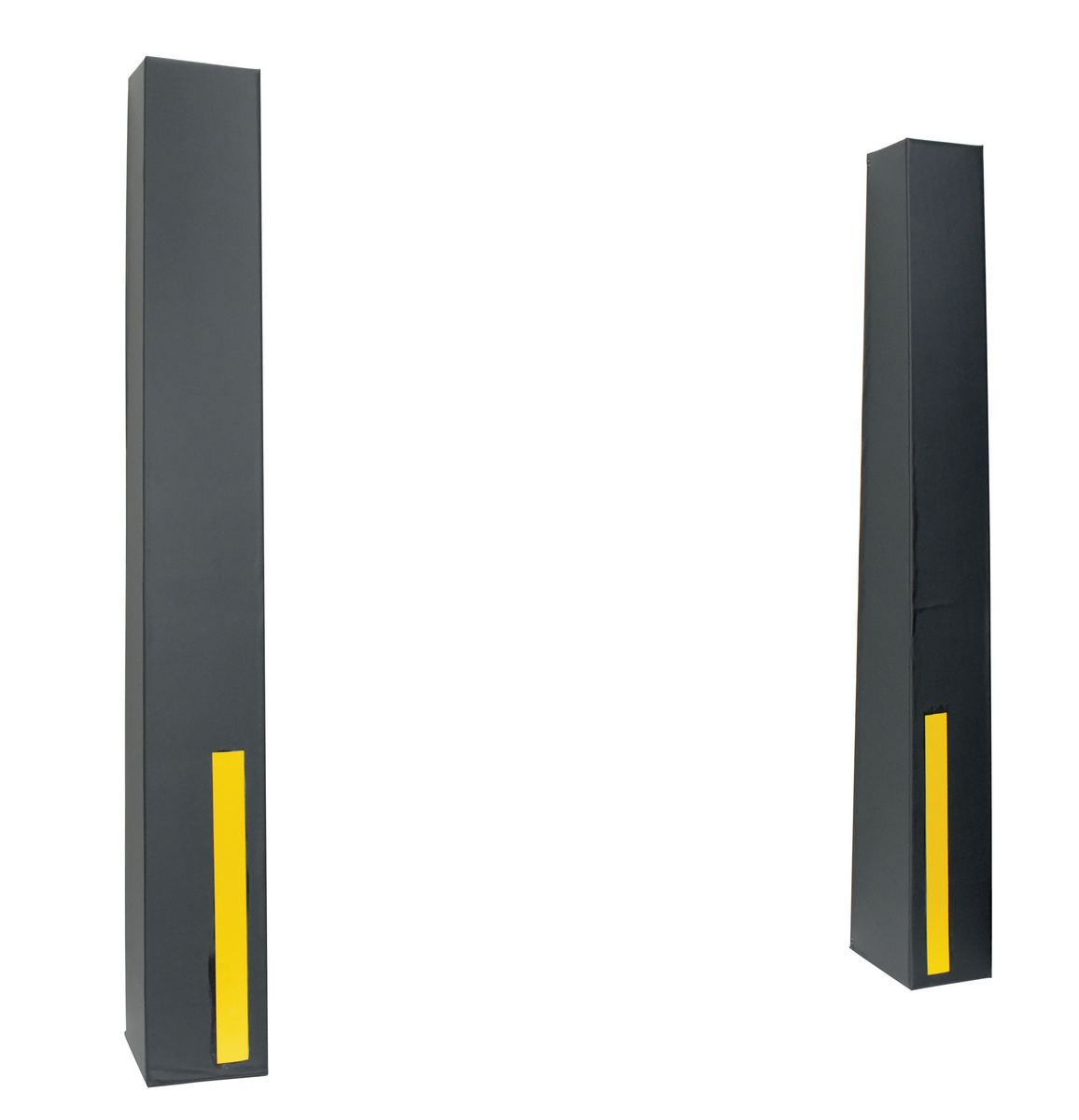

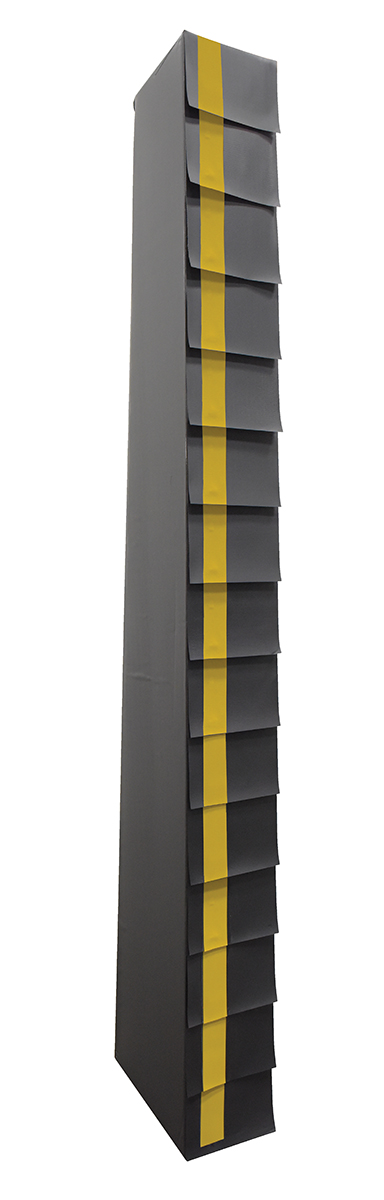

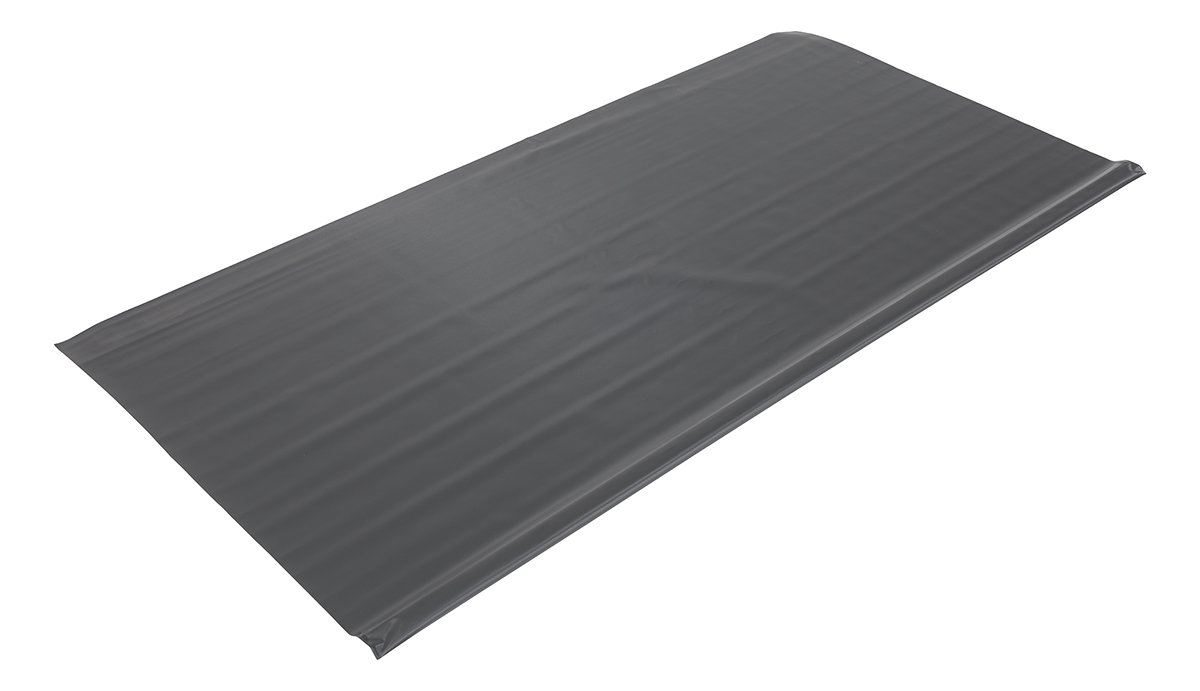

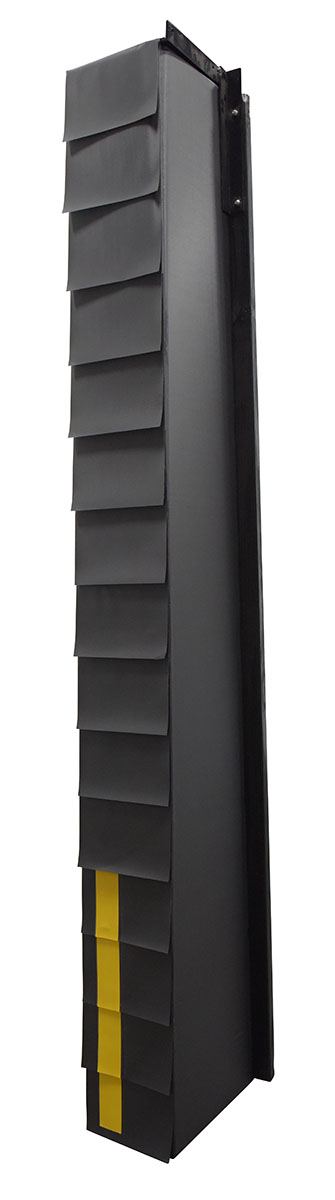

Multiple projection depths are available to accommodate varying dock configurations and trailer applications. Optional armor pleats, guide strips, sloped verticals, additional flaps, reinforced fabric upgrades, bottom foam pads, and repair kits allow facilities to customize protection levels and extend service life for demanding loading dock operations. The Dock Seal/Shelter Combination is used with a 96"W x 120"H door. The top header is constructed of wolmanized lumber and is built with a slope to allow for water run-off. Header measures 114"W with a 30"L drop curtain. Side (verticals) measure 120" tall and contain high density foam mounted to treated lumber. The verticals are mounted on wooden boards (the face of the vertical measures 12"W and tapers to 9-1/2" at wall) allowing wall mounting down the length of the vertical pieces. Application with flush dock to building in conjunction with an Edge-O-Dock use a 20" projection Dock Seal. To ensure proper size complete and fax the survey sheet shown below. Units are non-returnable.
Dock Seals & Shelters Survey Sheet
