Portable Jib Cranes

Print Friendly

Model Chart
PDF's
Options
Videos
Image Gallery
FEATURED Portable Jib Cranes

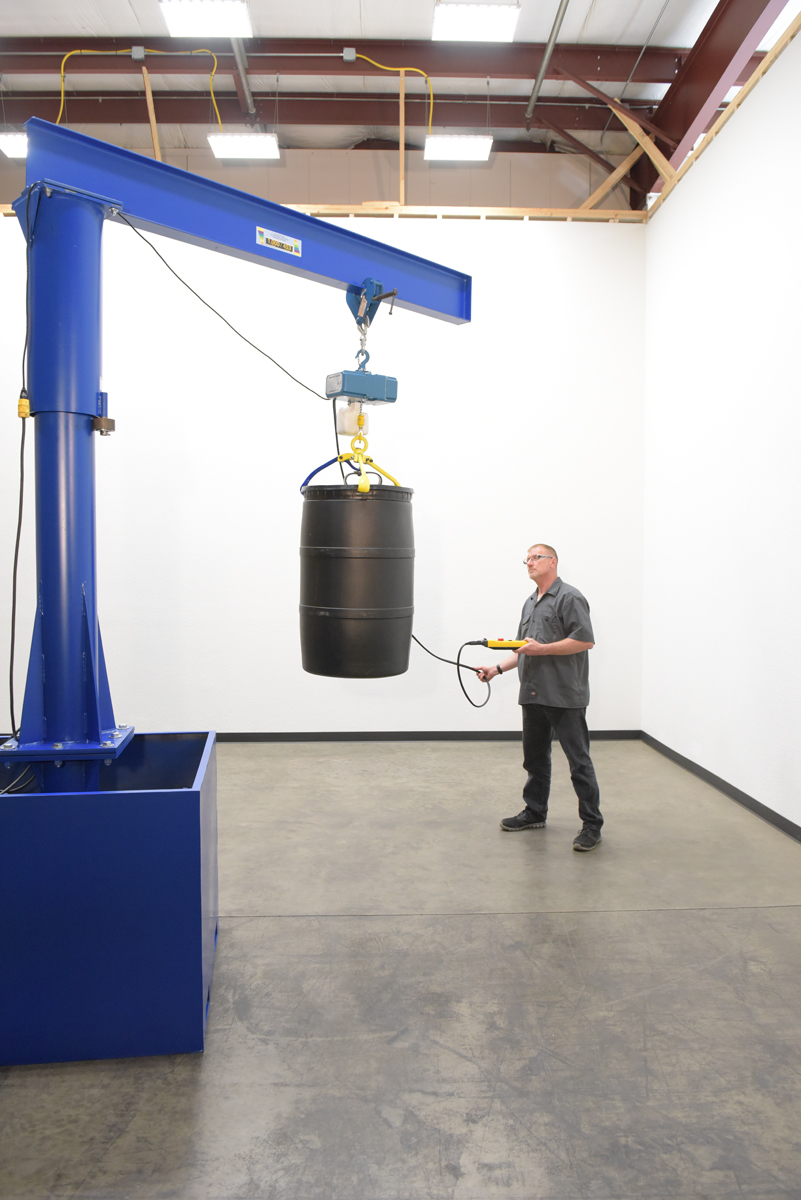

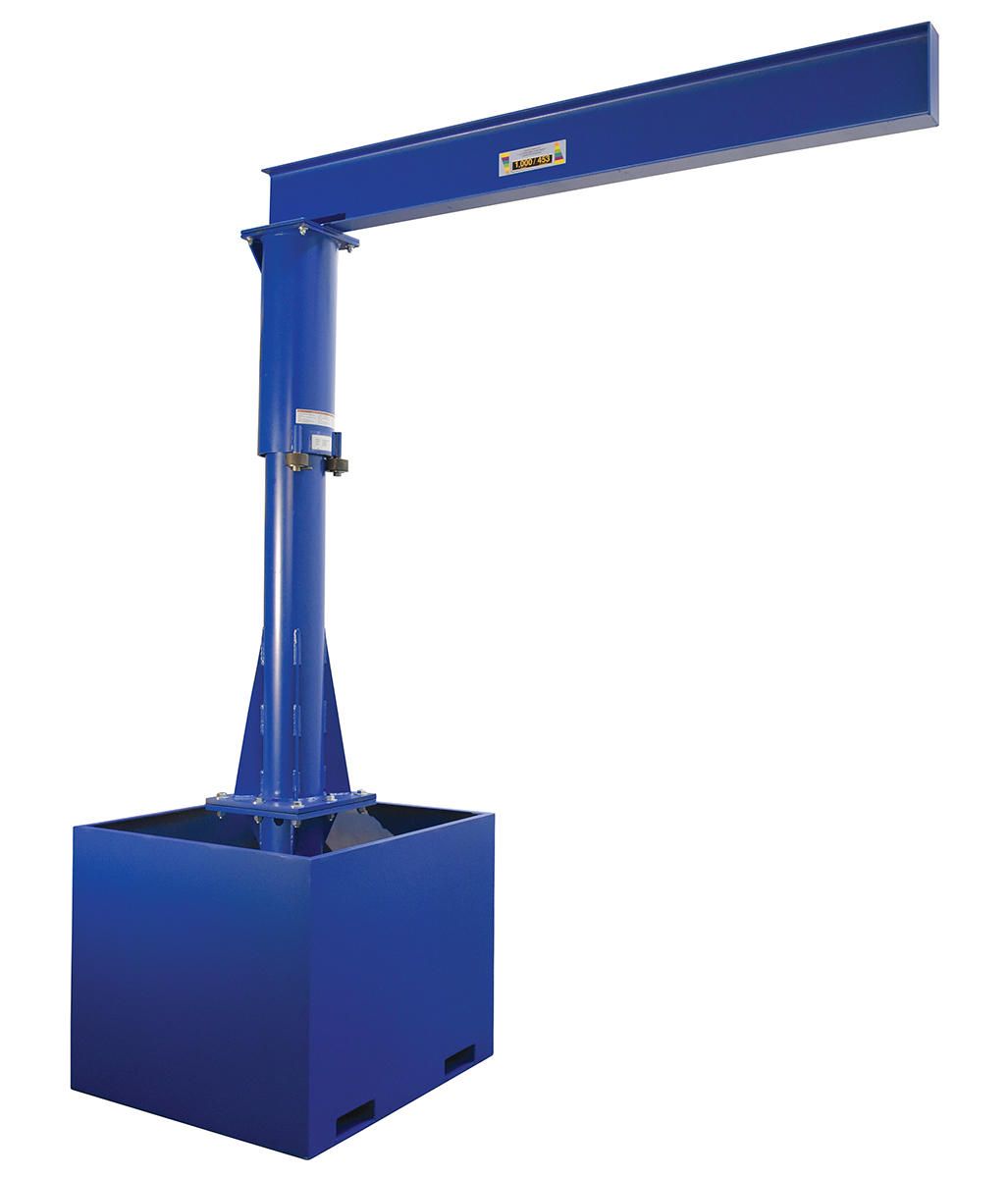

model: JIB-CB-100-8-10

JIB-CB-100-8-10_A.jpg JIB-CB-100-8-10_B.jpg JIB-CB-100-8-10_C.jpg JIB-CB-100-8-10_D.jpg More Images +
Portable Jib Cranes
SERIES: JIB-CB   14Products 4Options

Portable Freestanding Jib Cranes with Concrete Base Options

Portable freestanding jib cranes provide flexible lifting and positioning for workstations, maintenance areas, production lines, warehouses, and material handling zones where a permanently mounted crane is not ideal. Designed with a transportable base and built-in fork tubes, these jib cranes can be moved with a fork truck when workplace layouts or lifting needs change.

360 Degree Lifting Access

The fixed length I-beam pivots a full 360 degrees, giving operators complete access around the crane for loading, unloading, assembly, repair, and equipment positioning tasks. With approximately 10 feet of under I-beam clearance, these units help lift and maneuver materials in open work areas while supporting more efficient, ergonomic handling.

Heavy-Duty Steel Construction

Steel construction and a durable blue painted finish provide long-lasting performance in demanding industrial environments. The upright vertical column bolts to the base for a secure setup, and units ship knocked down for more efficient handling and installation. These cranes are designed as portable jib crane systems and are not intended for use as fork truck attachments.

Capacities, Bases, and Add-On Equipment

This family includes capacities from 250 lb. to 1,000 lb., with 96 inch and 120 inch I-beam length options. Models are available with empty fillable bases or concrete filled bases, along with 18 inch and 36 inch base height choices. Hoists & Trollies can be ordered seperately., allowing distributors and end users to configure a complete lifting system for specific load handling needs.

Portable Jib Cranes

model: JIB-CB-100-8-10

Model # Description Attributes Net Wt.
(lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= New Images Coming Soon! = Dimension Image = Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below
JIB-CB-100-8-10
JIB-CB-100-8-10-BC
JIB-CB-18-B
JIB-CB-18-BC
JIB-CB-25-10-10
JIB-CB-25-10-10-BC
JIB-CB-25-8-10
JIB-CB-25-8-10-BC
JIB-CB-36-B
JIB-CB-36-BC
JIB-CB-50-10-10
JIB-CB-50-10-10-BC
JIB-CB-50-8-10
JIB-CB-50-8-10-BC
For More Details of the Option Click the Red Model Button
Model Image Details Icons Wt.

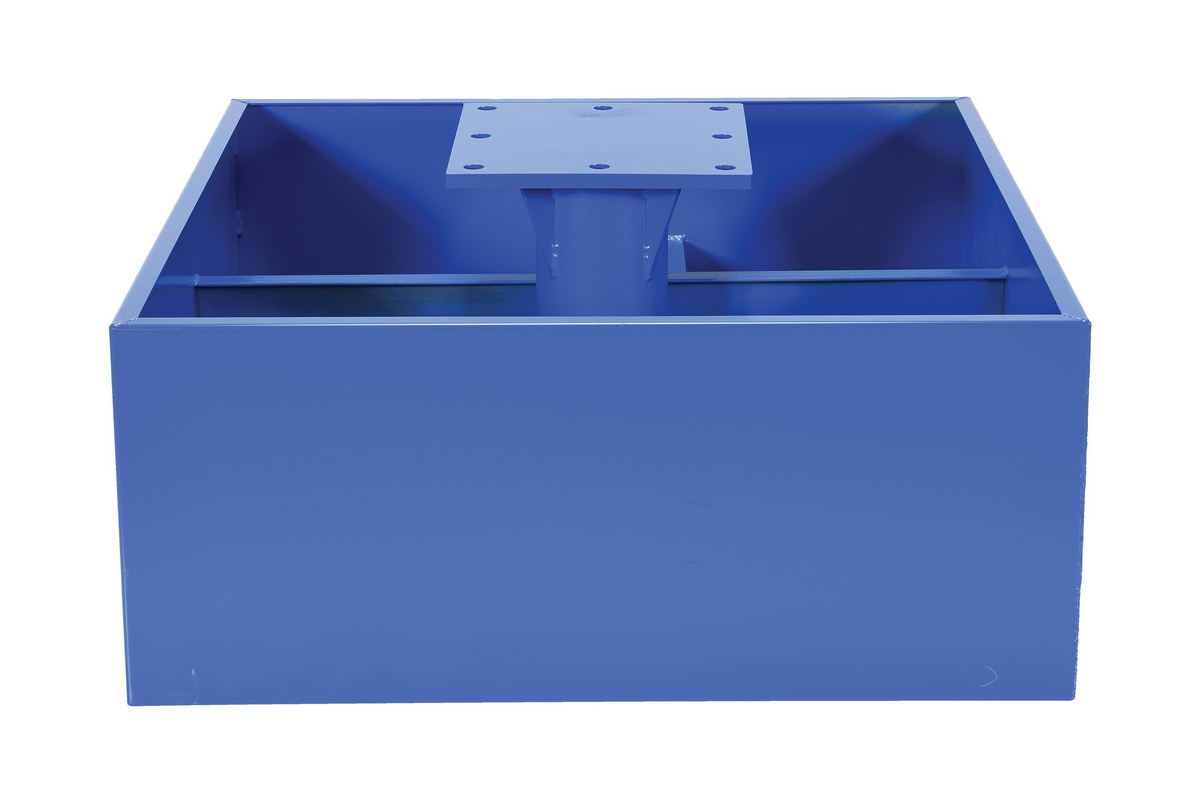

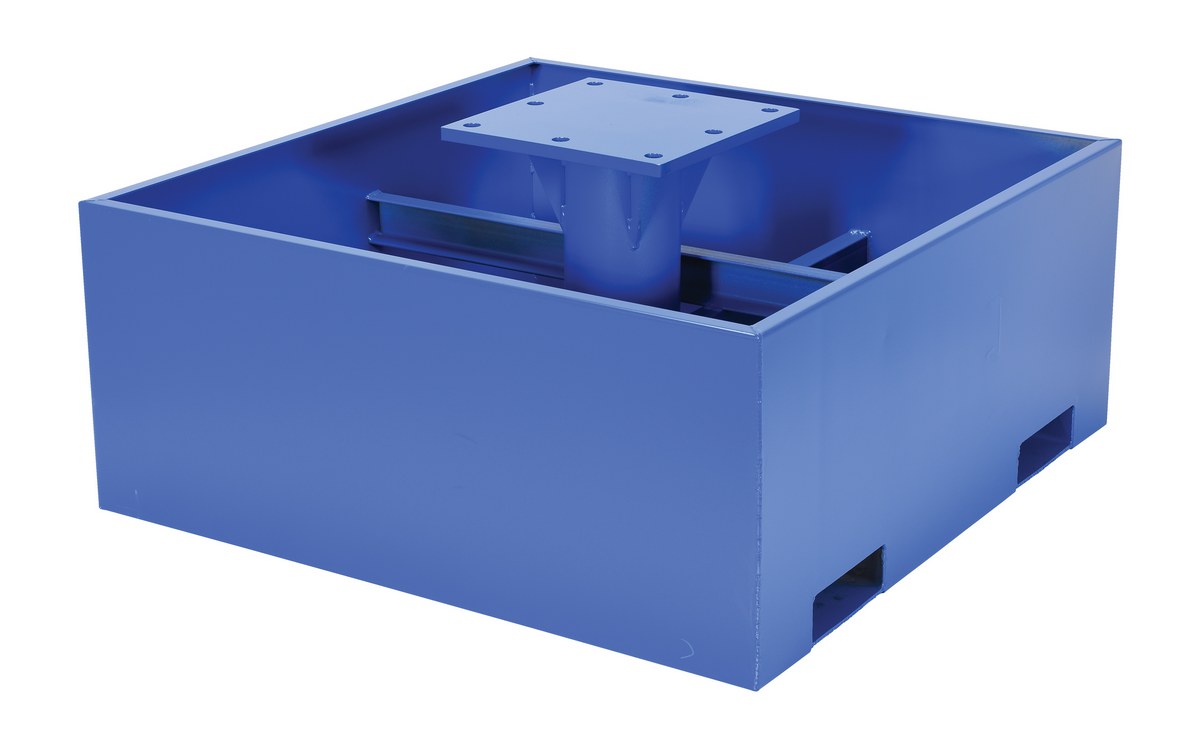

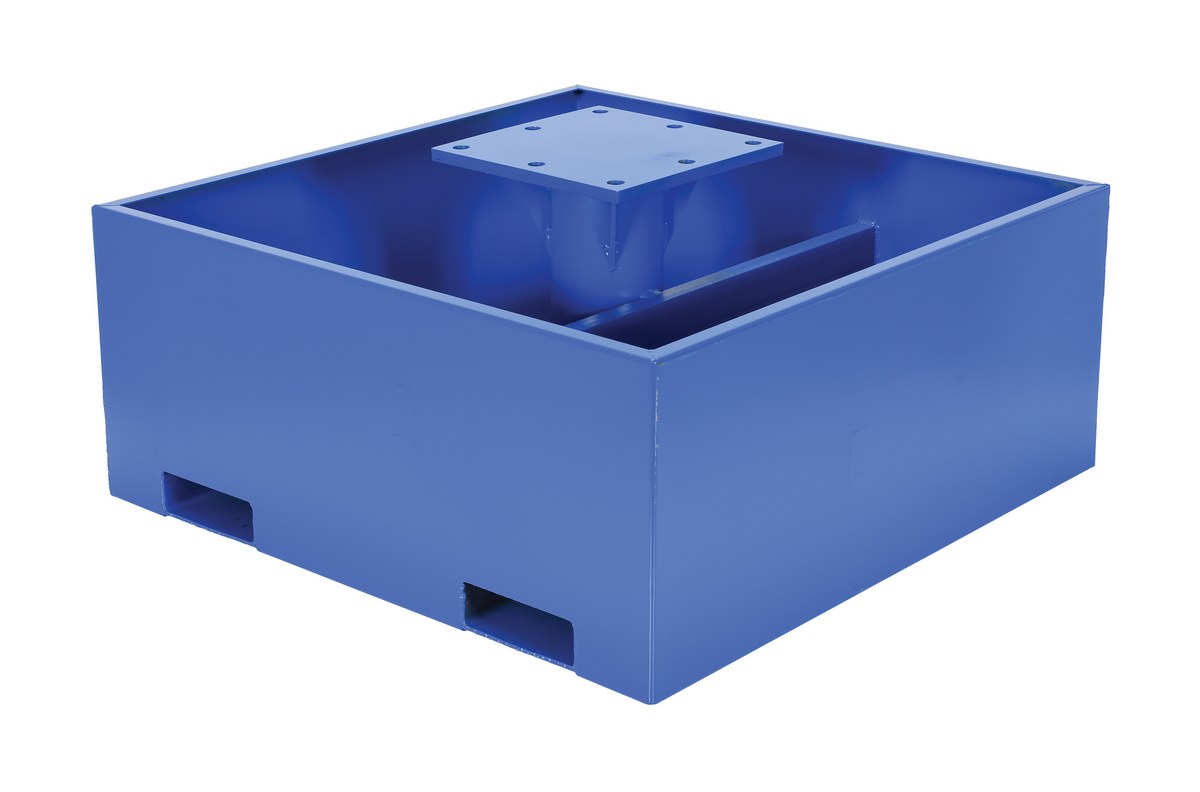

JIB-CB-18-B JIB-CB-18-B Steel Empty Concrete Base 18 In. Height For JIB Crane Models… 1 Year Limited Warranty 479

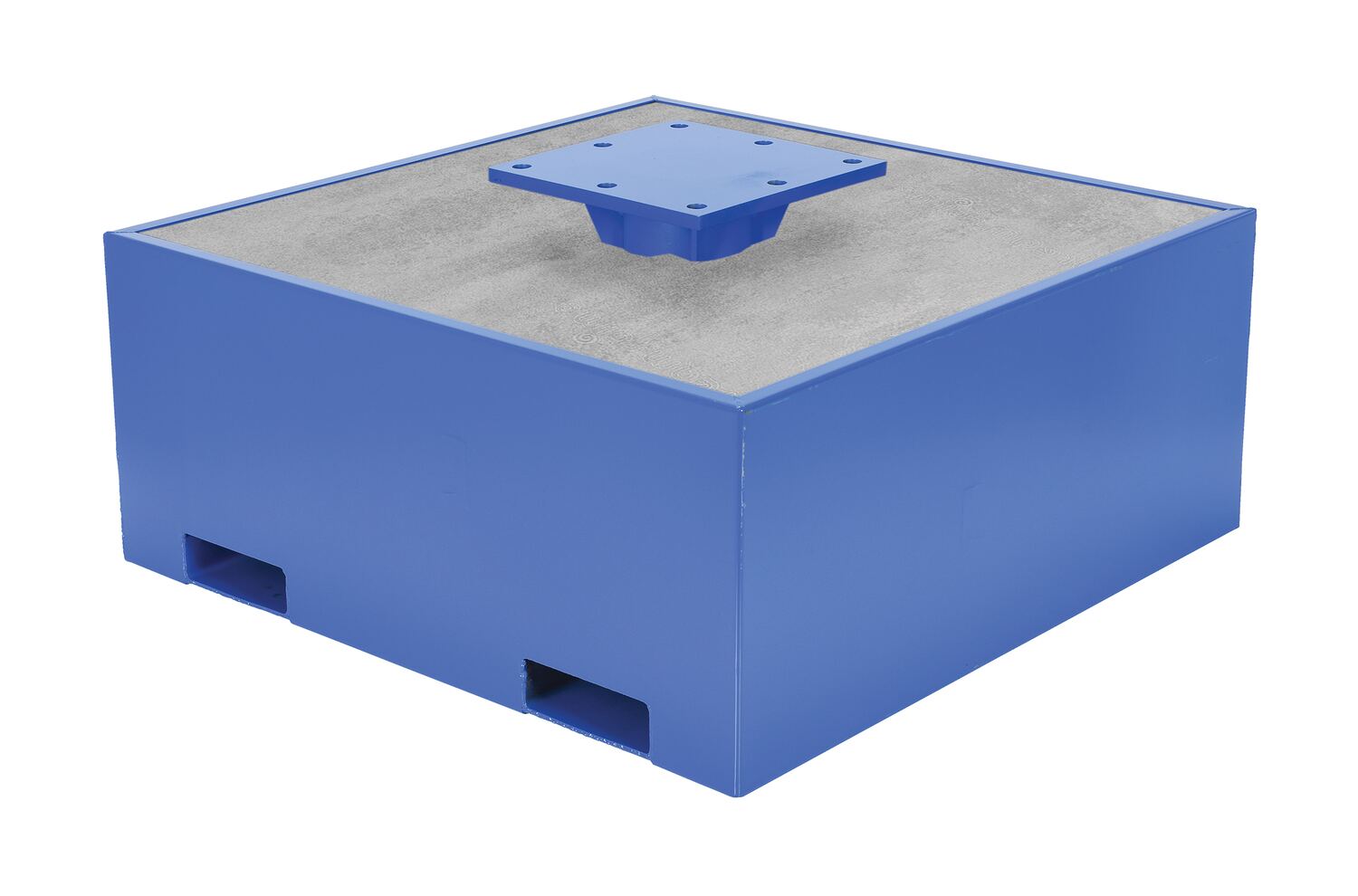

JIB-CB-18-BC JIB-CB-18-BC Steel Concrete Filled Base 18 In. Height For JIB Crane Model… 1 Year Limited Warranty 2780

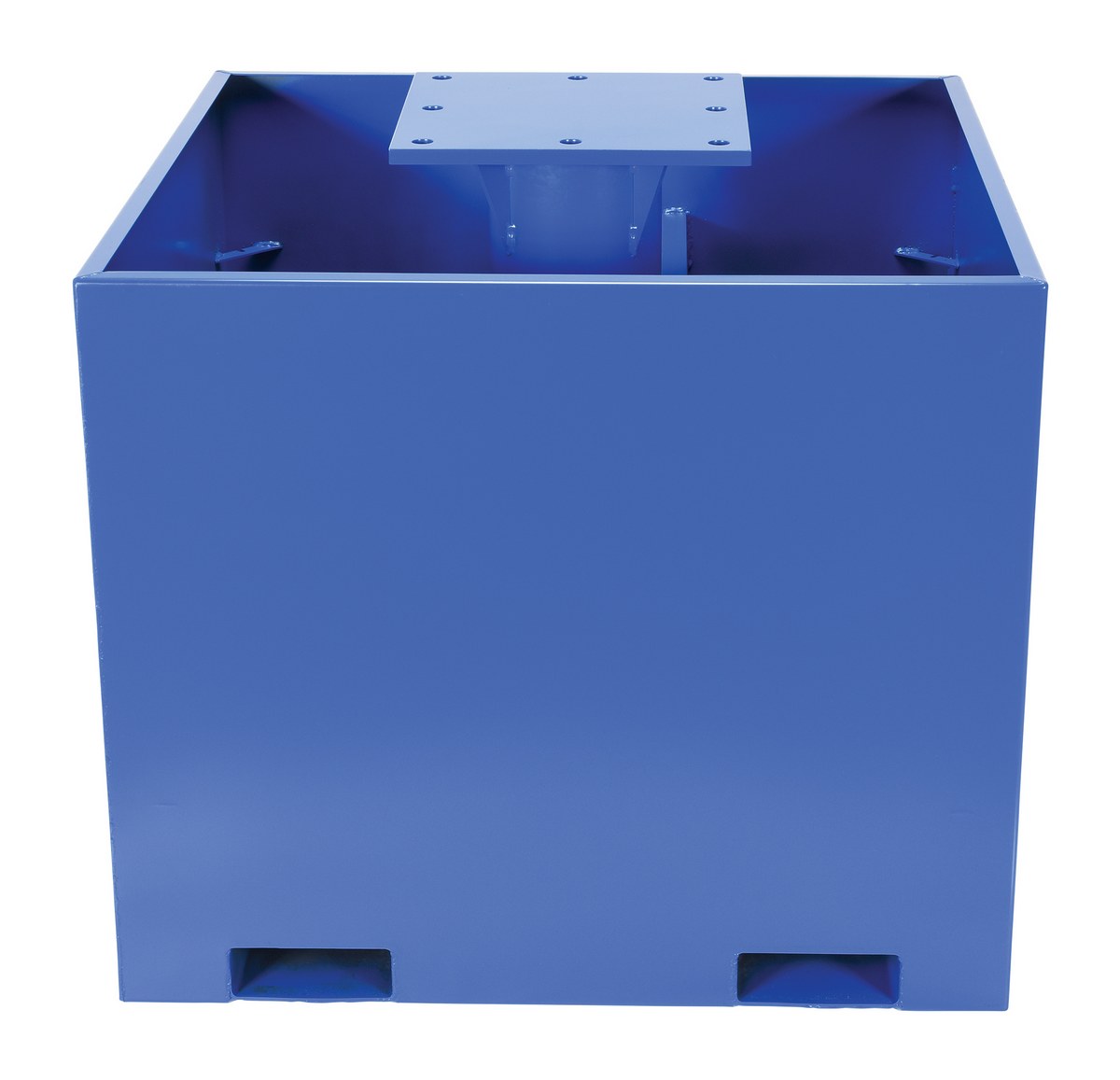

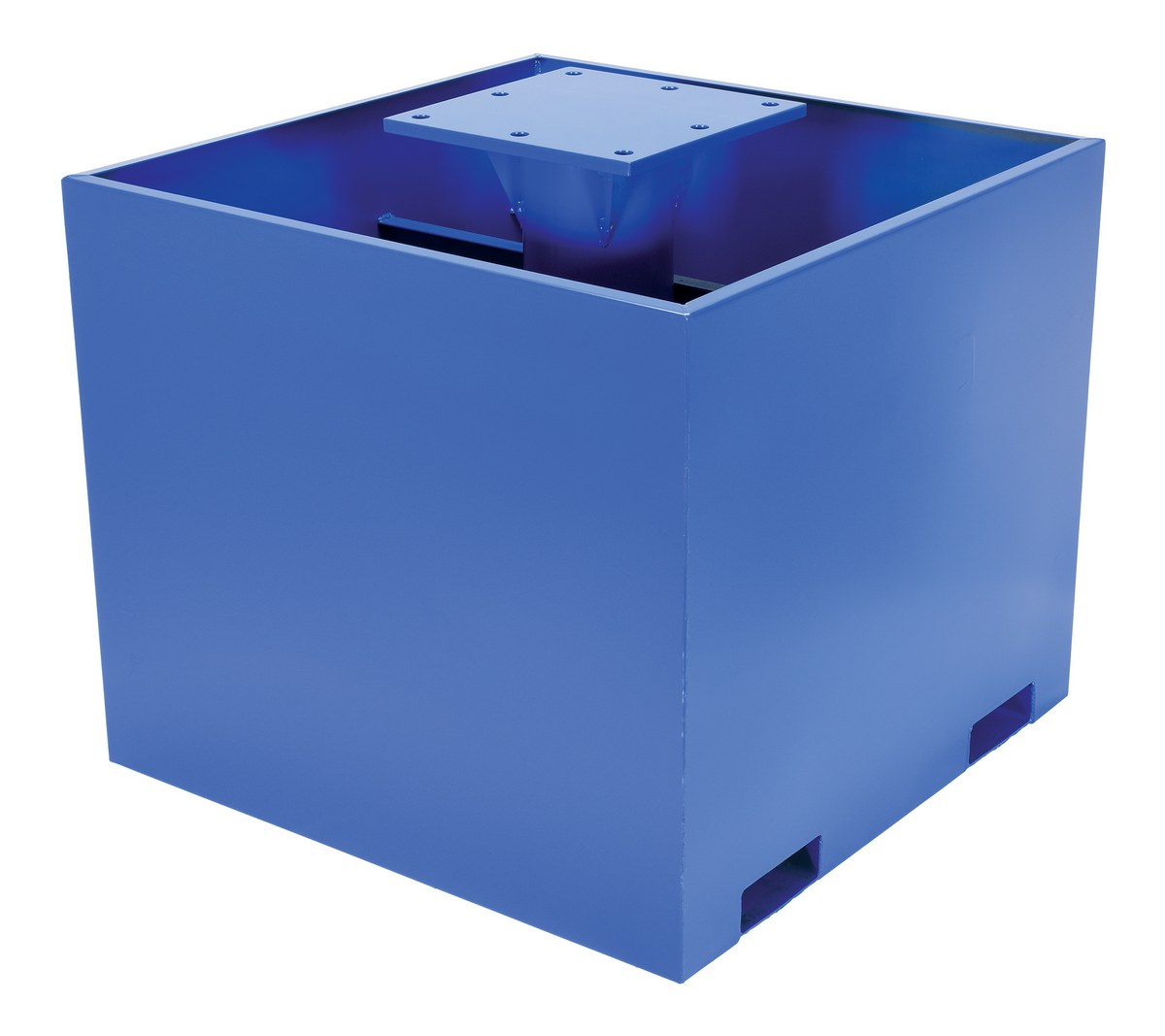

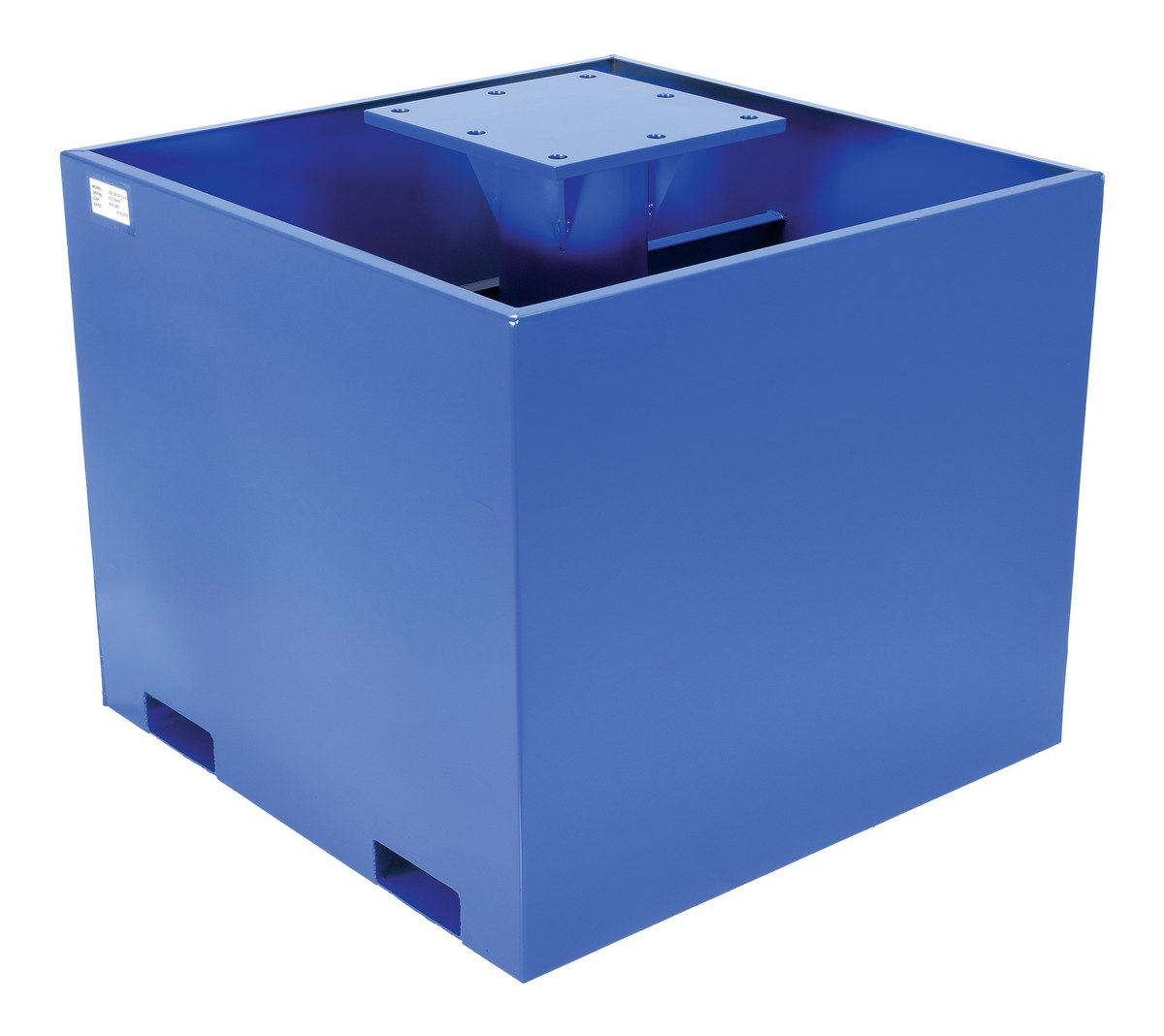

JIB-CB-36-B JIB-CB-36-B Steel Empty Concrete Base 36 In. Height For JIB Crane Models… 1 Year Limited Warranty 674

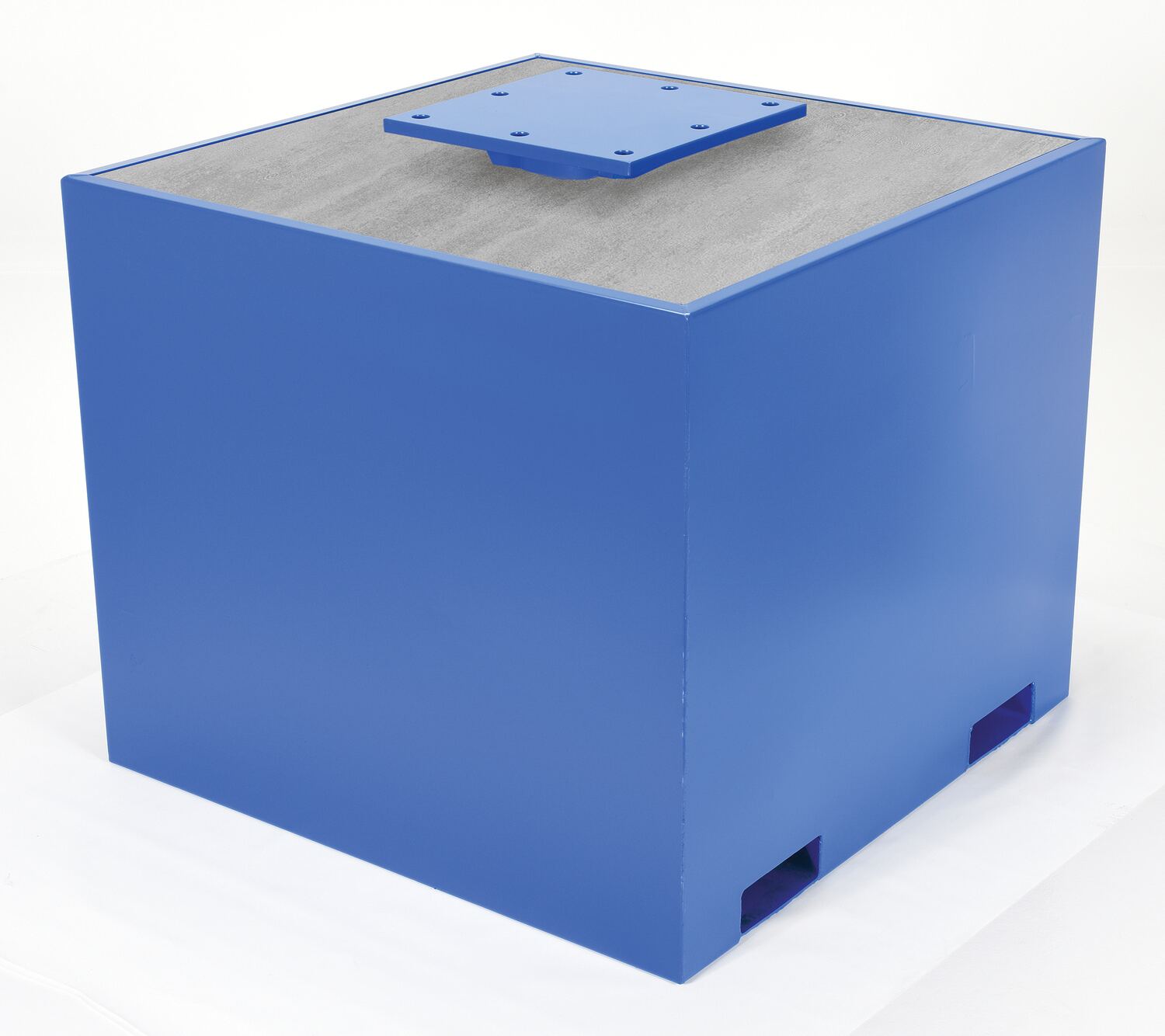

JIB-CB-36-BC JIB-CB-36-BC Steel Concrete Filled Base 36 In. Height For JIB Crane Model… 1 Year Limited Warranty 5078

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
PDFs will open in a new window when clicked.

Owner's Manuals

2
JIB-CB, MANUAL
Open Manual
JIB-CB, Manual (Addendum)
Open Manual

Survey Sheets

0
No survey sheets for this product family.

Approval Drawings

14
JIB-CB-100-8-10
Open Drawing
JIB-CB-100-8-10-BC
Open Drawing
JIB-CB-18-B
Open Drawing
JIB-CB-18-BC
Open Drawing
JIB-CB-25-10-10
Open Drawing
JIB-CB-25-10-10-BC
Open Drawing
JIB-CB-25-8-10
Open Drawing
JIB-CB-25-8-10-BC
Open Drawing
JIB-CB-36-B
Open Drawing
JIB-CB-36-BC
Open Drawing
JIB-CB-50-10-10
Open Drawing
JIB-CB-50-10-10-BC
Open Drawing
JIB-CB-50-8-10
Open Drawing
JIB-CB-50-8-10-BC
Open Drawing

Testing Certificates

14
JIB-CB-100-8-10
Open Certificate
JIB-CB-100-8-10-BC
Open Certificate
JIB-CB-18-B
Open Certificate
JIB-CB-18-BC
Open Certificate
JIB-CB-25-10-10
Open Certificate
JIB-CB-25-10-10-BC
Open Certificate
JIB-CB-25-8-10
Open Certificate
JIB-CB-25-8-10-BC
Open Certificate
JIB-CB-36-B
Open Certificate
JIB-CB-36-BC
Open Certificate
JIB-CB-50-10-10
Open Certificate
JIB-CB-50-10-10-BC
Open Certificate
JIB-CB-50-8-10
Open Certificate
JIB-CB-50-8-10-BC
Open Certificate

SDS Sheets

0
No SDS sheets for this product family.

Other PDFs

0
No other PDFs for this product family.







Visit Our Youtube Channel For All Available Videos For All Products

Related or Similar Products:

More From Jib Cranes





Portable Jib Cranes




Portable Freestanding Jib Cranes with Concrete Base Options

Portable freestanding jib cranes provide flexible lifting and positioning for workstations, maintenance areas, production lines, warehouses, and material handling zones where a permanently mounted crane is not ideal. Designed with a transportable base and built-in fork tubes, these jib cranes can be moved with a fork truck when workplace layouts or lifting needs change.

360 Degree Lifting Access

The fixed length I-beam pivots a full 360 degrees, giving operators complete access around the crane for loading, unloading, assembly, repair, and equipment positioning tasks. With approximately 10 feet of under I-beam clearance, these units help lift and maneuver materials in open work areas while supporting more efficient, ergonomic handling.

Heavy-Duty Steel Construction

Steel construction and a durable blue painted finish provide long-lasting performance in demanding industrial environments. The upright vertical column bolts to the base for a secure setup, and units ship knocked down for more efficient handling and installation. These cranes are designed as portable jib crane systems and are not intended for use as fork truck attachments.

Capacities, Bases, and Add-On Equipment

This family includes capacities from 250 lb. to 1,000 lb., with 96 inch and 120 inch I-beam length options. Models are available with empty fillable bases or concrete filled bases, along with 18 inch and 36 inch base height choices. Hoists & Trollies can be ordered seperately., allowing distributors and end users to configure a complete lifting system for specific load handling needs.


Model # Description Attributes Net Wt.
(lbs)

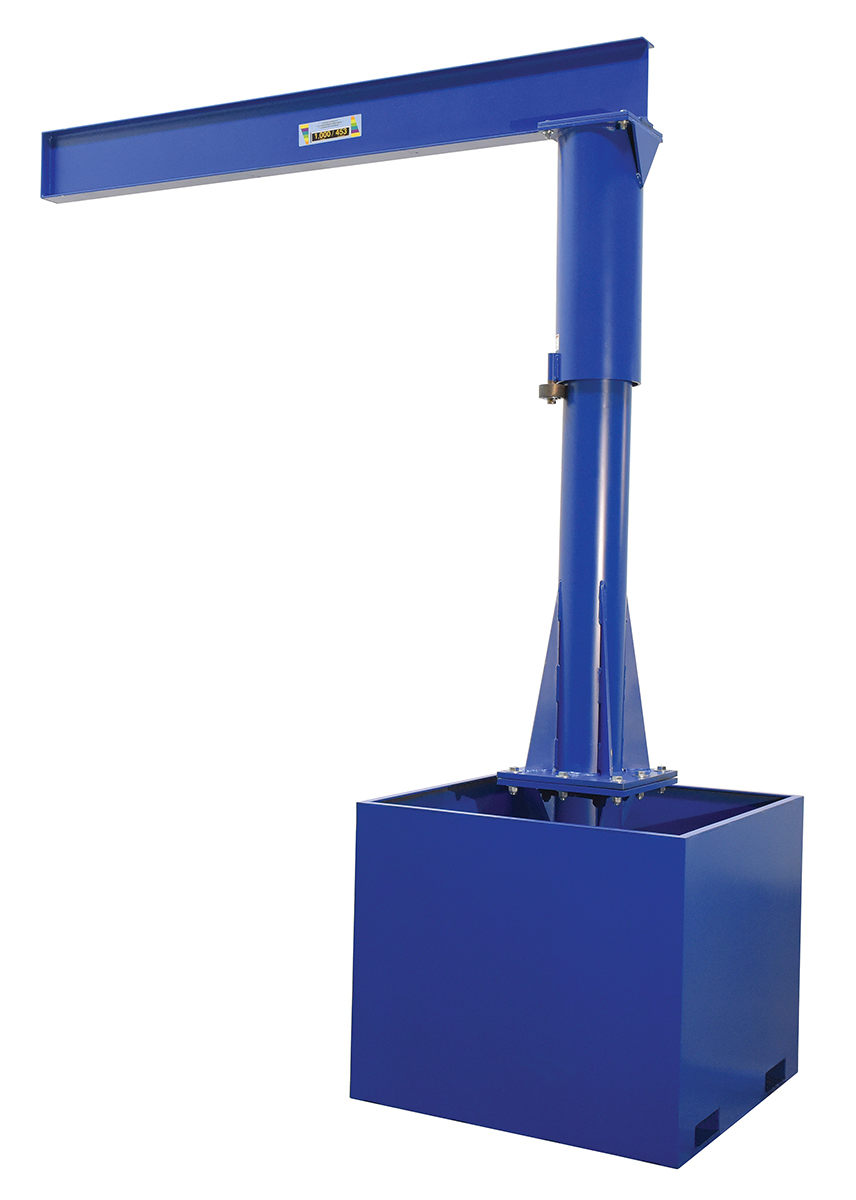

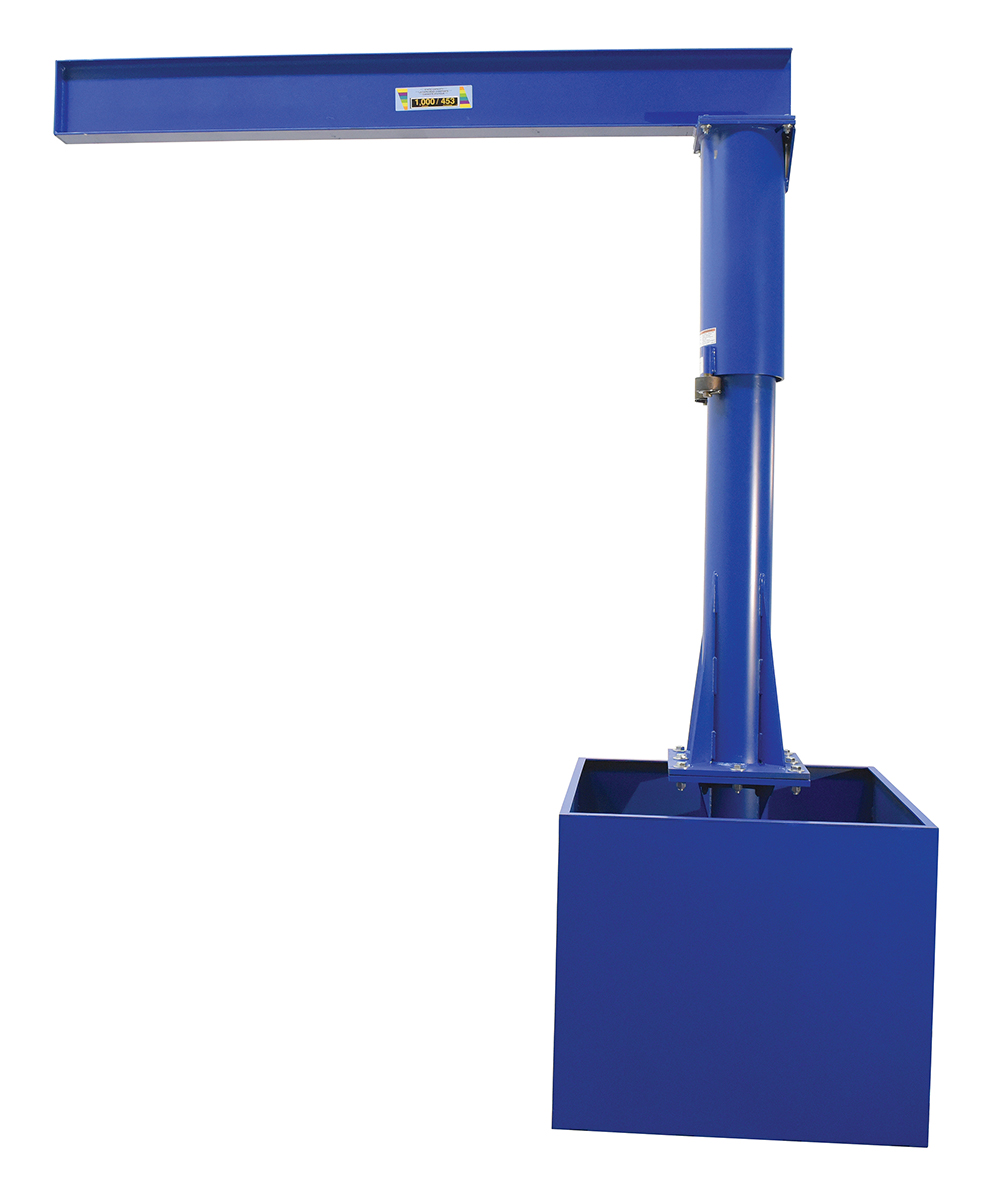

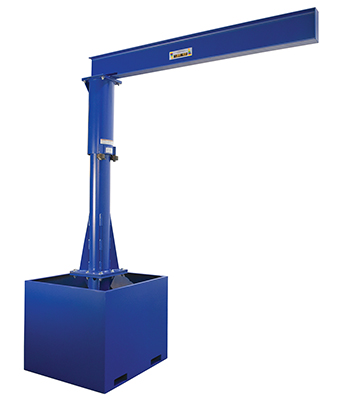

JIB-CB-100-8-10 JIB-CB-100-8-10Steel Portable Jib Crane with Empty Base 8 Ft. I-Beam 1000 Lb. Capacity BlueUniform Capacity (lb.): 1,000
Overall I-Beam Length (in): 96		646

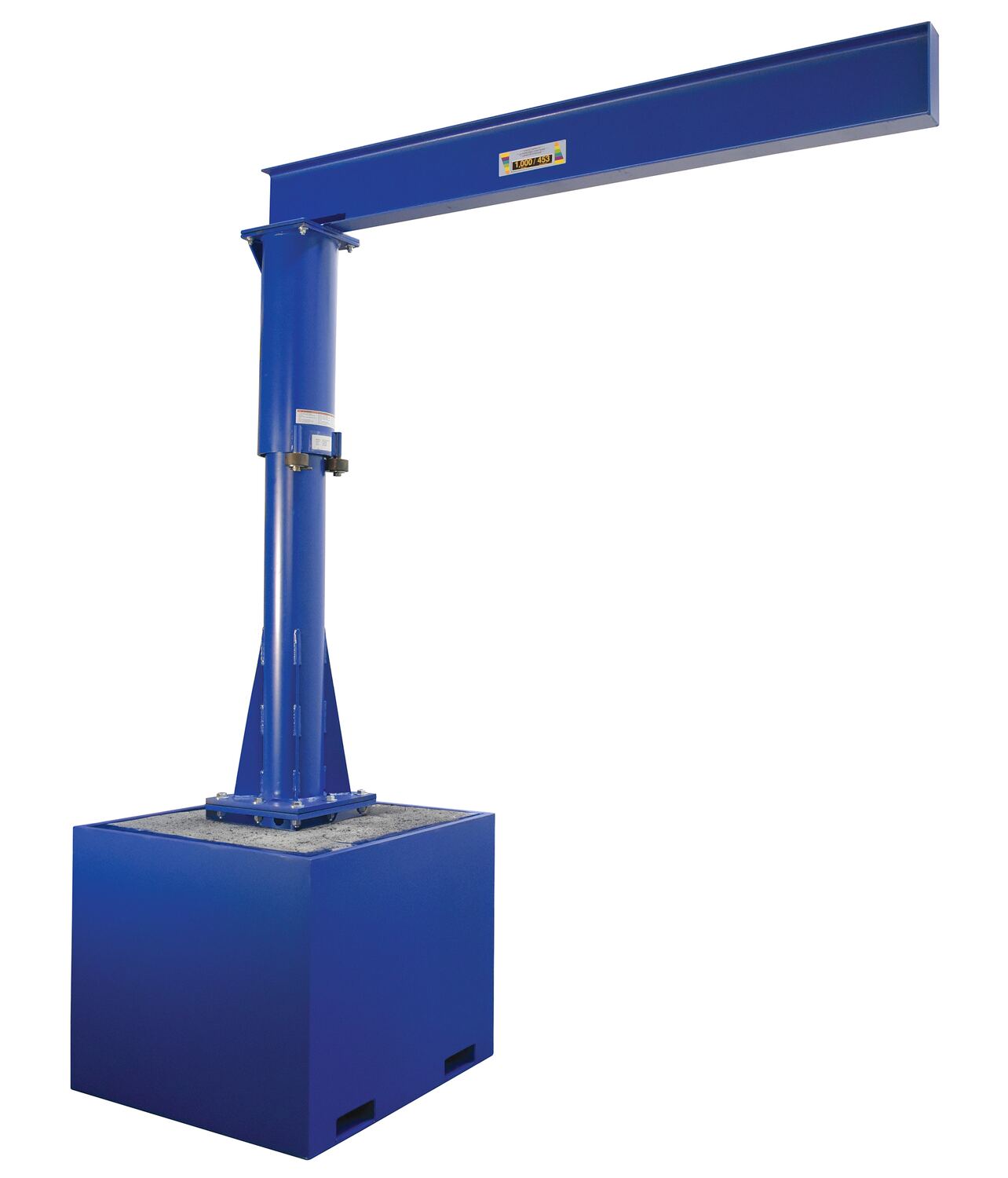

JIB-CB-100-8-10-BC JIB-CB-100-8-10-BCSteel Portable Jib Crane with Filled Base 8 Ft. I-Beam 1000 Lb. Capacity BlueUniform Capacity (lb.): 1,000
Overall I-Beam Length (in): 96		635

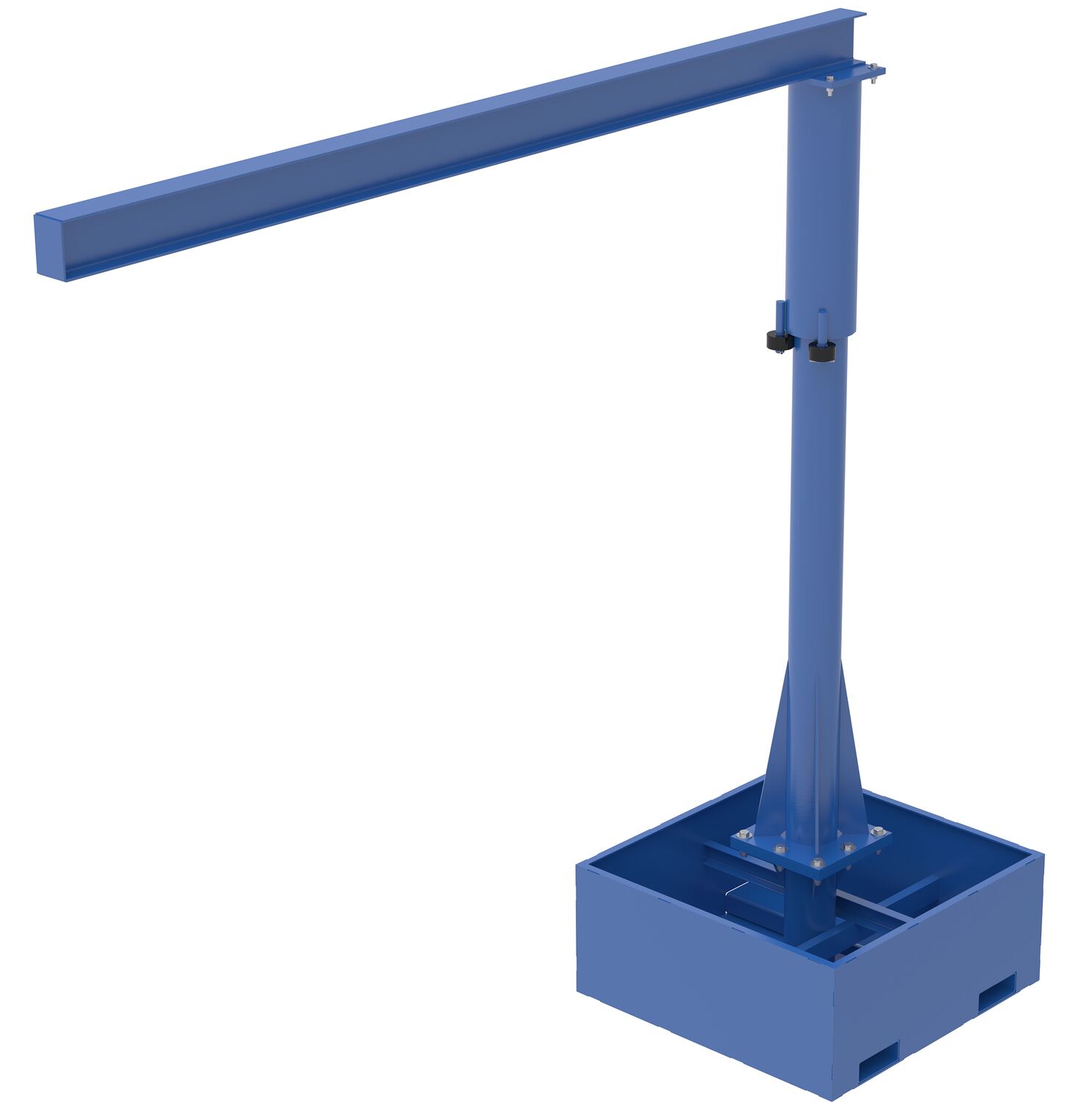

JIB-CB-25-10-10 JIB-CB-25-10-10Steel Portable Jib Crane with Empty Base 10 Ft. I-Beam 250 Lb. Capacity BlueUniform Capacity (lb.): 250
Overall I-Beam Length (in): 120		515

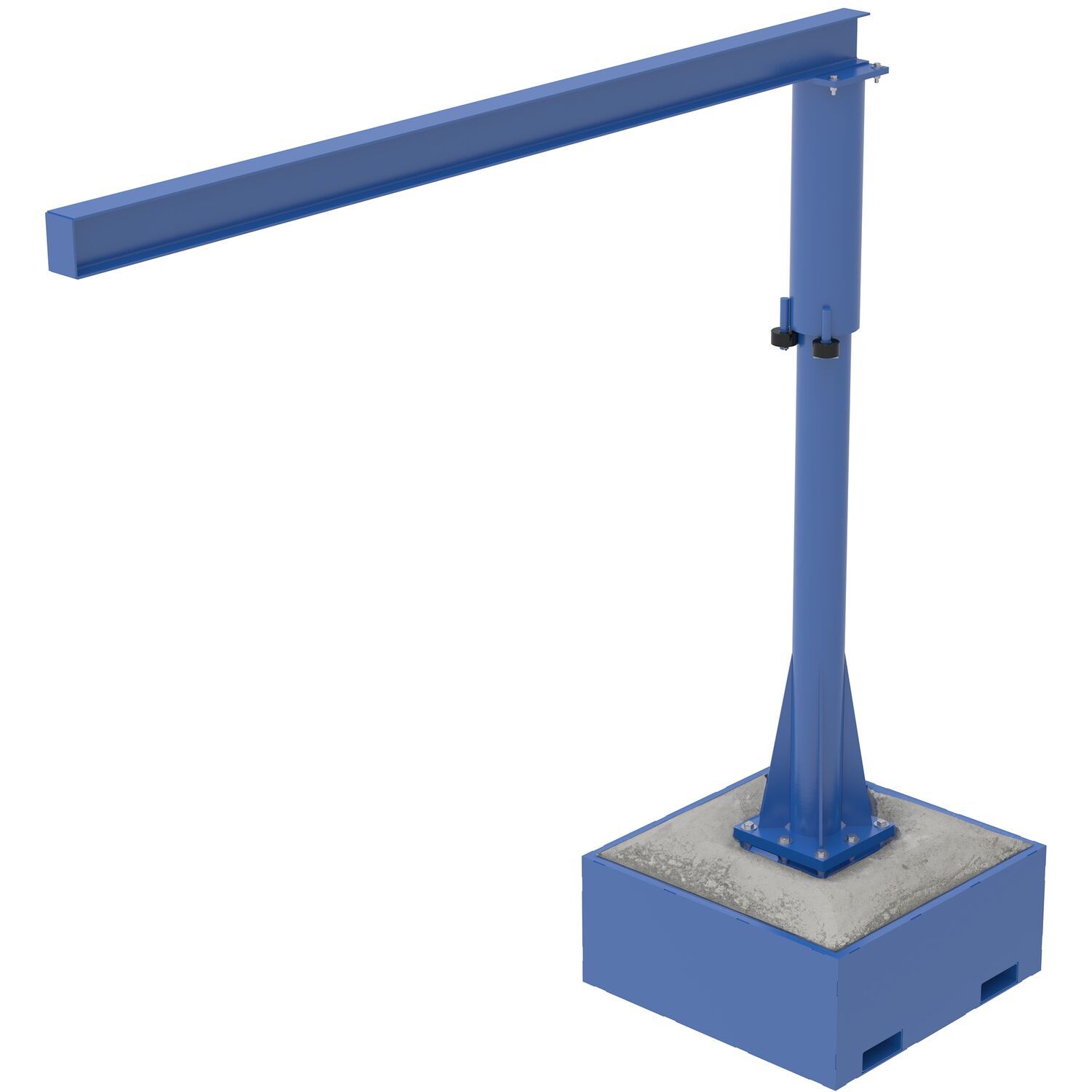

JIB-CB-25-10-10-BC JIB-CB-25-10-10-BCSteel Portable Jib Crane with Filled Base 10 Ft. I-Beam 250 Lb. Capacity BlueUniform Capacity (lb.): 250
Overall I-Beam Length (in): 120		550
JIB-CB-25-8-10 JIB-CB-25-8-10Steel Portable Jib Crane with Empty Base 8 Ft. I-Beam 250 Lb. Capacity BlueUniform Capacity (lb.): 250
Overall I-Beam Length (in): 96		526
JIB-CB-25-8-10-BC JIB-CB-25-8-10-BCSteel Portable Jib Crane with Filled Base 8 Ft. I-Beam 250 Lb. Capacity BlueUniform Capacity (lb.): 250
Overall I-Beam Length (in): 96		500

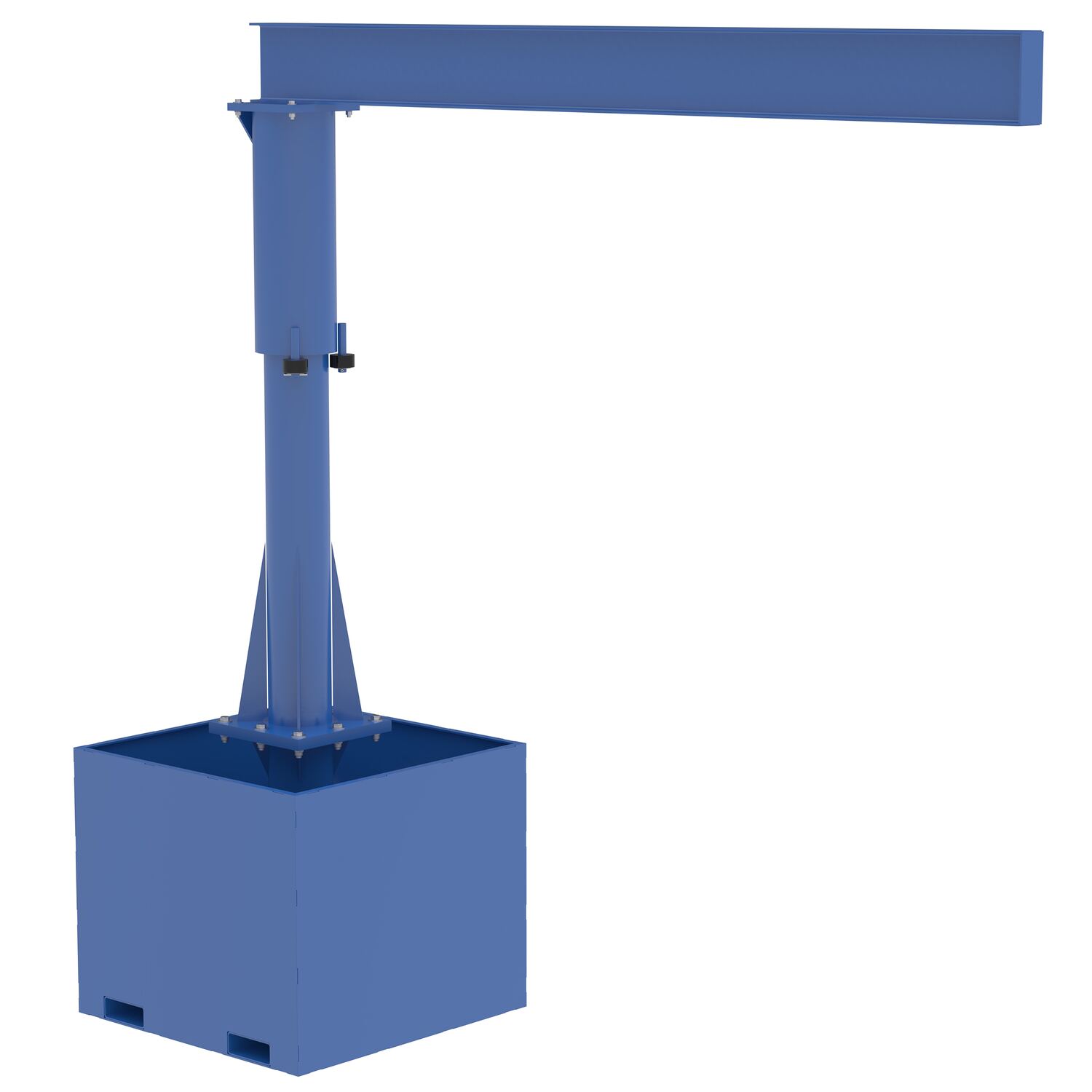

JIB-CB-50-10-10 JIB-CB-50-10-10Steel Portable Jib Crane with Empty Base 10 Ft. I-Beam 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Overall I-Beam Length (in): 120		664

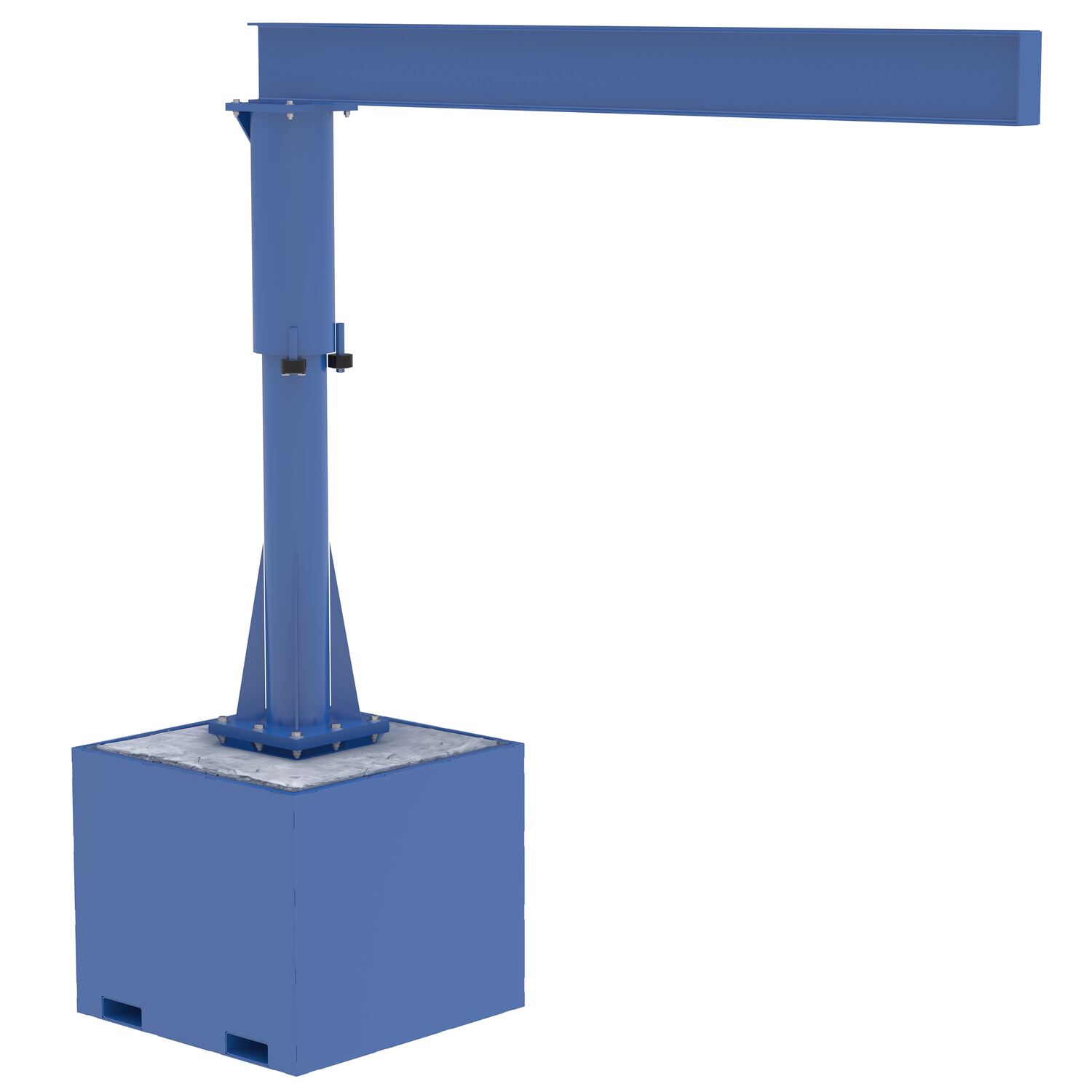

JIB-CB-50-10-10-BC JIB-CB-50-10-10-BCSteel Portable Jib Crane with Filled Base 10 Ft. I-Beam 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Overall I-Beam Length (in): 120		562

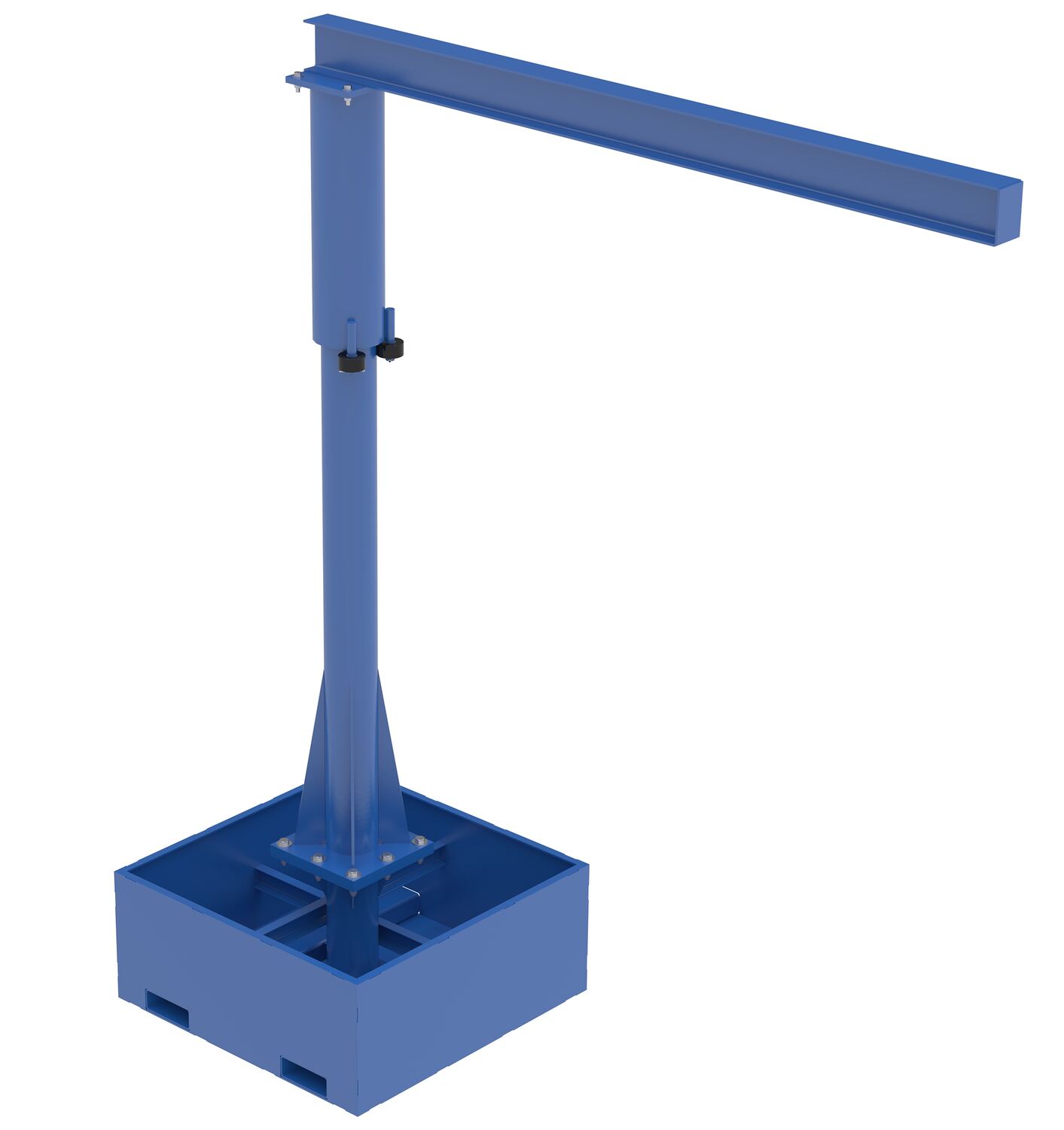

JIB-CB-50-8-10 JIB-CB-50-8-10Steel Portable Jib Crane with Empty Base 8 Ft. I-Beam 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Overall I-Beam Length (in): 96		502

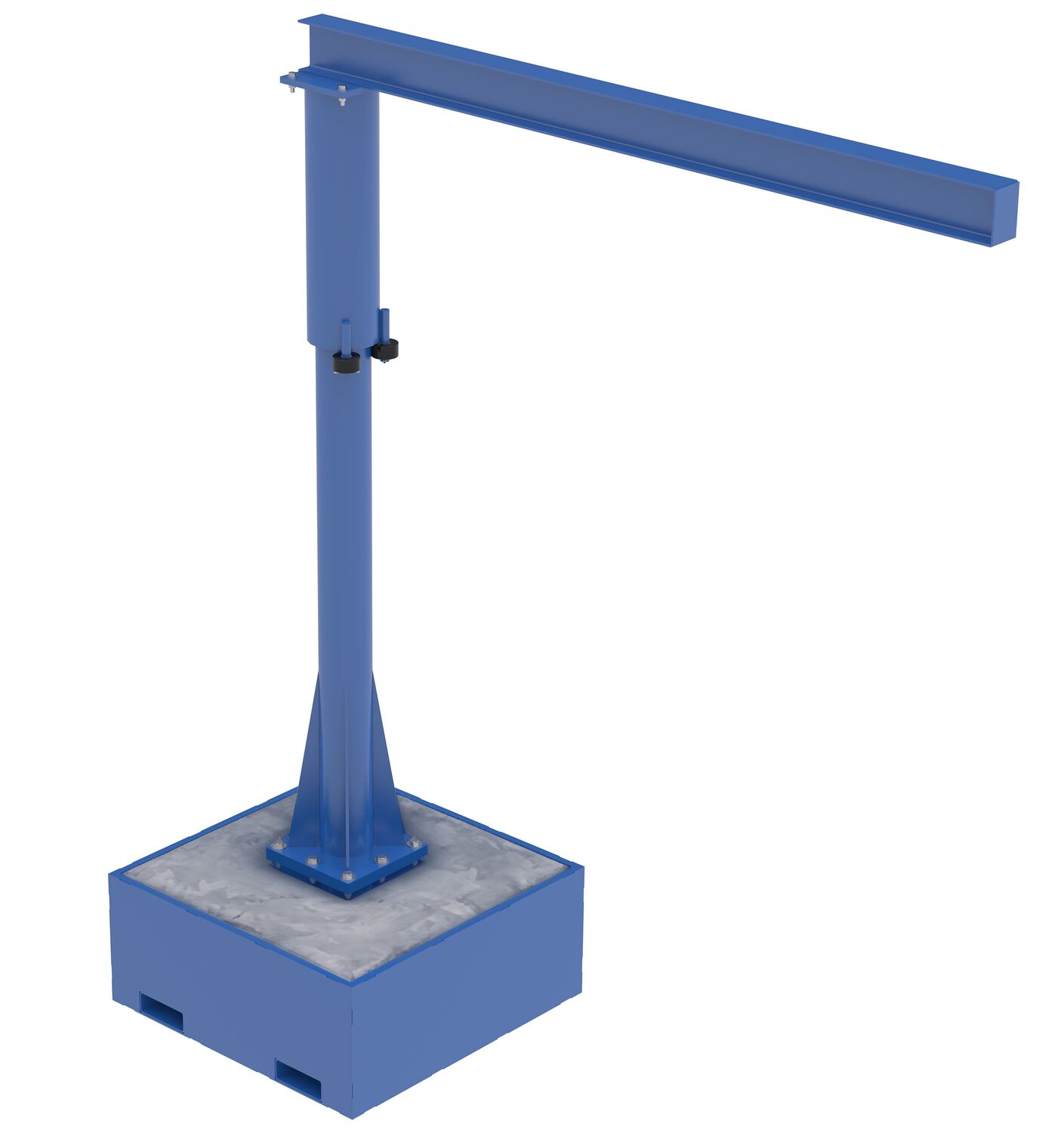

JIB-CB-50-8-10-BC JIB-CB-50-8-10-BCSteel Portable Jib Crane with Filled Base 8 Ft. I-Beam 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Overall I-Beam Length (in): 96		546

Options


.
