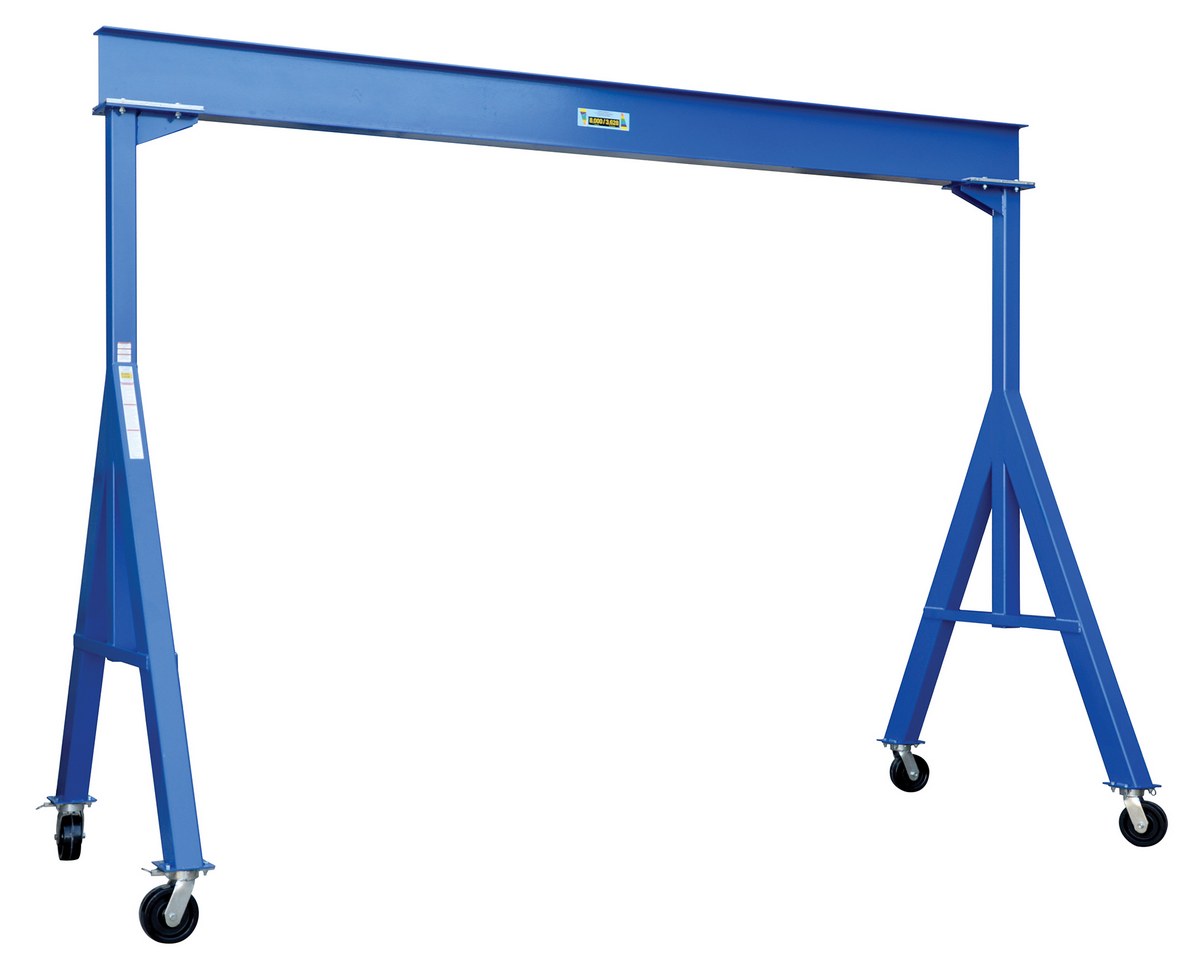

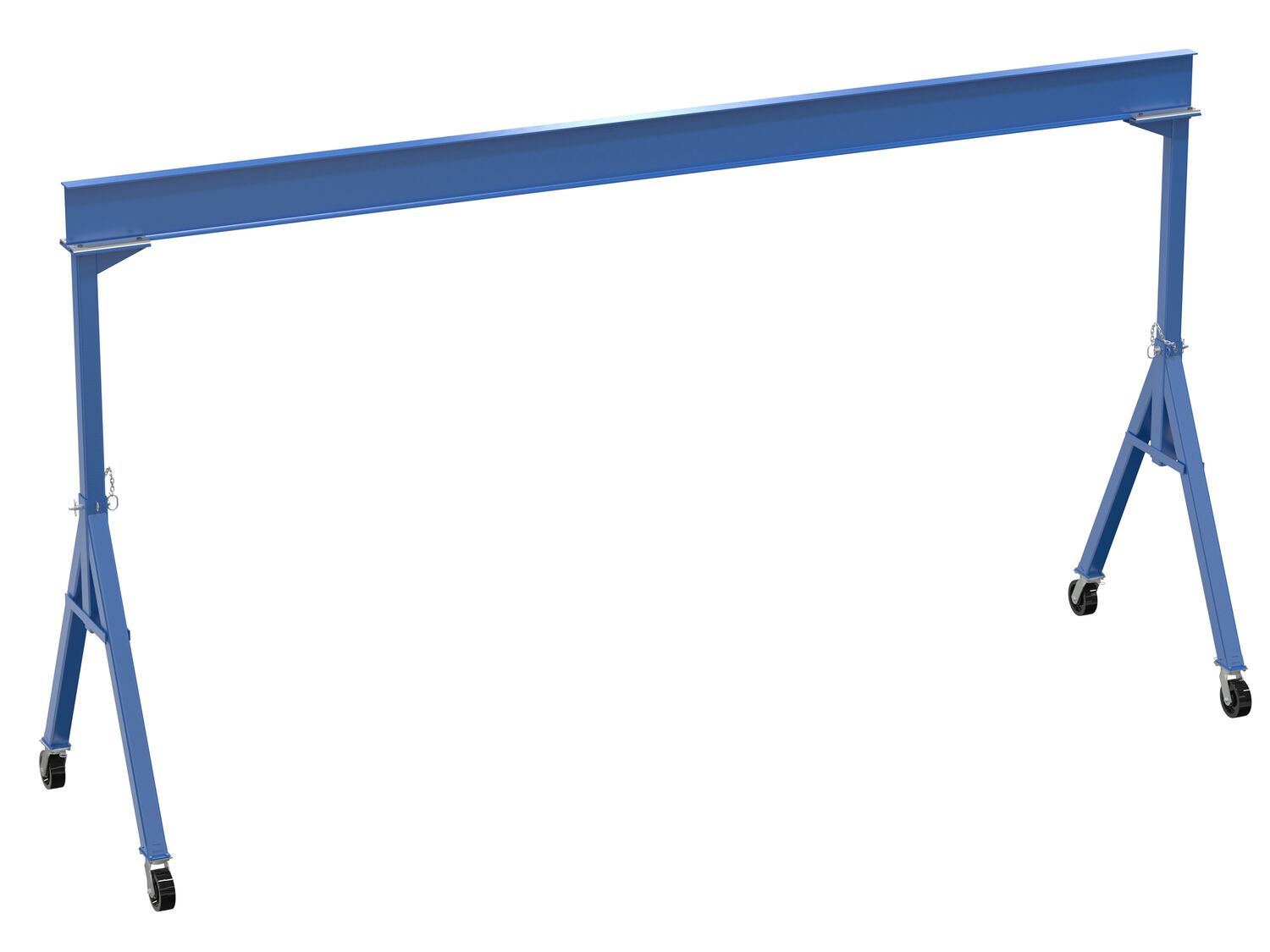

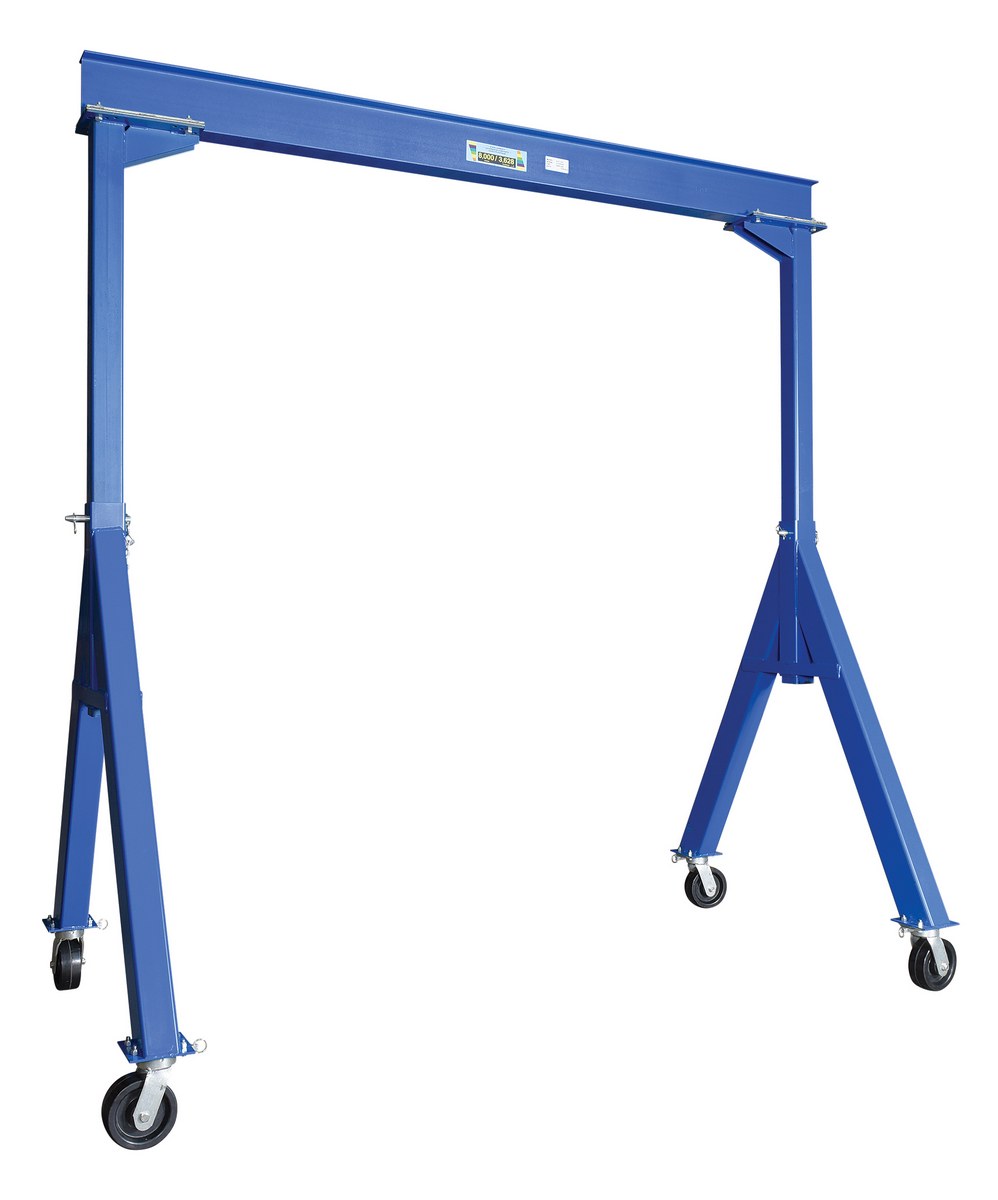

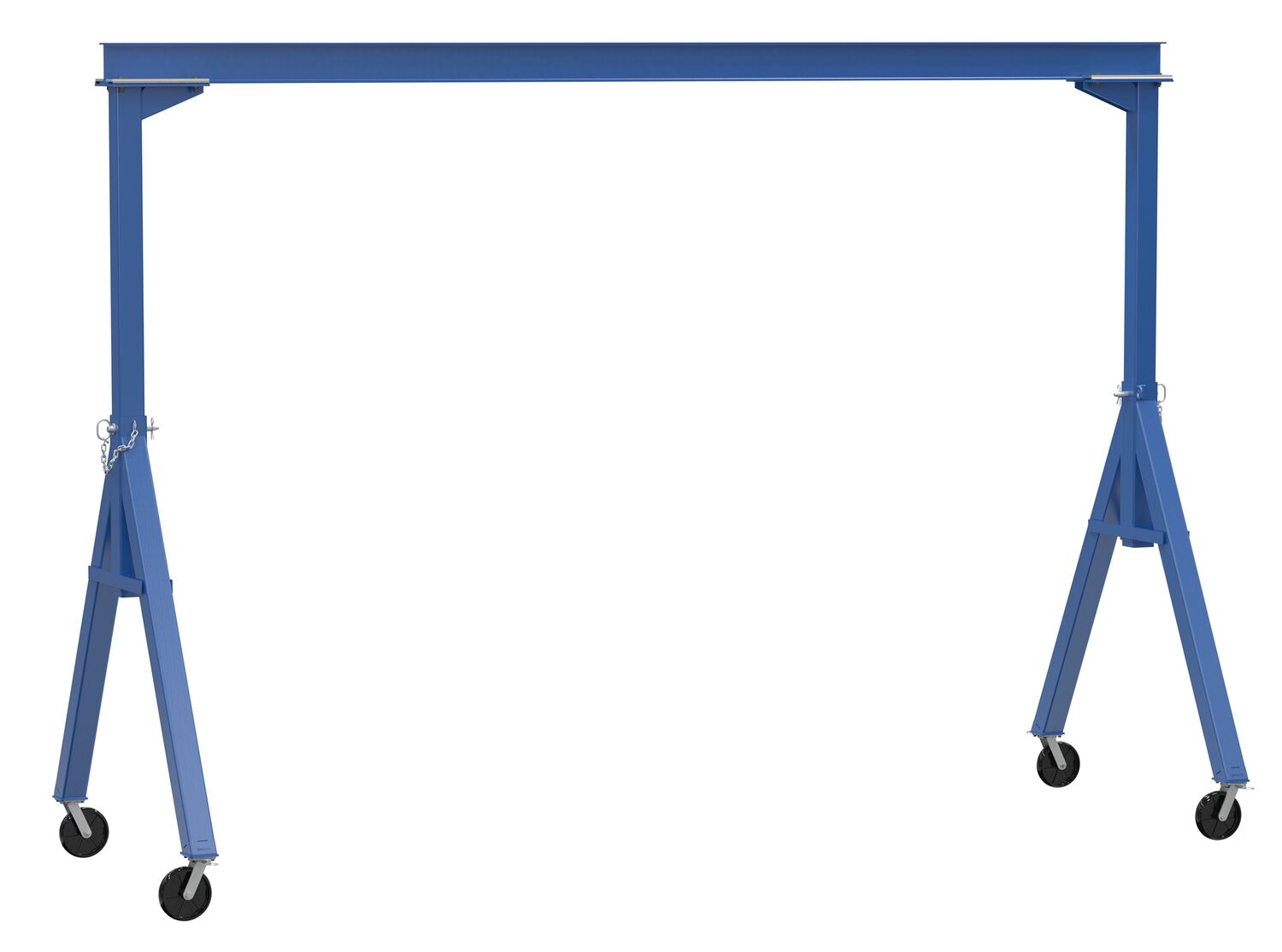

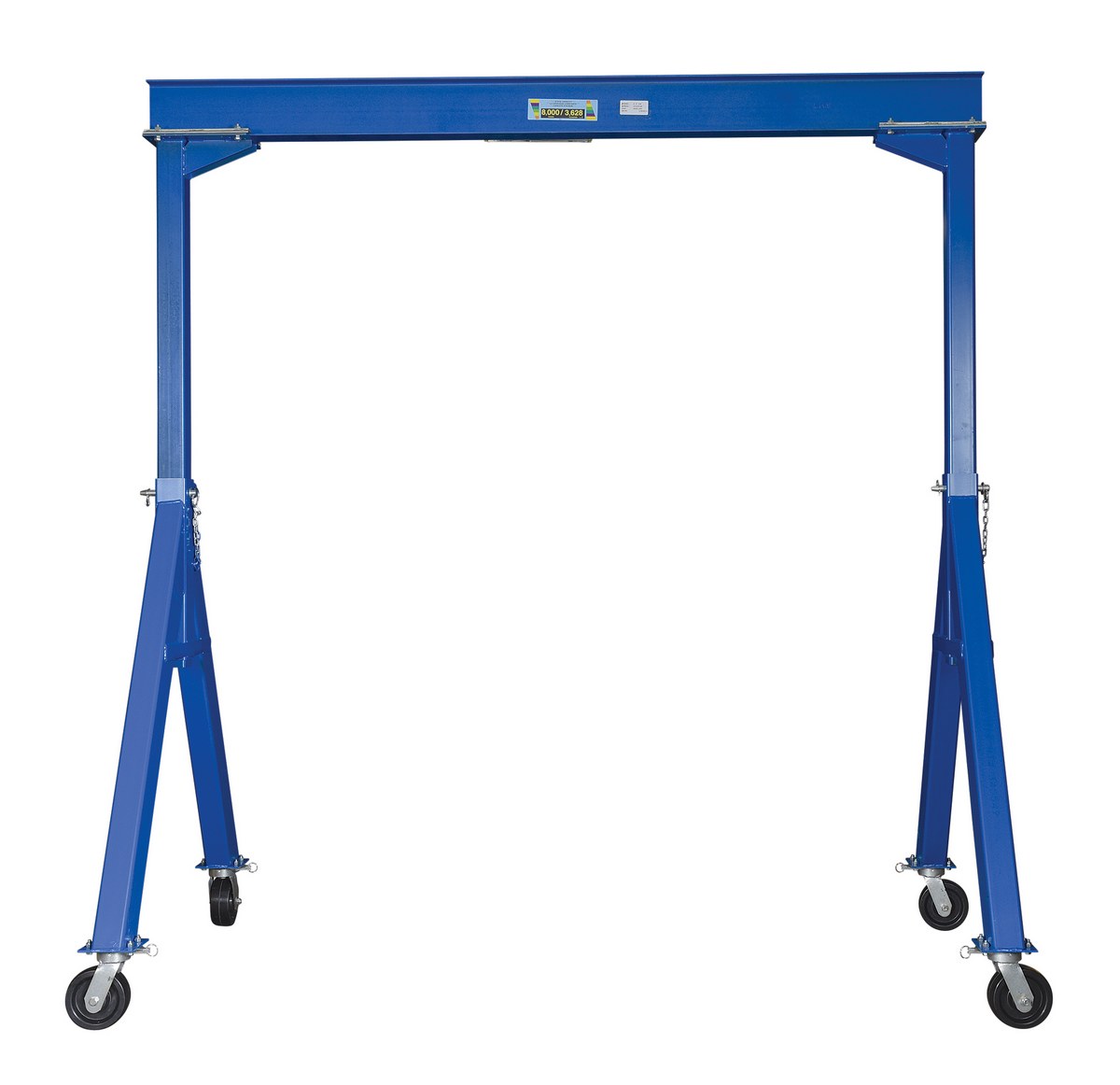

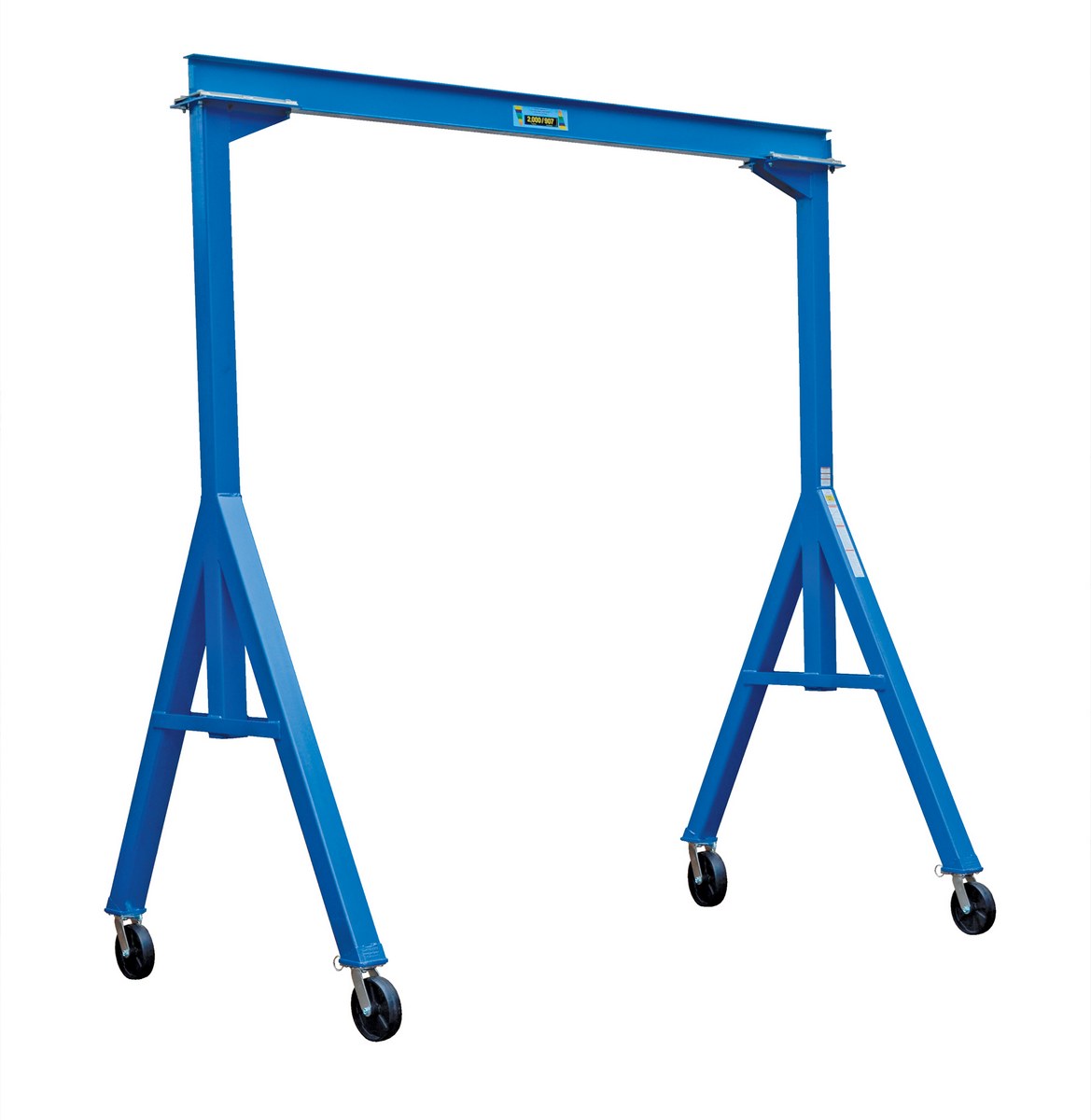

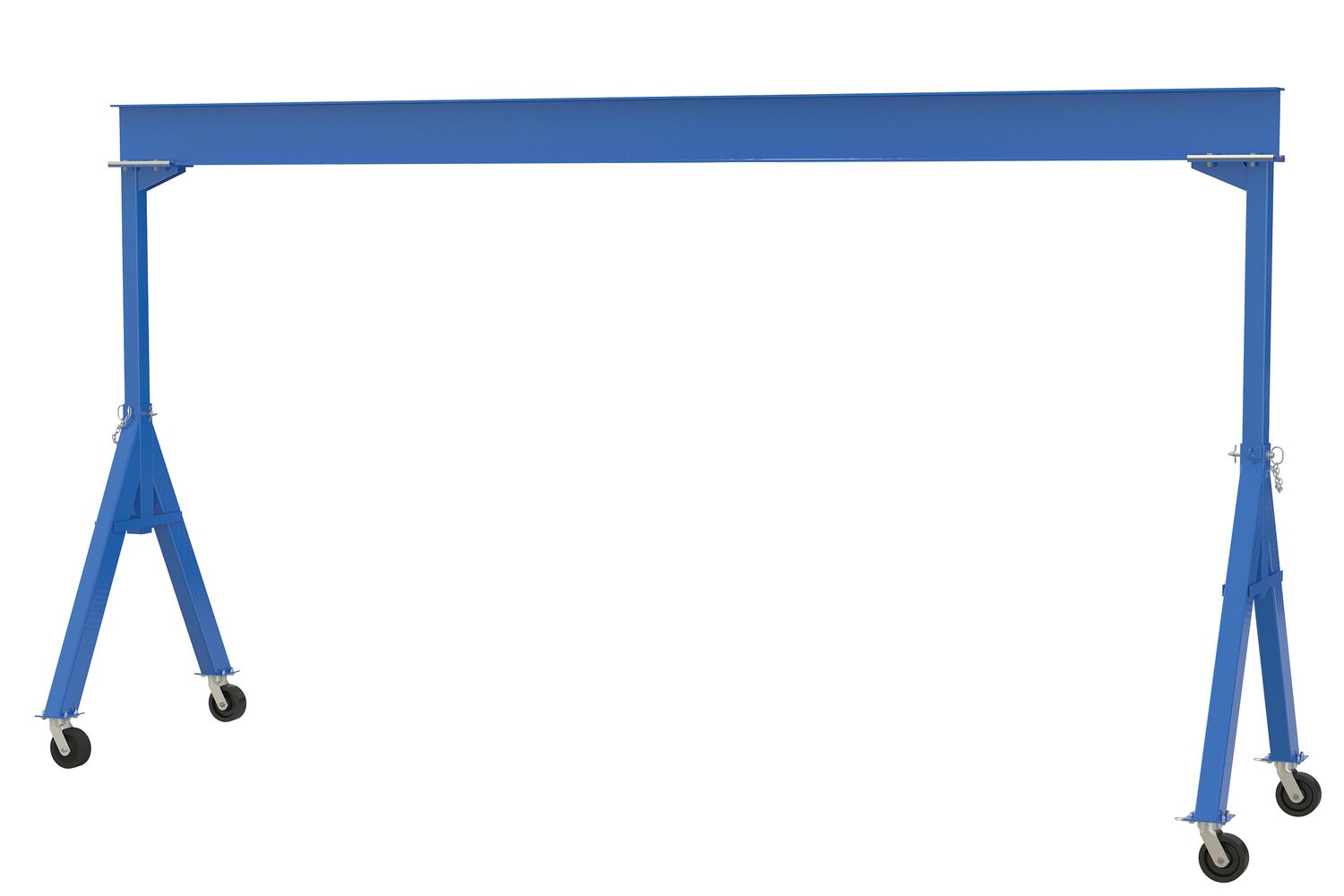

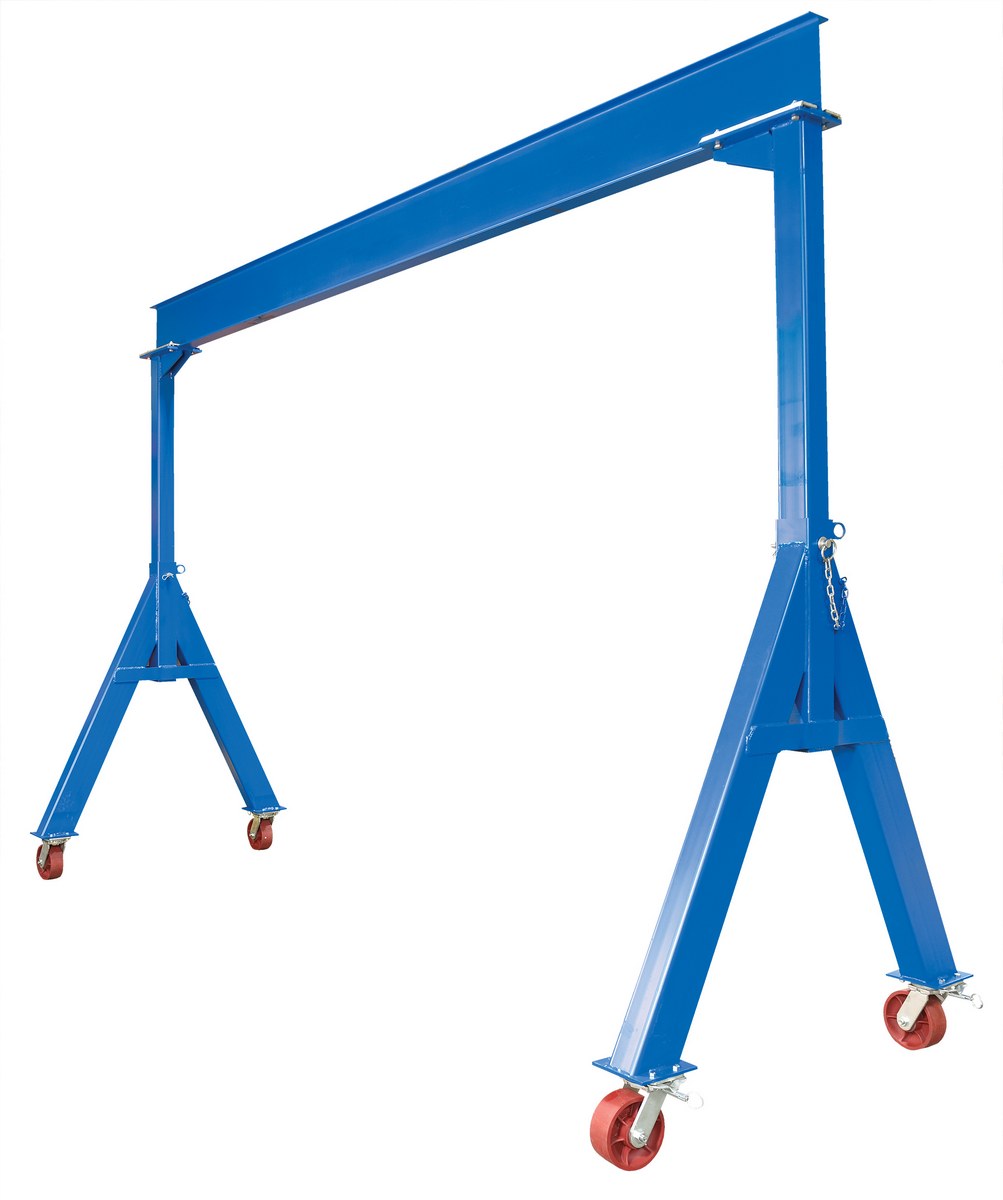

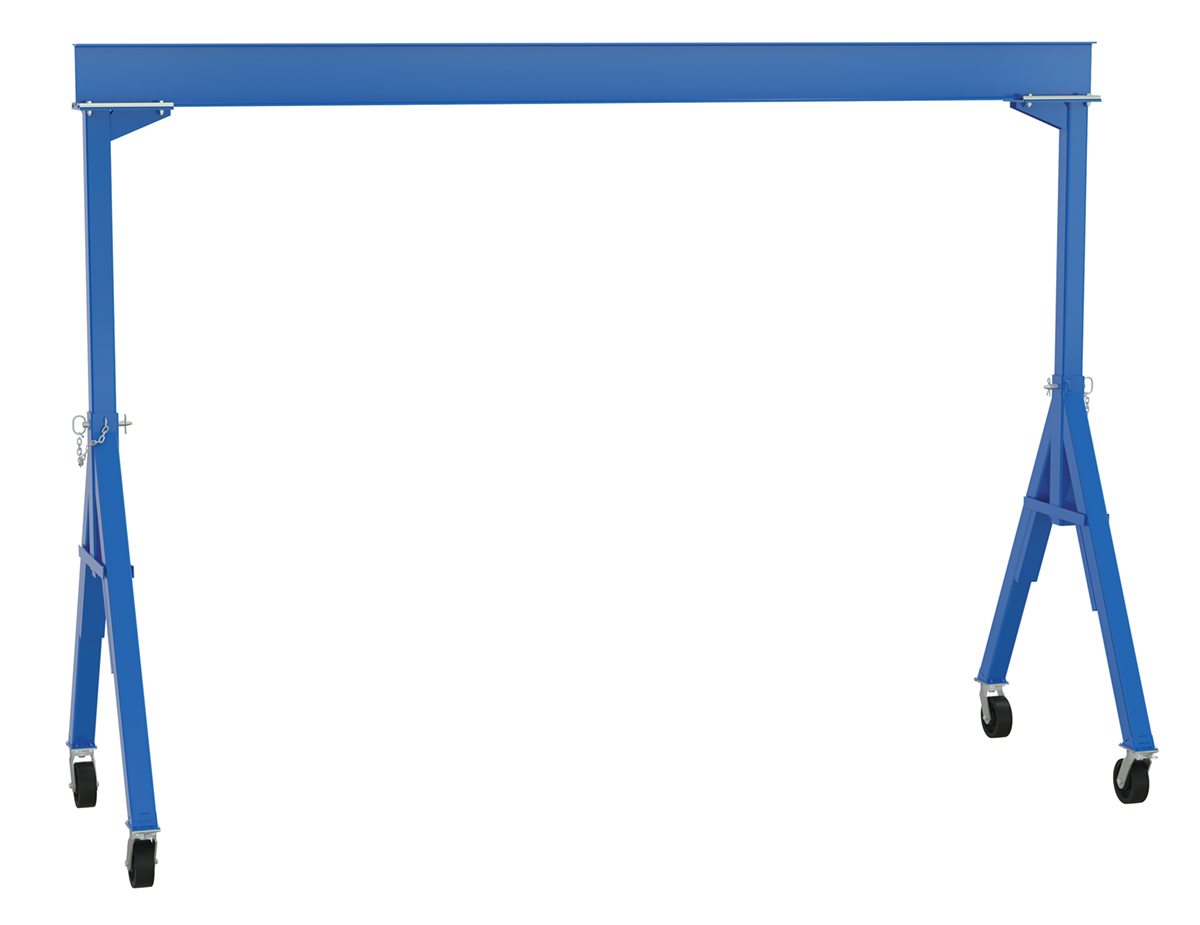

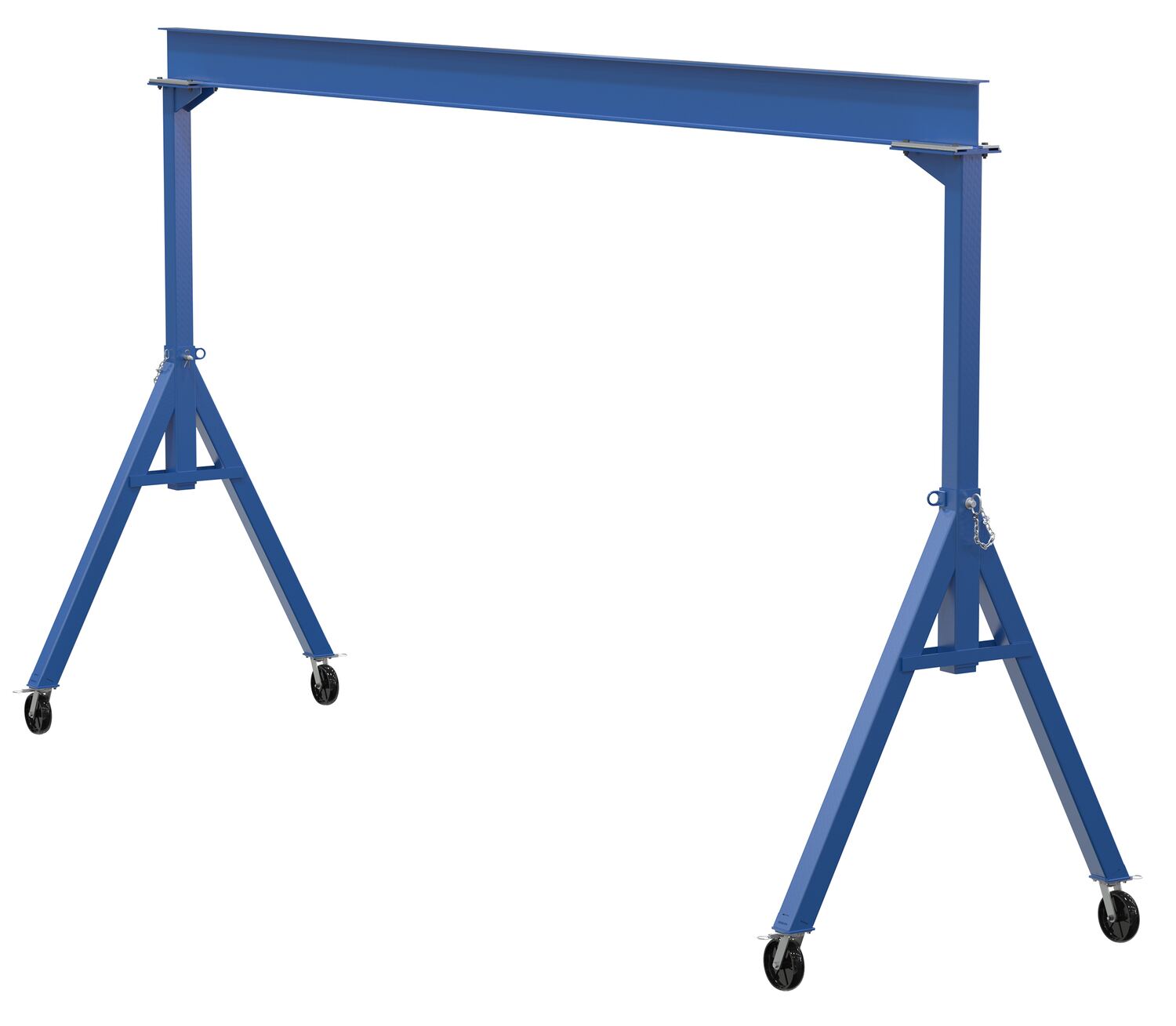

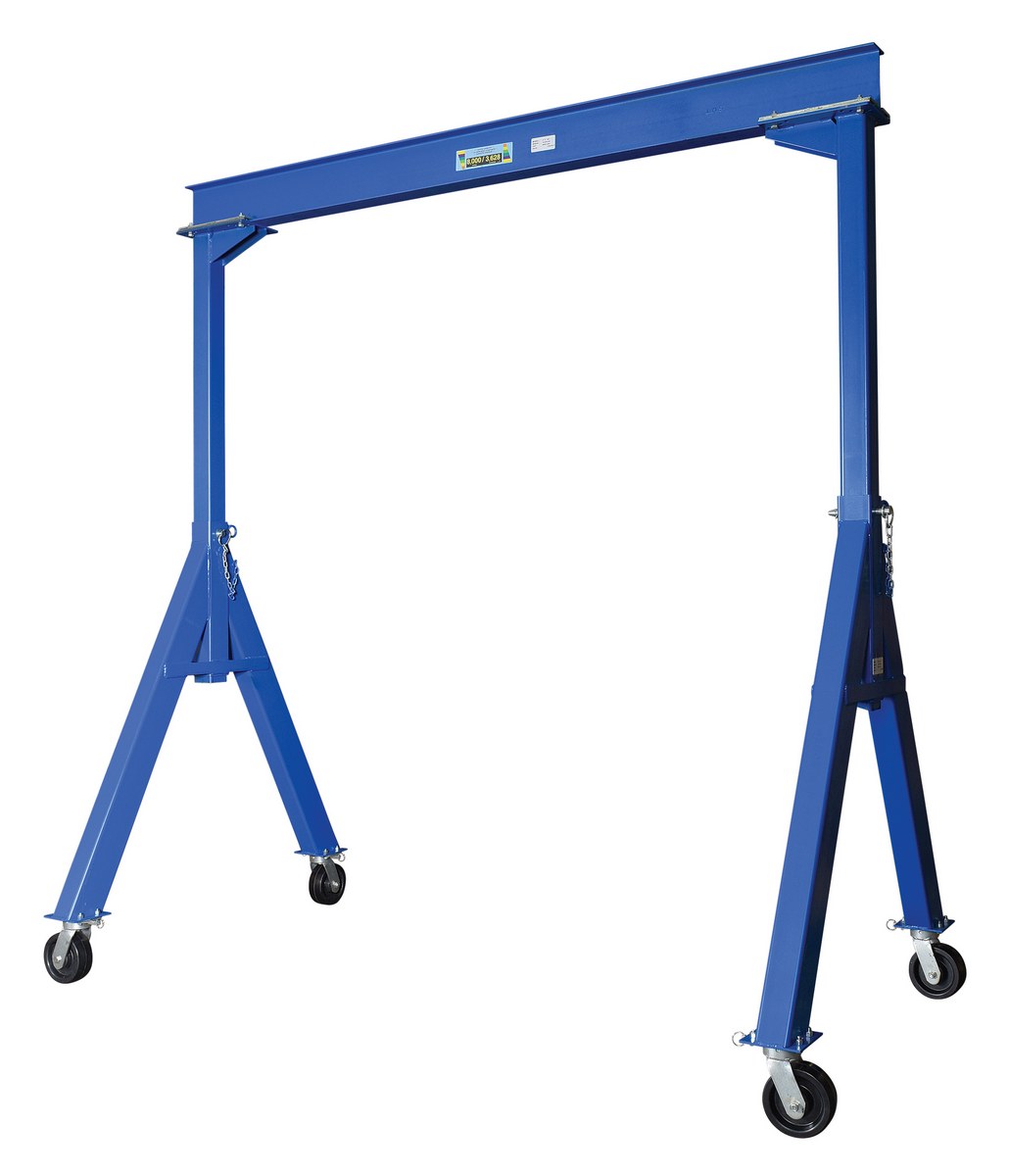

Heavy-Duty Fixed Height Gantry Cranes for Material Lifting and Positioning

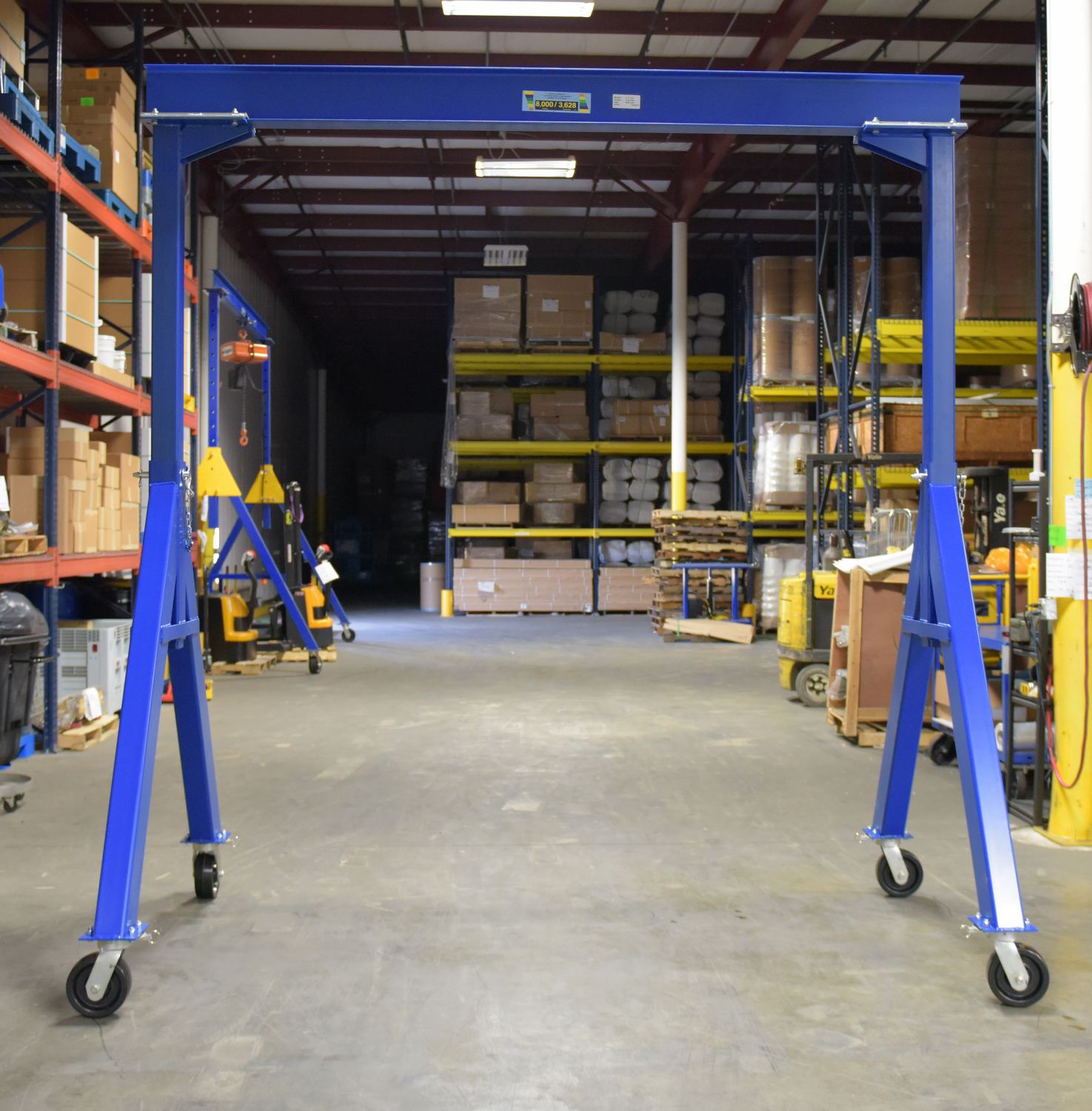

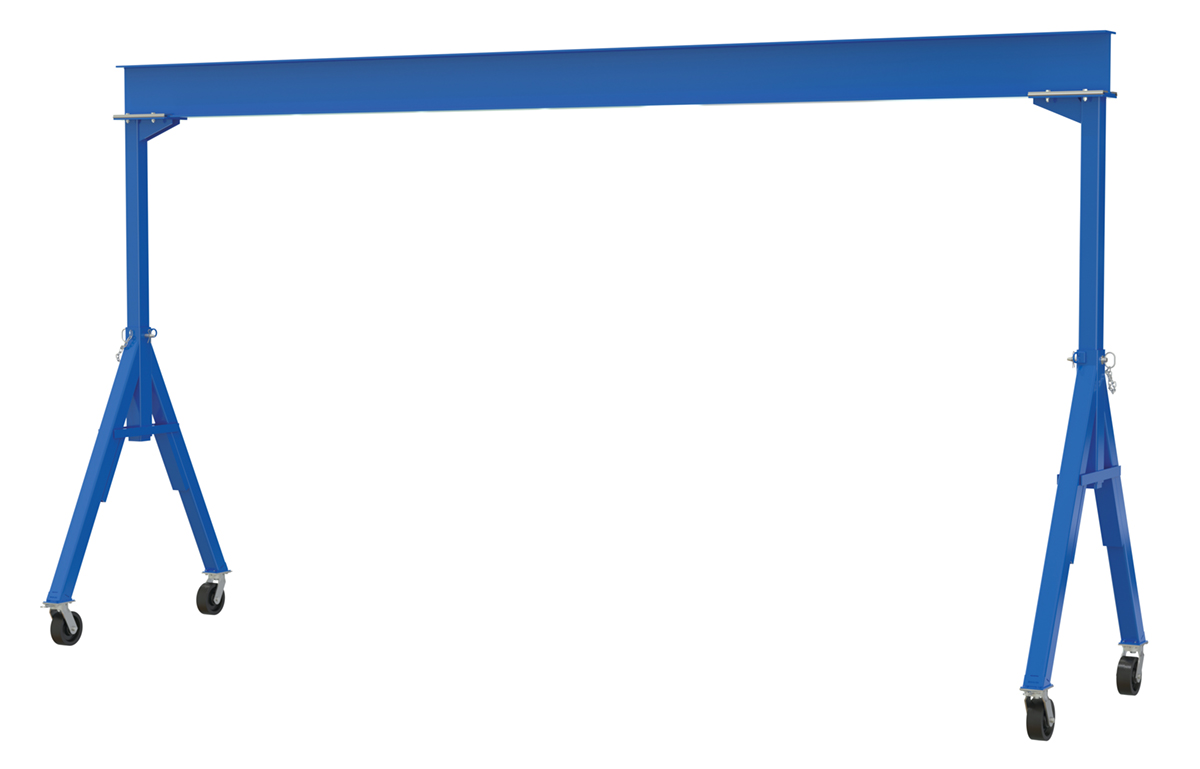

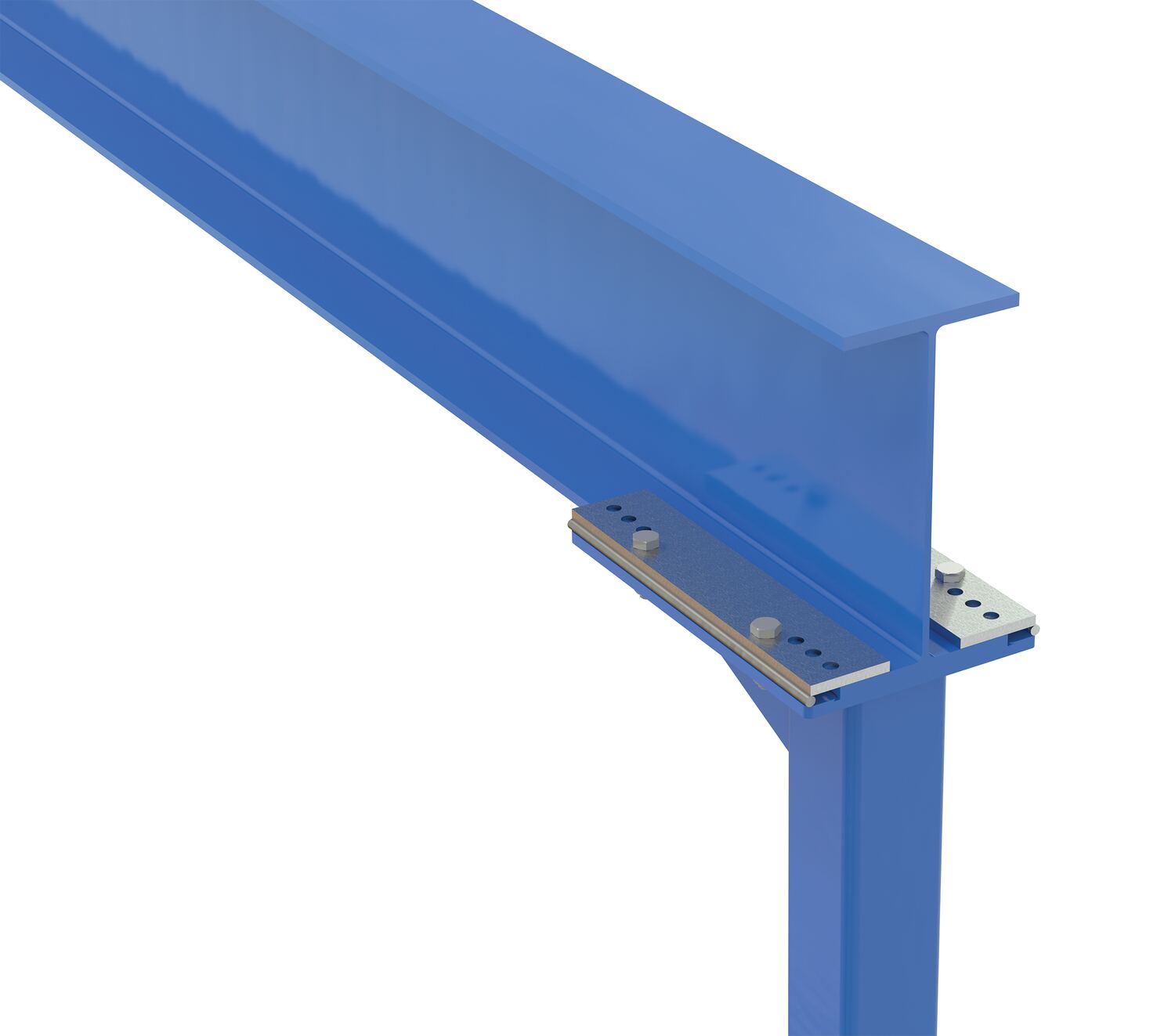

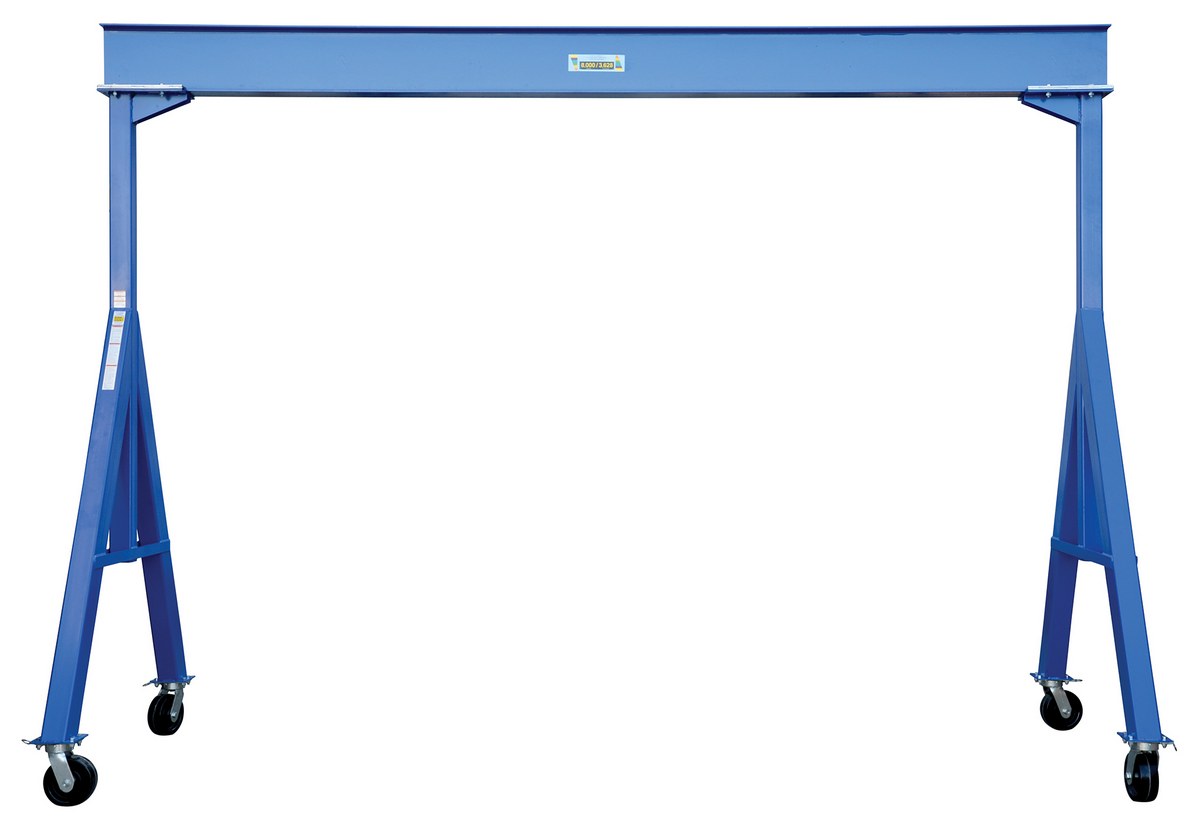

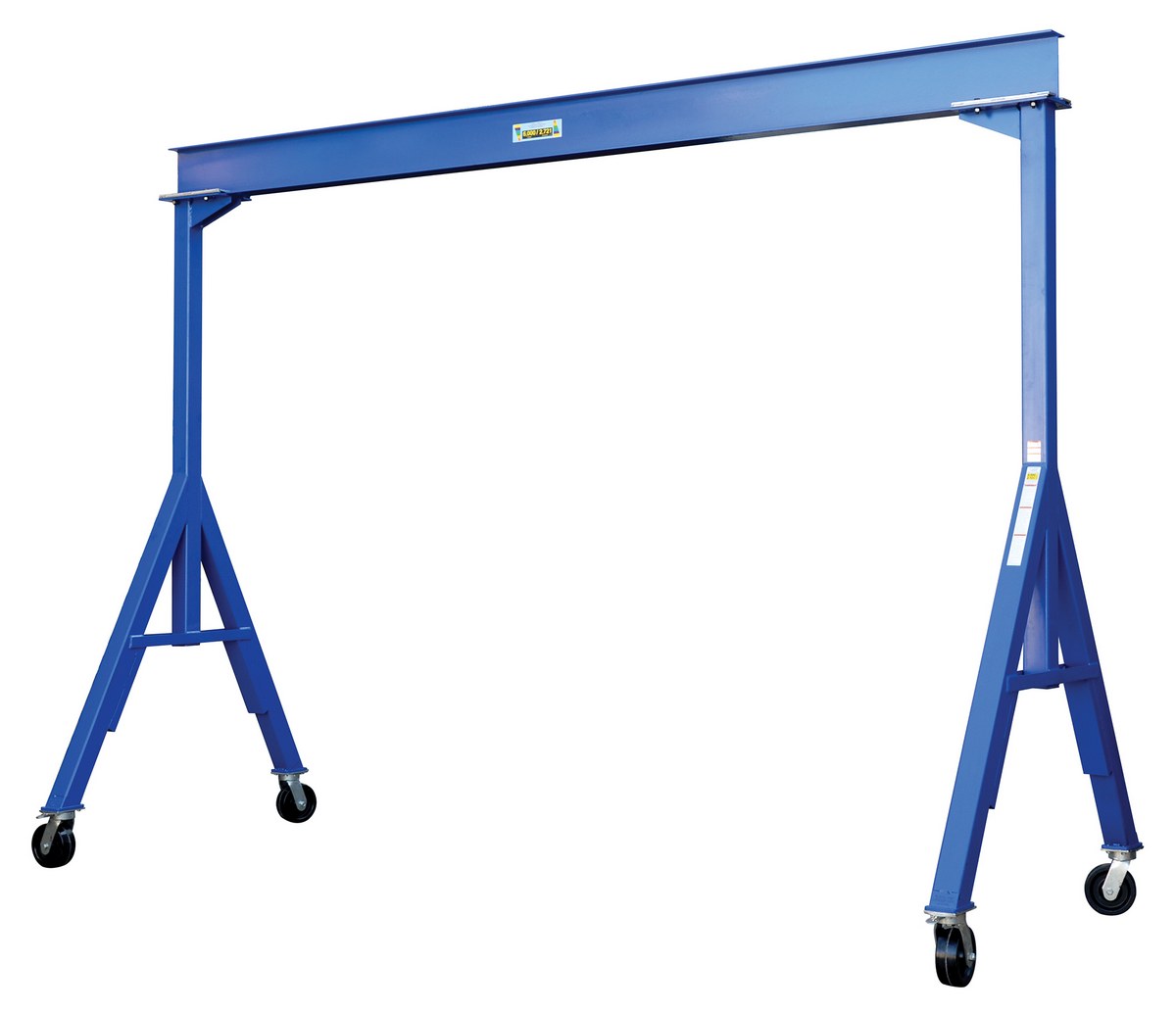

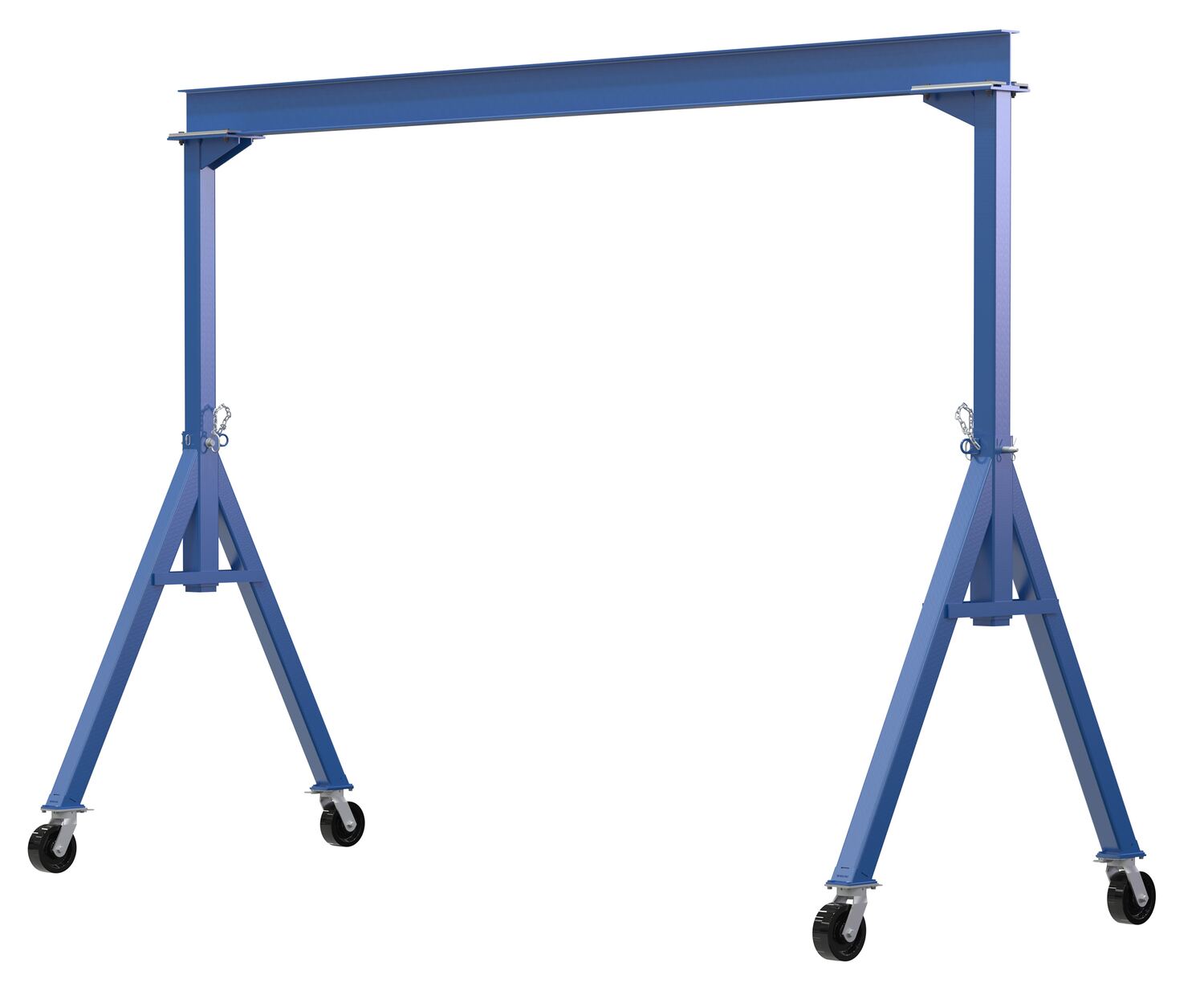

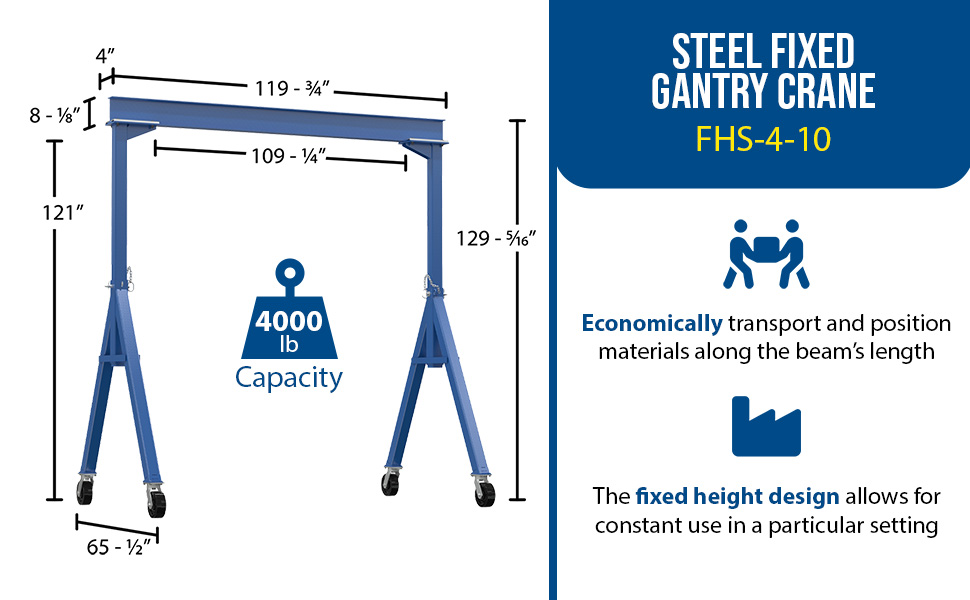

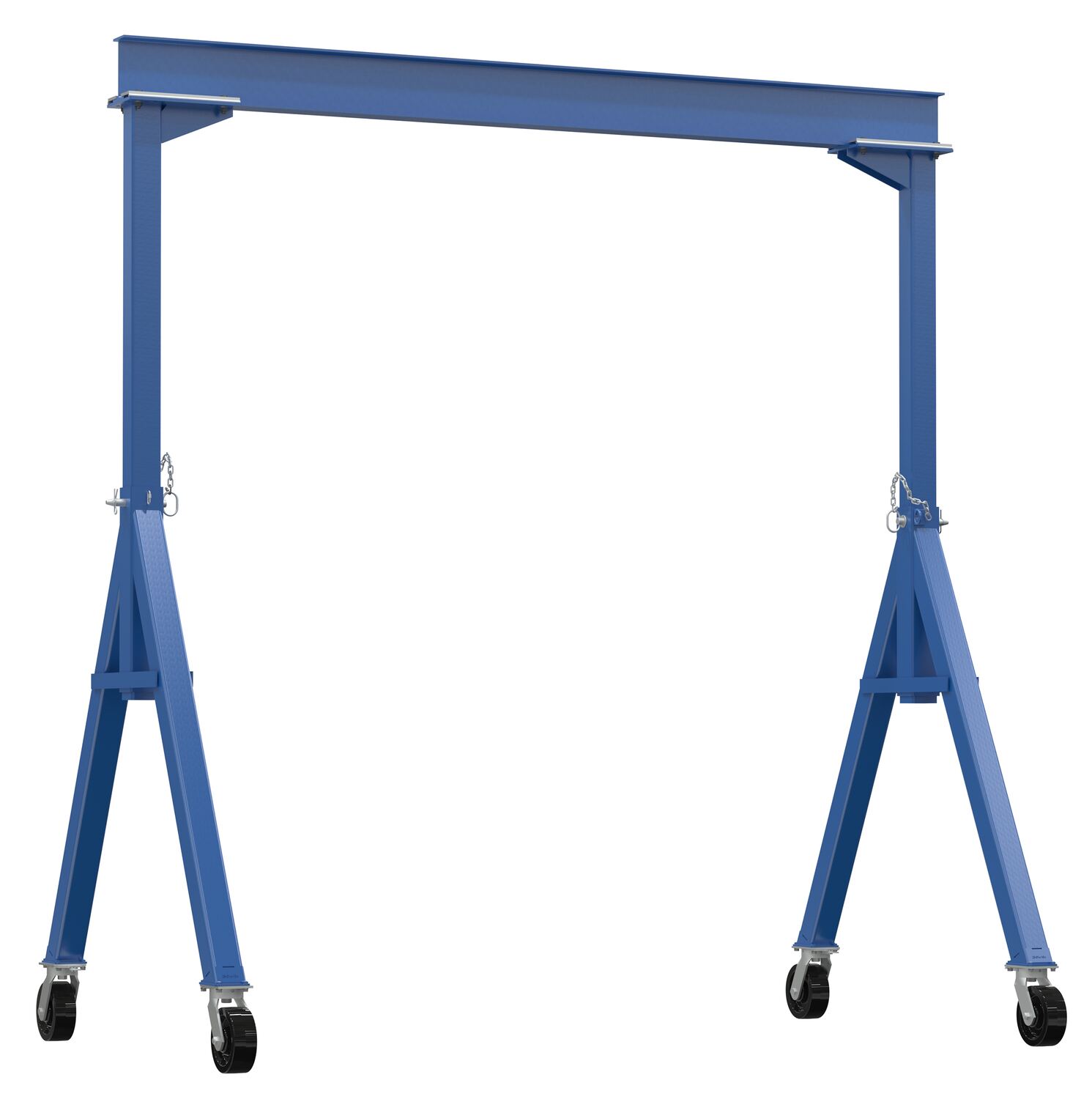

Fixed Height Steel Gantry Cranes provide a reliable and economical solution for lifting, transporting, and positioning heavy materials in manufacturing facilities, maintenance shops, warehouses, fabrication operations, and industrial workspaces. Designed for movement along the length of the I-beam, these overhead lifting systems offer a stable, fixed-height structure that simplifies repetitive lifting tasks while reducing reliance on forklifts and additional personnel. Their rugged steel construction and durable powder-coated finish ensure long-term performance in demanding environments.
Key Features & Benefits
Engineered for strength and mobility, these gantry cranes are available in a range of beam lengths and lifting capacities to accommodate diverse material handling requirements. Four swivel casters with multi-position locking capability allow operators to safely move the crane forward, backward, or sideways while maintaining control during positioning. The fixed-height design eliminates the need for height adjustments, providing consistent lifting clearance and dependable operation. Heavy-duty welded steel construction delivers exceptional structural integrity, while compliance with applicable OSHA, ANSI, and ASME standards promotes workplace safety and confidence.
Applications
These portable gantry cranes are ideal for machinery maintenance, equipment installation, tool and die handling, fabrication shops, assembly operations, and material transfer applications. They create an efficient overhead lifting solution for facilities that require flexibility without the expense of permanent overhead crane systems.
Configurations & Options

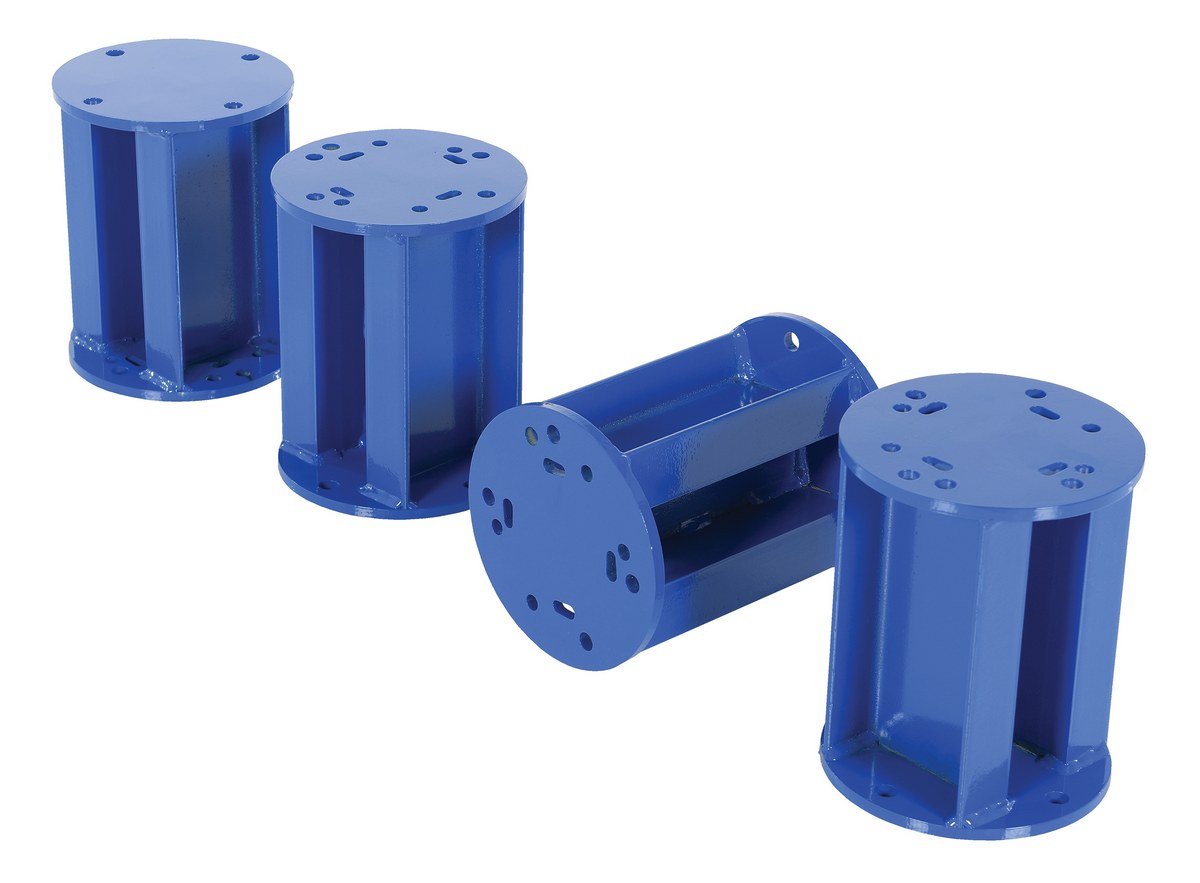

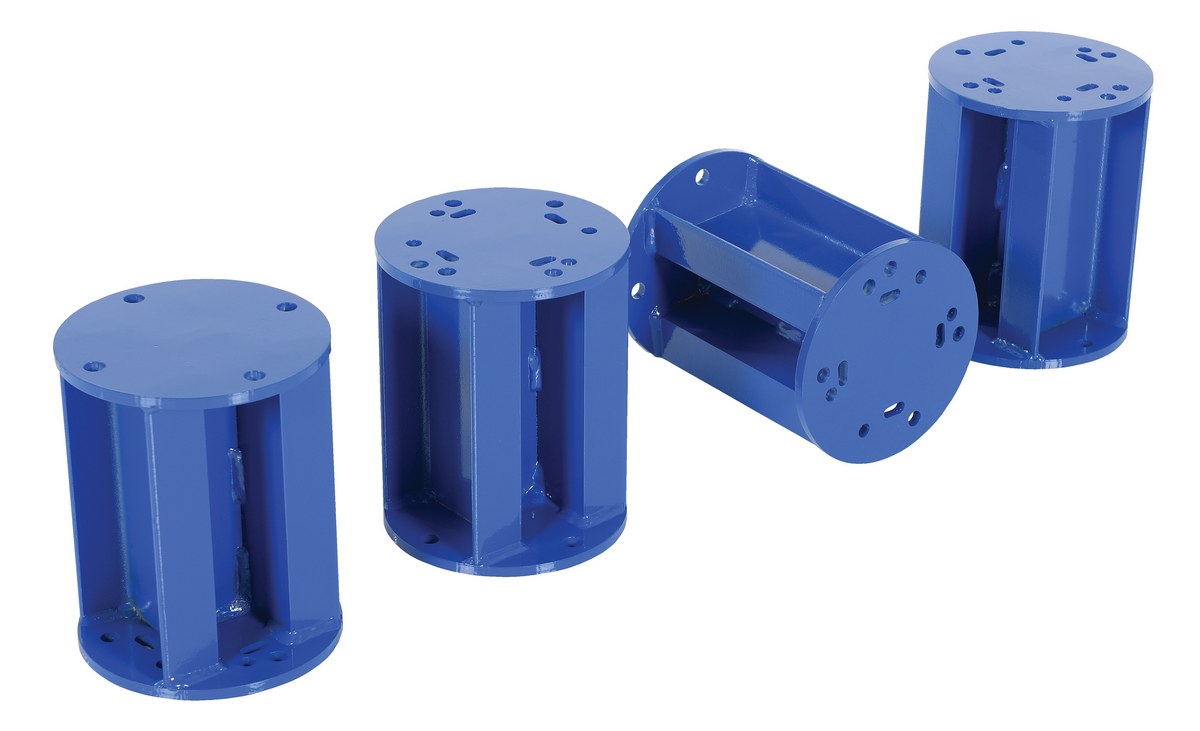

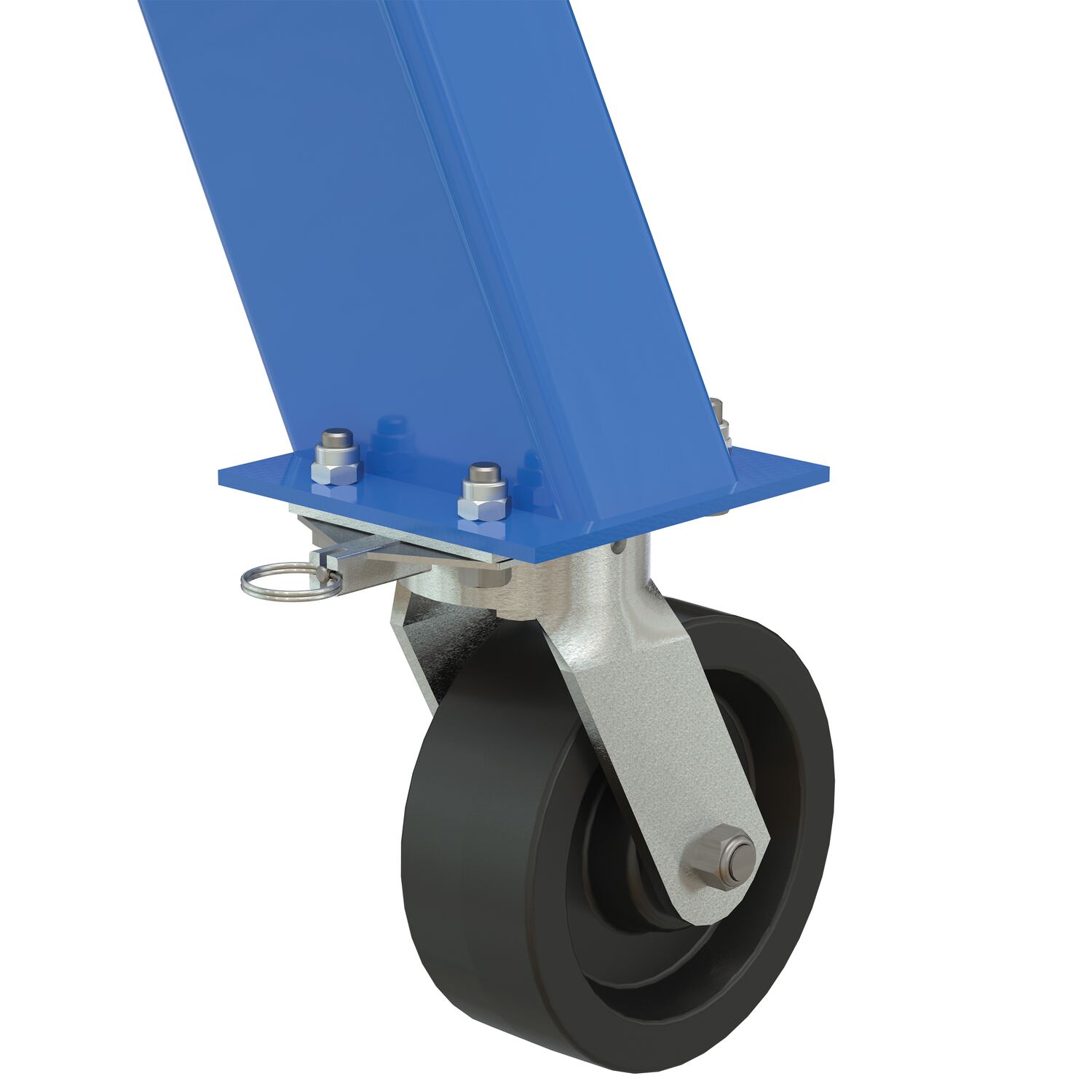

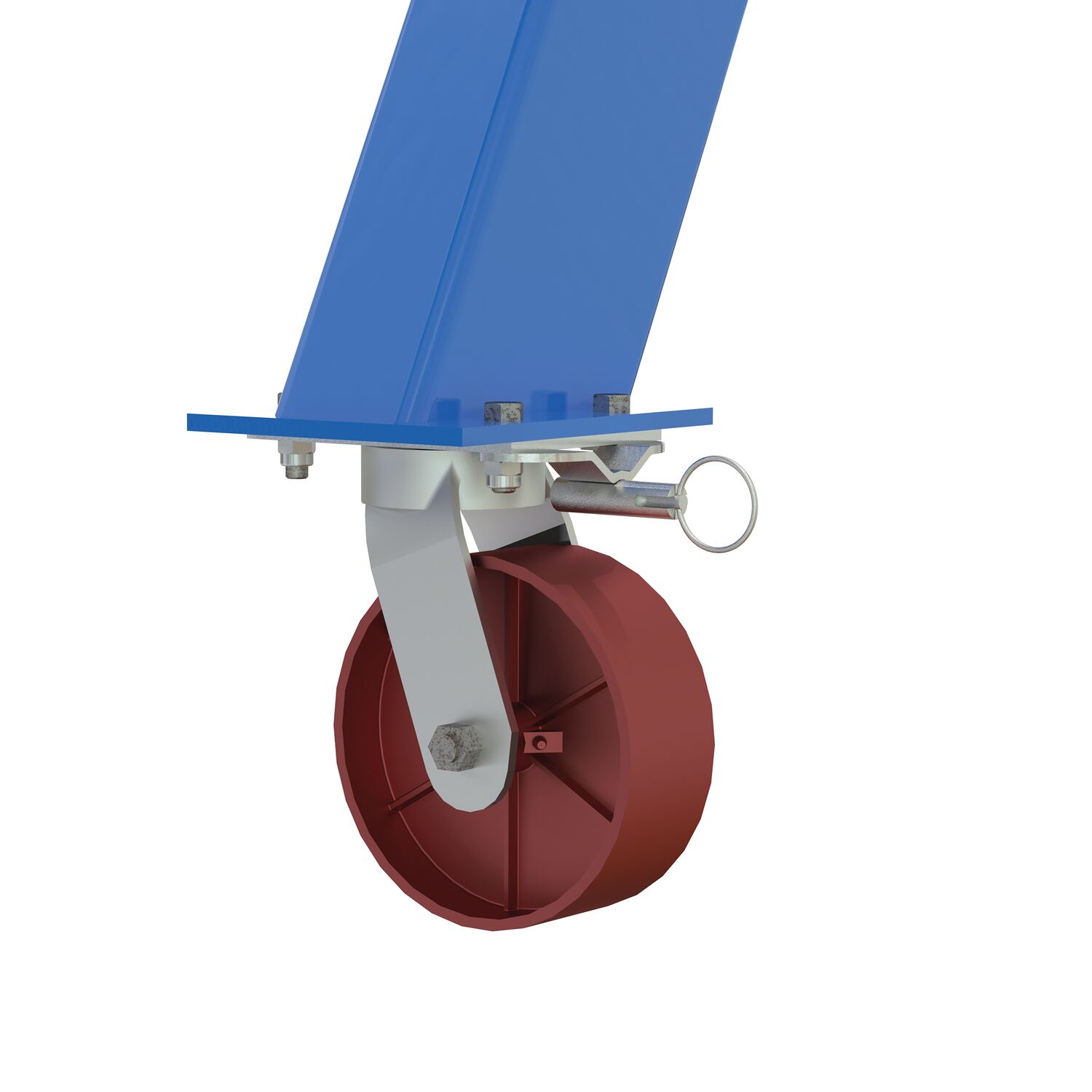

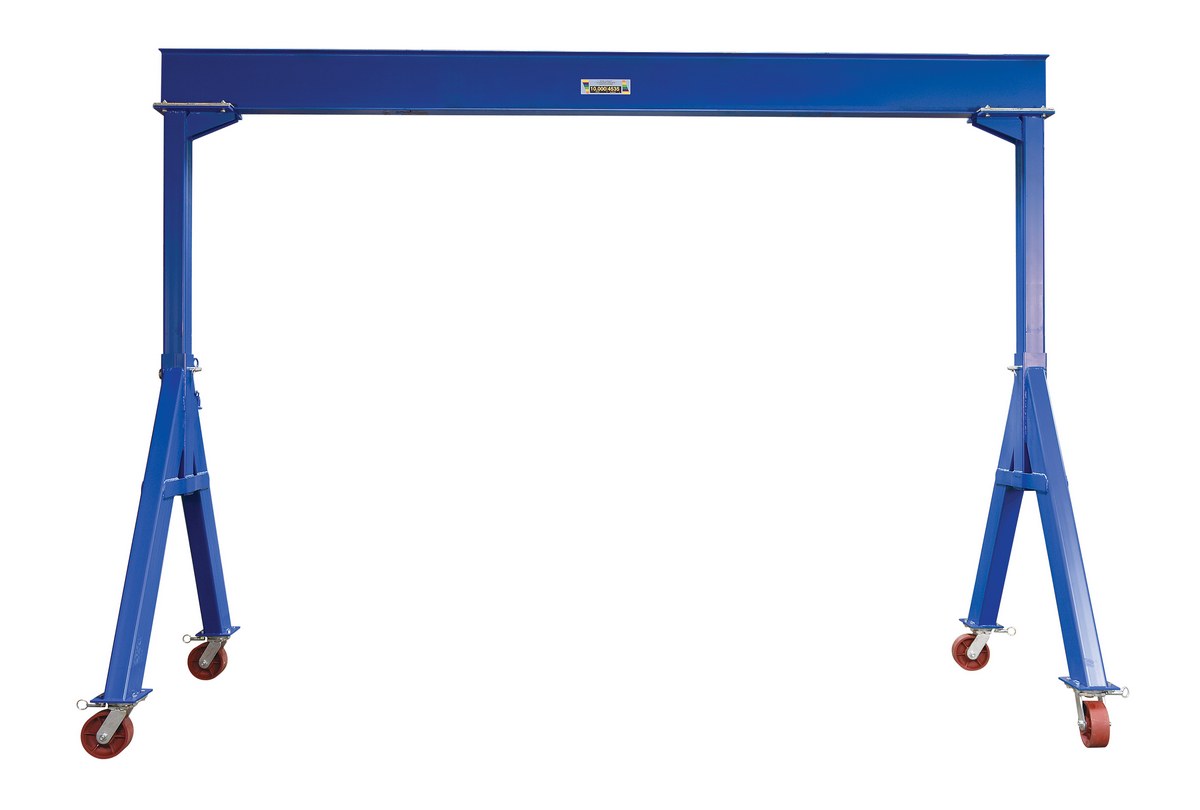

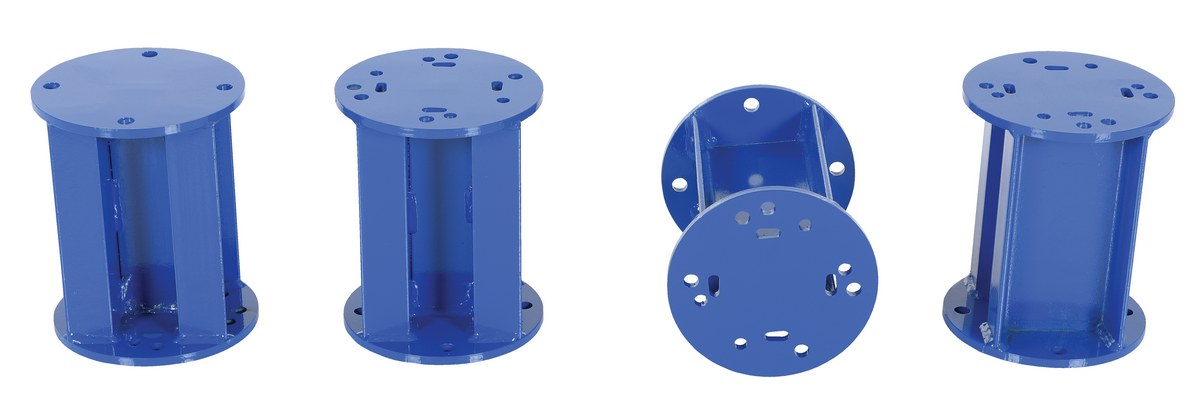

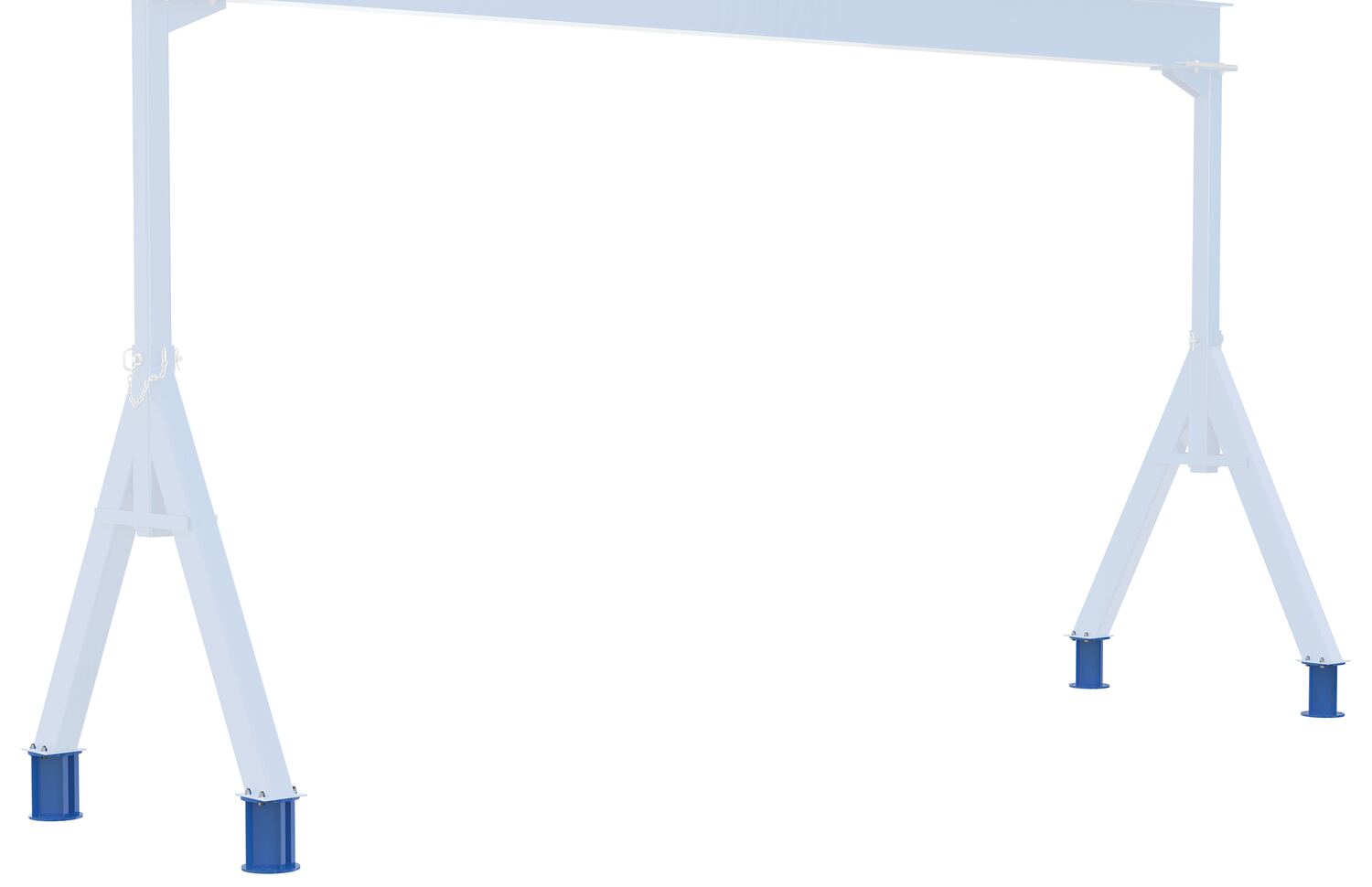

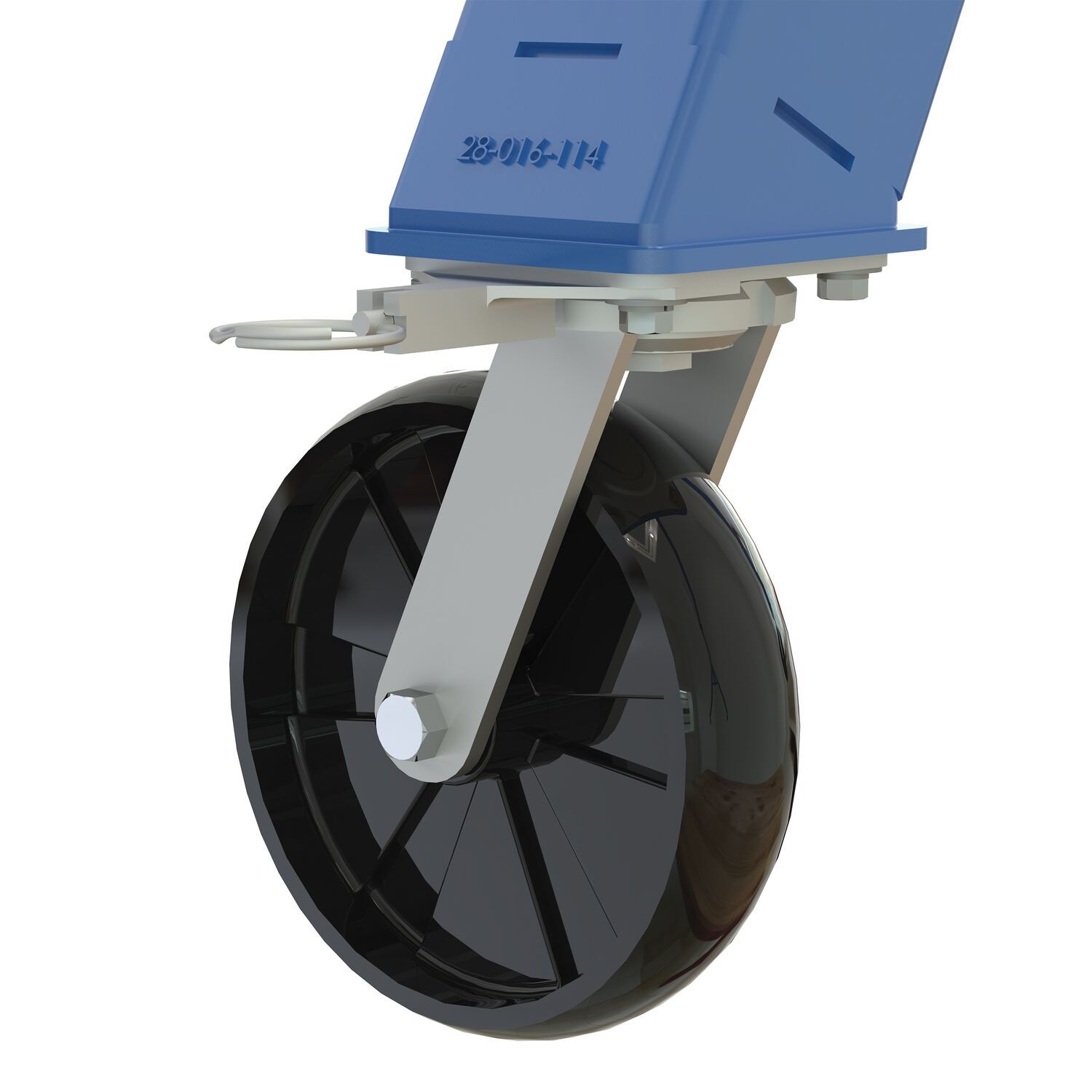

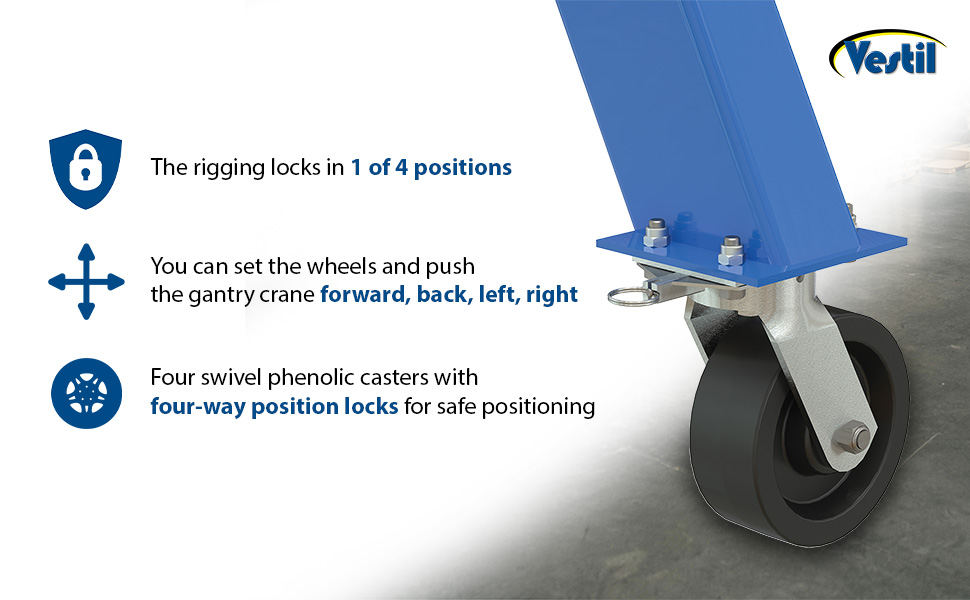

The product family includes multiple beam lengths, under-beam clearances, and capacities ranging from light-duty to heavy industrial lifting applications. Optional stationary leg kits are available for facilities that require a semi-permanent crane installation. Compatible with a variety of hoists and trolleys (which can be ordered seperately), these cranes can be configured to meet specific operational requirements while maximizing productivity and lifting efficiency. Unit comes standard four (4) position locking swivel casters with roller bearings (2K units have glass filled nylon casters. 4K-8K units have phenolic casters. 10K model has steel casters). The rigging locks in 1 of 4 positions; you can set the wheels and push the gantry crane forward, back, left or right. The fixed height design allows for constant use in a particular setting without the need to maneuver the overall height of the unit.

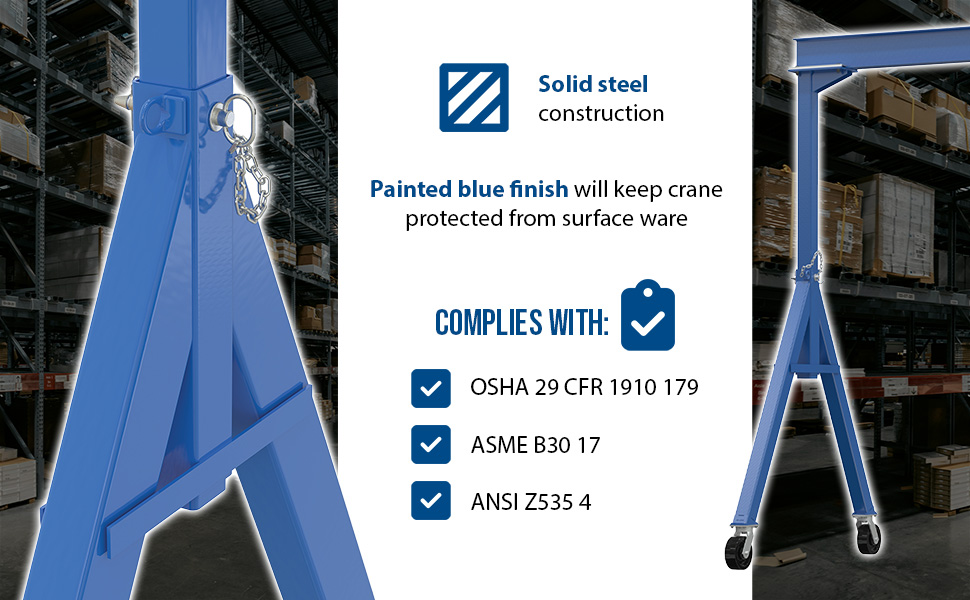

All units comply with applicable OSHA 29 CFR 1910 179, ASME B30 17, ANSI Z535 4 specifications
